390-014

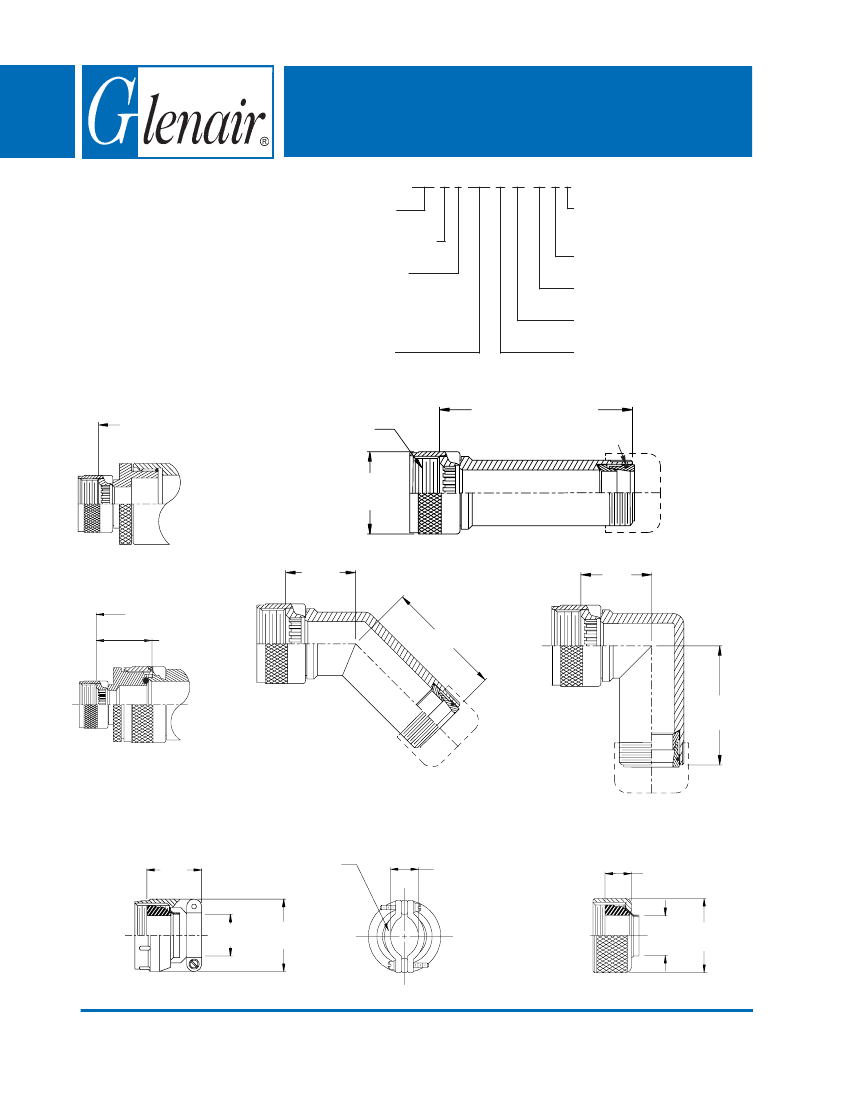

Water-Tight EMI/RFI Cable Sealing Backshell
with Strain Relief
Type A - Rotatable Coupling - Standard Profile
39
CONNECTOR
DESIGNATOR
390 G S 014 M 17 10 C 6
Product Series
Connector Designator
Strain Relief Style (C, E)
Angle and Profile
H = 45°
J = 90°
S = Straight
Basic Part No.
Cable Entry (Tables X, XI)
Shell Size (Table I)
Finish (Table II)
Length ± .060 (1.52)
Min. Order Length
1.5 Inch
(See Note 4) O-Ring
Length: S only (1/2 inch incre-
ments: e.g. 6 = 3 inches)
G
ROTATABLE
COUPLING
TYPE A OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4)
A Thread
(Table I)
C Typ.
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
Length ± .060 (1.52)
1.25 (31.8)
Max
E
(Table III)
G
(Table III)
F (Table III)
H (Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE C
Medium Duty
(Table X)
Clamping
Bars
STYLE E
Medium Duty
(Table XI)
X (See
Note 5)
Y
T
Cable
Range
W
Cable
Range
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 20
with Strain Relief
Type A - Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell
E
F
G
Size
Max
Max
Max
11 1.240 (31.5) 1.050 (26.7) 1.380 (35.1)
13 1.260 (32.0) 1.070 (27.2) 1.440 (36.6)
15 1.290 (32.8) 1.100 (27.9) 1.500 (38.1)
17 1.310 (33.3) 1.120 (28.4) 1.570 (39.9)
19 1.340 (34.0) 1.150 (29.2) 1.630 (41.4)
23 1.380 (35.1) 1.190 (30.2) 1.730 (43.9)
25 1.410 (35.8) 1.220 (31.0) 1.800 (45.7)
29 1.580 (40.1) 1.390 (35.3) 2.040 (51.8)
33 1.620 (41.1) 1.430 (36.3) 2.130 (54.1)
H
Max
1.190 (30.2)
1.250 (31.8)
1.320 (33.5)
1.380 (35.1)
1.460 (37.1)
1.540 (39.1)
1.610 (40.9)
1.850 (47.0)
1.940 (49.3)
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
T
Max
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.219 (31.0)
1.281 (32.5)
1.281 (32.5)
1.406 (35.7)
1.656 (42.1)
1.906 (48.4)
1.906 (48.4)
2.000 (50.8)
TABLE X: CABLE ENTRY
Cable Range
X
W
Ref
Min
Max
Max
.156 (4.0)
.135 (3.4)
.812 (20.6)
.219 (5.6)
.203 (5.2)
.188 (4.8)
.937 (23.8)
.312 (7.9)
.281 (7.1)
.285 (7.2)
1.062 (27.0)
.438 (11.1)
.350 (8.9)
.312 (7.9)
1.188 (30.2)
.531 (13.5)
.390 (9.9)
.375 (9.5)
1.312 (33.3)
.625 (15.9)
.460 (11.7)
.500 (12.7)
1.562 (39.7)
.750 (19.1)
.510 (13.0)
.625 (15.9)
1.750 (44.5)
.938 (23.8)
.938 (23.8)
.695 (17.7)
2.250 (57.2)
1.250 (31.8)
.715 (18.2)
1.000 (25.4)
2.375 (60.3)
1.375 (34.9)
.915 (23.2)
1.250 (31.8)
2.625 (66.7)
1.625 (41.3)
1.070 (27.2)
1.500 (38.1)
2.812 (71.4)
1.875 (47.6)
Dash
No.
03
04
06
08
10
12
16
20
24
28
32
TABLE XI: CABLE ENTRY
Cable Range
Y
Z
Max
Max
Max
Min
.219 (5.6)
.739 (18.8)
.812 (20.6)
.156 (4.0)
.312 (7.9)
.739 (18.8)
.937 (23.8)
.188 (4.8)
.438 (11.1)
.739 (18.8)
1.062 (27.0)
.281 (7.1)
.531 (13.5)
.739 (18.8)
1.188 (30.2)
.312 (7.9)
.625 (15.9)
.791 (20.1)
1.312 (33.3)
.375 (9.5)
.750 (19.1)
.880 (22.4)
1.562 (39.7)
.500 (12.7)
.938 (23.8)
.901 (22.9)
1.750 (44.5)
.625 (15.9)
1.250 (31.8)
1.031 (26.2)
2.250 (57.2)
.938 (23.8)
1.375 (34.9)
1.250 (31.8)
2.375 (60.3)
1.000 (25.4)
1.625 (41.3)
1.250 (31.8)
2.625 (66.7)
1.250 (31.8)
1.875 (47.6)
1.312 (33.3)
2.812 (71.4)
1.500 (38.1)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions
E, F, G and H will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Saddles are bottomed on
clamp ears.
Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 21
39
390-014
Water-Tight EMI/RFI Cable Sealing Backshell
