811-007
Harsh Environment Cordsets

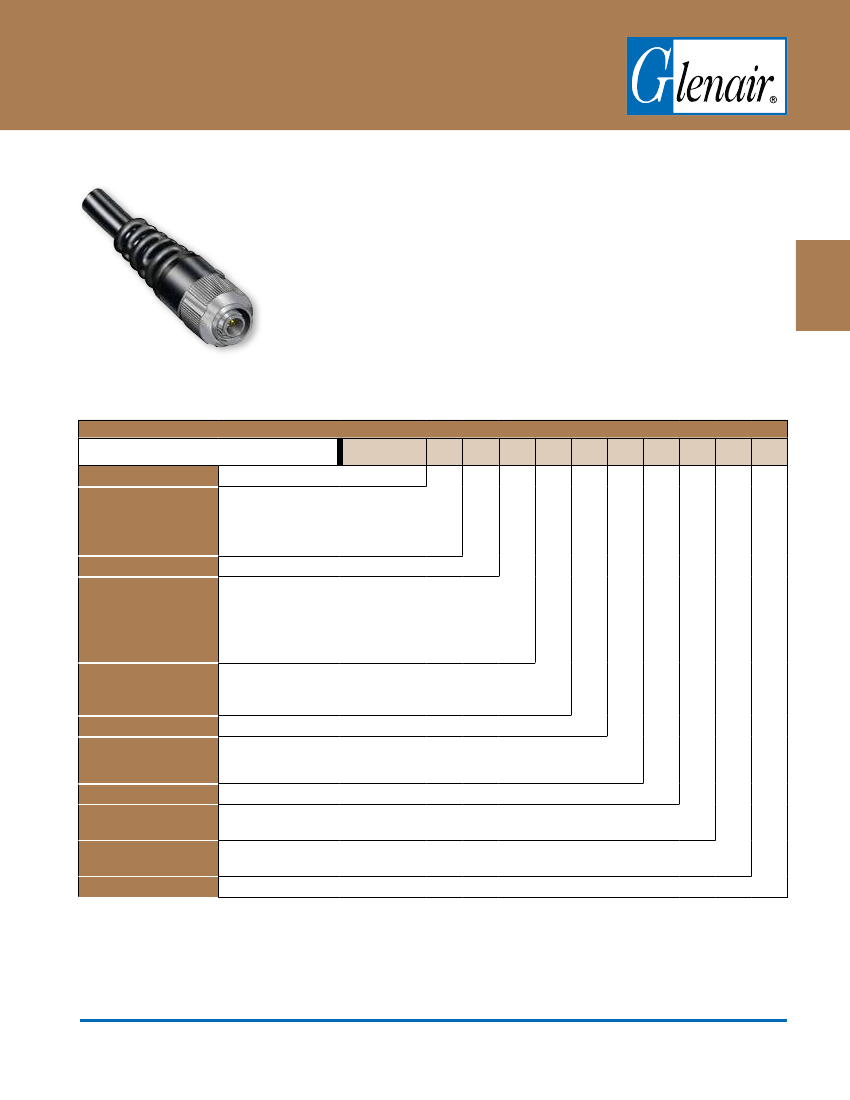

Overmolded Series 811 cordsets withstand abrasion
and chemical exposure. Cable construction features silver coated stranded
conductors with TFE insulation, tinned copper braid shield and extruded black
polyurethane jacket. Choose single-ended pigtails or double-ended "back-to-back"
cables. Semi-rigid polyamide overmold provides strain relief and environmental
sealing.
Tough polyurethane
jacket, low-smoke, zero
halogen
Water-resistant to 1 meter
100% electrically tested
How To Order
Sample Part Number
Series
Shielded with 90%
minimum tinned copper
braid
Straight or right angle
Easy to order, quick
delivery
S
6
MT
5-7
P
A
-60
811-007
811-007
= Overmoled Cordset
-A
= Plug with Female Socket Contacts
-B
= Plug with Male Pin Contacts
-C
= Receptacle with Male Pin Contacts
-D
= Receptacle with Female Socket Contacts
S
= Straight
R =
Right Angle
A
= Plug with Female Socket Contacts
B
= Plug with Male Pin Contacts
-A
S
C
End "A" Connector
End "A" Configuration
End "B" Connector
C
= Receptacle with Male Pin Contacts
D
= Receptacle with Female Socket Contacts
N
= No Connector (Single-Ended Pigtail)
S
= Straight
R =
Right Angle
(Omit For Single-Ended Pigtail)
6
= #26 Awg
ME
= Aluminum/Electroless Nickel
MT
= Aluminum/Nickel-PTFE
ZR
= Aluminum/Black Zinc-Nickel
5-7, 6-12, 7-22, 8-30, 9-42
P
= Metal Protective Covers Included
N
= No Protective Covers
A
= Normal
Alternate Key Positions:
B, C, D, E, F
Overall Length In Inches (12 Inch Minimum)
ZNU
= Aluminum/Zinc-Nickel
with Black Chromate
Z1
=
Stainless Steel/Passivated
End "B" Configuration
Wire Size
Shell Finish
Layout (Shell Size-Cont.)
Protective Cover
Key Postion
Length in Inches
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-15
E-Mail: sales@glenair.com

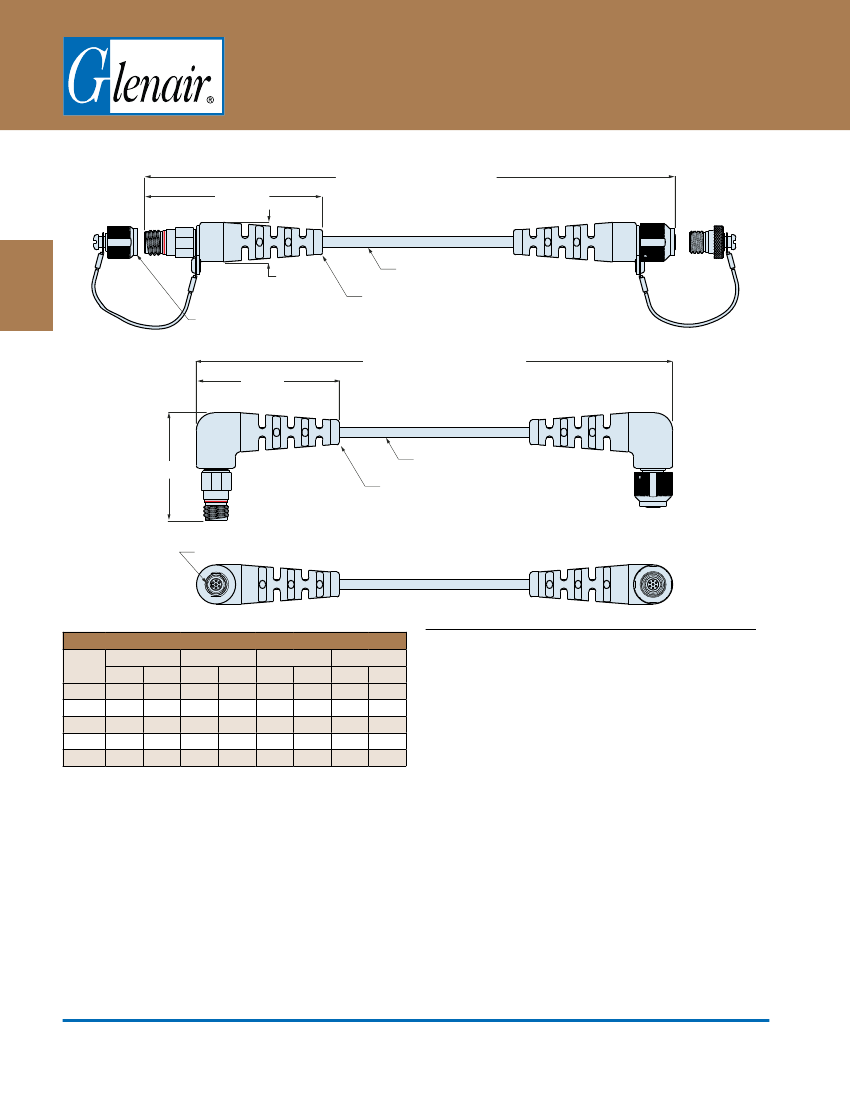

Mighty Mouse
High Density
Series 811 Mighty Mouse High Density (HD)
Harsh Environment Cordsets
L
Series 811 Mighty Mouse High Density (HD)
Harsh Environment Cordsets
811-007
Mighty Mouse
High Density
A MAX
LENGTH + 2.00/ -0.00
(+50.1 / -0.0)
12 INCH (300 MM.) MINIMUM
L
B MAX
OPTIONAL PROTECTIVE
COVER
SHIELDED, JACKETED
CABLE
WATER-RESISTANT
OVERMOLD
D MAX
LENGTH + 2.00/ -0.00
(+50.1 / -0.0)
12 INCH (300 MM.) MINIMUM
C MAX
SHIELDED, JACKETED
CABLE
WATER-RESISTANT
OVERMOLD
MASTER KEY LOCATED 180°
FROM CABLE EXIT
Dimensions
Shell
Size
5
6
7
8
9
A Max.
In.
2.50
2.50
2.50
2.60
2.90
mm.
63.5
63.5
63.5
66.0
73.7
B Max.
In.
0.60
0.60
0.70
0.75
0.85
mm.
15.3
15.3
17.8
19.1
21.6
C Max.
In.
2.20
2.20
2.40
2.50
2.70
mm.
55.9
55.9
61.0
63.5
68.6
D Max.
In.
1.50
1.50
1.50
1.60
1.90
mm.
38.1
38.1
38.1
40.7
48.3
Material and Finishes
• Cable Jacket Material: Thermoplastic Polyurethane, Black,
Low-Smoke, Zero-Halogen
• Cable Shield: Tin-Coated Copper Braid, 90% Minimum
Coverage
• Conductors: Silver Coated Stranded Wire, TFE Insulated, Per
M22759/11
• Band-Master™ ATS Shield Termination Band: Stainless Steel
• Current Rating: 3 A.
• Test Voltage (Dielectric Withstanding Voltage): 600 VAC Sea
Level
• Insulation Resistance: 200 megohms minimum
• Operating Temperature: -30° C. to +105° C.
• Solvent Resistance, Polyamide Overmold: Excellent
Resistance to Most Solvents, Fuels, and Oils; Poor Resistance
to Strong Acids and Bipolar Solvents (Alcohol)
• Shielding Effectiveness: 50 dB minimum from 100MHz to
1000MHz.
NOTES
Dimensions in Inches (millimeters) are subject to change without notice.
© 2014 Glenair, Inc.
Series 80 Mighty Mouse
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
L-16
E-Mail: sales@glenair.com
