AP0704GMT-HF
Halogen-Free Product
Advanced Power
Electronics Corp.
▼
Simple Drive Requirement
▼
SO-8 Compatible with Heatsink
▼
Low On-resistance
▼
RoHS Compliant & Halogen-Free
G
N-CHANNEL ENHANCEMENT MODE
POWER MOSFET
D
BV
DSS
R
DS(ON)
I
D
40V
7mΩ
62A
S
D
D
Description
AP0704 series are from Advanced Power innovated design and
silicon process technology to achieve the lowest possible on-
resistance and fast switching performance. It provides the designer
with an extreme efficient device for use in a wide range of power
applications.
The PMPAK
®
5x6 package is special for DC-DC converters
application and the foot print is compatible with SO-8 with backside
heat sink and lower profile.
D
D
S
S
S
G
PMPAK
®
5x6
Absolute Maximum Ratings@T
j
=25
o
C(unless otherwise specified)
Symbol
V
DS
V
GS
I
D
@T
C
=25℃
I
D
@T
A
=25℃
I
D
@T
A
=70℃
I
DM
P
D
@T
C
=25℃
P
D
@T
A
=25℃
E
AS
T
STG
T
J
Parameter
Drain-Source Voltage
Gate-Source Voltage
Drain Current (Chip)
Drain Current, V
GS
@ 10V
Drain Current, V
GS
@ 10V
Pulsed Drain Current
1
3
3
Rating
40
+20
62
20.8
16.6
240
44.6
5
28.8
-55 to 150
-55 to 150
Units
V
V
A
A
A
A
W
W
mJ
℃
℃
Total Power Dissipation
Total Power Dissipation
Single Pulse Avalanche Energy
4
Storage Temperature Range
Operating Junction Temperature Range
Thermal Data
Symbol
Rthj-c
Rthj-a
Parameter
Maximum Thermal Resistance, Junction-case
Maximum Thermal Resistance, Junction-ambient
3
Value
2.8
25
Units
℃/W
℃/W
Data & specifications subject to change without notice
1
201501052
AP0704GMT-HF
Electrical Characteristics@T
j
=25
o
C(unless otherwise specified)
Symbol
BV
DSS
R
DS(ON)
Parameter
Drain-Source Breakdown Voltage
Static Drain-Source On-Resistance
2
Test Conditions
V
GS
=0V, I
D
=250uA
V
GS
=10V, I
D
=30A
V
GS
=4.5V, I
D
=20A
V
GS(th)
g
fs
I
DSS
I
GSS
Q
g
Q
gs
Q
gd
t
d(on)
t
r
t
d(off)
t
f
C
iss
C
oss
C
rss
Gate Threshold Voltage
Forward Transconductance
Drain-Source Leakage Current
Gate-Source Leakage
Total Gate Charge
Gate-Source Charge
Gate-Drain ("Miller") Charge
Turn-on Delay Time
Rise Time
Turn-off Delay Time
Fall Time
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
V
DS
=V
GS
, I
D
=250uA
V
DS
=10V, I
D
=20A
V
DS
=40V, V
GS
=0V
V
GS
=+20V
I
D
=20A
V
DS
=20V
V
GS
=4.5V
V
DS
=20V
I
D
=1A
R
G
=3.3 ,V
GS
=10V
R
D
=20
V
GS
=0V
V
DS
=25V
f=1.0MHz
Min.
40
-
-
1
-
-
-
-
-
-
-
-
-
-
-
-
-
Typ.
-
-
-
-
50
-
-
14
4
8
8
6.5
23
16
Max. Units
-
7
10.5
3
-
10
+100
22.4
-
-
-
-
-
-
V
mΩ
mΩ
V
S
uA
nA
nC
nC
nC
ns
ns
ns
ns
pF
pF
pF
1130 1800
235
125
-
-
Source-Drain Diode
Symbol
V
SD
Parameter
Forward On Voltage
2
Reverse Recovery Time
Reverse Recovery Charge
Test Conditions
I
S
=20A, V
GS
=0V
I
S
=10A,
V
GS
=0
V
,
dI/dt=100A/µs
Min.
-
-
-
Typ.
-
28
24
Max. Units
1.2
-
-
V
ns
nC
t
rr
Q
rr
Notes:
1.Pulse width limited by Max. junction temperature
2.Pulse test
3.Surface mounted on 1 in
2
copper pad of FR4 board, t <10sec, 60
o
C/W at steady state.
4.Starting T
j
=25
o
C , V
DD
=30V , L=0.1mH , R
G
=25
, I
AS
=24A.
THIS PRODUCT IS SENSITIVE TO ELECTROSTATIC DISCHARGE, PLEASE HANDLE WITH CAUTION.
USE OF THIS PRODUCT AS A CRITICAL COMPONENT IN LIFE SUPPORT OR OTHER SIMILAR SYSTEMS IS NOT AUTHORIZED.
APEC DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED
HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
APEC RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN.
2
AP0704GMT-HF
160
120
T
C
=25 C
o
I
D
, Drain Current (A)
120
I
D
, Drain Current (A)
10V
7.0V
6.0V
5.0V
T
C
=150 C
100
o
80
10V
7.0V
6.0V
5.0V
V
G
=4.0V
V
G
= 4.0 V
80
60
40
40
20
0
0.0
2.0
4.0
6.0
8.0
10.0
0
0.0
2.0
4.0
6.0
8.0
V
DS
, Drain-to-Source Voltage (V)
V
DS
, Drain-to-Source Voltage (V)

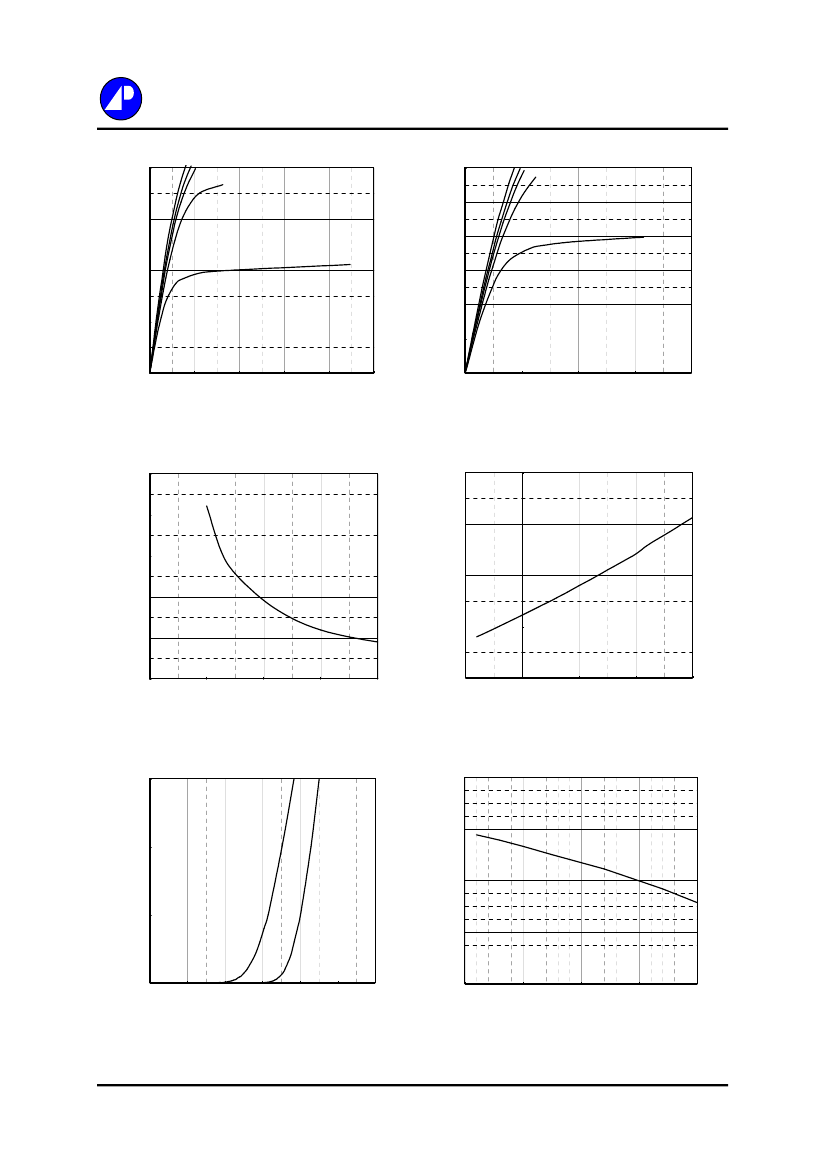

Fig 1. Typical Output Characteristics
Fig 2. Typical Output Characteristics
10
2.0
I
D
=20A
T
C
=25 C
9
o
I
D
=30A
V
G
=10V
Normalized R
DS(ON)
1.6
R
DS(ON)
(m
Ω
)
8
1.2
7
0.8
6
5
2
4
6
8
10
0.4
-50
0
50
100
150
V
GS
, Gate-to-Source Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 3. On-Resistance v.s. Gate Voltage
Fig 4. Normalized On-Resistance
v.s. Junction Temperature
1.6
30
1.2
20
T
j
=150 C
o
T
j
=25
o
C
Normalized V
GS(th)
1.2
I
S
(A)
0.8
10
0.4
0
0
0.2
0.4
0.6
0.8
1
0.0
-50
0
50
100
150
V
SD
, Source-to-Drain Voltage (V)
T
j
, Junction Temperature ( C)
o
Fig 5. Forward Characteristic of
Reverse Diode
Fig 6. Gate Threshold Voltage v.s.
Junction Temperature
3
AP0704GMT-HF
10
1600
f=1.0MHz
V
GS
, Gate to Source Voltage (V)
I
D
=20A
V
DS
=20V
8
1200
C
iss
6
C (pF)
800
4
400
2
C
oss
C
rss
0
0
8
16
24
32
1
5
9
13
17
21
25
29
0
Q
G
, Total Gate Charge (nC)
V
DS
,Drain-to-Source Voltage (V)

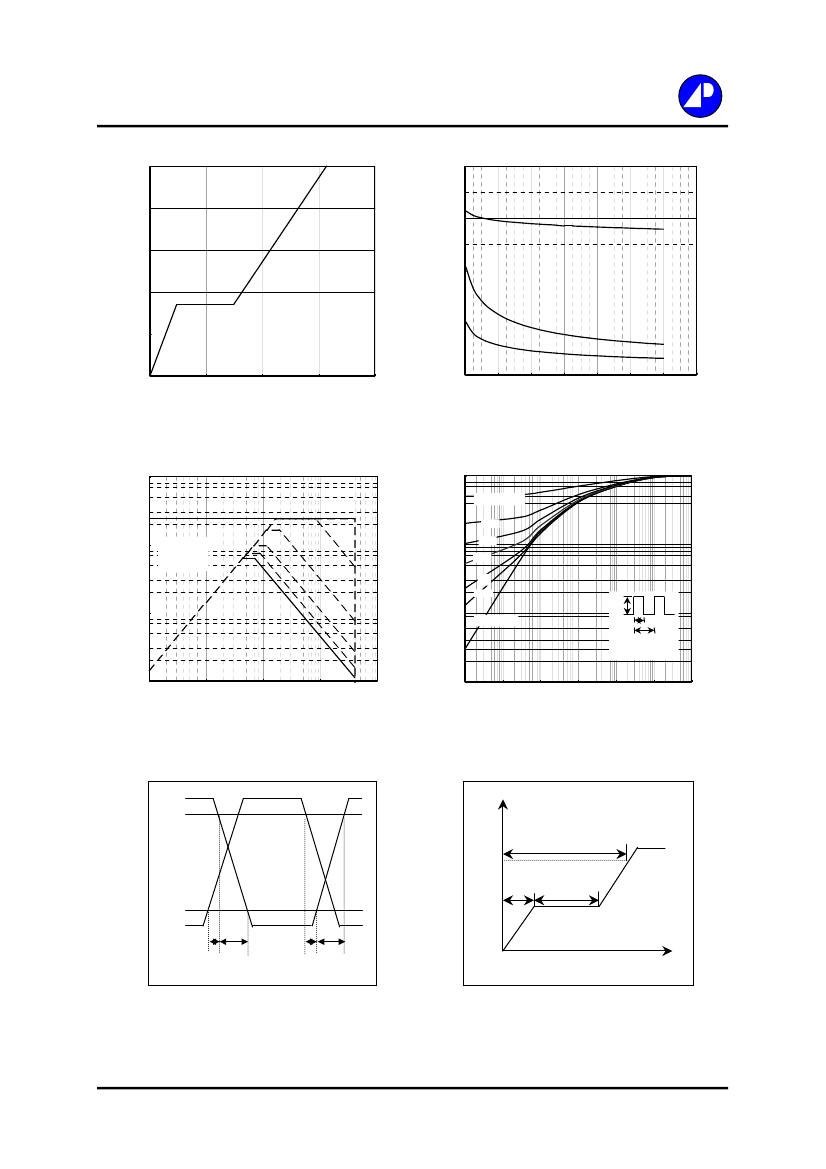

Fig 7. Gate Charge Characteristics
Fig 8. Typical Capacitance Characteristics
1000
1
Duty factor = 0.5
Normalized Thermal Response (R
thjc
)
0.2
100
I
D
(A)
Operation in this
area limited by
R
DS(ON)
0.1
0.1
0.05
100us
0.02
0.01
P
DM
0.01
Single Pulse
10
1ms
T
C
=25
o
C
Single Pulse
10ms
100ms
DC
1
10
100
t
T
Duty factor = t/T
Peak T
j
= PDM x R
thjc
+ T
c
1
0.01
0.1
0.001
0.00001
0.0001
0.001
0.01
0.1
1
10
V
DS
,Drain-to-Source Voltage (V)
t , Pulse Width (s)
Fig 9. Maximum Safe Operating Area
Fig 10. Effective Transient Thermal Impedance
V
DS
90%
V
G
Q
G
4.5V
Q
GS
Q
GD
10%
V
GS
t
d(on)
t
r
t
d(off)
t
f
Charge
Q
Fig 11. Switching Time Waveform
Fig 12. Gate Charge Waveform
4
AP0704GMT-HF
MARKING INFORMATION
Part Number
meet Rohs requirement
for low voltage MOSFET only
Package Code : MT
0704GMT
YWWSSS
Date Code (YWWSSS)
Y：Last Digit Of The Year
WW：Week
SSS：Sequence
5
