GMPM6B112PCBSVM-.172 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> GMPM6B112PCBSVM-.172

Preview

GMPM6B112PCBSVM-.172: DescriptionD Microminiature Connector, 2 Contact(s), Female, Solder Terminal, M2, Plug; CategoryThe connector The connector; File Size311KB，3 Pages; ManufacturerGlenair; Websitehttp://www.glenair.com/

Download Datasheet Parametric View All

GMPM6B112PCBSVM-.172 Overview

D Microminiature Connector, 2 Contact(s), Female, Solder Terminal, M2, Plug

GMPM6B112PCBSVM-.172 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Glenair
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	0.062 Rear Panel Jackpost
body width	0.315 inch
subject depth	0.355 inch
body length	0.935 inch
Body/casing type	PLUG
Connector type	D MICROMINIATURE CONNECTOR
Contact arrangement	S0P2
Contact to complete cooperation	GOLD
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact resistance	32 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	600VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	GMPM
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	M2
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of connectors	ONE
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Plating thickness	50u inch
reliability	COMMERCIAL
Shell material	ALUMINUM ALLOY
Terminal length	0.172 inch
Termination type	SOLDER
Total number of contacts	2

Preview

Download Datasheet

View All

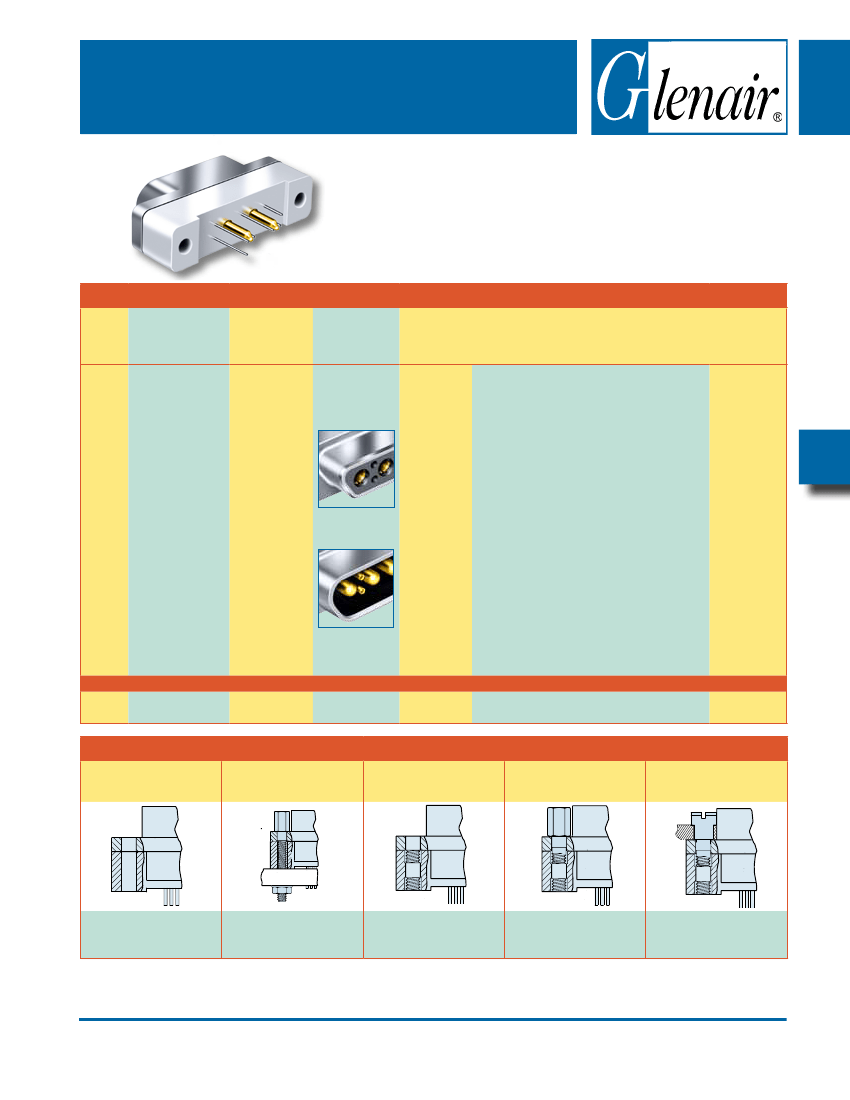

Combo Micro-D

for high power Applications

13 Amp Current Rating–Combo

Micro-D's combine the size and weight

advantages of a Micro -D connector with the added ability to handle

higher power needs.

Printed Circuit Board Terminals–Ideal

for flexible circuits or rigid

boards, these gold plated PC tail contacts are sealed with epoxy

encapsulant and are non-removable.

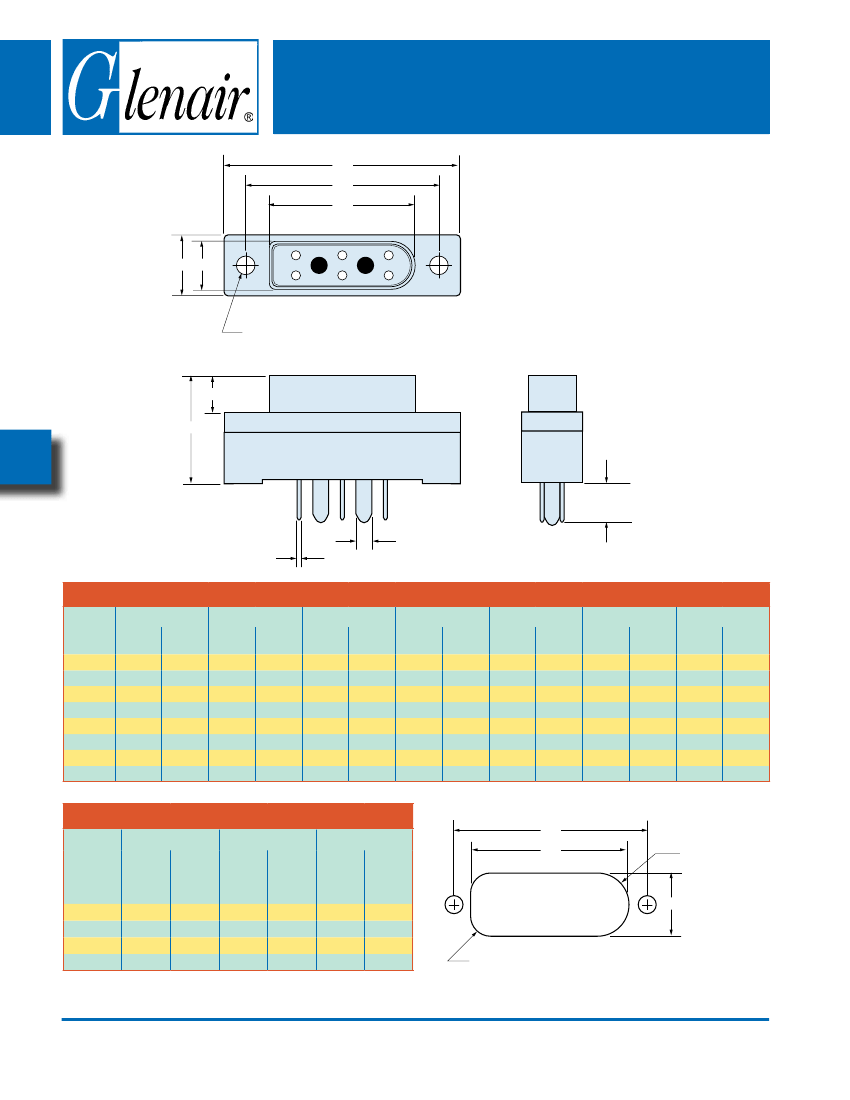

hoW to oRDER VERtICAL MoUNt pCb CoMbo MICRo-D CoNNECtoRs

shell size

and Insert

Arrangement

b112

D112

D113

E113

termination

style

Cbs

Compact

Vertical Mount

series

GMpM

shell Finish

1

2

4

5

6

–

Cadmium

–

Nickel

–

Black Anodize

–

Gold Plated

–

Chem Film

shell style

p

– Plug

R

– Receptacle

hardware

NN

– No Jackpost, No Threaded Insert

pN

– Extended Jackpost for .062" (1.6) PCB,

No Threaded Insert

pC tail

Length

.172

.109

.150

.190

.250

Length in

Inches

±

.015

(0.38)

RN

– Extended Jackpost for .196" (5.0) PCB,

No Threaded Insert

stainless steel

shell

3

–

Passivated

Plug

NU

– 2-56 UNC Threaded Insert, No Jackposts

NM

– Metric M2 Threaded Insert, No Jackposts

sU

– Short Jackpost, 2-56 UNC Threaded Insert

sM

– Short Jackpost, M2 Metric Threaded Insert

Rear panel Jackposts

Supplied either with

U

style 2-56 UNC or

M

style

M2 Threaded Inserts

Receptacle

tU or tM

–

VU or VM

–

WU or WM

–

XU or XM

–

XU or XM

–

0.094" (2.4) Panel

0.062" (1.6) Panel

0.047" (1.2) Panel

0.031" (0.8) Panel

0.023" (0.6) Panel

Sample Part Number

GMpM

2

b112

R

Cbs

pU

– .110

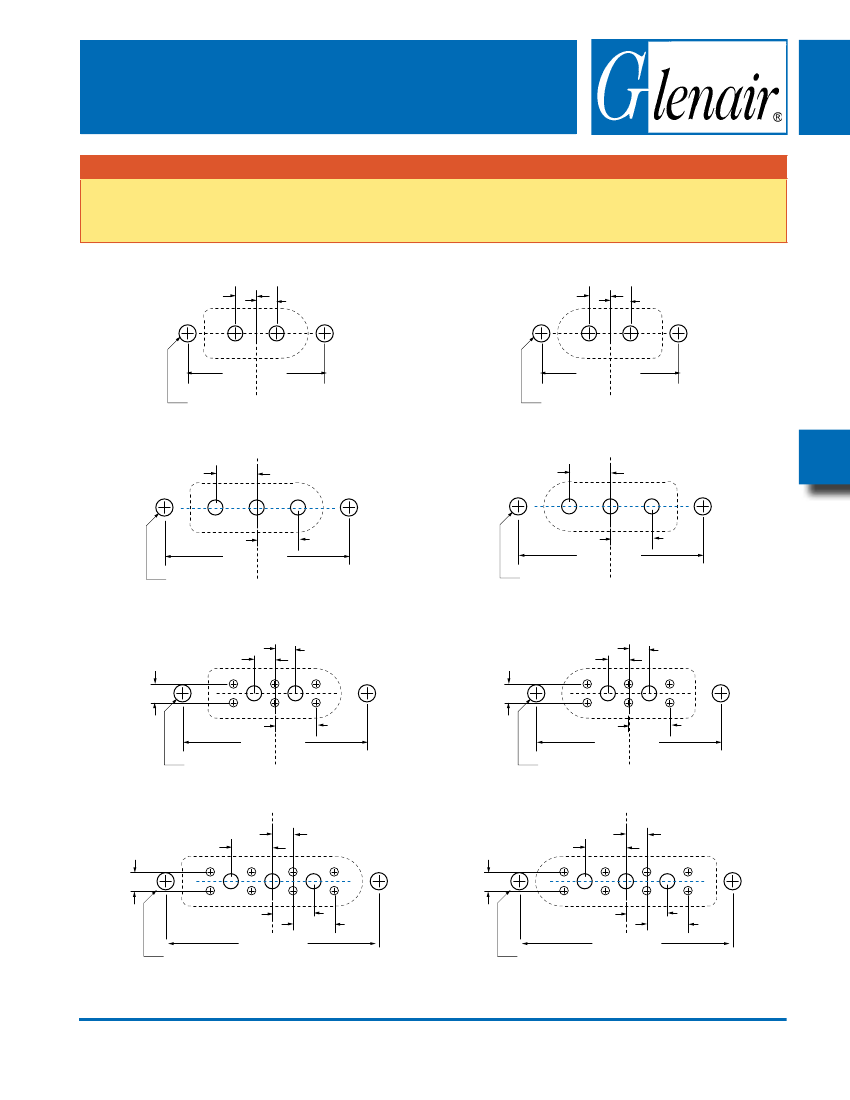

GMR7580 JACkpost optIoNs

NN

pN and RN

NU, NM

sU, sM

tU,VU,WU,XU,YU

tM,VM,WM,XM,YM

PC BOARD

Thru-Hole

Jackpost Kit

PN – .062 (1.6) PCB

RN – .196 (5.0) PCB

Threaded Inserts

Jackpost With Threaded

Insert

Jackpost for Rear Panel

Mounting

U.S. CAGE Code 06324

Printed in U.S.A.

GLENAIR, INC.

•

1211 AIR WAY

•

GLENDALE, CA 91201-2497

•

818-247-6000

•

FAX 818-500-9912

www.glenair.com

E-Mail: sales@glenair.com

F-9

REV 19 APRIL 2011

Micro-D

Combo

F
