High Power/Signal Connectors for Industrial Machinery
PQ Series
Variations
Non water-resistant 20 position type
Contact (19A/pin) type
Non water-resistant 48 position type
Contact (12.5A/pin) type
Water-resistant 50 pos. type
Contact (12.5A/pin) type
PQ50W
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
PQ50S
■General
PQ50

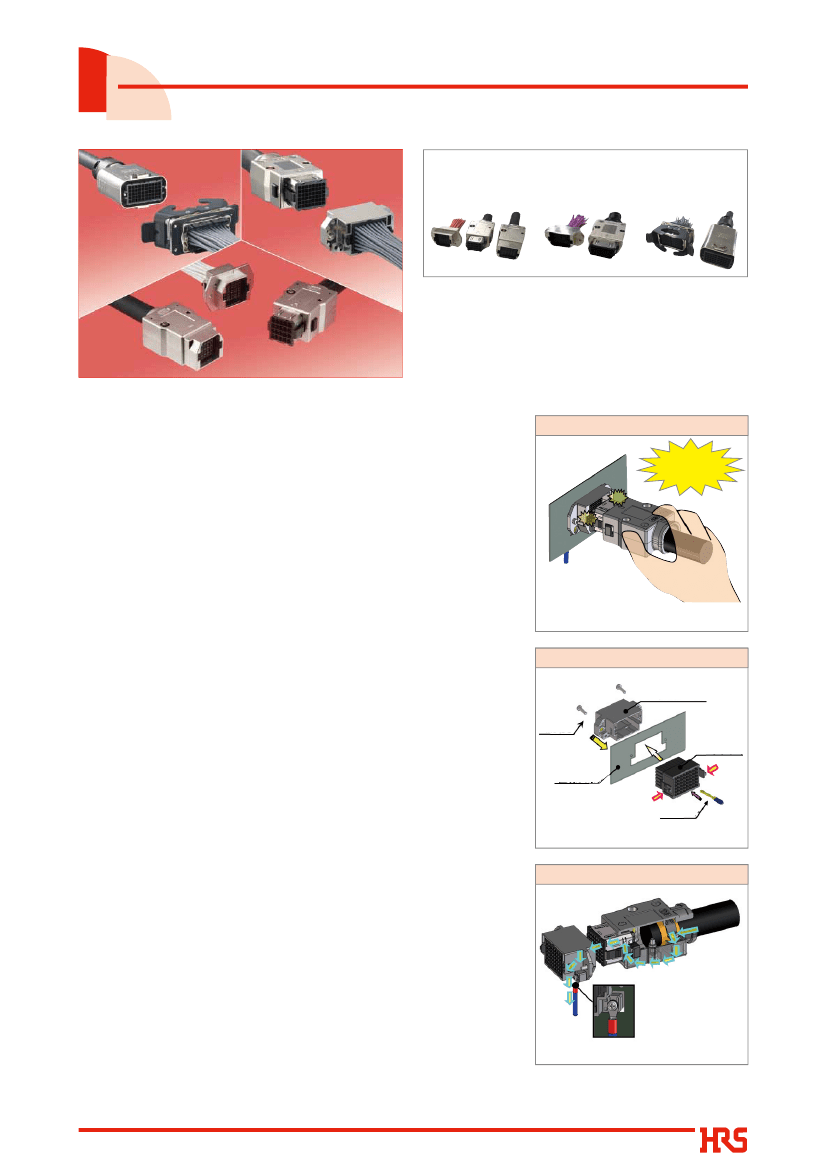

The PQ series is an interface connector designed to
handle high power/signal connections in industrial
machinery. Available in a water-resistant or non-water-
resistant type, they are capable of handling up to 12.5A/
pin (PQ50S and PQ50W) or 19A/pin (PQ50).
Side locking structure emits a tactile click and produces a secure lock
Clear tactile
click!
■Features
PQ50 and PQ50S Series [ Non water-resistant type ]
1. Side locking spring structure delivers a clear tactile
click.
The left and right buttons disengage the mated lock.
(Side locking system). The easy mating operation delivers a clear
tactile click. (Fig.1)
2. Strengthened cable clamps
Cable clamp strength is 98N or more. (* Actual is 400N or more.)
The structure will prevent the mated connecter and clamp from
detaching against excessive forces.
Easy extraction
Fig.1
It is possible to insert the terminated housing from the rear
Panel Shell
M3 Screw
Housing
Chassis Panel
3. Different cover options
A robust, enhanced, shielded die-cast shell is available on the PQ50
series or a engineered, light weight plated plastic resin shell for the
PQ50S series.
The die cast shell delivers an enhanced EMI shield on the PQ50
series and the plated plastic resin of the PQ50S series’ cover case
and panel shell ensure ESD and EMI performance.
4. Coding key system provides flexibility with multiple options
The coding key system prevents incorrect mating and has multiple
variations available.
Female Contact
5. Rear mounted panel shell is available.
After attaching the panel shell to the chassis, it is possible to install
or remove the crimp housing. (Fig.2)
Fig.2
Easy and reliable ground connection
6. Reliable ground connection structure.
The crimp contacts can be mounted directly onto the panel shell
with screws which enhances the grounding connections. (Fig.3)
7. Supports NFPA79 compliant cables (with 600V capability).
(PQ50 Series)
Due to restrictions on the AWM cables by NFPA79 revision, the
requirements of listed cables has increased for wires used in
industrial machines in the U.S.A. This product complies with the
restrictions and requirements of NFPA79.
JIS C2805
(R type, N type)
or equivalent
Fig.3
2017.3③
1
PQ Series●High Power/Signal Connectors for Industrial Machinery

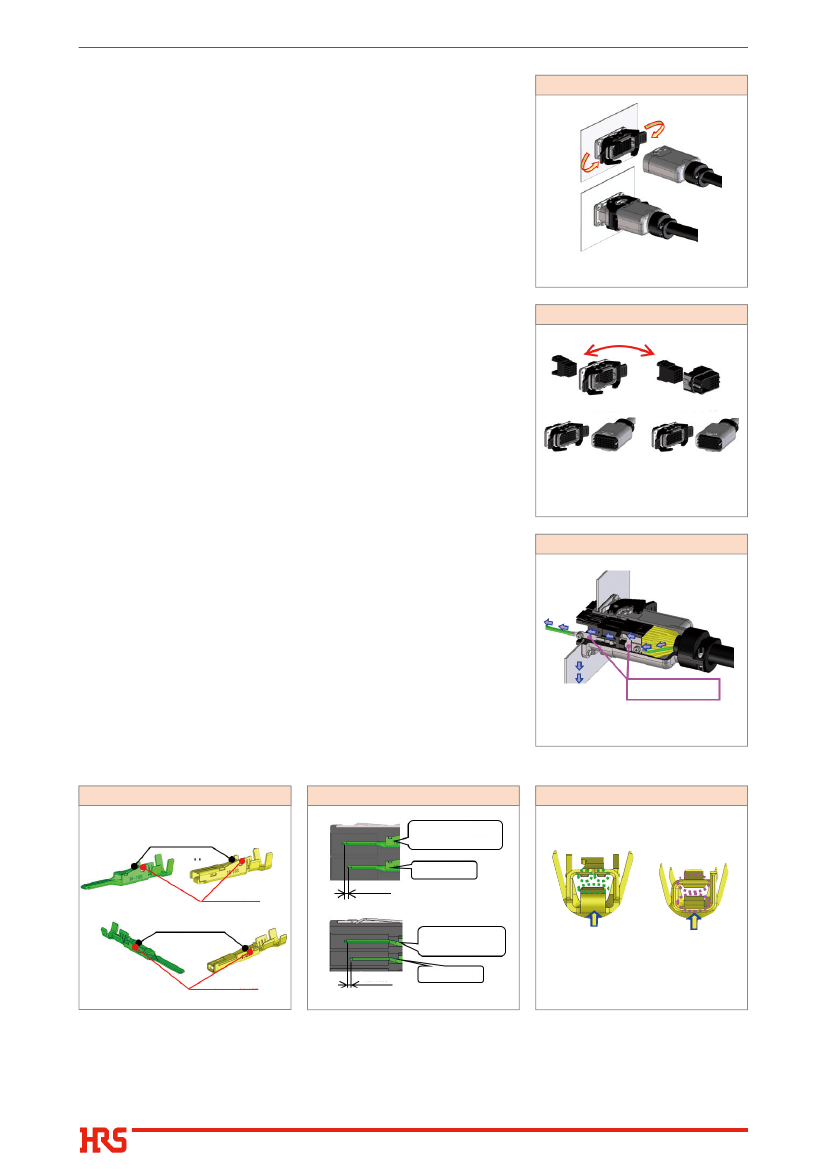

[Water-resistant type] PQ50W Series
Special locking structure with lever
1. Water resistant (IP65)
Rated at IP65 when in the mated condition.
2. Special locking structure.
Special lever and cam structure delivers easier operation and assists
with the insertion and extraction of this connector. (Fig.1)
3. Rear mounted unit offers easy operations.
Male and Female plastic crimp case can be installed not only for
panel side metal shell but also plug side one. (Fig.2)
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Metal plated cover of engineering plastic resin adds
strength and EMI protection.
This robust connector uses a metal plated material of special
engineering plastic for the cover and panel shell to ensure high ESD
and EMI performance.
Fig.1
Supports mounting from the backside of the panel
5. Independent ground contact structure.
Secure grounding is accomplished by use of the plated plastic cover
and the independent ground contacts. (Fig.3)
Panel Side
Plug Side
6. Coding key system provides flexibility with multiple options
The coding key system prevents incorrect mating and has
multiple variations available.
Panel Side:Female
Cont.
Panel Side:Male
Cont.
Plug Side:
Male Cont.
Plug Side:
Female Cont.
[Contact variations]
Fig.2
Independent Ground Contacts
1. Available contact options
Two styles are available; one with 19A/pin contacts or one with
12.5A/pin contacts.
2. Lance protection structure
The side wall of the contact prevents lance deformation and helps to
prevent tangled wires. (Fig.4)
3. Sequential contacts of different length are available
Two types of different contact length are available for the male
contact. (Fig.5)
Independent Ground Contacts
4. Highly reliable contact structure
The female contact assures a reliable connection by using multiple
contact points and a unique spring structure. (Fig.6)
Fig.3
Lance Protection Structure
[ 19A/pin type ]
Male contact
Different length sequential contacts
[ 19A/pin type ]
Sequence Contact
(Long)
Standard Contact
Highly Reliable Contact Structure
[ 19A/pin type ]
3 Point Contact
[ 12.5A/pin type ]
2 Point Contact
Lance
Female contact
[ 12.5A/pin type ]
Male contact
Lance protection guard
Lance
Female contact
1.2mm
[ 12.5A/pin type ]
Two types of contacts can be
used depending on application
Sequence Contact
(Long)
Spring Deflection
Spring Deflection
Lance protection guard
1.2mm
Standard Contact
Multiple contact points and very flexible spring
design.
Fig.4
Fig.5
Fig.6
2
PQ Series●High Power/Signal Connectors for Industrial Machinery
■Product
Specifications
[Non water-resistant type] PQ50 Series
Voltage
Ratings
Current
19A/pin
AC/DC 600V
With UL1015 16 AWG
* Depending on current capacity
of the cable used.
Operating Temp. Range
Storage Temp.
Range
Conditions
−40ç to +105ç
−55ç to +85ç
Items
1. Contact resistance
2. Insulation
resistance
3. Withstand voltage
1
Specifications
10mø max
Measured at 100mA
Measured at DC 500V
Apply AC 2,200V for one minute.
Perform 500 mating cycles.
Frequency 10 to 55 Hz (5 min/cycle).
With half amplitude 0.75mm, 2 hours each for 3 directions.
Acceleration 490m/s
2
, duration 11ms, half-sine
wave, 3 times each for 6 axial directions.
Temperature: −55
➝
+15 to 35
➝
+105
➝
+15
to +35ç
Time: 30
➝
2 to 3
➝
30
➝
2 to 3 min.
Subjected to 5 cycles of time and temp as noted.
Left in environment of 60ç ±2° and humidity of
90% to 95% for 96 hours.
5% concentration of salt water spray for 48 hours.
(in mated condition)
Minimum of 5,000Mø
No flashover or breakdown.
Contact resistance: Increase by 10mø or less
from the initial value.
qNo
electrical discontinuity of 10µs or more.
wNo
broken, cracked or loosened parts.
qChange
of contact resistance: 20mø or less
wInsulation
resistance: minimum of 1,000Mø
eNo
broken, cracked or loosened parts.
qChange
of contact resistance: 20mø max
w
Insulation resistance: minimum of 1,000Mø
(after drying).
eNo
breakage, cracks or loosened parts.
No significant corrosion or damage that
impairs functioning.
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Durability
5. Vibration
resistance
6. Shock resistance
7. Temperature
cycles
8. Moisture resistance
in steady state
9. Salt water spray
1
Excluding conductor resistance of the cable.
*For test methods not described here, JIS C 5402 is applied.
[ Non water-resistant type ] PQ50S Series
Voltage
Rating
Current
12.5A/pin
AC/DC 300V
With UL1007 18 AWG
* Depending on current capacity
of the cable used.
Operating Temp. Range
Storage Temp.
Range
Conditions
Measured at 100mA
Measured at DC 500V
−40ç to +105ç
−55ç to +85ç
Items
1. Contact resistance
2. Insulation
resistance
3. Withstand voltage
4. Durability
5. Vibration
resistance
6. Shock resistance
7. Temperature
cycles
1
Specifications
5mø max
Minimum of 5,000Mø
No flashover or breakdown.
Contact resistance: Increase by 10mø or less
from the initial value.
qNo
electrical discontinuity of 10µs or more.
wNo
broken, cracked or loosened parts.
Apply AC 2,200V for one minute.
Perform 500 mating cycles.
Frequency 10 to 55 Hz (5 min/cycle)
With half amplitude 0.75mm, 2 hours each for 3
directions.
Acceleration 490m/s
2
, duration 11ms, half-sine
wave, 3 times each for 6 axial directions.
Temperature: −55
➝
+15 to 35
➝
+105
➝
+15
to +35ç
Time: 30
➝
2 to 3
➝
30
➝
2 to 3 min.
Subjected to 5 cycles of time and temp. as noted.
Left in environment of 60ç ±2° and humidity of
90% to 95% for 96 hours.
5% concentration of salt water spray for 48 hours.
(in mated condition)
qChange
of contact resistance: 10mø or less
wInsulation
resistance: Minimum of 1,000Mø
eNo
broken, cracked or loosened parts.
qChange
of contact resistance: 10mø or less
w
Insulation resistance: Minimum of 1,000Mø
(after drying).
eNo
broken, cracked or loosened parts.
No significant corrosion or damage that impairs
functioning.
8. Moisture resistance
in steady state
9. Salt water spray
1
Excluding conductor resistance of the cable.
*For test methods not described here, JIS C 5402 is applied.
3
PQ Series●High Power/Signal Connectors for Industrial Machinery
[ Water-resistant type ] PQ50W Series
With 12.5A/pin type contacts
Ratings
Voltage
Current
12.5A/pin
AC/DC 300V
With UL1007 18 AWG
* Depending on current capacity
of the cable used.
Operating Temp. Range
Storage Temp.
Range
Conditions
−40ç to +105ç
−55ç to +85ç
Items
1. Contact resistance
2. Insulation
resistance
3. Withstand voltage
1
Specifications
5mø max
Measured at 100mA
Measured at DC 500V
Apply AC 2,200V for one minute.
Perform 500 mating cycles.
Frequency 10 to 55 Hz (5 min/cycle)
With half amplitude 0.75mm, 2 hours each for 3
directions.
Acceleration 490m/s
2
, duration 11ms, half-sine
wave, 3 times each for 6 axial directions.
Temperature : −55
➝
+15 to 35
➝
+105
➝
+15
to +35ç
Time : 30
➝
2 to 3
➝
30
➝
2 to 3 min.
Subjected to 5 cycles of time and temp. as noted.
Left in environment of 60ç ±2° and humidity of
90% to 95% for 96 hours.
5% concentration of salt water spray for 48 hours.
(in mated condition)
Minimum of 5,000Mø
No flashover or breakdown.
Contact resistance : Increase by 10mø or less
from the initial value.
qNo
electrical discontinuity of 10µs or more.
wNo
broken, cracked or loosened parts.
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4. Durability
5. Vibration
resistance
6. Shock resistance
7. Temperature
cycles
qChange
of contact resistance: 10mø or less
wInsulation
resistance : 1,000Mø or more
eNo
broken, cracked or loosened parts.
qChange
of contact resistance : 10mø or less
w
Insulation resistance : 1,000Mø or more
(after drying)
eNo
broken, cracked or loosened parts.
No significant corrosion or damage that impairs
functioning.
IP65
8. Moisture resistance
in steady state
9. Salt water spray
10. Water resistance
1
Excluding conductor resistance of the cable.
*For test methods not described here, JIS C 5402 is applied.
■Materials
/ Finish
PQ50 Series
Item
Receptacle
Parts
Crimp case
Panel Shell
Crimp case
Crimp case Shell
Cover case
M4 pan head machine
screw
Clamp metal
Crimp case
In-line plug shell
In-line cover case
M4 pan head machine
screw
Clamp metal
Materials
PBT resin
Zinc die cast
PBT resin
Stainless steel
Zinc die cast
Steel
Steel
PBT resin
Zinc die cast
Steel
Steel
Nickel plating
--------------
Finish
Black
Nickel plating
Black
Remarks
UL94V-0
-
UL94V-0
Plug
Nickel plating
--------------
Black
UL94V-0
In-line plug
PQ50S Series
Item
Receptacle
Parts
Crimp case
Panel Shell
M4 insert nut
Crimp case
Crimp case Shell
Plug
Cover case
Clamp metal
M4 insert nut
Materials
PBT resin
Heat-resistant
engineering plastic resin
Brass
PBT resin
Stainless steel
Heat-resistant
engineering plastic resin
Steel
Brass
Finish
Black
Nickel plating
Black
Remarks
UL94V-0
--------------
UL94V-0
--------------
UL94V-0
--------------
Nickel plating
4
PQ Series●High Power/Signal Connectors for Industrial Machinery
PQ50W Series
Item
Crimp case
Parts
Crimp case
Panel Shell
Receptacle
Ground contact
O-ring for mating
Lock lever
Rubber packing
Plug shell
Materials
PBT resin
Heat-resistant
engineering plastic resin
Stainless steel
NBR
PA resin
NBR
Heat-resistant
engineering plastic resin
Stainless steel
Finish
Black
Nickel plating
Remarks
UL94V-0
UL94V-0
--------------
Black
Black
Nickel plating
Trivalent chromate
Nickel plating
Red
Black
Nickel plating
UL94V-0
--------------
UL94V-0
Feb.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Plug
Ground contact
M2 tapping screw
Steel
Cover case
Gasket
NBR
Clamp metal (body)
Heat-resistant
engineering plastic resin
Cable clamp
M3 insert nut
Brass
M3 pan head machine screw
Steel
--------------
UL94V-0
--------------
●
Contacts (PQ50, PQ50S, PQ50W)
Part No.
PQ50 -15PCFA
PQ50A -15PCFA
PQ50 -15SCFA
PQ50 -1618PCFA
PQ50A -1618PCFA
PQ50 -1618SCFA
PQ50 -2022PCFA
PQ50A -2022PCFA
PQ50 -2022SCFA
PQ50S -1822PCFA
PQ50SA-1822PCFA
PQ50S -1822SCFA
PQ50S -2428PCFA
PQ50SA-2428PCFA
PQ50S -2428SCFA
Parts
Male contact
Female contact
Male contact
Female contact
Male contact
Female contact
Male contact
Female contact
Male contact
Female contact
Copper alloy
Gold plating (contact area)
+
Tin plating (barrel area)
Materials
Finish
Remarks
--------------
■Product
Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●Crimp
Housing
PQ 50 W S − 25 P − UNIT
❶
❷
❸
❹
❺
❻
❼
❶
Series name
❷
Wiring style
❸
Connector specifications
❹
Contact size
❺
Shell size
❻
Contact type
❼
Shapes
PQ
Crimping
W…Water-resistant type
None…Non water-resistant type
S…Small contact (12.5A/pin) type
None…Standard contact (19A/pin) type
25…25 pos. unit
20
…20 pos. unit 48…48 pos. unit
P…Male contact
S…Female contact
UNIT…Rear mount multiple unit (PQ50W)
None… (PQ50, PQ50S)
●Crimp
contact
PQ 50 S A − 1822 PC F A
❶
❷
❸
❹
❺
❻
❼
½
❶
Series name
❷
Wiring style
❸
Contact size
❹
Contact usage
❺
Applicable cable type
❻
Contact type
❼
Contact shapes
½
Contact plating type
PQ
Crimping
S…Small contact (12.5A/pin) type
A…Sequence contact (long contact)
15…… 14 to 15 AWG (UL1015)
1618…16 to 18 AWG (UL1007, UL1015)
1822…18 to 22 AWG (UL1007) 17 AWG
PC…Male contact
F…End-to-end contacts (on reel)
A…Gold plating (contact area)
None…Standard contact (19A/pin) type
None…Standard contact
2022…20 to 22 AWG (UL1007, UL1015)
2428…24 to 28 AWG (UL1007) 23 AWG
SC…Female contact
None…Discrete contacts
5
京公网安备 11010802033920号
EEWORLD
