390-058
Submersible EMI/RFI Cable Sealing Backshell
with Strain Relief
Type E - Self Locking Rotatable Coupling - Low Profile
39
CONNECTOR
DESIGNATORS
390 F S 058 M 16 10 D M 6
Product Series
Connector Designator
Angle and Profile
M = 45
N = 90
S = Straight
Basic Part No.
Finish (Table II)
Length *
A Thread
(Table I)
E Typ.
(Table I)
O-Rings
Length: S only
(1/2 inch increments:
e.g. 6 = 3 inches)
Strain Relief Style (H, A, M, D)
Termination (Note 6)
D = 2 Rings, T = 3 Rings
Cable Entry (Tables X, XI)
Shell Size (Table I)
1.281
(32.5)
Ref. Typ.
A-F-H-L-S
SELF-LOCKING
ROTATABLE
COUPLING
TYPE E INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
Length ± .060 (1.52)
Minimum Order Length 2.0 Inch
(See Note 4)
* Length
± .060 (1.52)
Minimum Order
Length 1.5 Inch
(See Note 4)

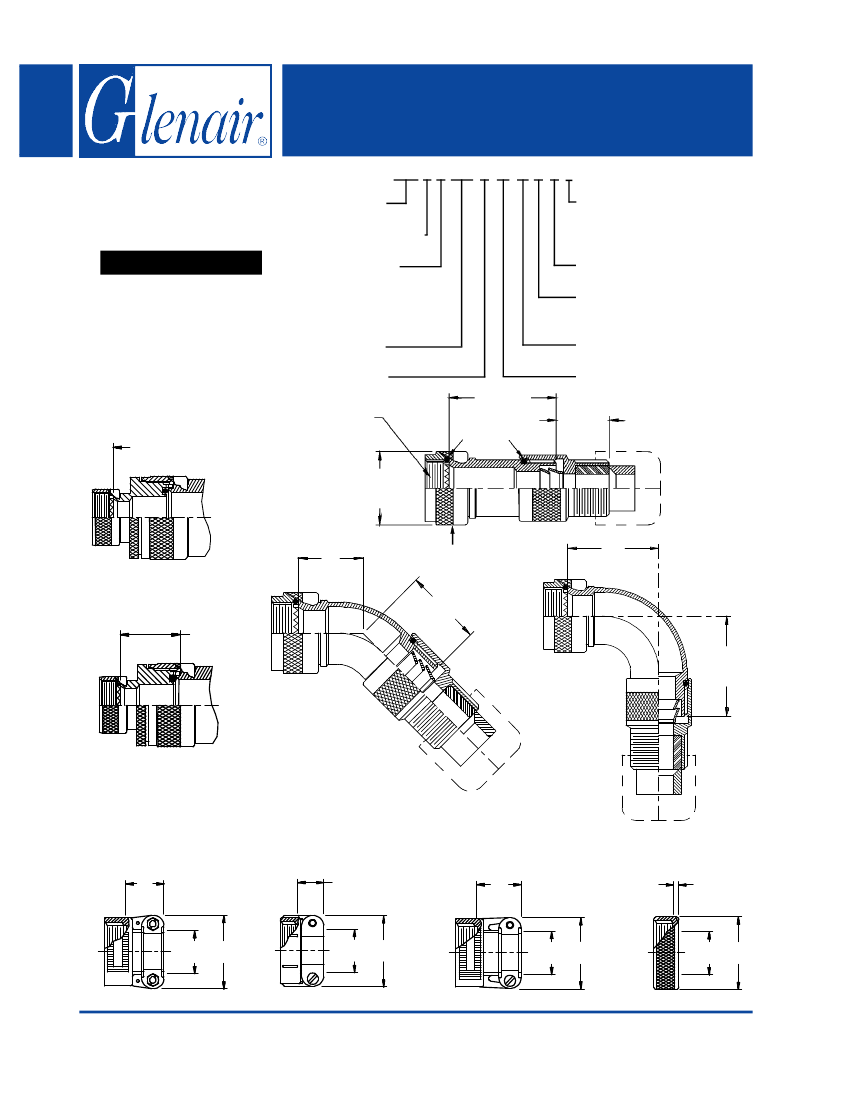

STYLE 2
(STRAIGHT
See Note 1)
1.00 (25.4)
Max
F
(Table III)
Anti-Rotation
Device (Typ.)
G (Table III)
H
(Table III)
J
(Table III)
STYLE 2
(45° & 90°
See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 56
with Strain Relief
Type E - Self Locking Rotatable Coupling - Low Profile
See inside back cover fold-out or pages 13 and 14 for Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
A-F-L-S H
08
09
11
10
13
12
14
15
17
16
18
19
21
20
23
22
24
25
28
61
F
Max
.968 (24.6)
1.031 (26.2)
1.094 (27.8)
1.156 (29.4)
1.218 (30.9)
1.250 (31.8)
1.312 (33.3)
1.344 (34.1)
1.406 (35.7)
1.500 (38.1)
1.406 (35.7)
G
Max
1.190 (30.2)
1.240 (31.5)
1.300 (33.0)
1.360 (33.3)
1.420 (36.1)
1.490 (37.8)
1.550 (39.4)
1.610 (40.9)
1.670 (42.4)
1.890 (48.0)
1.670 (42.4)
H
Max
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.781 (45.2)
1.856 (47.1)
2.031 (51.6)
2.156 (54.8)
2.281 (57.9)
2.531 (64.3)
2.281 (57.9)
J
Max
1.445 (36.7)
1.570 (39.9)
1.695 (43.1)
1.820 (46.2)
1.945 (49.4)
2.070 (52.6)
2.195 (55.8)
2.320 (58.9)
2.445 (62.1)
2.695 (68.5)
2.445 (62.1)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions
F, G, H and J will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for
the wire bundle or cable.
Dimensions shown are not
intended for inspection criteria.
4. Consult factory for shorter
lengths on straight backshells.
5. Interface O-Ring not supplied
with connector designator A.
6. Designate Symbol T for 3 ring
termination of individual and
overall braid. Designate D for
standard 2 ring termination of
individual or overall braid.
TABLE X: CABLE ENTRY
Cable Range
V
T
Dash
Max
Min
Max
No.
Max
.957 (24.3)
.125 (3.2) .312 (7.9)
.780 (19.8)
04
.250 (6.4) .437 (11.1)
.780 (19.8) 1.145 (29.1)
06
.387 (9.8) .562 (14.3)
.780 (19.8) 1.332 (33.8)
08
.350 (8.9) .625 (15.9)
.780 (19.8) 1.332 (33.8)
10
.500 (12.7) .750 (19.1)
.811 (20.6) 1.551 (39.4)
12
.625 (15.9) .937 (23.8)
.905 (23.0) 1.770 (45.0)
16
.875 (22.2) 1.250 (31.8)
1.092 (27.7) 2.113 (53.7)
20
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
24
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
28
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
32
TABLE XI: CABLE ENTRY
Y
Z
Max
Max
.843 (21.4)
.630 (16.0)
.906 (23.0)
.755 (19.2)
1.093 (27.8)
.942 (23.9)
1.187 (30.1) 1.067 (27.1)
1.281 (32.5) 1.192 (30.3)
1.500 (38.1) 1.380 (35.1)
1.719 (43.7) 1.535 (39.0)
2.062 (52.4) 1.848 (46.9)
2.312 (58.7) 2.255 (57.3)
2.719 (69.1) 2.505 (63.6)
2.969 (75.4) 2.755 (70.0)
3.531 (89.7) 3.255 (82.7)
Dash
X
W
No.
Max
Max
03* .437 (11.1) .760 (19.3)
04* .437 (11.1) .760 (19.3)
06* .500 (12.7) .760 (19.3)
08
.563 (14.3) .760 (19.3)
10
.563 (14.3) .760 (19.3)
12
.563 (14.3) .760 (19.3)
16
.656 (16.7) 1.073 (27.3)
20
.656 (16.7) 1.323 (33.6)
24
.656 (16.7) 1.323 (33.6)
28 1.188 (30.2) 1.572 (39.9)
32* 1.187 (30.1) 1.572 (39.9)
40* 1.125 (28.6) 1.572 (39.9)
* Not available in Style M clamp.
© 2005 Glenair, Inc.
Cable Range
Min **
Max
.156 (4.0) .250 (6.4)
.188 (4.8) .312 (7.9)
.281 (7.1) .438 (11.1)
.387 (9.8) .562 (14.3)
.375 (9.5) .625 (15.9)
.438 (11.1) .750 (19.1)
.625 (15.9) .938 (23.8)
.875 (22.2) 1.250 (31.8)
1.000 (25.4) 1.375 (34.9)
1.250 (31.8) 1.625 (41.3)
1.437 (36.5) 1.875 (47.6)
1.875 (47.6) 2.375 (60.3)
** Not Applicable Style D
Printed in U.S.A.
CAGE Code 06324
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 39 - Page 57
