TWO PART 5/8” PROXIMITY SENSOR
Description :
The ZS-00331-085 two part proximity sensor is designed to work in
conjunction with Honeywell Sensor Interface Module (ZS-00380
Series).
Designed for the extreme environments encountered in aerospace
applications, the sensor is enclosed in a rugged hermetically sealed
stainless steel housing and contains only a passive sensing element
based on the variable inductance balanced bridge principle. This is
used to detect ferrous objects passing in front of the sensing face.
The electronic conditioning circuitry is contained on the separate
Sensor Interface Module which may be located in a more sheltered
environment.
The combined sensor and interface system is highly reliable with
Mean Time Between Failure in excess of 500K hours.
Features :
l
Ferrous metal sensing
l
Small size housing
l
Integral cable harness and VG95328 connector
l
Built In Test function (BITE)
l
High reliability
Typical Applications :
l
Aircraft landing gear
l
Flight control systems
l
Aircraft door monitoring

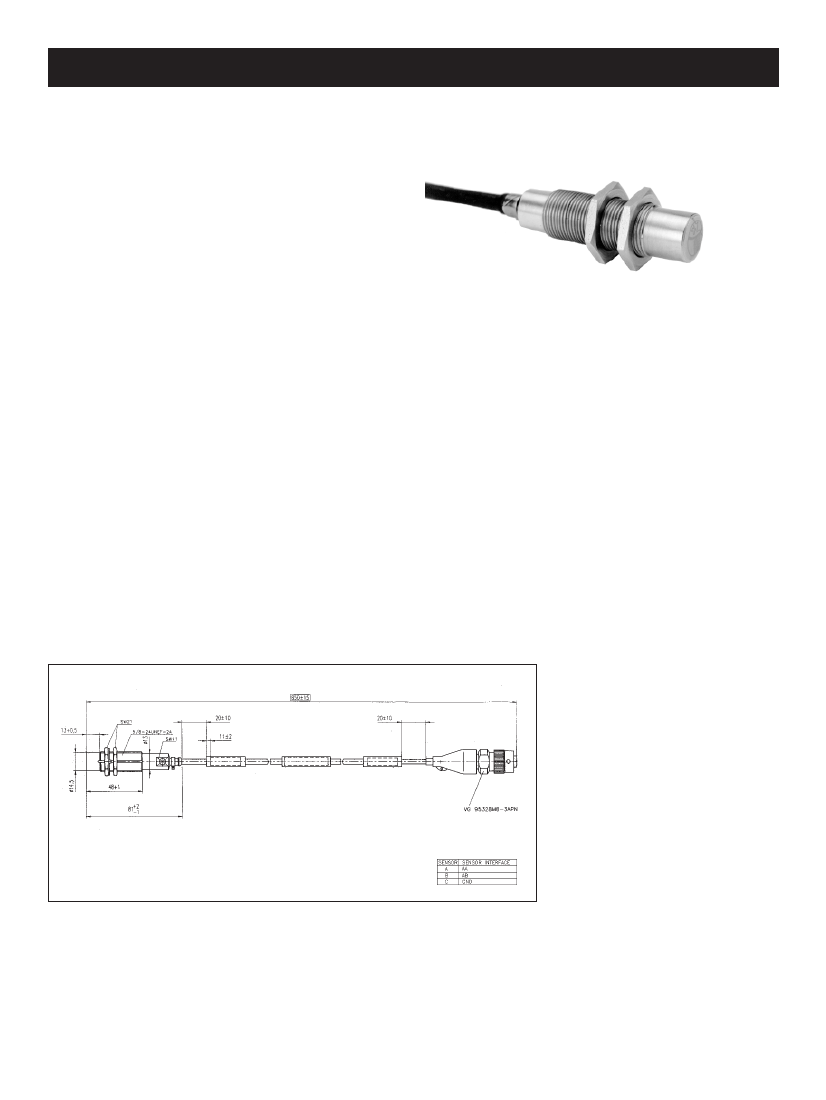

Dimensions in mm (for reference only)
b
MEASURED WITH TARGET Ø15.9 x 1.27, 1.4542 (15-5 PH)
WEIGHT 135G APPROXIMATELY
50
Specifications
Sensing Characteristics :
Operating distance
Release distance
Operating temperature
Weight
Insulation resistance
Contact resistance
Level
≥
1.78 mm
≤
4.06 mm
-35° C to +63° C
135 g max
> 10 MOhm at 500 Vdc
≤
5 mOhm at 100 mA
Specification (Note 1)
Note 2
Note 2
Notes :
1. Unless otherwise stated, tested to or by similarity to Honeywell internal specifications
2. Measured with Standard actuation element 43401190-001
(∅
15.9x1.27, 1.4542) in conjunction with sensor Interface module ZS-00380-01 (see ATP-ZS-004-00 90)
Ordering guide
Listing
ZS-00331-085
Description
Two part 5/8" proximity sensor
51
