HYB314265BJ-45

Description
EDO DRAM, 256KX16, 45ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40
Categorystorage    storage
File Size630KB，28 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

HYB314265BJ-45 Overview

EDO DRAM, 256KX16, 45ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40

HYB314265BJ-45 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerInfineon
Parts packaging codeSOJ
package instruction0.400 INCH, PLASTIC, SOJ-40
Contacts40
Reach Compliance Codenot_compliant
ECCN codeEAR99
access modeFAST PAGE WITH EDO
Maximum access time45 ns
Other featuresRAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O typeCOMMON
JESD-30 codeR-PDSO-J40
JESD-609 codee0
length26.16 mm
memory density4194304 bit
Memory IC TypeEDO DRAM
memory width16
Number of functions1
Number of ports1
Number of terminals40
word count262144 words
character code256000
Operating modeASYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize256KX16
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeSOJ
Encapsulate equivalent codeSOJ40,.44
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply3.3 V
Certification statusNot Qualified
refresh cycle512
Maximum seat height3.68 mm
self refreshNO
Maximum standby current0.001 A
Maximum slew rate0.13 mA
Maximum supply voltage (Vsup)3.6 V
Minimum supply voltage (Vsup)3 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formJ BEND
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width10.3 mm

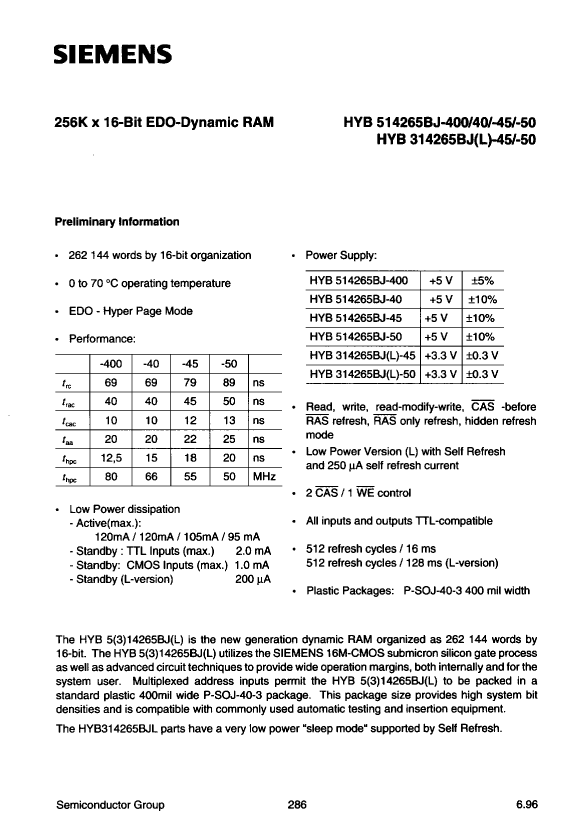

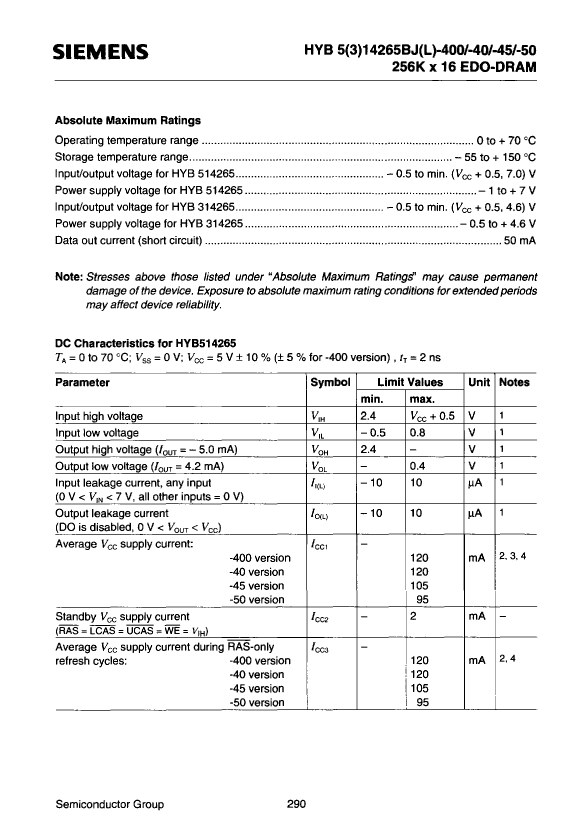

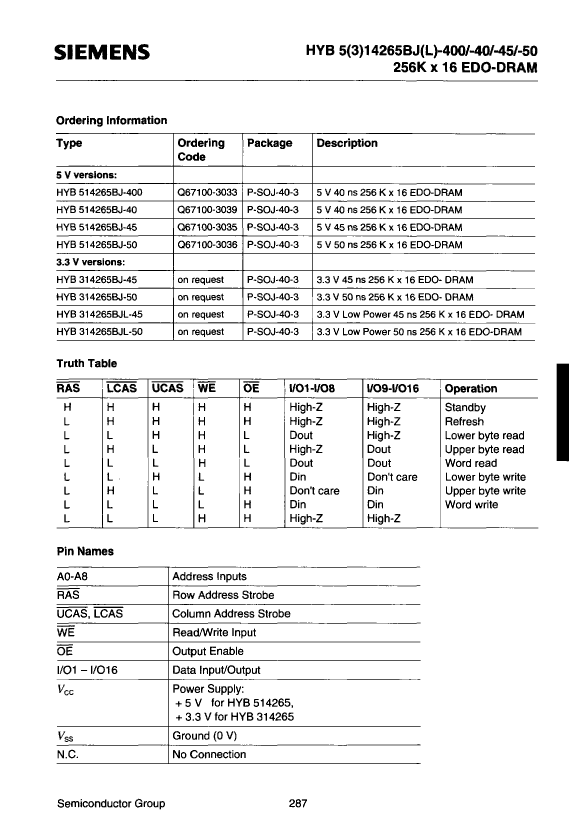

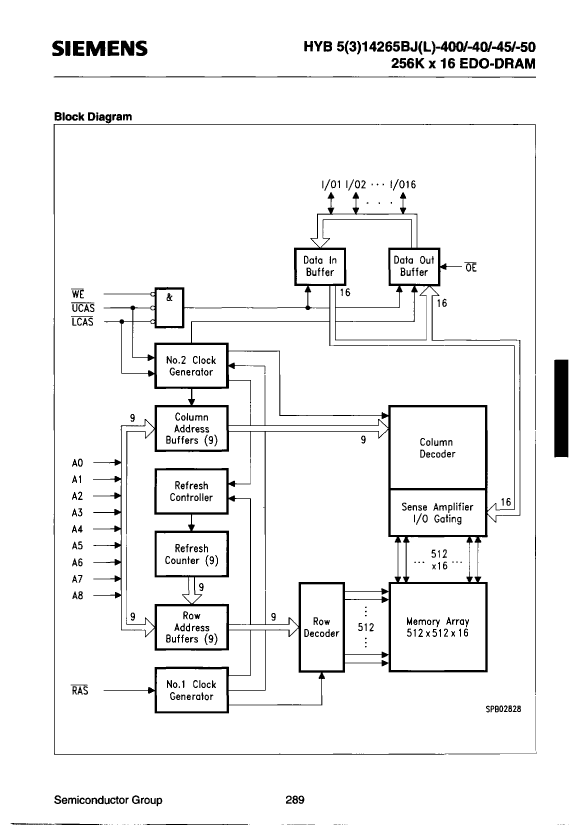

Preview

Download Datasheet

HYB314265BJ-45 Related Products

HYB314265BJ-45 HYB514265BJ-50 HYB514265BJ-45 HYB514265BJ-40 HYB314265BJL-45 HYB314265BJL-50 HYB314265BJ-50 HYB514265BJ-400
Description EDO DRAM, 256KX16, 45ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 45ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 40ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 45ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 50ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40 EDO DRAM, 256KX16, 40ns, CMOS, PDSO40, 0.400 INCH, PLASTIC, SOJ-40
Is it lead-free? Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible incompatible incompatible incompatible incompatible incompatible
Parts packaging code SOJ SOJ SOJ SOJ SOJ SOJ SOJ SOJ
package instruction 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40 0.400 INCH, PLASTIC, SOJ-40
Contacts 40 40 40 40 40 40 40 40
Reach Compliance Code not_compliant unknown unknown unknown unknown unknown not_compliant not_compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
access mode FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO FAST PAGE WITH EDO
Maximum access time 45 ns 50 ns 45 ns 40 ns 45 ns 50 ns 50 ns 40 ns
Other features RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
I/O type COMMON COMMON COMMON COMMON COMMON COMMON COMMON COMMON
JESD-30 code R-PDSO-J40 R-PDSO-J40 R-PDSO-J40 R-PDSO-J40 R-PDSO-J40 R-PDSO-J40 R-PDSO-J40 R-PDSO-J40
JESD-609 code e0 e0 e0 e0 e0 e0 e0 e0
length 26.16 mm 26.16 mm 26.16 mm 26.16 mm 26.16 mm 26.16 mm 26.16 mm 26.16 mm
memory density 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit 4194304 bit
Memory IC Type EDO DRAM EDO DRAM EDO DRAM EDO DRAM EDO DRAM EDO DRAM EDO DRAM EDO DRAM
memory width 16 16 16 16 16 16 16 16
Number of functions 1 1 1 1 1 1 1 1
Number of ports 1 1 1 1 1 1 1 1
Number of terminals 40 40 40 40 40 40 40 40
word count 262144 words 262144 words 262144 words 262144 words 262144 words 262144 words 262144 words 262144 words
character code 256000 256000 256000 256000 256000 256000 256000 256000
Operating mode ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS ASYNCHRONOUS
Maximum operating temperature 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C 70 °C
organize 256KX16 256KX16 256KX16 256KX16 256KX16 256KX16 256KX16 256KX16
Output characteristics 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE 3-STATE
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOJ SOJ SOJ SOJ SOJ SOJ SOJ SOJ
Encapsulate equivalent code SOJ40,.44 SOJ40,.44 SOJ40,.44 SOJ40,.44 SOJ40,.44 SOJ40,.44 SOJ40,.44 SOJ40,.44
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
power supply 3.3 V 5 V 5 V 5 V 3.3 V 3.3 V 3.3 V 5 V
Certification status Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified Not Qualified
refresh cycle 512 512 512 512 512 512 512 512
Maximum seat height 3.68 mm 3.68 mm 3.68 mm 3.68 mm 3.68 mm 3.68 mm 3.68 mm 3.68 mm
self refresh NO NO NO NO YES YES NO NO
Maximum standby current 0.001 A 0.001 A 0.001 A 0.001 A 0.0002 A 0.0002 A 0.001 A 0.001 A
Maximum slew rate 0.13 mA 0.12 mA 0.13 mA 0.15 mA 0.13 mA 0.12 mA 0.12 mA 0.15 mA
Maximum supply voltage (Vsup) 3.6 V 5.5 V 5.5 V 5.5 V 3.6 V 3.6 V 3.6 V 5.25 V
Minimum supply voltage (Vsup) 3 V 4.5 V 4.5 V 4.5 V 3 V 3 V 3 V 4.75 V
Nominal supply voltage (Vsup) 3.3 V 5 V 5 V 5 V 3.3 V 3.3 V 3.3 V 5 V
surface mount YES YES YES YES YES YES YES YES
technology CMOS CMOS CMOS CMOS CMOS CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form J BEND J BEND J BEND J BEND J BEND J BEND J BEND J BEND
Terminal pitch 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
width 10.3 mm 10.3 mm 10.3 mm 10.3 mm 10.3 mm 10.3 mm 10.3 mm 10.3 mm
Maker Infineon Infineon Infineon - Infineon Infineon Infineon Infineon
