General Purpose, Pulse and DC Transient Suppression
MDK Series Metallized Polyester Film, Dual In-Line,
low ESR/ESL, 50 – 630 VDC
Overview

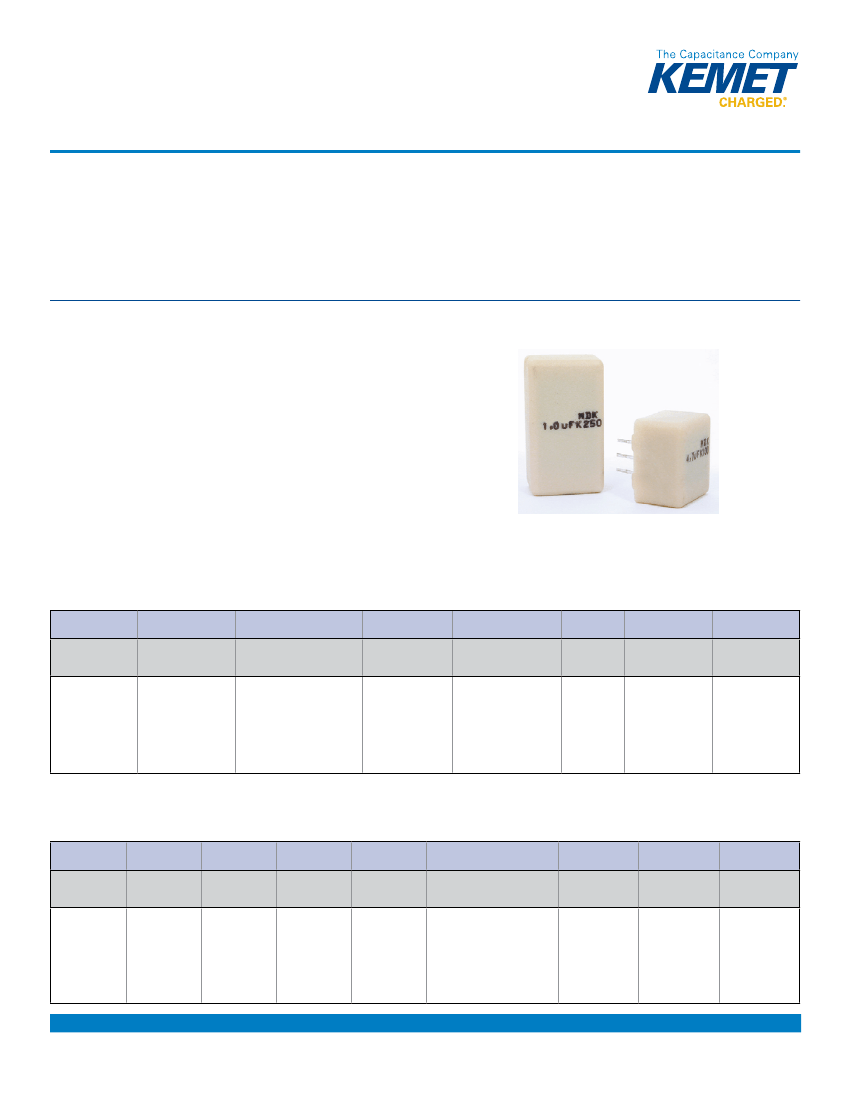

Dual in-line (DIL) metallized polyester (PET) film capacitor.
Encapsulation in self-extinguishing material meeting the
requirements of UL 94 V–0.
Applications
Typical applications include high frequency switched-mode
power supplies, DC/DC converters and input/output filtering.
Benefits
•
•
•
•
•
•
•
Rated voltage: 50 – 630 VDC
Rated voltage: 30 – 220 VAC
Capacitance range: 0.033 – 15 µF
Capacitance tolerance: ±5%, ±10%, other tolerances on request
Climatic category: 55/125/56
RoHS Compliant and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Legacy Part Number System
MDK
Series
Dual In-Line,
Metallized
Polyester
10
Lead Spacing (mm)
10
15
333
Capacitance Code (pF)
First two digits indicate
the two most significant
digits of the capacitance
value in picofarads. The
third digit is the number of
following zeros.
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other tolerances
on request
50
Rated Voltage (VDC)
50
100
250
400
630
A52
Size Code
See
Dimension
Table
P3
TUBE
Number of Leads
Packaging Code
per Side
P3 = 3 leads
P4 = 4 leads
P5 = 5 leads
P7 = 7 leads
P8 = 8 leads
See Ordering
Options Table
New KEMET Part Number System
F
Capacitor
Class
F = Film
68
Series
Dual In-Line,
Metallized
Polyester
3
A
A
Size Code
333
Capacitance Code (pF)
K
Capacitance
Tolerance
J = ±5
K = ±10%
Other
tolerances on
request
050
Rated Voltage
(VDC)
050 = 50
100 = 100
250 = 250
400 = 400
630 = 630
T
Packaging
Code
See Ordering
Options Table
Number of
Lead Spacing
Leads per Side
(mm)
3 = 3 leads
4 = 4 leads
5 = 5 leads
7 = 7 leads
8 = 8 leads
A = 10
B = 15
A = Standard First two digits indicate the
box size
two most significant digits
of the capacitance value in
picofarads. The third digit
is the number of following
zeros.
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3076_MDK • 4/4/2013
1
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
MDK Series Metalized Polyester Film, Dual In-Line, low ESR/ESL, 50 – 630 VDC
Ordering Options Table
Packaging Type
Standard Packaging Options
Bulk (Tube)
Case Size A53 Tape & Reel (Standard Reel)
T
VV687
TUBE
TR32
KEMET
Packaging
Code
Legacy
Packaging
Code
Dimensions – Millimeters
L
Center line
B
L3
See note
W
X
H
P1
B
+/-0.2
12.2
12.7
12.2
12.2
16.5
16.5
12.7
12.2
12.2
16.5
12.2
12.7
12.7
12.7
12.7
LL
G
P2
L2
P3
Legacy Leads P1
P2 P3
(1)
Size
per
Code
Side
+/-0.2 +/-0.2 +/-0.2
A52
A53
A54
A55
B53
B55
A53
A54
A55
B55
A55
A57
A58
A57
A58
3
3
3
3
3
3
4
4
4
4
5
7
7
8
8
10.0
10.0
10.0
10.0
15.0
15.0
10.0
10.0
10.0
15.0
10.0
10.0
10.0
10.0
10.0
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
2.54
5.08
5.08
5.08
5.08
5.08
5.08
7.62
7.62
7.62
7.62
10.16
15.24
15.24
17.78
17.78
H
+/-0.2
6.05
9.0
6.05
6.05
6.05
6.05
9.0
6.05
6.05
6.05
6.05
9.0
11.0
9.0
11.0
L
+/-0.2
11.0
14.0
13.5
16.5
11.0
12.2
14.0
13.5
16.5
12.2
16.5
23.0
23.0
23.0
23.0
H1
+/-0.4
7.75
10.5
7.75
7.75
7.75
7.75
10.5
7.75
7.75
7.75
7.75
10.7
12.5
10.7
12.5
L2
+/-0.2
2.96
4.46
4.21
5.71
2.96
3.56
3.19
2.94
4.44
2.29
3.17
3.88
3.88
2.61
2.61
L3
(2)
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
0.2
W
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
X
+/-0.05
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
0.35
Y
+/-0.2
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
Z
Nominal
0.25
0
0.25
0.25
0.6
0.6
0
0.25
0.25
0.6
0.25
0
0
0
0
LL
+/-0.2
1.7
1.5
1.7
1.7
1.7
1.7
1.5
1.7
1.7
1.7
1.7
1.7
1.5
1.7
1.5
Maximum +/-0.05
Drawing shows MDK with three leads per side. Similar dimensional requirements apply to the 4, 5, 7, and 8 leads per side configurations.
(1) P3 represents the cumulative tolerance of all leads.
(2) L3 represents the extent to which the center line of the leads misaligns with the center line of the body. Dimension shown is the maximum such misalignment
allowed.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3076_MDK • 4/4/2013
2
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
MDK Series Metalized Polyester Film, Dual In-Line, low ESR/ESL, 50 – 630 VDC
Performance Characteristics
Rated Voltage (VDC)
Rated Voltage (VAC)
Capacitance Range (μF)
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
Test Voltage
50
30
0.033 – 15
100
63
0.033 – 10
250
160
0.033 – 1.5
400
200
0.033 – 0.47
630
220
0.033 – 0.18
±5%, ±10%, other tolerances on request
-55°C to +125°C
+85°C
The rated voltage is decreased with 1.25%/°C from +85°C
55/125/56
1.6 x V
R
, 60 seconds
Measured at +20°C according to IEC 60384–2
Minimum Value Between Terminals
Insulation Resistance
V
R
≤ 100
V
R
> 100
C ≤ 0.1 µF
Dissipation Factor
1 kHz
10 kHz
100 kHz
Self Inductance
Approximately 4 nH
0.8%
1.5%
2.5%
C ≤ 0.33 µF
15,000 MΩ
30,000 MΩ
Maximum Values at +23°C
0.1 < C < 3.3 µF
0.8%
1.5%
5.0%
C > 0.33 µF
5,000 MΩ • µF
10,000 MΩ • µF
3.3 ≤ C ≤ 10 µF
0.8%
1.5%
C > 10 µF
0.8%
2.0%

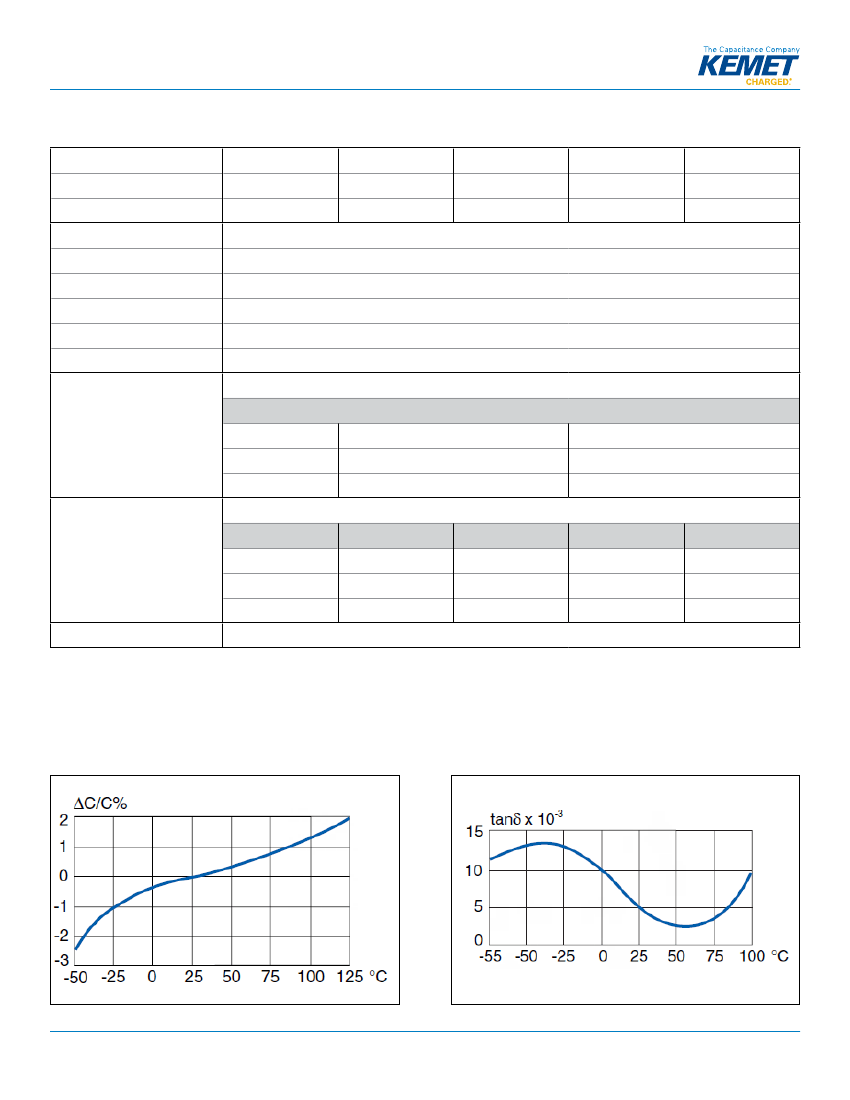

Typical Capacitance vs. Temperature at 1 kHz
Typical Dissipation Factor vs.
Temperature at 1 kHz
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3076_MDK • 4/4/2013
3
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
MDK Series Metalized Polyester Film, Dual In-Line, low ESR/ESL, 50 – 630 VDC
Maximum RMS Voltage V
rms
(V) vs. Frequency
Value
1.0 μF
2.2 μF
3.9 μF
4.7 μF
6.8 μF
10 μF
Rated
Voltage
250 V
100 V
100 V
100 V
100 V
100 V
Case
Size
A57
A52
A52
A54
A57
A58
1 kHz
150.0
50.0
50.0
50.0
50.0
50.0
10 kHz
36.0
25.0
18.0
16.0
15.5
15.0
100 kHz
9.2
5.0
4.0
3.5
2.2
2.0
500 kHz
2.9
1.2
1.0
0.7
0.5
0.4
1 MHz
1.3
0.6
0.3
0.2
0.2
0.2
Maximum RMS Current I
rms
(A) vs. Frequency
Value
1.0 μF
2.2 μF
3.9 μF
4.7 μF
6.8 μF
10 μF
Rated
Voltage
250 V
100 V
100 V
100 V
100 V
100 V
Case
Size
A57
A52
A52
A54
A57
A58
1 kHz
1.0
1.5
2.0
2.0
3.0
4.0
10 kHz
2.2
2.3
4.0
4.5
6.0
9.0
100 kHz
5.5
6.0
10.0
10.0
11.0
13.0
500 kHz
9.0
7.5
11.0
12.5
13.0
14.0
1 MHz
10.0
10.0
11.5
12.5
13.5
14.5
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3076_MDK • 4/4/2013
4
Film Capacitors – General Purpose, Pulse and DC Transient Suppression
MDK Series Metalized Polyester Film, Dual In-Line, low ESR/ESL, 50 – 630 VDC
Table 1 – Ratings & Part Number Reference
VDC VAC
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
30
Dimensions in mm
Cap Value
Size Code
Lead
ESR 500
(µF)
(New/Legacy)
Spacing (p) kHz (mΩ)
B
H
L
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A52
AA/A54
AA/A55
AA/A57
AA/A57
AA/A58
AA/A58
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
BA/B53
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.2
12.7
12.7
12.7
12.7
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
16.5
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
9.0
9.0
11.0
11.0
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
6.05
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
13.5
16.5
23.0
23.0
23.0
23.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
11.0
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
390
330
270
230
190
160
130
110
85
70
58
47
39
33
30
26
21
18
15
14
13
12
11
10
8
7
6
5
5
4
3
3
3
390
330
270
230
190
160
130
110
85
70
58
47
39
39
30
26
21
18
15
15
13
13
11
11
8
8
New
KEMET
Part Number
F683AA333(1)050T
F683AA393(1)050T
F683AA473(1)050T
F683AA563(1)050T
F683AA683(1)050T
F683AA823(1)050T
F683AA104(1)050T
F683AA124(1)050T
F683AA154(1)050T
F683AA184(1)050T
F683AA224(1)050T
F683AA274(1)050T
F683AA334(1)050T
F683AA394(1)050T
F683AA474(1)050T
F683AA564(1)050T
F683AA684(1)050T
F683AA824(1)050T
F683AA105(1)050T
F683AA125(1)050T
F683AA155(1)050T
F683AA185(1)050T
F683AA225(1)050T
F683AA275(1)050T
F683AA335(1)050T
F683AA395(1)050T
F683AA475(1)050T
F68(2)AA565(1)050T
F68(3)AA685(1)050T
F68(4)AA825(1)050T
F68(4)AA106(1)050T
F68(4)AA126(1)050T
F68(4)AA156(1)050T
F683BA333(1)050T
F683BA393(1)050T
F683BA473(1)050T
F683BA563(1)050T
F683BA683(1)050T
F683BA823(1)050T
F683BA104(1)050T
F683BA124(1)050T
F683BA154(1)050T
F683BA184(1)050T
F683BA224(1)050T
F683BA274(1)050T
F683BA334(1)050T
F683BA394(1)050T
F683BA474(1)050T
F683BA564(1)050T
F683BA684(1)050T
F683BA824(1)050T
F683BA105(1)050T
F683BA125(1)050T
F683BA155(1)050T
F683BA185(1)050T
F683BA225(1)050T
F683BA275(1)050T
F683BA335(1)050T
F683BA395(1)050T
Legacy Part
Number
MDK10333(1)50A52P3TUBE
MDK10393(1)50A52P3TUBE
MDK10473(1)50A52P3TUBE
MDK10563(1)50A52P3TUBE
MDK10683(1)50A52P3TUBE
MDK10823(1)50A52P3TUBE
MDK10104(1)50A52P3TUBE
MDK10124(1)50A52P3TUBE
MDK10154(1)50A52P3TUBE
MDK10184(1)50A52P3TUBE
MDK10224(1)50A52P3TUBE
MDK10274(1)50A52P3TUBE
MDK10334(1)50A52P3TUBE
MDK10394(1)50A52P3TUBE
MDK10474(1)50A52P3TUBE
MDK10564(1)50A52P3TUBE
MDK10684(1)50A52P3TUBE
MDK10824(1)50A52P3TUBE
MDK10105(1)50A52P3TUBE
MDK10125(1)50A52P3TUBE
MDK10155(1)50A52P3TUBE
MDK10185(1)50A52P3TUBE
MDK10225(1)50A52P3TUBE
MDK10275(1)50A52P3TUBE
MDK10335(1)50A52P3TUBE
MDK10395(1)50A52P3TUBE
MDK10475(1)50A52P3TUBE
MDK10565(1)50A54P(2)TUBE
MDK10685(1)50A55P(3)TUBE
MDK10825(1)50A57P(4)TUBE
MDK10106(1)50A57P(4)TUBE
MDK10126(1)50A58P(4)TUBE
MDK10156(1)50A58P(4)TUBE
MDK15333(1)50B53P3TUBE
MDK15393(1)50B53P3TUBE
MDK15473(1)50B53P3TUBE
MDK15563(1)50B53P3TUBE
MDK15683(1)50B53P3TUBE
MDK15823(1)50B53P3TUBE
MDK15104(1)50B53P3TUBE
MDK15124(1)50B53P3TUBE
MDK15154(1)50B53P3TUBE
MDK15184(1)50B53P3TUBE
MDK15224(1)50B53P3TUBE
MDK15274(1)50B53P3TUBE
MDK15334(1)50B53P3TUBE
MDK15394(1)50B53P3TUBE
MDK15474(1)50B53P3TUBE
MDK15564(1)50B53P3TUBE
MDK15684(1)50B53P3TUBE
MDK15824(1)50B53P3TUBE
MDK15105(1)50B53P3TUBE
MDK15125(1)50B53P3TUBE
MDK15155(1)50B53P3TUBE
MDK15185(1)50B53P3TUBE
MDK15225(1)50B53P3TUBE
MDK15275(1)50B53P3TUBE
MDK15335(1)50B53P3TUBE
MDK15395(1)50B53P3TUBE
VDC
VAC
Cap Value
(µF)
Size Code
(New/Legacy)
B
(mm)
H
(mm)
L
(mm)
Lead
Spacing (p)
ESR 500
kHz (mΩ)
New KEMET
Part Number
Legacy Part
Number
(1) J = ±5%, K = ±10%, other tolerances on request.
(2) = Number of leads per side, 3 or 4.
(3) = Number of leads per side, 3, 4 or 5.
(4) = Number of leads per side, 7 or 8.
F3076_MDK • 4/4/2013
5
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
Roll Over for
Order Info.
京公网安备 11010802033920号
EEWORLD
