SMD Inductors
Metal Composite Power Inductors MPX
Overview

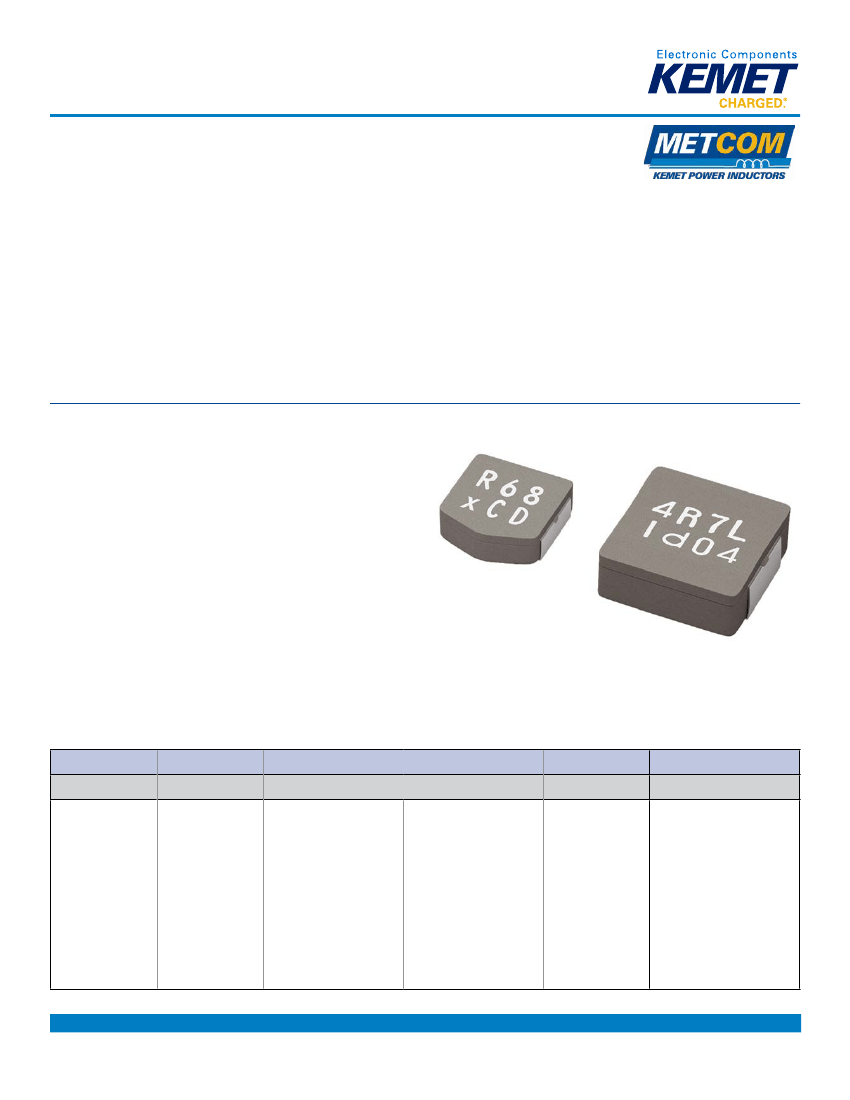

The KEMET MPX metal composite inductors are ideal
for use in DC to DC switching power supplies, as power
inductors as well as EMI filter inductors. The metal
composite core has high saturation characteristics
maintaining function in rush current mode and
characterized by temperature stable inductance.
Applications
Consumer and commercial power applications such as:
• High frequency DC-DC converters, including WBG GaN
applications
• PCs and servers
• Points of loads (POL)
• Field-programmable gate arrays (FPGA)
• Battery powered regulators
Benefits
• Metal composite powder
• Shielded construction, SMD configuration
• Inductance range from 0.10 – 100.00 µH
• Operating temperature up to +155°C
• Low acoustic noise
• Low magnetic flux leakage
Part Number System
MPX
Series
MPX
1
Version
D0520
Size Code
D0520 = 5x5x2.0 mm
D0530 = 5x5x3.0 mm
D0618 = 6x6x1.8 mm
D0624 = 6x6x2.4 mm
D0630 = 6x6x3.0 mm
D0650 = 6x6x5.0 mm
D0830 = 8x8x3.0 mm
D0840 = 8x8x4.0 mm
D1040 = 10x10x4.0 mm
D1235 = 12x12x3.5 mm
D1250 = 12x12x5.0 mm
D1264 = 12x12x6.4 mm
D1740 = 17x17x4.0 mm
D1770 = 17x17x7.0 mm
D2213 = 22x22x13.0 mm
L
Inductor
1R5
Inductance Code µH
The first two digits
represent the inductance
value. The third digit
inidcates the number of
zeros to be added.
R = decimal point
Examples:
100 = 10.00 μH
R68 = 0.68 µH
1R5 = 1.50 µH
101 = 100.00 µH
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9012_MPX • 9/16/2019
1
SMD Inductors
Metal Composite Power Inductors MPX
Performance Characteristics
Item
Operating Temperature
Rated Inductance Range
Inductance Tolerance
Rated DC Resistance Range
Rated Current Range
Performance Characteristics
−55°C to +155°C (including self-temperature rise)
0.10 – 100.00 µH at 100 kHz, 1 mA
±20%
0.48 – 341.2 mΩ maximum
2 – 90 A
Table 1 – Ratings & Part Number Reference
Part
Number
MPX1D0520LR15
MPX1D0520LR22
MPX1D0520LR33
MPX1D0520LR47
MPX1D0520LR68
MPX1D0520L1R0
MPX1D0520L1R5
MPX1D0520L2R2
MPX1D0520L3R3
MPX1D0520L4R7
MPX1D0520L6R8
MPX1D0520L100
MPX1D0530LR15
MPX1D0530LR22
MPX1D0530LR33
MPX1D0530LR47
MPX1D0530LR68
MPX1D0530L1R0
MPX1D0530L1R5
MPX1D0530L2R2
MPX1D0530L3R3
MPX1D0530L4R7
MPX1D0530L6R8
MPX1D0530L100
MPX1D0530L150
MPX1D0530L220
MPX1D0618LR10
MPX1D0618LR15
MPX1D0618LR22
Inductance
(µH)
at 100 kHz,
1 mA
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
0.10
0.15
0.22
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
3.40
4.30
5.30
6.70
10.60
16.40
30.90
35.10
55.80
83.97
113.43
193.70
2.40
3.40
4.50
6.00
7.10
10.00
15.30
21.40
37.20
54.10
93.73
121.77
186.53
296.63
2.40
3.20
4.60
DC
Resistance
(mΩ)
Maximum
3.90
5.00
6.20
7.80
12.20
18.90
35.60
40.40
64.20
96.60
130.50
222.80
2.80
3.90
5.20
6.90
8.20
11.50
17.70
24.60
42.80
62.20
107.80
140.10
214.60
341.20
2.80
3.80
5.30
Rated Current (A)
Irms
1
(Reference)
16.9
15.0
13.4
12.0
9.5
7.6
5.6
5.2
4.1
3.4
2.9
2.2
22.0
18.4
16.0
13.8
12.6
10.7
8.6
7.3
5.5
4.6
3.5
3.1
2.5
2.0
18.9
16.2
13.7
Isat
2
(Reference)
15.5
14.5
11.0
9.0
7.5
7.0
4.5
4.5
3.5
3.5
2.5
2.5
15.0
11.0
10.5
9.0
8.0
7.5
5.5
4.5
4.0
3.0
2.5
2.5
2.0
1.8
22.5
20.0
16.0
Isat
3
(Reference)
22.0
19.0
16.0
14.0
11.0
9.0
7.0
6.5
5.5
4.5
4.0
3.5
21.0
16.0
15.0
13.0
12.0
10.5
8.0
6.5
5.5
4.5
4.0
3.5
3.0
2.5
40.0
30.0
26.0
Self-
Resonance
Frequency
(MHz)
190.0
150.0
110.0
87.0
74.0
62.0
44.0
39.0
34.0
26.0
22.0
20.0
180.0
140.0
110.0
91.0
70.0
52.0
45.0
35.0
29.0
26.0
23.0
18.0
15.0
12.0
230.0
170.0
140.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9012_MPX • 9/16/2019
2
SMD Inductors
Metal Composite Power Inductors MPX
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPX1D0618LR33
MPX1D0618LR47
MPX1D0618LR68
MPX1D0618L1R0
MPX1D0618L1R5
MPX1D0618L2R2
MPX1D0618L3R3
MPX1D0618L4R7
MPX1D0624LR10
MPX1D0624LR15
MPX1D0624LR22
MPX1D0624LR33
MPX1D0624LR47
MPX1D0624LR68
MPX1D0624L1R0
MPX1D0624L1R5
MPX1D0624L2R2
MPX1D0624L3R3
MPX1D0624L4R7
MPX1D0624L6R8
MPX1D0624L100
MPX1D0630LR10
MPX1D0630LR15
MPX1D0630LR22
MPX1D0630LR33
MPX1D0630LR47
MPX1D0630LR68
MPX1D0630L1R0
MPX1D0630L1R5
MPX1D0630L2R2
MPX1D0630L3R3
MPX1D0630L4R7
MPX1D0630L6R8
MPX1D0630L100
MPX1D0630L150
MPX1D0630L220
Inductance
(µH)
at 100 kHz,
1 mA
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
0.10
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.10
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
5.30
7.40
11.00
16.70
22.40
29.40
53.40
72.50
1.50
2.00
2.80
3.60
4.50
6.70
9.10
16.10
26.60
29.40
44.00
58.60
98.40
1.30
1.60
2.20
2.70
3.50
5.30
7.10
11.00
15.90
26.30
31.80
44.20
67.80
113.20
162.00
DC
Resistance
(mΩ)
Maximum
6.10
8.50
12.70
19.30
25.80
33.80
61.50
83.40
1.80
2.30
3.30
4.20
5.20
7.80
10.50
18.50
30.70
33.80
50.60
67.40
113.20
1.50
1.90
2.60
3.20
4.00
6.20
8.20
12.70
18.30
30.30
36.70
50.90
78.00
130.20
186.30
Rated Current (A)
Irms
1
(Reference)
12.7
10.7
8.8
7.1
6.2
5.4
4.0
3.4
26.6
23.2
19.4
17.2
15.4
12.6
10.8
8.1
6.3
6.0
4.9
4.3
3.3
31.1
27.6
23.3
21.1
18.7
15.1
13.1
10.5
8.7
6.8
6.2
5.2
4.2
3.3
2.7
Isat
2
(Reference)
15.0
11.0
9.0
8.0
6.5
6.0
4.5
4.0
25.0
20.5
19.5
17.5
14.5
11.5
9.0
7.0
6.0
5.0
5.5
4.5
3.5
35.0
24.0
22.0
17.0
15.0
11.5
9.0
7.0
6.5
5.0
4.5
4.0
3.5
3.0
2.5
Isat
3
(Reference)
20.0
17.0
13.0
11.0
10.5
9.0
6.5
6.0
42.0
37.0
29.0
22.5
20.0
16.0
13.0
10.0
9.0
8.0
6.5
5.5
4.5
50.0
40.0
33.0
25.0
21.0
17.0
13.0
11.0
9.0
7.0
6.5
5.5
4.5
4.0
3.5
Self-
Resonance
Frequency
(MHz)
96.0
95.0
95.0
55.0
40.0
39.0
30.0
26.0
210.0
130.0
120.0
91.0
71.0
57.0
46.0
43.0
34.0
27.0
22.0
18.0
16.0
200.0
130.0
110.0
84.0
70.0
55.0
43.0
38.0
30.0
26.0
21.0
16.0
15.0
13.0
9.6
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9012_MPX • 9/16/2019
3
SMD Inductors
Metal Composite Power Inductors MPX
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPX1D0650LR68
MPX1D0650L1R0
MPX1D0650L1R5
MPX1D0650L2R2
MPX1D0650L3R3
MPX1D0650L4R7
MPX1D0650L6R8
MPX1D0650L100
MPX1D0830LR22
MPX1D0830LR33
MPX1D0830LR47
MPX1D0830LR68
MPX1D0830L1R0
MPX1D0830L1R5
MPX1D0830L2R2
MPX1D0830L3R3
MPX1D0830L4R7
MPX1D0830L6R8
MPX1D0830L100
MPX1D0830L150
MPX1D0830L220
MPX1D0830L330
MPX1D0840LR22
MPX1D0840LR33
MPX1D0840LR47
MPX1D0840LR68
MPX1D0840L1R0
MPX1D0840L1R5
MPX1D0840L2R2
MPX1D0840L3R3
MPX1D0840L4R7
MPX1D0840L6R8
MPX1D0840L100
MPX1D0840L150
MPX1D0840L220
MPX1D0840L330
Inductance
(µH)
at 100 kHz,
1 mA
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
3.60
5.10
7.20
10.00
16.40
27.80
38.40
53.40
1.60
2.30
2.70
3.80
5.00
7.90
11.80
19.40
25.80
32.90
53.60
82.30
116.90
199.60
1.20
2.00
2.30
3.10
3.60
5.80
7.50
12.10
20.40
29.00
43.10
56.50
85.40
134.10
DC
Resistance
(mΩ)
Maximum
4.10
6.00
8.30
11.60
18.90
32.00
44.20
61.40
1.90
2.70
3.10
4.40
5.70
9.10
13.60
22.30
29.70
37.90
61.70
94.60
134.50
229.50
1.50
2.40
2.70
3.60
4.20
6.80
8.70
14.00
23.50
33.40
49.60
65.00
98.30
154.20
Rated Current (A)
Irms
1
(Reference)
18.8
15.6
13.2
11.2
8.7
6.7
5.7
4.8
30.7
25.8
24.0
20.1
17.6
14.0
11.4
8.9
7.7
6.8
5.4
4.3
3.6
2.8
35.4
27.7
25.8
22.4
20.8
16.2
14.3
11.3
8.7
7.3
6.0
5.2
4.2
3.4
Isat
2
(Reference)
12.0
9.0
7.5
7.0
5.0
4.5
4.0
3.5
27.0
22.5
20.5
20.0
16.0
13.0
11.0
9.0
7.5
7.5
5.5
4.5
3.5
3.0
35.0
30.0
26.0
20.5
19.5
14.0
13.0
11.0
7.5
6.5
5.5
4.5
4.0
3.5
Isat
3
(Reference)
17.0
13.0
12.0
10.0
8.0
6.5
5.5
4.5
43.0
35.0
30.0
28.0
23.0
18.0
14.0
12.5
10.5
10.0
8.0
6.5
5.0
4.0
53.0
45.0
38.0
30.0
28.0
19.0
17.0
15.0
11.0
9.0
7.5
6.5
5.5
4.5
Self-
Resonance
Frequency
(MHz)
54.0
42.0
35.0
30.0
26.0
19.0
17.0
13.0
140.0
83.0
80.0
55.0
46.0
37.0
30.0
24.0
18.0
16.0
12.0
11.0
8.1
6.9
100.0
77.0
59.0
46.0
40.0
29.0
27.0
22.0
17.0
13.0
12.0
9.0
7.7
6.2
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9012_MPX • 9/16/2019
4
SMD Inductors
Metal Composite Power Inductors MPX
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPX1D0840L470
MPX1D1040LR22
MPX1D1040LR33
MPX1D1040LR47
MPX1D1040LR68
MPX1D1040L1R0
MPX1D1040L1R5
MPX1D1040L2R2
MPX1D1040L3R3
MPX1D1040L4R7
MPX1D1040L6R8
MPX1D1040L100
MPX1D1040L150
MPX1D1040L220
MPX1D1040L330
MPX1D1040L470
MPX1D1235LR15
MPX1D1235LR22
MPX1D1235LR33
MPX1D1235LR47
MPX1D1235LR68
MPX1D1235L1R0
MPX1D1235L1R5
MPX1D1235L2R2
MPX1D1235L3R3
MPX1D1235L4R7
MPX1D1235L6R8
MPX1D1235L100
MPX1D1250LR22
MPX1D1250LR33
MPX1D1250LR47
MPX1D1250LR68
MPX1D1250L1R0
MPX1D1250L1R5
MPX1D1250L2R2
MPX1D1250L3R3
Inductance
(µH)
at 100 kHz,
1 mA
47.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
197.10
1.40
1.60
2.10
2.70
3.30
4.60
6.80
11.10
13.80
20.90
29.60
44.50
66.20
104.10
158.80
1.10
1.30
1.50
2.00
2.50
3.60
5.20
7.30
10.60
14.20
18.80
30.40
1.00
1.10
1.50
1.70
2.20
3.10
4.10
6.40
DC
Resistance
(mΩ)
Maximum
226.70
1.60
1.90
2.40
3.20
3.80
5.40
7.90
12.80
15.90
24.10
34.10
51.20
76.10
119.70
182.60
1.30
1.60
1.80
2.30
2.90
4.20
6.00
8.40
12.20
16.40
21.70
35.00
1.20
1.30
1.80
2.00
2.60
3.60
4.80
7.40
Rated Current (A)
Irms
1
(Reference)
2.8
32.7
29.7
26.4
23.1
21.1
17.7
14.6
11.4
10.3
8.3
7.0
5.7
4.7
3.7
3.0
39.9
35.2
33.4
28.9
25.9
21.5
17.9
15.2
12.5
10.9
9.4
7.4
42.7
41.6
34.8
32.7
28.8
24.2
21.0
16.8
Isat
2
(Reference)
2.5
40.0
31.0
29.0
23.0
19.5
18.0
13.0
11.0
10.0
8.0
7.5
5.5
5.0
3.5
3.0
54.0
50.0
40.0
31.0
28.0
22.0
19.0
15.5
12.0
11.5
9.5
8.5
55.0
45.0
37.0
30.0
30.5
22.0
20.0
15.0
Isat
3
(Reference)
3.5
60.0
47.0
42.0
34.5
29.0
26.0
18.5
15.0
14.0
11.5
10.5
8.5
7.0
5.0
4.0
85.0
75.0
55.0
45.0
40.0
32.5
28.0
23.0
18.0
17.5
14.0
12.0
85.0
65.0
55.0
45.0
43.0
32.0
28.5
22.0
Self-
Resonance
Frequency
(MHz)
5.7
108.0
75.0
65.0
47.0
35.0
30.0
23.0
18.0
17.0
14.0
11.0
8.0
7.0
5.0
4.5
128.0
100.0
63.0
58.0
46.0
33.0
29.0
21.0
18.0
14.0
12.0
9.5
95.0
68.0
54.0
45.0
34.0
25.0
21.0
17.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9012_MPX • 9/16/2019
5
京公网安备 11010802033920号
EEWORLD
