SMD Inductors
Metal Composite Power Inductors MPXV
Automotive Grade
Overview

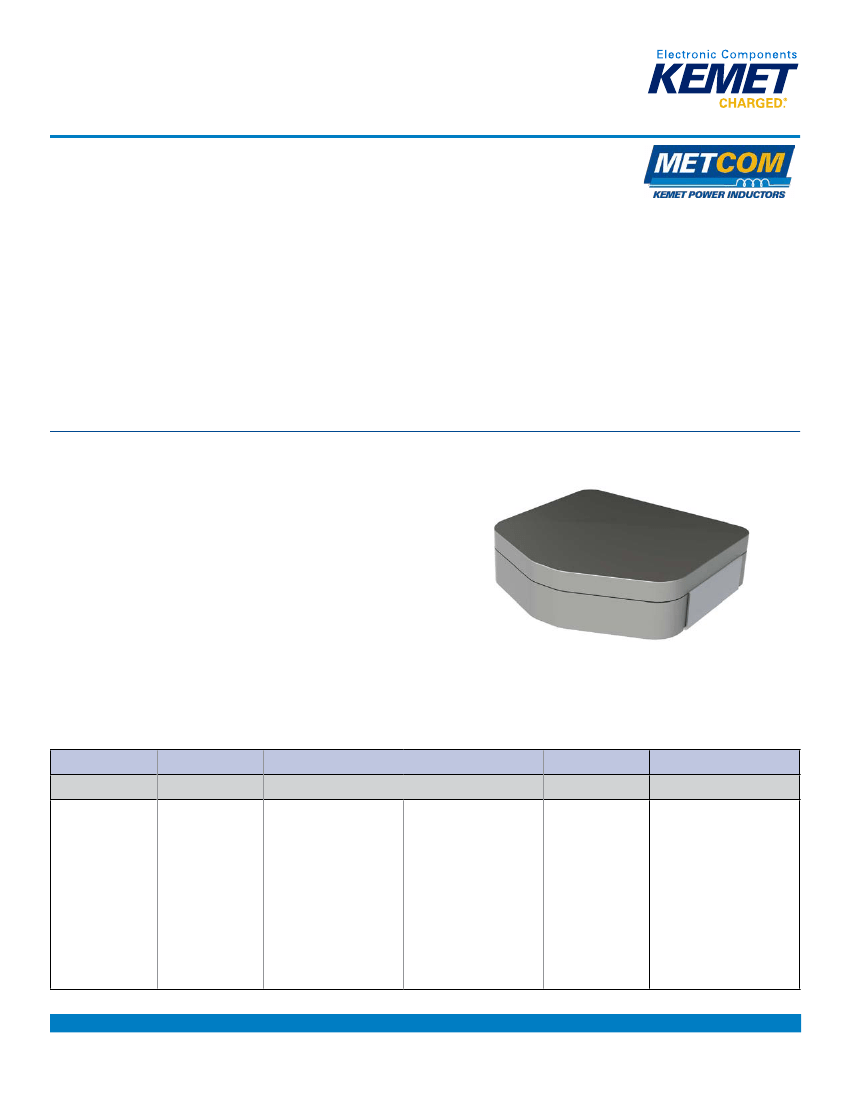

The KEMET MPXV metal composite inductors are
ideal for use in DC to DC switching power supplies for
automotive applications.The metal composite core has
high saturation characteristics maintaining function in
rush current mode and characterized by temperature
stable inductance.
Applications
Automotive ECU applications such as:
• LED headlights
• Meter cluster panels
• Head-up displays (HUD)
• Electric water pumps (EWP)
• Electric oil pumps (EOP)
• Electric power steering (EPS)
Benefits
• Metal composite powder
• Shielded construction, SMD configuration
• Inductance range from 0.10 to 100.00 µH
• Operating temperature up to +155°C
• Low acoustic noise
• Low magnetic flux leakage
• AEC–Q200 qualified
Part Number System
MPX
Series
MPXV
1
Version
1
D0520
Size Code
D0520 = 5x5x2.0 mm
D0530 = 5x5x3.0 mm
D0618 = 6x6x1.8 mm
D0624 = 6x6x2.4 mm
D0630 = 6x6x3.0 mm
D0650 = 6x6x5.0 mm
D0830 = 8x8x3.0 mm
D0840 = 8x8x4.0 mm
D1040 = 10x10x4.0 mm
D1054 = 10x10x5.4 mm
D1235 = 12x12x3.5 mm
D1250 = 12x12x5.0 mm
D1264 = 12x12x6.4 mm
D1740 = 17x17x4.0 mm
D1770 = 17x17x7.0 mm
D2213 = 22x22x13.0 mm
L
Inductor
1R5
Inductance Code µH
The first two digits
represent the inductance
value. The third digit
indicates the number of
zeros to be added.
R = decimal point
Examples:
100 = 10.00 μH
R68 = 0.68 µH
1R5 = 1.50 µH
101 = 100.00 µH
One world. One KEMET
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9013_MPXV • 12/5/2019
1
SMD Inductors
Metal Composite Power Inductors MPXV - Automotive Grade
Performance Characteristics
Item
Operating Temperature
Rated Inductance Range
Inductance Tolerance
Rated DC Resistance Range
Rated Current Range
Performance Characteristics
−55°C to +155°C (including self-temperature rise)
0.10 – 100.00 µH at 100 kHz, 1 mA
±20%
0.48 – 341.2 mΩ maximum
2 – 90 A
Table 1 – Ratings & Part Number Reference
Part
Number
MPXV1D0520LR15
MPXV1D0520LR22
MPXV1D0520LR33
MPXV1D0520LR47
MPXV1D0520LR68
MPXV1D0520L1R0
MPXV1D0520L1R5
MPXV1D0520L2R2
MPXV1D0520L3R3
MPXV1D0520L4R7
MPXV1D0520L6R8
MPXV1D0520L100
MPXV1D0530LR15
MPXV1D0530LR22
MPXV1D0530LR33
MPXV1D0530LR47
MPXV1D0530LR68
MPXV1D0530L1R0
MPXV1D0530L1R5
MPXV1D0530L2R2
MPXV1D0530L3R3
MPXV1D0530L4R7
MPXV1D0530L6R8
MPXV1D0530L100
MPXV1D0530L150
MPXV1D0530L220
MPXV1D0618LR10
MPXV1D0618LR15
MPXV1D0618LR22
Inductance
(µH)
at 100 kHz,
1 mA
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
0.10
0.15
0.22
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
3.40
4.30
5.30
6.70
10.60
16.40
30.90
35.10
55.80
84.00
113.40
193.70
2.40
3.40
4.50
6.00
7.10
10.00
15.30
21.40
37.20
54.10
93.70
121.80
186.50
296.60
2.40
3.20
4.60
DC
Resistance
(mΩ)
Maximum
3.90
5.00
6.20
7.80
12.20
18.90
35.60
40.40
64.20
96.60
130.50
222.80
2.80
3.90
5.20
6.90
8.20
11.50
17.70
24.60
42.80
62.20
107.80
140.10
214.60
341.20
2.80
3.80
5.30
Rated Current (A)
Irms
1
(Reference)
16.9
15.0
13.4
12.0
9.5
7.6
5.6
5.2
4.1
3.4
2.9
2.2
22.0
18.4
16.0
13.8
12.6
10.7
8.6
7.3
5.5
4.6
3.5
3.1
2.5
2.0
18.9
16.2
13.7
Isat
2
(Reference)
15.5
14.5
11.0
9.0
7.5
7.0
4.5
4.5
3.5
3.5
2.5
2.5
15.0
11.0
10.5
9.0
8.0
7.5
5.5
4.5
4.0
3.0
2.5
2.5
2.0
1.8
22.5
20.0
16.0
Isat
3
(Reference)
22.0
19.0
16.0
14.0
11.0
9.0
7.0
6.5
5.5
4.5
4.0
3.5
21.0
16.0
15.0
13.0
12.0
10.5
8.0
6.5
5.5
4.5
4.0
3.5
3.0
2.5
40.0
30.0
26.0
Self-
Resonance
Frequency
(MHz)
190.0
150.0
110.0
87.0
74.0
62.0
44.0
39.0
34.0
26.0
22.0
20.0
180.0
140.0
110.0
91.0
70.0
52.0
45.0
35.0
29.0
26.0
23.0
18.0
15.0
12.0
230.0
170.0
140.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
Self-Resonance
Frequency
(MHz)
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9013_MPXV • 12/5/2019
2
SMD Inductors
Metal Composite Power Inductors MPXV - Automotive Grade
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPXV1D0618LR33
MPXV1D0618LR47
MPXV1D0618LR68
MPXV1D0618L1R0
MPXV1D0618L1R5
MPXV1D0618L2R2
MPXV1D0618L3R3
MPXV1D0618L4R7
MPXV1D0624LR10
MPXV1D0624LR15
MPXV1D0624LR22
MPXV1D0624LR33
MPXV1D0624LR47
MPXV1D0624LR68
MPXV1D0624L1R0
MPXV1D0624L1R5
MPXV1D0624L2R2
MPXV1D0624L3R3
MPXV1D0624L4R7
MPXV1D0624L6R8
MPXV1D0624L100
MPXV1D0630LR10
MPXV1D0630LR15
MPXV1D0630LR22
MPXV1D0630LR33
MPXV1D0630LR47
MPXV1D0630LR68
MPXV1D0630L1R0
MPXV1D0630L1R5
MPXV1D0630L2R2
MPXV1D0630L3R3
MPXV1D0630L4R7
MPXV1D0630L6R8
MPXV1D0630L100
MPXV1D0630L150
MPXV1D0630L220
MPXV1D0650LR68
Inductance
(µH)
at 100 kHz,
1 mA
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
0.10
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.10
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
0.68
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
5.30
7.40
11.00
16.70
22.40
29.40
53.40
72.50
1.50
2.00
2.80
3.60
4.50
6.70
9.10
16.10
26.60
29.40
44.00
58.60
98.40
1.30
1.60
2.20
2.70
3.50
5.30
7.10
11.00
15.90
26.30
31.80
44.20
67.80
113.20
162.00
3.60
DC
Resistance
(mΩ)
Maximum
6.10
8.50
12.70
19.30
25.80
33.80
61.50
83.40
1.80
2.30
3.30
4.20
5.20
7.80
10.50
18.50
30.70
33.80
50.60
67.40
113.20
1.50
1.90
2.60
3.20
4.00
6.20
8.20
12.70
18.30
30.30
36.70
50.90
78.00
130.20
186.30
4.10
Rated Current (A)
Irms
1
(Reference)
12.7
10.7
8.8
7.1
6.2
5.4
4.0
3.4
26.6
23.2
19.4
17.2
15.4
12.6
10.8
8.1
6.3
6.0
4.9
4.3
3.3
31.1
27.6
23.3
21.1
18.7
15.1
13.1
10.5
8.7
6.8
6.2
5.2
4.2
3.3
2.7
18.8
Isat
2
(Reference)
15.0
11.0
9.0
8.0
6.5
6.0
4.5
4.0
25.0
20.5
19.5
17.5
14.5
11.5
9.0
7.0
6.0
5.0
5.5
4.5
3.5
35.0
24.0
22.0
17.0
15.0
11.5
9.0
7.0
6.5
5.0
4.5
4.0
3.5
3.0
2.5
12.0
Isat
3
(Reference)
20.0
17.0
13.0
11.0
10.5
9.0
6.5
6.0
42.0
37.0
29.0
22.5
20.0
16.0
13.0
10.0
9.0
8.0
6.5
5.5
4.5
50.0
40.0
33.0
25.0
21.0
17.0
13.0
11.0
9.0
7.0
6.5
5.5
4.5
4.0
3.5
17.0
Self-
Resonance
Frequency
(MHz)
96.0
95.0
95.0
55.0
40.0
39.0
30.0
26.0
210.0
130.0
120.0
91.0
71.0
57.0
46.0
43.0
34.0
27.0
22.0
18.0
16.0
200.0
130.0
110.0
84.0
70.0
55.0
43.0
38.0
30.0
26.0
21.0
16.0
15.0
13.0
9.6
54.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
Self-Resonance
Frequency
(MHz)
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9013_MPXV • 12/5/2019
3
SMD Inductors
Metal Composite Power Inductors MPXV - Automotive Grade
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPXV1D0650L1R0
MPXV1D0650L1R5
MPXV1D0650L2R2
MPXV1D0650L3R3
MPXV1D0650L4R7
MPXV1D0650L6R8
MPXV1D0650L100
MPXV1D0830LR22
MPXV1D0830LR33
MPXV1D0830LR47
MPXV1D0830LR68
MPXV1D0830L1R0
MPXV1D0830L1R5
MPXV1D0830L2R2
MPXV1D0830L3R3
MPXV1D0830L4R7
MPXV1D0830L6R8
MPXV1D0830L100
MPXV1D0830L150
MPXV1D0830L220
MPXV1D0830L330
MPXV1D0840LR22
MPXV1D0840LR33
MPXV1D0840LR47
MPXV1D0840LR68
MPXV1D0840L1R0
MPXV1D0840L1R5
MPXV1D0840L2R2
MPXV1D0840L3R3
MPXV1D0840L4R7
MPXV1D0840L6R8
MPXV1D0840L100
MPXV1D0840L150
MPXV1D0840L220
MPXV1D0840L330
MPXV1D0840L470
MPXV1D1040LR22
Inductance
(µH)
at 100 kHz,
1 mA
1.00
1.50
2.20
3.30
4.70
6.80
10.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
0.22
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
5.10
7.20
10.00
16.40
27.80
38.40
53.40
1.60
2.30
2.70
3.80
5.00
7.90
11.80
19.40
25.80
32.90
53.60
82.30
116.90
199.60
1.20
2.00
2.30
3.10
3.60
5.80
7.50
12.10
20.40
29.00
43.10
56.50
85.40
134.10
197.10
1.40
DC
Resistance
(mΩ)
Maximum
6.00
8.30
11.60
18.90
32.00
44.20
61.40
1.90
2.70
3.10
4.40
5.70
9.10
13.60
22.30
29.70
37.90
61.70
94.60
134.50
229.50
1.50
2.40
2.70
3.60
4.20
6.80
8.70
14.00
23.50
33.40
49.60
65.00
98.30
154.20
226.70
1.60
Rated Current (A)
Irms
1
(Reference)
15.6
13.2
11.2
8.7
6.7
5.7
4.8
30.7
25.8
24.0
20.1
17.6
14.0
11.4
8.9
7.7
6.8
5.4
4.3
3.6
2.8
35.4
27.7
25.8
22.4
20.8
16.2
14.3
11.3
8.7
7.3
6.0
5.2
4.2
3.4
2.8
32.7
Isat
2
(Reference)
9.0
7.5
7.0
5.0
4.5
4.0
3.5
27.0
22.5
20.5
20.0
16.0
13.0
11.0
9.0
7.5
7.5
5.5
4.5
3.5
3.0
35.0
30.0
26.0
20.5
19.5
14.0
13.0
11.0
7.5
6.5
5.5
4.5
4.0
3.5
2.5
40.0
Isat
3
(Reference)
13.0
12.0
10.0
8.0
6.5
5.5
4.5
43.0
35.0
30.0
28.0
23.0
18.0
14.0
12.5
10.5
10.0
8.0
6.5
5.0
4.0
53.0
45.0
38.0
30.0
28.0
19.0
17.0
15.0
11.0
9.0
7.5
6.5
5.5
4.5
3.5
60.0
Self-
Resonance
Frequency
(MHz)
42.0
35.0
30.0
26.0
19.0
17.0
13.0
140.0
83.0
80.0
55.0
46.0
37.0
30.0
24.0
18.0
16.0
12.0
11.0
8.1
6.9
100.0
77.0
59.0
46.0
40.0
29.0
27.0
22.0
17.0
13.0
12.0
9.0
7.7
6.2
5.7
108.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
Self-Resonance
Frequency
(MHz)
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9013_MPXV • 12/5/2019
4
SMD Inductors
Metal Composite Power Inductors MPXV - Automotive Grade
Table 1 – Ratings & Part Number Reference cont.
Part
Number
MPXV1D1040LR33
MPXV1D1040LR47
MPXV1D1040LR68
MPXV1D1040L1R0
MPXV1D1040L1R5
MPXV1D1040L2R2
MPXV1D1040L3R3
MPXV1D1040L4R7
MPXV1D1040L6R8
MPXV1D1040L100
MPXV1D1040L150
MPXV1D1040L220
MPXV1D1040L330
MPXV1D1040L470
MPXV1D1054LR33
MPXV1D1054LR47
MPXV1D1054LR68
MPXV1D1054L1R0
MPXV1D1054L2R2
MPXV1D1054L3R3
MPXV1D1054L4R7
MPXV1D1054L100
MPXV1D1054L150
MPXV1D1054L220
MPXV1D1054L330
MPXV1D1054L470
MPXV1D1235LR15
MPXV1D1235LR22
MPXV1D1235LR33
MPXV1D1235LR47
MPXV1D1235LR68
MPXV1D1235L1R0
MPXV1D1235L1R5
MPXV1D1235L2R2
MPXV1D1235L3R3
MPXV1D1235L4R7
MPXV1D1235L6R8
Inductance
(µH)
at 100 kHz,
1 mA
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
10.00
15.00
22.00
33.00
47.00
0.33
0.47
0.68
1.00
2.20
3.30
4.70
10.00
15.00
22.00
33.00
47.00
0.15
0.22
0.33
0.47
0.68
1.00
1.50
2.20
3.30
4.70
6.80
Inductance
Tolerance
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
±20%
DC
Resistance
(mΩ) Typical
1.60
2.10
2.70
3.30
4.60
6.80
11.10
13.80
20.90
29.60
44.50
66.20
104.10
158.80
1.10
1.60
2.00
2.90
4.70
7.30
11.90
24.00
34.00
47.00
70.00
112.00
1.10
1.30
1.50
2.00
2.50
3.60
5.20
7.30
10.60
14.20
18.80
DC
Resistance
(mΩ)
Maximum
1.90
2.40
3.20
3.80
5.40
7.90
12.80
15.90
24.10
34.10
51.20
76.10
119.70
182.60
1.27
1.84
2.30
3.34
5.41
8.40
13.69
27.60
39.10
54.05
80.50
128.80
1.30
1.60
1.80
2.30
2.90
4.20
6.00
8.40
12.20
16.40
21.70
Rated Current (A)
Irms
1
(Reference)
29.7
26.4
23.1
21.1
17.7
14.6
11.4
10.3
8.3
7.0
5.7
4.7
3.7
3.0
37.3
30.9
27.6
22.9
18.0
14.4
11.3
7.9
6.7
5.7
4.6
3.7
39.9
35.2
33.4
28.9
25.9
21.5
17.9
15.2
12.5
10.9
9.4
Isat
2
(Reference)
31.0
29.0
23.0
19.5
18.0
13.0
11.0
10.0
8.0
7.5
5.5
5.0
3.5
3.0
45.0
39.0
27.0
20.0
12.0
11.0
10.0
8.5
8.0
5.0
4.4
3.4
54.0
50.0
40.0
31.0
28.0
22.0
19.0
15.5
12.0
11.5
9.5
Isat
3
(Reference)
47.0
42.0
34.5
29.0
26.0
18.5
15.0
14.0
11.5
10.5
8.5
7.0
5.0
4.0
60.0
51.0
37.5
27.0
16.5
15.0
14.0
12.0
11.0
7.0
6.0
4.6
85.0
75.0
55.0
45.0
40.0
32.5
28.0
23.0
18.0
17.5
14.0
Self-
Resonance
Frequency
(MHz)
75.0
65.0
47.0
35.0
30.0
23.0
18.0
17.0
14.0
11.0
8.0
7.0
5.0
4.5
56.0
46.0
38.0
31.0
21.0
17.0
14.0
9.5
7.5
6.5
5.0
4.0
128.0
100.0
63.0
58.0
46.0
33.0
29.0
21.0
18.0
14.0
12.0
Part Number
1
2
Inductance
(µH) at 100
kHz, 1 mA
Inductance
Tolerance
DC Resistance DC Resistance
(mΩ) Typical (mΩ) Maximum
Irms
1
Isat
2
Rated Current (A)
Isat
3
Self-Resonance
Frequency
(MHz)
T = 40 K rise at rated current
Inductance drop 20% at rated current
3
Inductance drop 30% at rated current
All electrical characteristics data is referenced to 25°C.
© KEMET Electronics Corporation • KEMET Tower • One East Broward Boulevard
Fort Lauderdale, FL 33301 USA • 954-766-2800 • www.kemet.com
L9013_MPXV • 12/5/2019
5
京公网安备 11010802033920号
EEWORLD
