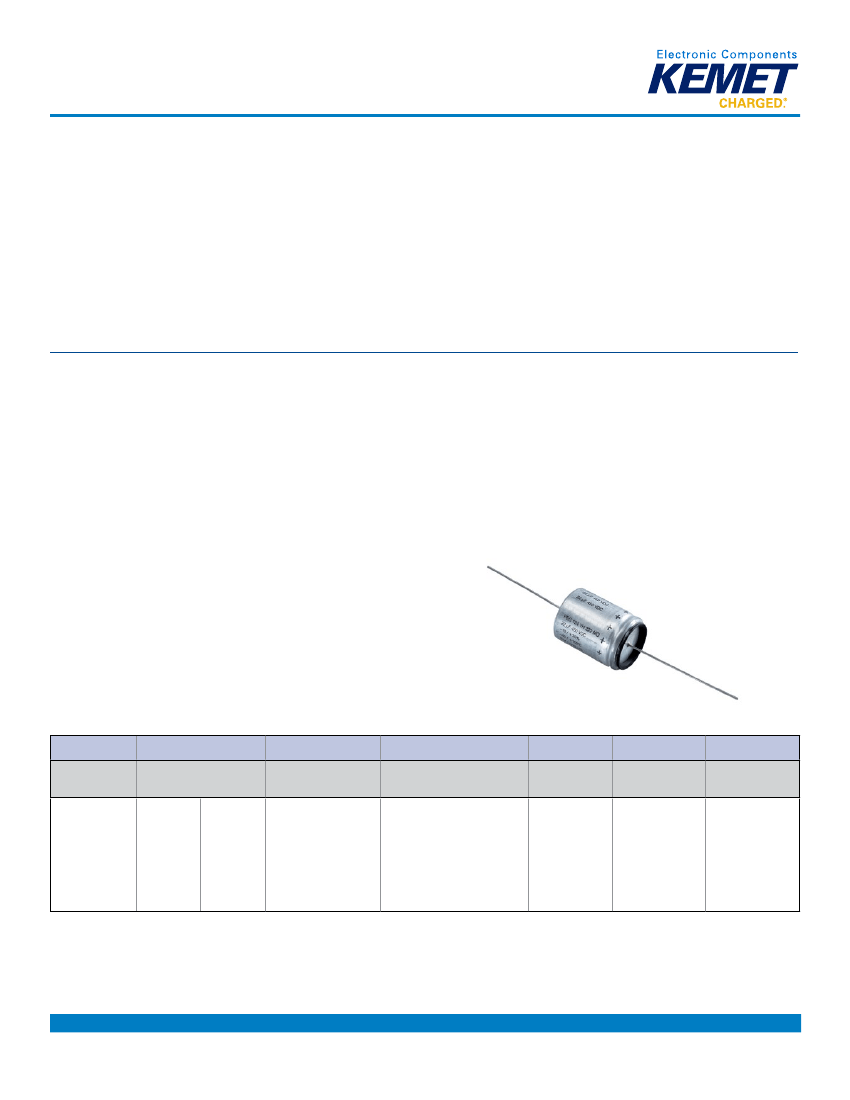

Axial Aluminum Electrolytic Capacitors
PEG124 Series, +105ºC and +125ºC
Overview
KEMET's PEG124 is an electrolytic capacitor with very long-
life and outstanding electrical performance. The device has a
polarized all-welded design, tinned copper wire leads, a negative
pole connected to the case, and plastic insulation. long-life
and very high reliability are achieved by dimensioning of the
capacitor, careful selection of materials/methods and discipline in
quality control allowing operation up to +125°C/+105°C.
The PEG124 winding is housed in a cylindrical aluminum can with
a high purity aluminum lid and high quality rubber gasket. The
sealing system is designed for electrolyte leakage-free operation
and a very low gas-diffusion rate of electrolyte. Low ESR is the
result of a low resistive electrolyte/paper system and an all-welded
design. Thanks to its mechanical robustness, the PEG124 is also
suitable for use in mobile and aircraft installations.
Benefits
•
•
•
•
Operating temperature of +125°C and +105°C
Long life, up to 27,500 hours at +105°C
Low ESR
Low ESL
Applications
KEMET's PEG124 is a high performance axial electrolytic
capacitor. Typical applications include smoothing, coupling/
decoupling and energy storage in telecommunication, power
supply system, data processing, process control and measuring
where long life and high reliability are of paramount importance.
Part Number System
PEG124
Series
Axial Aluminum
Electrolytic
E
Voltage (VDC)
E= 10
G = 16
H = 25
K = 40
M = 63
P = 100
R = 200
U = 350
V = 400
Y = 450
F
Size Code
See Dimension Table
410
Capacitance Code (µF)
The second two digits
indicate the two most
significant digits of the
capacitance value. The
first digit indicates the total
number digits.
0
Version
0 = Standard
A-Z = High
Performance
Q
Capacitance
Tolerance
Q = -10 +30%
M = ±20%
T1
Packaging
See Ordering
Options Table
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4011_PEG124 • 7/15/2013
1
Axial Aluminum Electrolytic Capacitors – PEG124, +105ºC and +125ºC
Performance Characteristics
Item
Capacitance Range
Rated Voltage
Operating Temperature
Capacitance Tolerance
Operational Lifetime
Shelf Life
Leakage Current
1 – 4,700 µF
10 – 63 VDC
-40 to +125°C
-10/+30%, (-10/+50%, ±20% select values) at 100 Hz/+20°C
27,500 hours at +105°C (hours, D = 20 mm)
5,000 hours at +105°C or 10 years at +40°C 0 VDC +40°C 10 years O VDC
I = 0.01 CV (µA, CV ≤ 1,000)
I = 0.003 CV + 4000 (µA, CV > 1,000)
I = 0.006 CV + 4,000 (µA)
Performance Characteristics
1 – 470 µF
100 – 450 VDC
-40 to +105°C
C = rated capacitance (µF), V = rated voltage (VDC). Voltage applied for 5 minutes at +20°C.
Procedure
Vibration Test Specifications
0.75 mm displacement amplitude or 10 g maximum
acceleration. Vibration applied for three 2-hour sessions
at 10 – 500 Hz (capacitor clamped by body).
Requirements
No leakage of electrolyte or other visible damage.
Deviations in capacitance and tan δ from initial
measurements must not exceed:
∆ C/C < 5%
Standards
IEC 60384–4 long life grade 40/125/56
Compensation Factor of Ripple Current (RC) vs. Frequency
Frequency
Coefficient
300 Hz
0.57
1 kHz
0.80
5 kHz
1.00
100 kHz
1.04
Test Method & Performance
Endurance Life Test
Conditions
Temperature
Test Duration
Ripple Current
Voltage
+125°C
2,000 hours
Maximum ripple current specified in table
The sum of DC voltage and the peak AC voltage must not exceed the rated voltage of the capacitor
Performance
+105°C (≥100 V)
5,000 hours
Performance
Capacitance Change
Equivalent Series Resistance
Leakage Current
The following specifications will be satisfied when the capacitor is tested at +20°C:
< 160 V
≥ 160 V
Does not exceed 200% of the initial value
Does not exceed leakage current limit
Within 15% of the initial value
Within 10% of the initial value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4011_PEG124 • 7/15/2013
2
Axial Aluminum Electrolytic Capacitors – PEG124, +105ºC and +125ºC
Ordering Options Table
Case Size
Packaging
Kind
Bulk (bag)
≤ 13 x 37
Tape & Reel
Lead Length
(mm)
42 +3/-2
See Dimension Table
Lead and
Packaging
Code
L1
T1
Standard Bulk Packaging Options
Dimensions – Millimeters
LL
"+" polarity indicator
LL
d
Length to Lead Bend
Size Code
A
B
C
D
E
F
G
H
J
L
±0.5
10
10
13
13
13
16
16
20
20
20
D
Dimensions in mm
L
L1
±1
20.0
29.0
20.0
29.0
37.0
29.0
37.0
29.0
37.0
46.0
26.0
35.0
26.0
35.0
43.0
35.0
43.0
35.0
43.0
52.0
Minimum
±0.03
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
d
Bulk
LL
+3/-2
Taped
LL
+3/-2
31
27
31
27
24
42
42
42
42
42
42
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4011_PEG124 • 7/15/2013
3
Axial Aluminum Electrolytic Capacitors – PEG124, +105ºC and +125ºC
Shelf Life
The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however the leakage
current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three years at 40°C. See
sectional specification under each product series for specific data.
Re-age (Reforming) Procedure
Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen to a steady
value below the specified limit. During re-aging a maximum charging current of twice the specified leakage current or 5 mA (whichever
is greater) is suggested.
Reliability
The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of conditions for a
given length of time.
In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must utilize probability
theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple current, temperature and time).
Finally, the meaning of satisfactory performance must be defined by specifying a set of conditions which determine the end of life of the
component.
Reliability as a function of time, R(t), is normally expressed as: R(t)=e-
λt
where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.
Failure Rate
The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows the
characteristic pattern:
• Early failures are removed during the manufacturing process.
• The operational life is characterized by a constant failure rate.
• The wear out period is characterized by a rapidly increasing failure rate.
The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as 1 x 10
-9
failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.
e.g., 100FIT = 1 x 10
-7
failures per hour = 0.01%/1,000 hours
End of Life Definition
Catastrophic Failure: short circuit, open circuit or safety vent operation
Parametric Failure:
• Change in capacitance > ±10%
• Leakage current > specified limit
• ESR > 2 x initial ESR value
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4011_PEG124 • 7/15/2013
4
Axial Aluminum Electrolytic Capacitors – PEG124, +105ºC and +125ºC
Failure Rate cont'd
MTBF
The mean time between failures (MTBF) is simply the inverse of the failure rate.
MTBF= 1/λ
early failures
wear out
Failure Rate
operational life
Time
Estimated field failure rate: ≤ 1.0 ppm (Failures per year/produced number of capacitors per year)
The expected failure rate for this capacitor range is based on field experience for capacitors with structural similarity.
Environmental Compliance
As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental effects
of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like China, legislation
has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic equipment. All products in this
catalog are produced to help our customers’ obligations to guarantee their products and fulfill these legislative requirements. The only
material of concern in our products has been lead (Pb), which has been removed from all designs to fulfill the requirement of containing
less than 0.1% of lead in any homogeneous material. KEMET will closely follow any changes in legislation world wide and makes any
necessary changes in its products, whenever needed.
Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode coatings.
To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels for RoHS compatible
capacitors.
Because of customer requirements, there may appear additional markings such as LF = Lead Free or LFW = Lead Free Wires on the
label.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
A4011_PEG124 • 7/15/2013
5
