PEH200HO6150MB2 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> PEH200HO6150MB2

PEH200HO6150MB2: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 150000uF, Stud Mount, CAN, ROHS COMPLIANT; CategoryPassive components capacitor; File Size1MB，13 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

PEH200HO6150MB2 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 25V, 20% +Tol, 20% -Tol, 150000uF, Stud Mount, CAN, ROHS COMPLIANT

PEH200HO6150MB2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	150000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	65 mm
dielectric materials	ALUMINUM (WET)
ESR	7 mΩ
leakage current	15.25 mA
length	105 mm
Installation features	STUD MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Screw Ends
method of packing	BULK
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
Guideline	IEC60384-4
ripple current	26300 mA
surface mount	NO
Terminal pitch	28.5 mm
Terminal shape	SCREW

Preview

Download Datasheet

View All

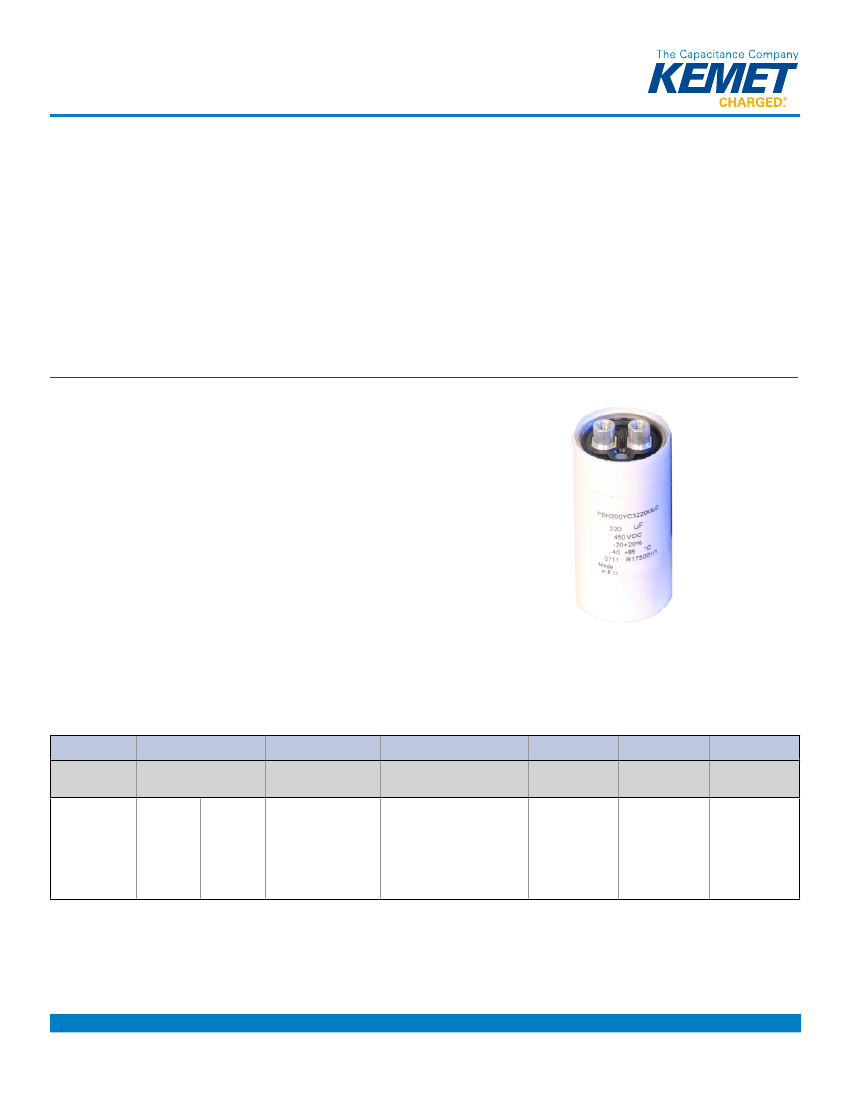

Screw Terminal Aluminum Electrolytic Capacitors

PEH200 Series, +85°C

Overview

Applications

Typical applications for KEMET's PEH200 capacitor include

uninterruptible power supplies (UPS), ground power units

(GPU), welding equipment, and drives where high current

ratings and compact size are important.

KEMET's PEH200 Series of capacitors has a polarized all-

welded design, heavy duty screw terminals, extended cathode

construction, safety vent, and plastic insulation. The sealing

system is designed for electrolyte leakage-free operation and

a very low gas-diffusion rate of electrolyte. Mechanical contact

between the winding and aluminum case allows excellent heat

transfer from the winding hot-spot to the ambient, which means

cooler operation and very high current ratings.

Benefits

•

High CV value

Long life

Low ESR and ESL

Compact size

Optimized designs available upon request

Part Number System

PEH200

Series

Computer

Grade

Aluminum

Electrolytic

Voltage (VDC)

H = 25

K = 40

M = 63

P = 100

S = 250

U = 350

X = 385

V = 400

O = 420

Y = 450

Z = 500

Size Code

See Dimension table

515

Capacitance Code (µF)

The second 2 digits indicate

the 2 most significant digits

of the capacitance value.

The first digit indicates the

total number digits.

Version

0 = Standard

Capacitance

Tolerance

Q = -10 + 30%

M = ±20%

Stud Option

U2 = Plain Can

B2 = Threaded

mounting stud

One world. One KEMET

A4034_PEH200 • 4/16/2013

Screw Terminal Aluminum Electrolytic Capacitors – PEH200 Series, +85°C

Shelf Life

The capacitance, ESR and impedance of a capacitor will not change significantly after extended storage periods, however the leakage

current will very slowly increase. KEMET products are particularly stable and allow a shelf life in excess of three years at 40°C. See

sectional specification under each product series for specific data.

Re-age (Reforming) Procedure

Apply the rated voltage to the capacitor at room temperature for a period of one hour, or until the leakage current has fallen to a steady

value below the specified limit. During re-aging a maximum charging current of twice the specified leakage current or 5 mA (whichever

is greater) is suggested.

Reliability

The reliability of a component can be defined as the probability that it will perform satisfactorily under a given set of conditions for a

given length of time.

In practice, it is impossible to predict with absolute certainty how any individual component will perform; thus, we must utilize probability

theory. It is also necessary to clearly define the level of stress involved (e.g. operating voltage, ripple current, temperature and time).

Finally, the meaning of satisfactory performance must be defined by specifying a set of conditions which determine the end of life of the

component.

Reliability as a function of time, R(t), is normally expressed as: R(t)=e-

λt

where R(t) is the probability that the component will perform satisfactorily for time t, and λ is the failure rate.

Failure Rate

The failure rate is the number of components failing per unit time. The failure rate of most electronic components follows the

characteristic pattern:

• Early failures are removed during the manufacturing process.

• The operational life is characterized by a constant failure rate.

• The wear out period is characterized by a rapidly increasing failure rate.

The failures in time (FIT) are given with a 60% confidence level for the various type codes. By convention, FIT is expressed as 1 x 10

-9

failures per hour. Failure rate is also expressed as a percentage of failures per 1,000 hours.

e.g., 100 FIT = 1 x 10

-7

failures per hour = 0.01%/1,000 hours

End of Life Definition

Catastrophic Failure: short circuit, open circuit or safety vent operation

Parametric Failure:

• Change in capacitance > ±10%

• Leakage current > specified limit

• ESR > 2 x initial ESR value

A4034_PEH200 • 4/16/2013

Screw Terminal Aluminum Electrolytic Capacitors – PEH200 Series, +85°C

MTBF

The mean time between failures (MTBF) is simply the inverse of the failure rate.

MTBF= 1/λ

early failures

wear out

Failure Rate

operational life

Time

The failure rate is derived from our periodic test results. The failure rate (λ

) is, therefore, only given at test temperature for life tests. An

estimation is also given at 60°C.

The expected failure rate for this capacitor range is based on our periodic test results for capacitors with structural similarity.

Failure Rate per Hour

85°C 1,000 FIT

60°C 100 FIT

Failure rate per hour includes both catastrophic and parametric failures.

Environmental Compliance

As an environmentally conscious company, KEMET is working continuously with improvements concerning the environmental effects

of both our capacitors and their production. In Europe (RoHS Directive) and in some other geographical areas like China, legislation

has been put in place to prevent the use of some hazardous materials, such as lead (Pb), in electronic equipment. All products in this

catalog are produced to help our customers’ obligations to guarantee their products and fulfill these legislative requirements. The only

material of concern in our products has been lead (Pb), which has been removed from all designs to fulfill the requirement of containing

less than 0.1% of lead in any homogeneous material. KEMET will closely follow any changes in legislation world wide and makes any

necessary changes in its products, whenever needed.

Some customer segments such as medical, military and automotive electronics may still require the use of lead in electrode coatings.

To clarify the situation and distinguish products from each other, a special symbol is used on the packaging labels for RoHS compatible

capacitors.

Because of customer requirements, there may appear additional markings such as LF = Lead Free or LFW = Lead Free Wires on the

label.

A4034_PEH200 • 4/16/2013
