K42X-E9S/E15S-A4NJ30 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> K42X-E9S/E15S-A4NJ30

Preview

K42X-E9S/E15S-A4NJ30: DescriptionD Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,; CategoryThe connector The connector; File Size370KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

K42X-E9S/E15S-A4NJ30 Overview

D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,

K42X-E9S/E15S-A4NJ30 Parametric

Parameter Name	Attribute value
Maker	Kycon
Reach Compliance Code	compliant
ECCN code	EAR99
body width	1.244 inch
subject depth	0.89 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	13 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	K42X
Installation option 1	#4-40
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2+3
Number of rows loaded	2+3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	2 A
Guideline	UL, CSA
reliability	COMMERCIAL
Shell surface	TIN OVER NICKEL
Shell material	STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	24

Preview

Download Datasheet

View All

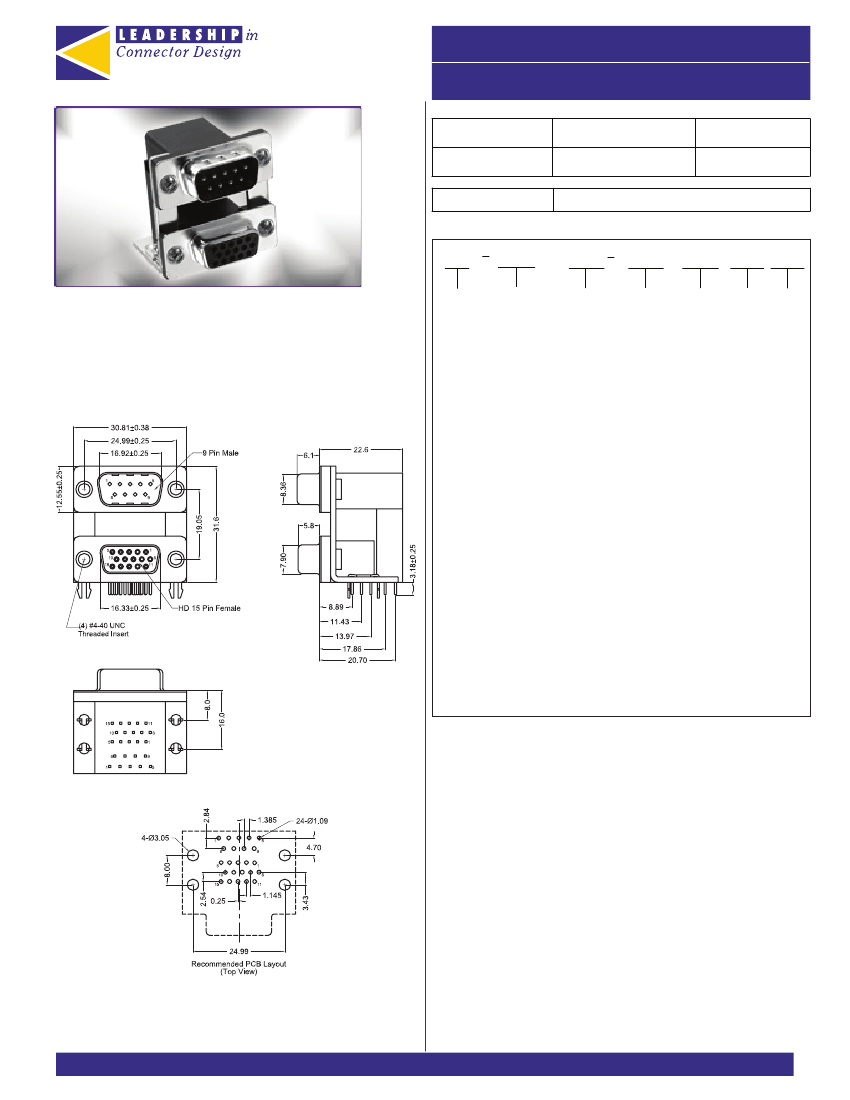

STACKED D-SUBMINIATURE

KYCON

RoHS

K42X Series

Documentation &

Ordering Information

Drawing

Sample

Kycon Part #

Stock

CofC

RFQ

Email

K42X-B25S/E15S-A4N

/

E15 S

Part Builder

K42X

B25

S

A

4N

K42X Series

High Density Dual-Port D-Sub Combo

K42X-E9P/E15S-A4N

Dimensions in mm

Center Board Jack Plating

Series Top Shell Size Bottom

Connector Shell Size Distance Lock Screws Option

Type

Connector

Series

K42X

- High Density Dual-Port D-Subminiature Connector

Top/Bottom Shell Size

B25S/E15S

- 25 Contact Receptacle over 15 Contact Receptacle

E9P/E15S

- 9 Contact Plug over 15 Contact Receptacle

E9P/E15S

E9S/E15S

- 9 Contact Receptacle over 15 Contact Receptacle

E9P/E15SV

- 9 Contact Plug over 15 Contact VESA Receptacle

E9P/E15SV

Center to Center Distance

A

A - .750” (Standard)

Board Locks Option

4N - Board Locks (Standard)

4N

Jack Screws Option

Blank - No Jack Screws

J - 4-40 HEX Removable Jack Screws

R - 4-40 Round Riveted Jack Screws

Plating Option

Blank

- Gold Flash

15

30

Contact Kycon for Gold Plating and Other Options

Click here for Performance Specification

2011

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

K42X-E9S/E15S-A4NJ30 Related Products

	K42X-E9S/E15S-A4NJ30	K42X-E9S/E15S-A4N15	K42X-E9S/E15S-A4N30	K42X-E9S/E15S-A4NJ15	K42X-E9S/E15S-A4NR	K42X-E9S/E15S-A4NR15	K42X-E9S/E15S-A4NR30
Description	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, Locking, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, Locking, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,	D Subminiature Connector, 9+15 Contact(s), Female, Solder Terminal, #4-40, Receptacle,
Maker	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon	Kycon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	1.244 inch	1.244 inch	1.244 inch	1.244 inch	1.244 inch	1.244 inch	1.244 inch
subject depth	0.89 inch	0.89 inch	0.89 inch	0.89 inch	0.89 inch	0.89 inch	0.89 inch
body length	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch	1.213 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ	13 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V	1000VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
Manufacturer's serial number	K42X	K42X	K42X	K42X	K42X	K42X	K42X
Installation option 1	#4-40	LOCKING	LOCKING	#4-40	#4-40	#4-40	#4-40
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2+3	2+3	2+3	2+3	2+3	2+3	2+3
Number of rows loaded	2+3	2+3	2+3	2+3	2+3	2+3	2+3
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm
Plating thickness	30u inch	15u inch	30u inch	15u inch	FLASH inch	15u inch	30u inch
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Terminal length	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	24	24	24	24	24	24	24
Installation option 2	LOCKING	-	-	LOCKING	LOCKING	LOCKING	LOCKING
