Part Number

Search

006024018552803

Description
Card Edge Connector, 18 Contact(s), 1 Row(s), Straight, 0.15 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size94KB,1 Pages
ManufacturerKyocera

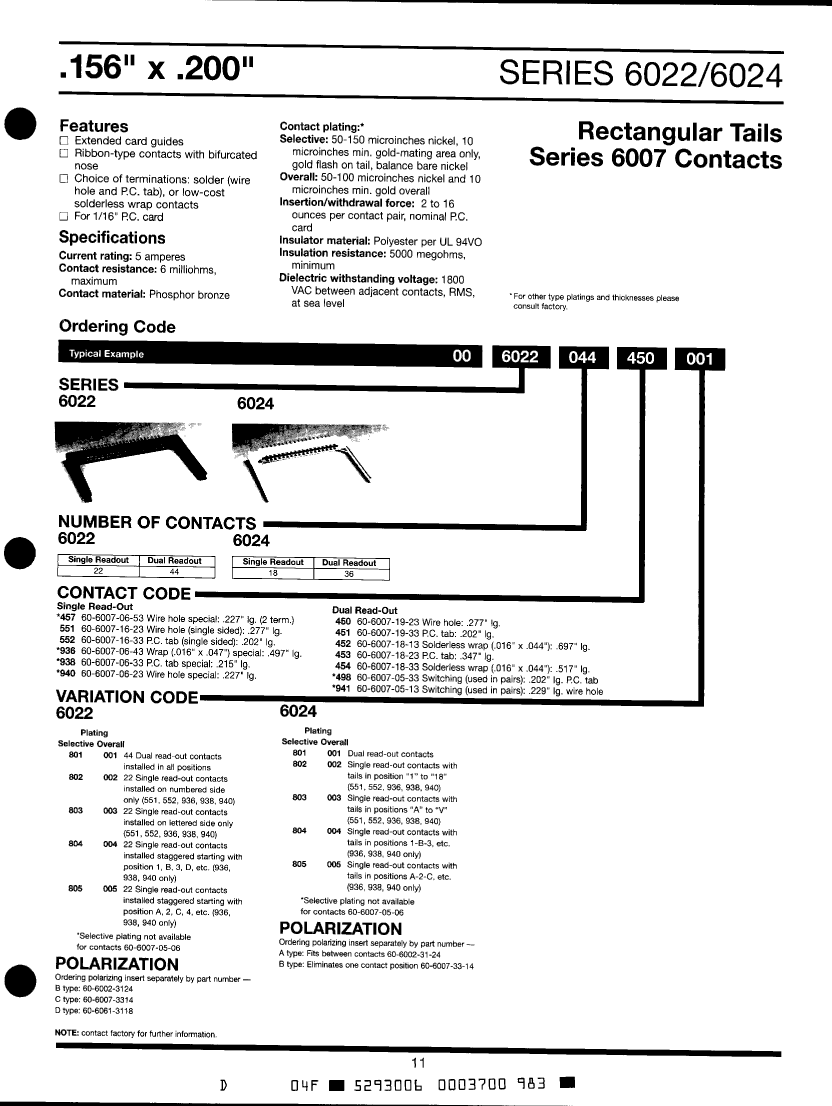

Download Datasheet Parametric View All

006024018552803 Overview

Card Edge Connector, 18 Contact(s), 1 Row(s), Straight, 0.15 inch Pitch, Solder Terminal, Receptacle

006024018552803 Parametric

Parameter NameAttribute value
MakerKyocera
Reach Compliance Codeunknown
Other featuresCARD GUIDES
Body/casing typeRECEPTACLE
Connector typeCARD EDGE CONNECTOR
Contact to complete cooperationAU ON NI
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact resistance6 mΩ
Contact styleBELLOWED TYPE
Dielectric withstand voltage1800VAC V
maximum insertion force4.448 N
Insulation resistance5000000000 Ω
insulator materialPOLYESTER
Manufacturer's serial number6024
Plug contact pitch0.15 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
PCB contact patternRECTANGULAR
PCB contact row spacing5.08 mm
Plating thickness10u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.202 inch
Terminal pitch3.81 mm
Termination typeSOLDER
Total number of contacts18
Evacuation force-minimum value.556 N
