006308004313011 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 006308004313011

Preview

006308004313011: DescriptionCard Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerKyocera

Download Datasheet Parametric Compare View All

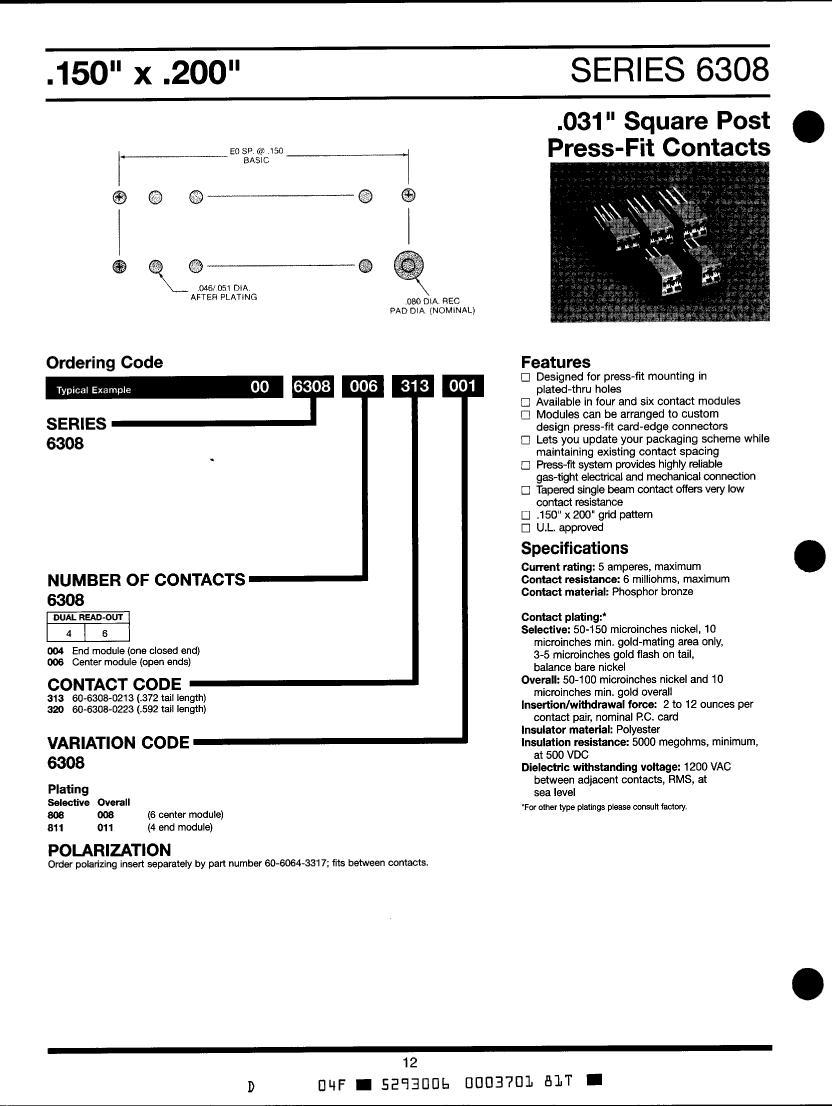

006308004313011 Overview

Card Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle

006308004313011 Parametric

Parameter Name	Attribute value
Maker	Kyocera
Reach Compliance Code	unknown
Other features	OPEN ONE END
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	6 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Manufacturer's serial number	6308
Plug contact pitch	0.15 inch
Match contact row spacing	0.2 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.08 mm
Plating thickness	10u inch
Rated current (signal)	5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.372 inch
Terminal pitch	3.81 mm
Termination type	PRESS FIT
Total number of contacts	4
Evacuation force-minimum value	.556 N

Preview

Download Datasheet

View All

006308004313011 Related Products

	006308004313011	006308006320008	006308006320808	006308006313008	006308004313811	006308004320011	006308004320811	006308006313808
Description	Card Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 6 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 6 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 6 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 4 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle	Card Edge Connector, 6 Contact(s), 2 Row(s), Straight, 0.15 inch Pitch, Press Fit Terminal, Receptacle
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	OPEN ONE END	OPEN BOTH ENDS	OPEN BOTH ENDS	OPEN BOTH ENDS	OPEN ONE END	OPEN ONE END	OPEN ONE END	OPEN BOTH ENDS
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR	CARD EDGE CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI	AU ON NI
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ	6 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
Dielectric withstand voltage	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V	1200VAC V
maximum insertion force	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N	3.336 N
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Manufacturer's serial number	6308	6308	6308	6308	6308	6308	6308	6308
Plug contact pitch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch	0.15 inch
Match contact row spacing	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch	0.2 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Plating thickness	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch	10u inch
Rated current (signal)	5 A	5 A	5 A	5 A	5 A	5 A	5 A	5 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.372 inch	0.592 inch	0.592 inch	0.372 inch	0.372 inch	0.592 inch	0.592 inch	0.372 inch
Terminal pitch	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm	3.81 mm
Termination type	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT	PRESS FIT
Total number of contacts	4	6	6	6	4	4	4	6
Evacuation force-minimum value	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N	.556 N
Maker	Kyocera	-	-	Kyocera	Kyocera	Kyocera	Kyocera	Kyocera
