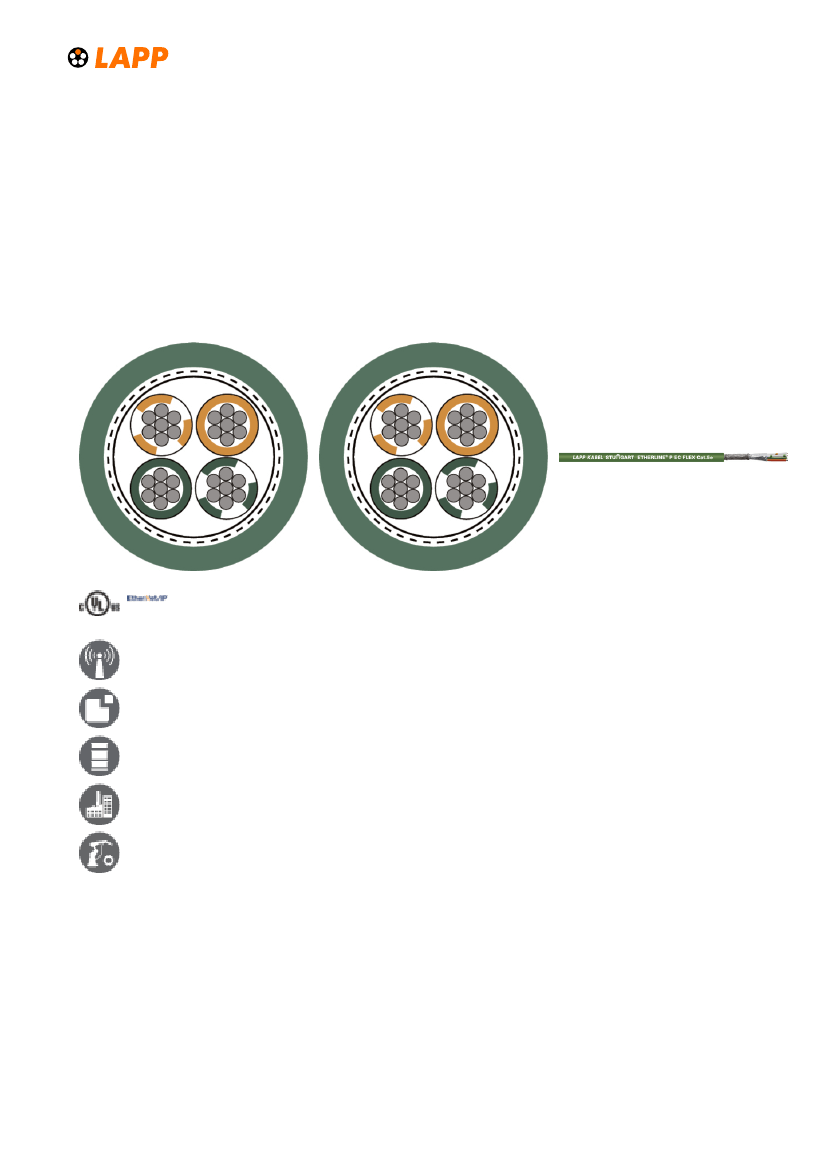

PRODUCT INFORMATION
ETHERLINE® EC FLEX Cat.5e
Flexible use
The LAN cable is suitable for Ethernet in demanding industrial environments and features a space-saving design. It can be used
in wet and dry premises.
Info
For EtherCAT applications
Cat.5e-Performance
Only for patch cable applications (max. 60 m)
Interference signals
Space requirement
Oil-resistant
Mechanical and plant engineering
Kompletterande automationskomponenter från Lapp
Benefits
Can be used for Industrial Ethernet in harsh industrial environments
Can be used in dry or damp rooms
Lower space requirement
Application range
suitable for EtherCAT and EtherNet/IP applications
For flexible applications (7-wire stranded conductor)
Many applications with Industrial Ethernet, i.e. fixed installation and flexible use.
For internal wiring of electric and electronic equipment in switch cabinets
Last Update (24.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
PRODUCT INFORMATION
ETHERLINE® EC FLEX Cat.5e
Only for patch cable applications (max. 60 m)
Product features
PUR (Polyurethane) Version with increased robustness, UV- resistance and halogen free
High-quality, double screening ensures high transmission reliability in areas with electromagnetic interference
Norm references / Approvals
Certification: UL/CSA type CMX in accordance with UL 444 and CSA C22.2 no. 214
Flame-retardant according to UL VW1/CSA FT1
Product Make-up
Stranded tinned 7-wire conductor
Core insulation: PE
insulation colour-codes: orange/white-orange; green/white-green
Star quad
SF/UTP: braid of tinned copper wire and plastic laminated aluminum foil as overall screening
PVC or PUR jacket material
Colour: green (based on RAL 6018)
Technical Data
Classification ETIM 5:
Classification ETIM 6:
Peak operating voltage:
Minimum bending radius:
Characteristic impedance:
Temperature range:
ETIM 5.0 Class-ID: EC000830
ETIM 5.0 Class-Description: Data cable
ETIM 6.0 Class-ID: EC000830
ETIM 6.0 Class-Description: Data cable
max. 100 V (not for power applications)
Fixed installation: 4 x outer diameter
Flexing: 8 x outer diameter
nom. 100 Ω acc. to IEC 61156-5
Cable with PVC jacket
Fixed installation: -30°C to +80°C
Flexing: -5°C bis +50°C
Cable with PUR jacket
Fixed installation: -40°C to +80°C
Flexing:-30°C to +50°C
Note
Unless specified otherwise, the shown product values are nominal values. Detailed values (e.g. tolerances) are available upon
request.
Detailed data sheets are available upon request. Please specify the type/dimensions of the required cable.
Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Prices are net prices without VAT and surcharges. Sale to business customers only.
Last Update (24.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
ETHERLINE® EC FLEX Cat.5e
Article number
PVC outer sheath
2170430
Article designation
Number of pairs
Outer diameter mm
and AWG per conductor
1 x 4 x AWG26/7
4.8
Core diameter in mm
Copper index (kg/km)
Weight (kg/km)
Last Update (24.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
ETHERLINE® Y EC
FLEX Cat.5e
ETHERLINE® P EC
FLEX Cat.5e
1
20
32
PUR outer sheath, halogen-free
2170431
1 x 4 x AWG26/7
4.8
1
20
31
PRODUCT INFORMATION
PRODUCT INFORMATION
ETHERLINE® EC FLEX Cat.5e
Last Update (24.06.2019)
©2019 Lapp Group - Technical changes reserved
Product Management www.lappkabel.de
You can find the current technical data in the corresponding data sheet.
PN 0456 / 02_03.16
Powered by TCPDF (www.tcpdf.org)
