5962-01-359-7652 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> 5962-01-359-7652

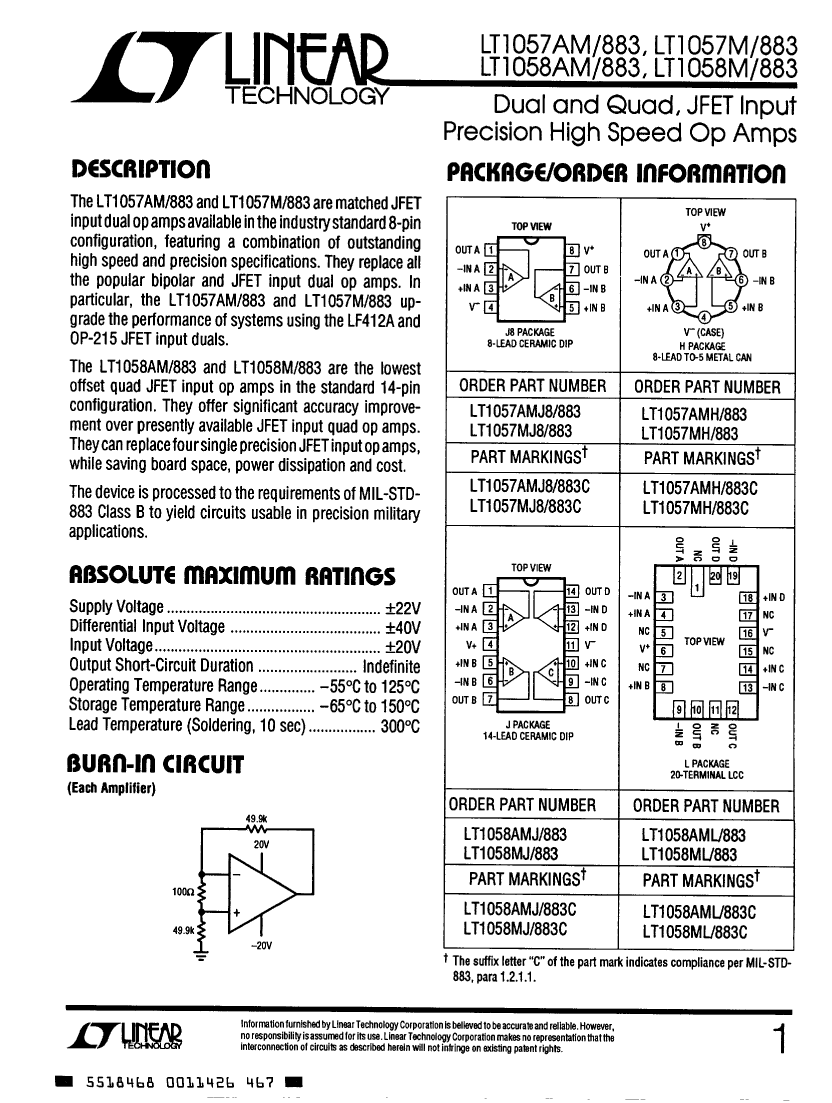

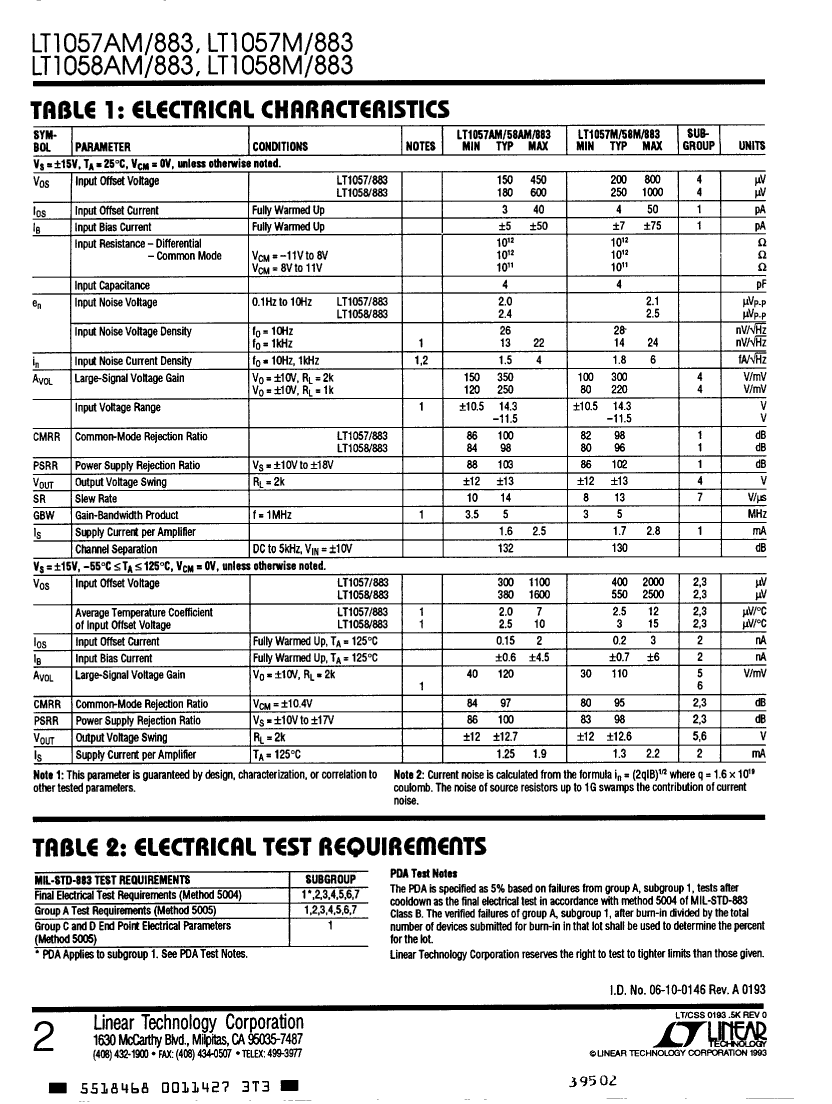

5962-01-359-7652: Description5962-01-359-7652; CategoryAnalog mixed-signal IC Amplifier circuit; File Size259KB，2 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

5962-01-359-7652 Overview

5962-01-359-7652

5962-01-359-7652 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
package instruction	DIP, DIP14,.3
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00005 µA
frequency compensation	YES
Maximum input offset current (IIO)	0.002 µA
Maximum input offset voltage	1600 µV
JESD-30 code	R-XDIP-T14
low-bias	YES
low-dissonance	NO
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	4
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	+-15 V
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
minimum slew rate	10 V/us
Maximum slew rate	10 mA
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Minimum voltage gain	40000

Preview

Download Datasheet

View All

5962-01-359-7652 Related Products

	5962-01-359-7652	LT1058AMJ/883	LT1058ML/883	LT1057AMJ8/883	LT1057AMH/883	5962-01-218-9249
Description	5962-01-359-7652	LT1058AMJ/883	IC IC,OP-AMP,QUAD,BIPOLAR/JFET,LLCC,20PIN,CERAMIC, Operational Amplifier	LT1057AMJ8/883	LT1057AMH/883	IC IC,OP-AMP,QUAD,BIPOLAR/JFET,DIP,14PIN,CERAMIC, Operational Amplifier
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
package instruction	DIP, DIP14,.3	DIP,	QCCN, LCC20(UNSPEC)	DIP,	, CAN8,.2	DIP, DIP14,.3
Reach Compliance Code	compliant	unknown	compliant	unknown	unknown	compli
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Architecture	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK	VOLTAGE-FEEDBACK
Maximum bias current (IIB) at 25C	0.00005 µA	0.00005 µA	0.000075 µA	0.00005 µA	0.00005 µA	0.00005 µA
frequency compensation	YES	YES	YES	YES	YES	YES
Maximum input offset current (IIO)	0.002 µA	0.002 µA	0.003 µA	0.002 µA	0.002 µA	0.002 µA
Maximum input offset voltage	1600 µV	1600 µV	2500 µV	1100 µV	1100 µV	1600 µV
JESD-30 code	R-XDIP-T14	R-XDIP-T14	R-XQCC-N20	R-XDIP-T8	O-MBCY-W8	R-XDIP-T14
low-bias	YES	YES	YES	YES	YES	YES
low-dissonance	NO	YES	NO	YES	NO	NO
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	4	4	4	2	2	4
Number of terminals	14	14	20	8	8	14
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	UNSPECIFIED	CERAMIC	METAL	CERAMIC
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND	RECTANGULAR
Package form	IN-LINE	IN-LINE	CHIP CARRIER	IN-LINE	CYLINDRICAL	IN-LINE
power supply	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V	+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	MIL-STD-883	MIL-STD-883	MIL-STD-883	38535Q/M;38534H;883B	38535Q/M;38534H;883B
minimum slew rate	10 V/us	10 V/us	8 V/us	10 V/us	10 V/us	10 V/us
Maximum slew rate	10 mA	10 mA	11.2 mA	5 mA	5 mA	10 mA
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	WIRE	THROUGH-HOLE
Terminal location	DUAL	DUAL	QUAD	DUAL	BOTTOM	DUAL
Minimum voltage gain	40000	40000	30000	40000	40000	40000
encapsulated code	DIP	DIP	QCCN	DIP	-	DIP
Encapsulate equivalent code	DIP14,.3	-	LCC20(UNSPEC)	-	CAN8,.2	DIP14,.3
surface mount	NO	NO	YES	NO	-	NO
JESD-609 code	-	e0	e0	e0	e0	-
Terminal surface	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Nominal Uniform Gain Bandwidth	-	5000 kHz	5000 kHz	5000 kHz	5000 kHz	-
