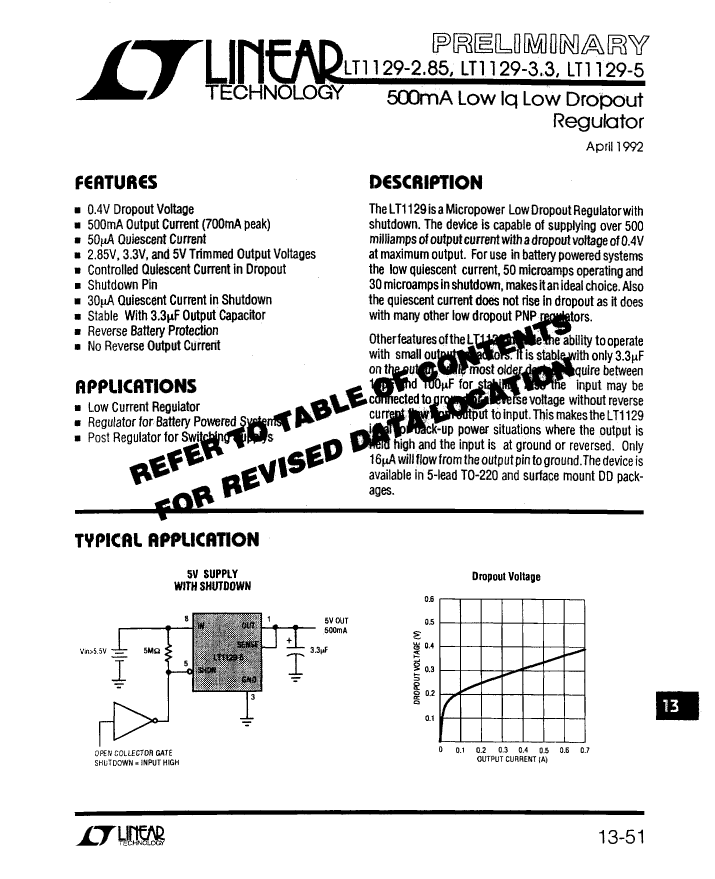

LT1129Q-3.3: DescriptionIC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSSO5, PLASTIC, D2PAK-5, Fixed Positive Single Output LDO Regulator; CategoryPower/power management The power supply circuit; File Size55KB，1 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1129Q-3.3 Overview

IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSSO5, PLASTIC, D2PAK-5, Fixed Positive Single Output LDO Regulator

LT1129Q-3.3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	D2PAK
package instruction	PLASTIC, D2PAK-5
Contacts	5
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum drop-back voltage 1	0.4 V
JESD-30 code	R-PSSO-G5
JESD-609 code	e0
length	10.185 mm
Number of functions	1
Number of terminals	5
Maximum output current 1	0.5 A
Nominal output voltage 1	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TO-263
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height	4.953 mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.7 mm
Terminal location	SINGLE
width	8.407 mm

Preview

Download Datasheet

View All

LT1129Q-3.3 Related Products

	LT1129Q-3.3	LT1129Q-5	LT1129T-5	LT1129T-3.3
Description	IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSSO5, PLASTIC, D2PAK-5, Fixed Positive Single Output LDO Regulator	IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSSO5, PLASTIC, D2PAK-5, Fixed Positive Single Output LDO Regulator	IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSFM5, TO-220, 5 PIN, Fixed Positive Single Output LDO Regulator	IC VREG 3.3 V FIXED POSITIVE LDO REGULATOR, 0.4 V DROPOUT, PSFM5, TO-220, 5 PIN, Fixed Positive Single Output LDO Regulator
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	D2PAK	D2PAK	SFM	SFM
package instruction	PLASTIC, D2PAK-5	PLASTIC, D2PAK-5	TO-220, 5 PIN	TO-220, 5 PIN
Contacts	5	5	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum drop-back voltage 1	0.4 V	0.4 V	0.4 V	0.4 V
JESD-30 code	R-PSSO-G5	R-PSSO-G5	R-PSFM-T5	R-PSFM-T5
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	5	5	5	5
Maximum output current 1	0.5 A	0.5 A	0.5 A	0.5 A
Nominal output voltage 1	3.3 V	5 V	5 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TO-263	TO-263	TO-220	TO-220
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	YES	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE
