Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 215 Series
215 Series,
5 x 20 mm, Time-Lag (Slo-Blo
®
) Fuse
PS
E

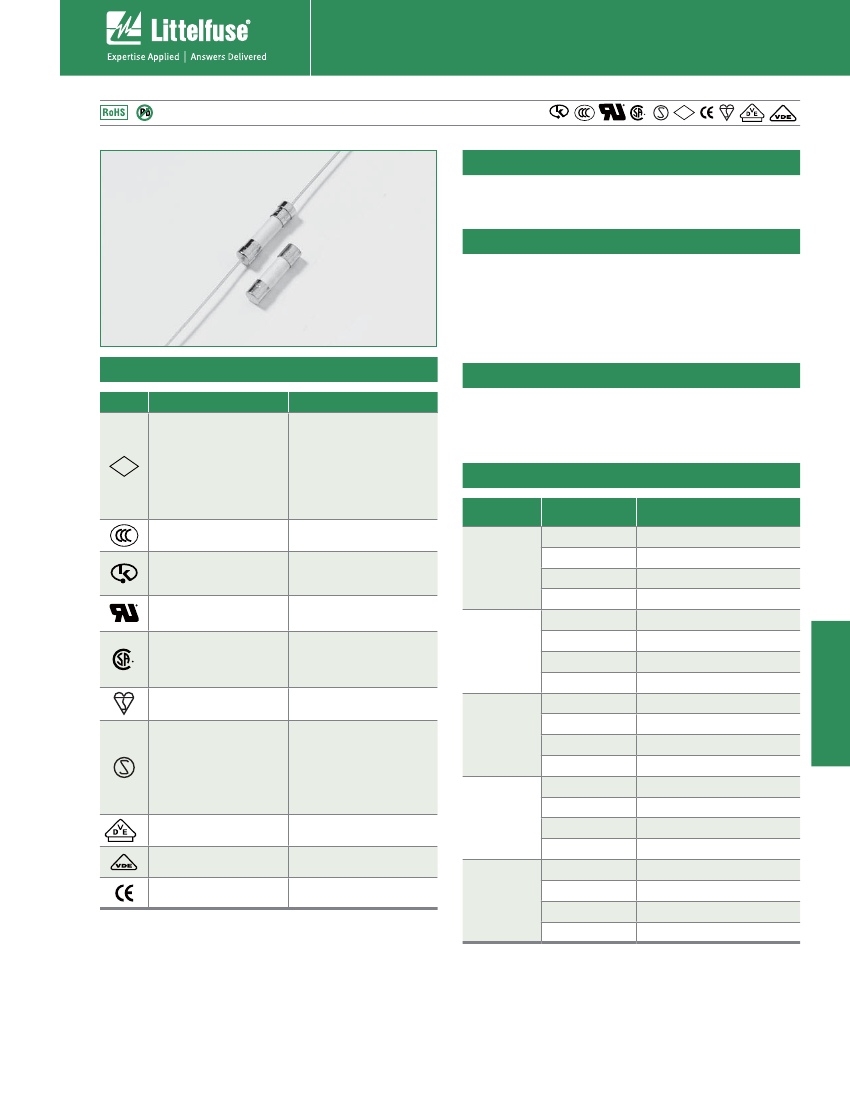

Description
5x20mm Time-Lag surge withstand ceramic body cartridge
fuse designed to IEC specification
Features
International (IEC )
Standards for use
globally
60127-2, Sheet 5
specification for Time-
Lag fuses
lead-free
Agency Approvals
Agency
Agency File Number
Ampere Range
Applications
Used as supplementary protection in appliance or
utilization equipment to provide individual protection for
components or internal circuits.
Electrical Characteristics for Series
% of Ampere
Rating
Ampere Rating
125mA – 800mA
150%
1A – 3.15A
4A – 6.3A
8A – 20A
125mA – 800mA
210%
1A – 3.15A
4A – 6.3A
8A – 12A
200mA – 10A
125mA, 160mA
200mA – 800mA, 8A, 10A
1A – 3.15A
4A – 6.3A
12A
*15A – *20A
200mA – 8A
*10A
*12A
125mA – 20A
1000%
275%
125mA – 800mA
1A – 3.15A
4A – 6.3A
8A – 20A
125mA – 800mA
400%
1A – 3.15A
4A – 6.3A
8A – 20A
125mA – 800mA
1A – 3.15A
4A – 6.3A
8A – 20A
Opening Time
60 minutes, Minimum
60 minutes, Minimum
60 minutes, Minimum
30 minutes, Minimum
30 minutes, Maximum
30 minutes, Maximum
30 minutes, Maximum
30 minutes, Maximum
.25 sec. Min.; 80 secs. Max.
.75 sec. Min.; 80 secs. Max.
.75 sec. Min.; 80 secs. Max.
.75 sec. Min.; 80 secs. Max.
.05 sec., Min.; 5 secs. Max.
.095 sec., Min.; 5 secs. Max.
.150 sec., Min.; 5 secs. Max.
.150 sec., Min.; 5 secs. Max.
.005 sec., Min.; .150 sec. Max.
.010 sec., Min.; .150 sec. Max.
.010 sec., Min.; .150 sec. Max.
.010 sec., Min.; .150 sec. Max.
PS
E
Cartridge Certificates:
NBK080205-E10480A
NBK250702-E10480E
NBK100408-JP1021A
Leaded Certificates:
NBK080205-E10480B
NBK250702-E10480F
NBK100408-JP1021B
.
Certificates:
2005010207145714
Certificates:
SU05001– 2011
SU05001– 2012
Recognised File:
E10480
File:
029862
Acc. Class:
LR1422 – 30
License:
KM41462
License:
606726
902193
915511
0147100
709071
709302
License:
40013521
License:
40016610
1A – 5A
6.3A – 15A
16A – 20A
1A – 5A
6.3A – 15A
16A – 20A
1A – 6.3A
1A – 3.15A
4A – 10A
125mA – 160mA
500mA – 20A
500mA – 12A
* Approved for cartridge versions only
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/215.html for current information.
285
Revised: May 4, 2010
215 Series
215 Series
Introduction to & Cartridge Fuses
Axial Lead Circuit Protection
Transientology
5×20 mm > Time-Lag > 215 Series
Electrical Characteristic Specifications by Item
Nominal
Voltage
Interrupting
Amp Amp
Cold
Rating
Rating
Code Rating
Resistance
(V)
(Ohms)
.125
.160
.200
.250
.315
.400
.500
.630
.800
001.
1.25
01.6
002.
02.5
3.15
004.
005.
06.3
008.
010.
012.
015.
016.
020.
0.125
0.16
0.2
0.25
0.315
0.4
0.5
0.63
0.8
1
1.25
1.6
2
2.5
3.15
4
5
6.3
8
10
12
15
16
20
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
250
500 A
400 A
1500 A @
250 VAC
Nominal
Melting
I
2
t
2
(A sec)
0.0330
0.0465
0.340
0.545
0.975
1.325
0.420
0.635
0.975
1.520
3.200
6.830
11.680
22.290
43.255
46.960
66.095
128.750
209.880
333.565
515.500
1237.0
1408.0
2600.0
Maximum
Maximum
Power
Voltage Drop
at Rated
Dissipation at
Current
Rated Current
(W)
(mV)
2600
2400
2100
1500
1100
1000
850
650
500
350
300
200
190
180
140
100
100
100
100
100
100
TBA**
TBA**
TBA**
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
1.6
2.5
2.5
2.5
2.5
2.5
4
4
4
4
4
4
4
TBA**
TBA**
TBA**
Agency Approvals
PS
E
11.4455
7.1000
1.8400
1.2400
0.8800
0.5825
1.1675
0.7200
0.4675
0.1515
0.1074
0.0707
0.0566
0.0386
0.0283
0.0185
0.0153
0.0108
0.0092
0.0066
0.0061
0.0033
0.0031
0.0023
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x*
x*
x*
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x*
x*
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
x
X* Approval for cartridge versions only
TBA** - Please contact Littelfuse for details on these parameters

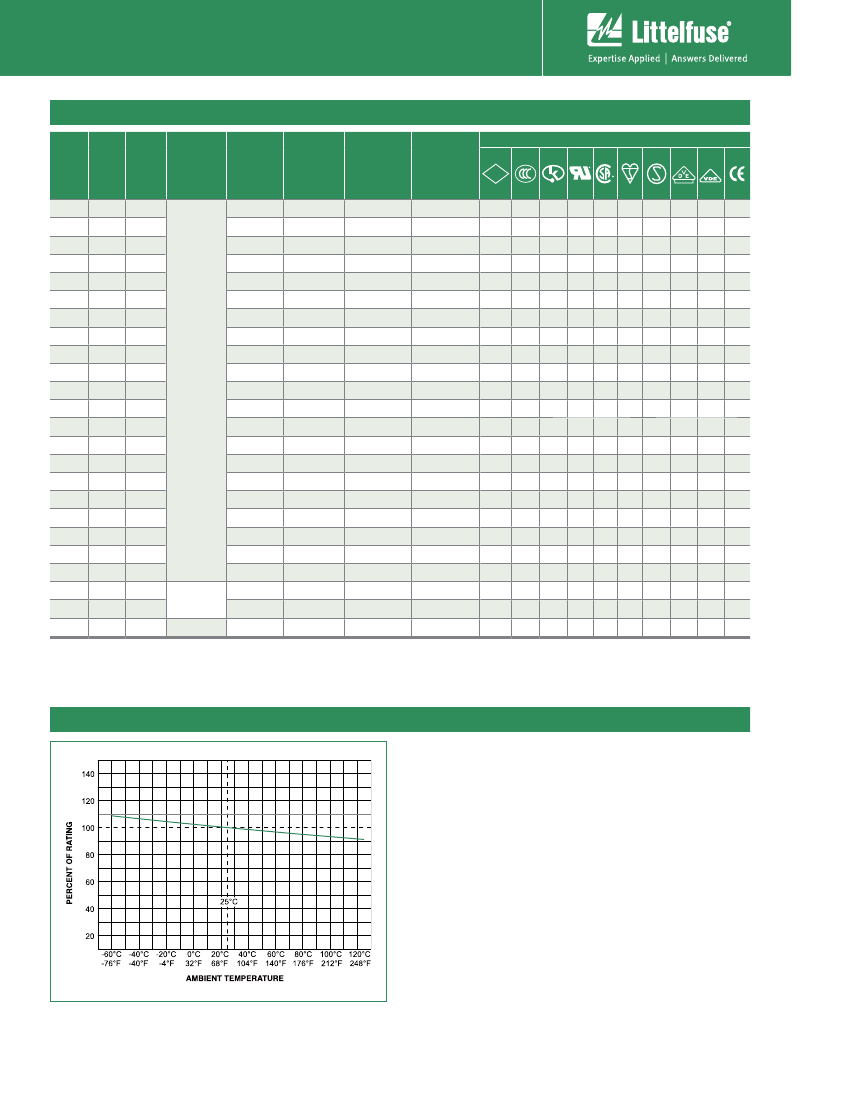

Temperature Rerating Curve
215 Series
286
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/215.html for current information.
Axial Lead & Cartridge Fuses
5×20 mm > Time-Lag > 215 Series

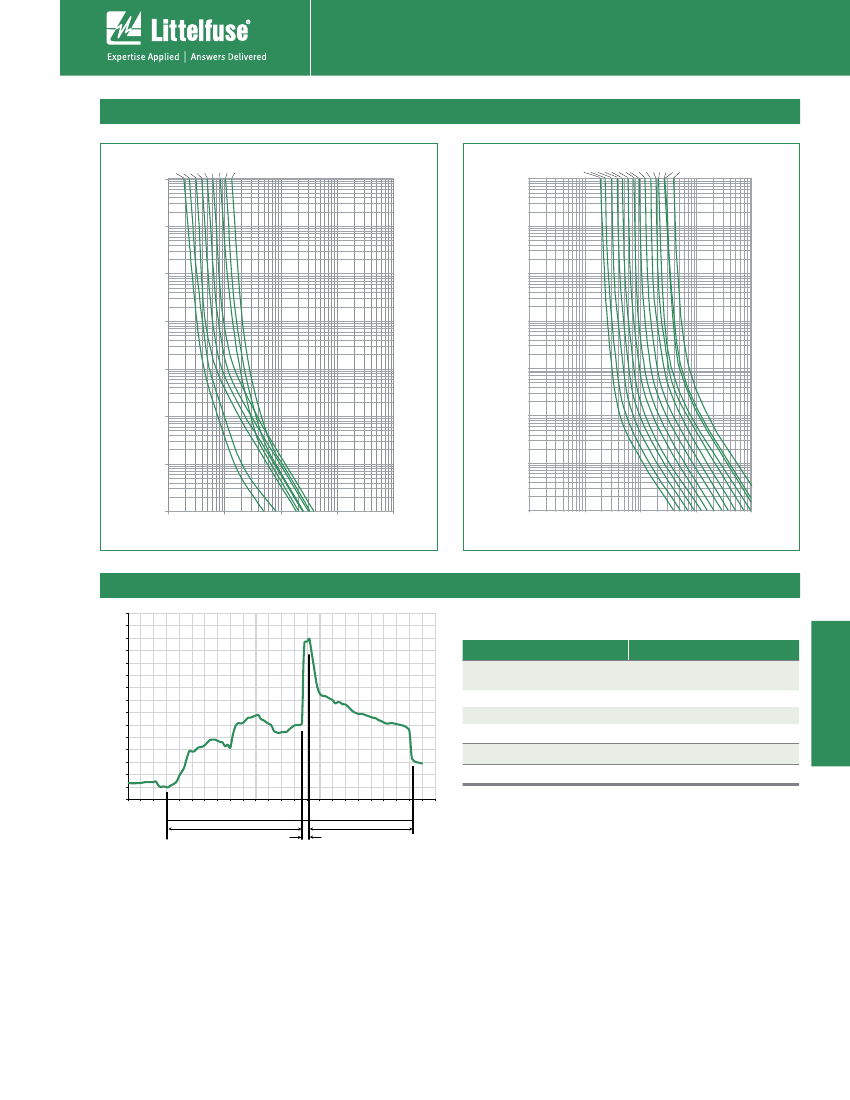

Average Time Current Curves
T-C Curves for 125mA to 800mA only
.125 A
.160 A
.200 A
.250 A
.315 A
.400 A
.500 A
.630 A
.800 A
T-C Curves for 1A to 20A only
1.00 A
1.25 A
1.60 A
2.00 A
2.50 A
3.15 A
4.00 A
5.00 A
6.30 A
8.00 A
10.0 A
12.0 A
15.0 A
16.0 A
20.0 A
10000
1000
100
10000
1000
100
TIME IN SECONDS
TIME IN SECONDS
10
10
1
0.1
0.1
0.01
0.01
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
0.001
0.1
1
10
CURRENT IN AMPERES
100
1000
Soldering Parameters - Wave Soldering
300
Temperature
(°C) - Measured on bottom side of board
280
260
Recommended Process Parameters:
220
200
180
160
140
120
100
80
60
40
20
100
110
120
130
140
150
160
170
180
190
200
210
220
230
240
10
20
30
40
50
60
70
80
90
0
0
Preheat:
(Typical Industry Recommendation)
Temperature Minimum:
Temperature Maximum:
Preheat Time:
Solder Pot Temperature:
Solder Dwell Time:
100
°
C
150
°
C
60-180 seconds
260
°
C Maximum
2-5 seconds
Time
(Seconds)
Preheat
Time
Dwell
Time
Cooling
Time
Recommended Hand-Solder Parameters:
Solder Iron Temperature: 350° C +/- 5°C
Note: These devices are not recommended for IR or
Convection Reflow process.
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/215.html for current information.
287
215 Series
215 Series
240
Wave Parameter
Lead-Free Recommendation
Introduction to & Cartridge Fuses
Axial Lead Circuit Protection
Transientology
5×20 mm > Time-Lag > 215 Series
Product Characteristics
Materials
Terminal Strength
Solderability
Product Marking
Body:
Ceramic
Cap:
Leads:
Tin–plated Copper
Condition A
Reference IEC 60127 Second Edition
2003-01 Annex A
Cap 1:
Brand logo, current and voltage
ratings
Cap 2:
Vibration
Humidity
elevated temp (40ºC) for 240 hours)
Salt Spray
Condition B
Operating Temperature
Thermal Shock
–55ºC to +125ºC
Condition B (5 cycles, –65ºC to
+125ºC)
Dimensions
Part Numbering System
0215 xxxx M X E P
0215.125P
to
0215020P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics
Table
0215.125XEP
to
0215.800XEP
Quantity Code
M = 1000
Packaging Code
X = Filler
0215001.XEP
to
0215020.XEP
Option Codes
Blank : Cartidge
Type
Fuse
E
: Axial Lead Fuse
* Ratings above 6.3 A have 0.8 mm diameter lead;
ratings above 12 A have 1.2 mm diameter lead
Lead-free
Packaging
Packaging Option
215 Series
N/A
N/A
N/A
1000
1000
1000
MX
MXE
MRET1
N/A
N/A
T1=52mm (2.062”)
Packaging Specification
Quantity
Quantity &
Packaging Code
Taping Width
Reel and Tape
215 Series
288
© 2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/215.html for current information.
