0665.125HXSL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Circuit protection> Circuit protection> 0665.125HXSL

0665.125HXSL: DescriptionElectric Fuse, Time Lag Blow, 0.125A, 50A (IR),; CategoryCircuit protection Circuit protection; File Size99KB，2 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric View All

0665.125HXSL Overview

Electric Fuse, Time Lag Blow, 0.125A, 50A (IR),

0665.125HXSL Parametric

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
Fusing characteristics	TIME LAG
body height	8.45 mm
Body length or diameter	8.5 mm
Circuit protection type	Electric Fuse
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	8.5mm x 8.45mm
Pre-discharge rating	0.0567 A2/s
Rated breaking capacity	50 A
Rated current	0.125 A
Rated voltage	250 V
Guideline	CSA, UL
Disconnect time or delay	14400 s

Preview

Download Datasheet

View All

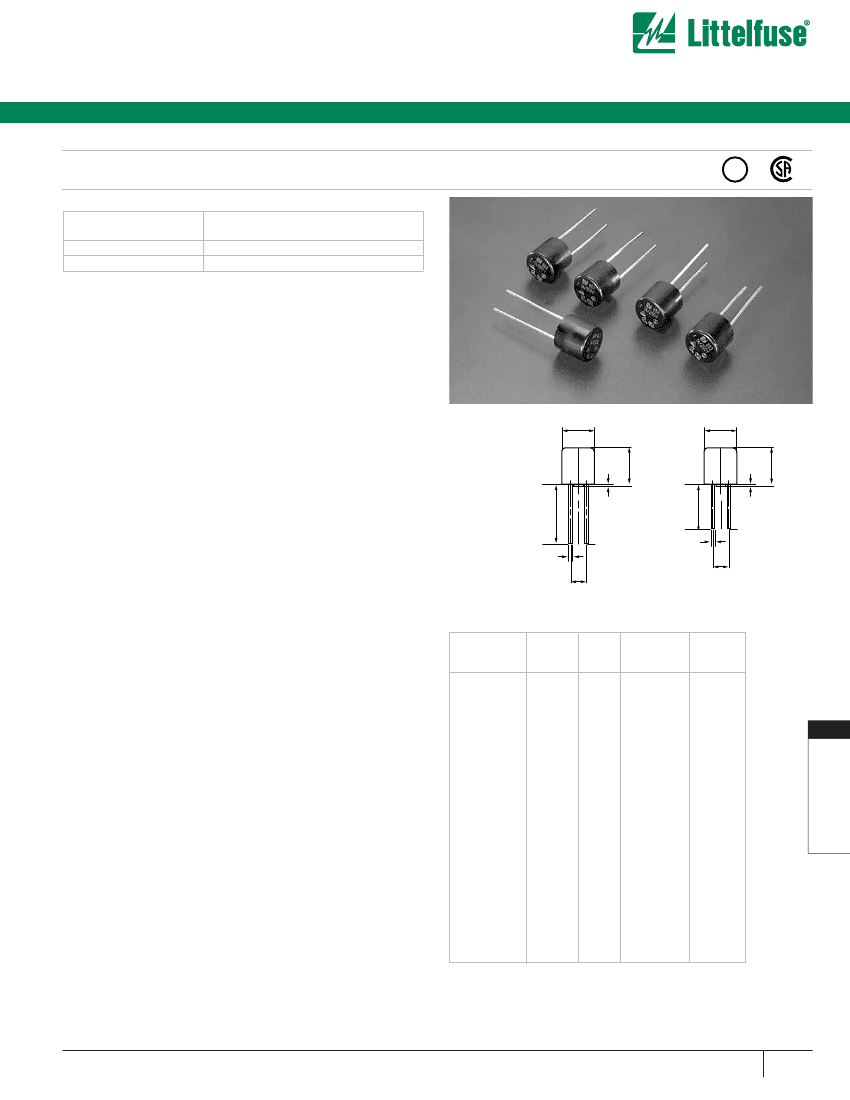

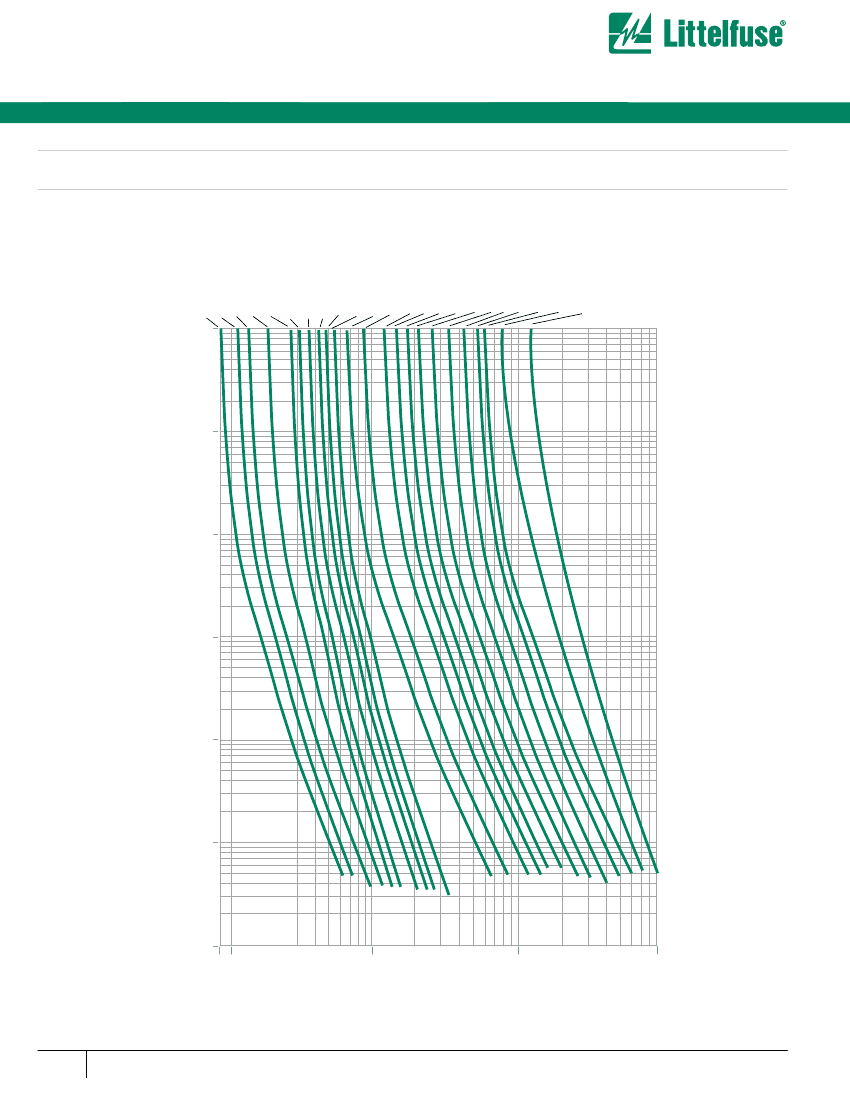

Axial Lead and Cartridge Fuses

Subminiature

LT-5

™ Time Lag Fuse 665 Series

ELECTRICAL CHARACTERISTICS:

% of Ampere

Rating

100%

200%

Time

4 hours

Min

60 sec

Max

AGENCY APPROVALS:

Listed by Underwriters Laboratories from

50mA to 10A. CSA Certified from 50mA to 6.3A.

INTERRUPTING RATINGS:

50A at 250VAC

ENVIRONMENTAL SPECIFICATIONS:

Operating Temperature:

-40˚C to +85˚C.

Case Resistance:

Min 100 Mohms, according to EIA/IS-722, 4.7

Vibration:

20gn, 20 min, 10Hz to 2,000Hz, 12 cycles according to

EIA/IS-722, 4.10 (Frequency range 10-2000Hz, cross-over frequency 60

Hz according to IEC 60068-2-6, test Fc)

Mechanical Shock:

50g, half sine wave, 11ms, 3 times each direction

according to IEC 60068-2-27.

Resistance to Cleaning Solvents:

Clean according to EIA/IS-722, 4.11

Resistance to Soldering Heat:

10 sec. At 260˚C to IEC 60068-2-20,

test Tb

Terminal Strength:

Tensile load min. 9N, according to EIA/IS-722, 4.5.5

8.5(.335")

8.45

(.333")

18.8(.740")

0.57 (.012")

4.3(.169")

PHYSICAL SPECIFICATIONS:

Materials:

Temperature Resistant Body, UL 94V-0; Sn Coated Copper

Wire Terminals.

Solderability:

IEC 60068-2-20, test Ta

Soldering Parameters:

Wave Solder – 235˚C, 2 seconds maximum.

0.64

(.025")

5.08

(.200")

0.64

(.025")

5.08

(.200")

PACKAGING:

Please refer to the following suffixes when ordering:

• 100 Piece Bulk: Short Leads use suffix HXSL; Long Leads use suffix

HXLL

• 750 Piece Tape and Reel per IEC 286-2: (Long Leads only) use suffix

ZRLL

• 1000 Piece Ammo Pack use suffix MALL

ORDERING INFORMATION:

Catalog

Number

0665.063

0665.080

0665.100

0665.125

0665.160

0665.200

0665.250

0665.315

0665.400

0665.500

0665.630

0665.800

0665

001.

0665

1.25

066501.6

0665

002.

0665

02.5

0665

3.15

0665

004.

0665

005.

066506.3

0665

008.

0665

010.

Ampere

Rating

.063

.080

.100

.125

.160

.200

.250

.315

.400

.500

.630

.800

1.00

1.25

1.60

2.00

2.50

3.15

4.00

5.00

6.30

8.00

10.0

Nominal

Voltage Resistance

Rating Cold mOhms

250

7548

250

4427

250

2715

250

2038

250

1238

250

1091

250

696

250

465

250

334

250

243

250

170

250

121

250

at 10 x In

Sec)

0.0176

0.0313

0.0456

0.0567

0.0692

0.133

0.258

0.361

0.528

0.898

2.24

4.05

6.85

7.93

17.5

28.6

40.9

55.0

67.2

142

287

422

564

PATENTED

0.57(.012")

8.45

(.333")

AXIAL LEAD AND

CARTRIDGE FUSES

423

w w w. l i t t e l f u s e . c o m
