217.25 datasheet, PDF - EEWORLD Datasheet

217.25: DescriptionElectric Fuse, FAST BLOW ELECTRIC FUSE, 0.25A, 250VAC, 250VDC, 35A (IR), INLINE/HOLDER; CategoryCircuit protection Circuit protection; File Size146KB，4 Pages; ManufacturerLittelfuse; Websitehttp://www.littelfuse.com

Download Datasheet Parametric Compare View All

217.25 Overview

Electric Fuse, FAST BLOW ELECTRIC FUSE, 0.25A, 250VAC, 250VDC, 35A (IR), INLINE/HOLDER

Parameter Name	Attribute value
Maker	Littelfuse
Reach Compliance Code	unknown
ECCN code	EAR99
Fusing characteristics	FAST
body height	20 mm
Body length or diameter	5.2 mm
Circuit protection type	ELECTRIC FUSE
Fuse type	Supplemental
Fuse size	5x20mm
Joule integral nominal
Installation features	INLINE/HOLDER
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
method of packing	BULK; TAPE AND REEL
physical size	5.2mm x 20mm
Pre-discharge rating	0.04 A2/s
Rated breaking capacity	35 A
Rated current	0.25 A
Rated voltage	250 V
Rated voltage (AC)	250 V
Rated voltage (DC)	250 V
Guideline	CCC; CE; IEC; SEMKO; VDE
resistance	1.232 Ω
surface mount	NO
Terminal surface	Nickel (Ni)
Terminal shape	END CAP

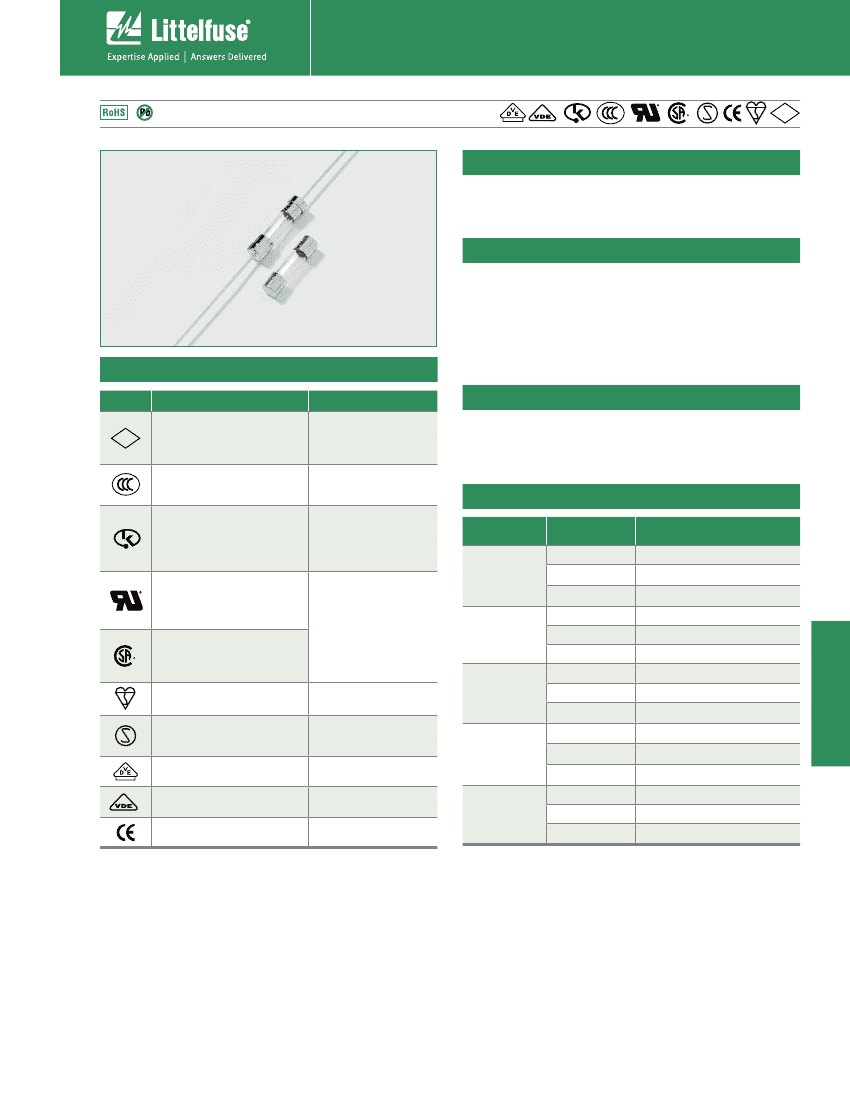

Axial Lead & Cartridge Fuses

5×20 mm > Fast-Acting > 217 Series

217 Series,

5 x 20 mm, Fast-acting Fuse

Description

Features

Agency Approvals

Agency

Agency File Number

Ampere Range

Applications

Electrical Characteristics for Series

% of Ampere

Rating

Ampere Rating

Opening Time

Specifications are subject to change without notice.

Please refer to www.littelfuse.com/series/217.html for current information.

265

Revised: February 1, 2010

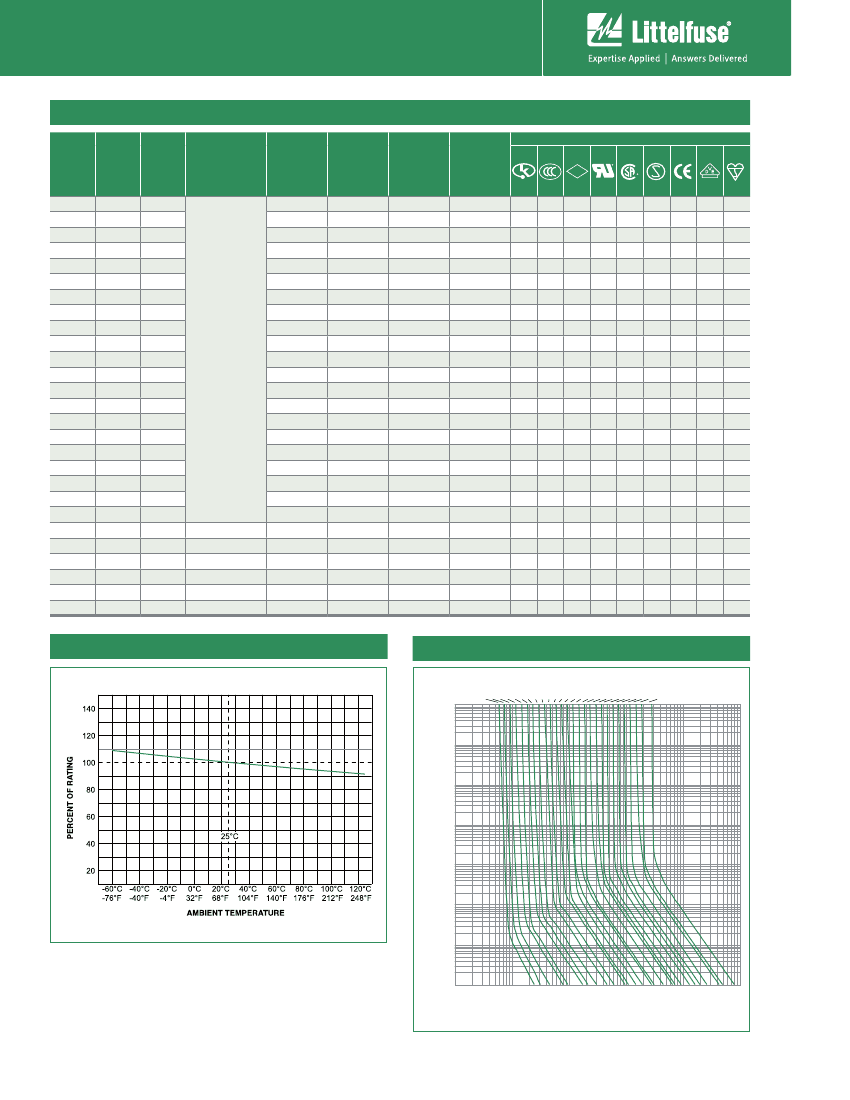

217 Series

	217.25	021702.5P	SLRN426400ABDDFS	217.5
Description	Electric Fuse, FAST BLOW ELECTRIC FUSE, 0.25A, 250VAC, 250VDC, 35A (IR), INLINE/HOLDER	Electric Fuse, Fast Blow, 2.5A, 35A (IR), Supplemental, 5x20mm,	Array/Network Resistor, Isolated, Thin Film, 0.1W, 2640ohm, 0.1% +/-Tol, -50,50ppm/Cel, 2015,	Electric Fuse, FAST BLOW ELECTRIC FUSE, 0.5A, 250VAC, 250VDC, 35A (IR), INLINE/HOLDER
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Terminal surface	Nickel (Ni)	Matte Tin (Sn)	Tin/Lead (Sn/Pb)	Nickel (Ni)
Maker	Littelfuse	Littelfuse	-	Littelfuse
ECCN code	EAR99	-	EAR99	EAR99
Fusing characteristics	FAST	FAST	-	FAST
body height	20 mm	20 mm	-	20 mm
Body length or diameter	5.2 mm	5.2 mm	-	5.2 mm
Circuit protection type	ELECTRIC FUSE	ELECTRIC FUSE	-	ELECTRIC FUSE
Fuse size	5x20mm	5x20mm	-	5x20mm
Installation features	INLINE/HOLDER	INLINE/HOLDER	-	INLINE/HOLDER
physical size	5.2mm x 20mm	5.2mm x 20mm	-	5.2mm x 20mm
Rated breaking capacity	35 A	35 A	-	35 A
Rated current	0.25 A	2.5 A	-	0.5 A
Rated voltage	250 V	250 V	-	250 V
Rated voltage (AC)	250 V	250 V	-	250 V
Guideline	CCC; CE; IEC; SEMKO; VDE	CE; CSA; PSE; UL	-	CCC; CE; IEC; SEMKO; VDE
surface mount	NO	NO	-	NO
Terminal shape	END CAP	END CAP	-	END CAP
