010304 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 010304

010304: DescriptionCircular DIN Connector, 4 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,; CategoryThe connector The connector; File Size750KB，1 Pages; ManufacturerLumberg; Websitehttp://www.lumberg.com/zh/; Environmental Compliance

Download Datasheet Parametric Compare View All

010304 Overview

Circular DIN Connector, 4 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,

010304 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Lumberg
Reach Compliance Code	compliant
body width	0.744 inch
subject depth	0.516 inch
body length	1.138 inch
Body/casing type	SOCKET
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	COPPER ZINC
Contact pitch circle diameter	7 mm
Contact resistance	30 mΩ
Contact style	BELLOWED TYPE
DIN compliance	YES
Electromagnetic interference shielding	YES
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	ABS
MIL compliance	NO
Installation option 1	LOCKING
Installation option 2	SCREW
Installation method	STRAIGHT
Installation type	PANEL
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
Options	GENERAL PURPOSE
polarization key	POLAR PIN POSITION
Rated current (signal)	4 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	BRONZE
Terminal length	0.209 inch
Termination type	SOLDER
Total number of contacts	4

Preview

Download Datasheet

View All

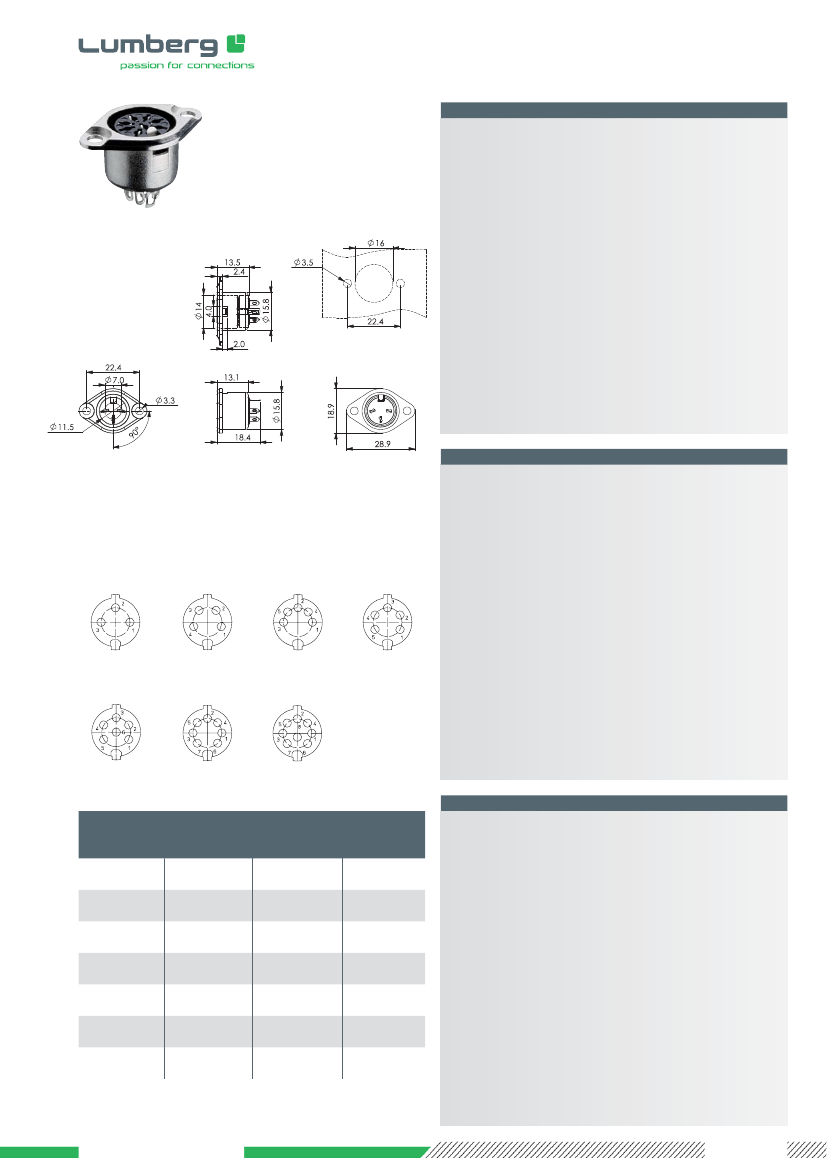

DIN-Rundsteckverbinder

DIN circular connectors

Connecteurs circulaires DIN

0103

DIN-Einbaukupplung, geschirmt, mit Verriegelungsmöglich-

keit, Metallgehäuse, Flansch und Lötanschlüssen

1. Temperaturbereich

2. Werkstoffe

Kontaktträger

Kontaktfeder

Massekontaktfeder

Gehäuse

3. Mechanische Daten

Kontaktierung mit

4. Elektrische Daten

Durchgangswiderstand Kontaktfeder

Durchgangswiderstand Gehäuse

Bemessungsstrom

Bemessungsspannung

Prüfspannung

Isolationswiderstand

≤

30 mΩ

≤

50 mΩ

≤

V AC

250 V AC RMS/60 s

≥

100 MΩ

DIN-Steckern 0131, 0137

ABS, V0 nach UL 94

CuZn, versilbert

Cu, vernickelt

Zn-Legierung, vernickelt

-20 °C/+85 °C

0103

DIN chassis socket, shielded, suitable for locking, metal

housing, flange and solder terminals

Polbilder, von der Lötseite gesehen

Pin configurations, solder side view

Schémas de raccordement, vus du côté à souder

DIN 41524

DIN 45322

1. Temperature range

2. Materials

Insulating body

Contact spring

Strain relief

Screw

Housing

Bend protection

3. Mechanical data

Mating with

DIN plugs 0131, 0137

≤

30 mΩ

≤

50 mΩ

≤

V AC

250 V AC RMS/60 s

≥

100 MΩ

ABS, V0 according to UL 94

CuZn, silvered

steel, nickeled

CuZn, nickeled

PVC

-20 °C/+85 °C

0103 03

DIN 45322

0103 04

DIN 45329

0103 05

DIN 45326

0103 05-1

4. Electrical data

Contact resistance contact spring

Contact resistance housing

Rated current

Rated voltage

Test voltage

Insulation resistance

0103 06

0103 07-1

0103 08-1

0103

Bestellbezeichnung

Designation

Désignation

Polzahl

Poles

Pôles

Verpackungseinheit

Package unit

Unité d’emballage

Embase femelle DIN, blindé, avec possibilité de verrouillage,

boîtier métallique, collerette et connexion par soudure

1. Température d’utilisation

2. Materiaux

Corps isolant

Ressort de contact

Décharge de traction

Vis

Boîtier

Protecion contre pliage

3. Caractéristiques mécaniques

-20 °C/+85 °C

ABS, V0 suivant UL 94

CuZn, argenté

acier, nickelé

CuZn, nickelé

PVC

0103 03

0103 04

0103 05

0103 05-1

0103 06

0103 07-1

0103 08-1

Raccordement avec

4. Caractéristiques électriques

Résistance de contact ressort

Résistance de contact boîtier

Courant assigné

Tension assignée

Tension d’éssai

Résistance d’isolement

connecteurs mâles DIN 0131, 0137

≤

30 mΩ

≤

50 mΩ

≤

V AC

250 V AC RMS/60 s

≥

100 MΩ

Verpackung: einzeln in Kunststoffbeuteln, im Karton

Packaging: in individual plastic bags, in a cardboard box

Emballage: seul dans sachets en plastique, dans un carton

www.lumberg.com

06/2013

010304 Related Products

	010304	010307-1	010308-1	010303	010305	010305-1
Description	Circular DIN Connector, 4 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,	Circular DIN Connector, 7 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,	Circular DIN Connector, 8 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,	Circular DIN Connector, 3 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,	Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,	Circular DIN Connector, 5 Contact(s), Female, Panel Mount, Solder Terminal, Locking, Socket,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg	Lumberg
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
body width	0.744 inch	0.744 inch	0.744 inch	0.744 inch	0.744 inch	0.744 inch
subject depth	0.516 inch	0.516 inch	0.516 inch	0.516 inch	0.516 inch	0.516 inch
body length	1.138 inch	1.138 inch	1.138 inch	1.138 inch	1.138 inch	1.138 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC	COPPER ZINC
Contact pitch circle diameter	7 mm	7 mm	7 mm	7 mm	7 mm	7 mm
Contact resistance	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ	30 mΩ
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	YES	YES	YES	YES	YES	YES
Electromagnetic interference shielding	YES	YES	YES	YES	YES	YES
IEC compliance	NO	NO	NO	NO	NO	NO
Insulation resistance	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω	100000000 Ω
insulator material	ABS	ABS	ABS	ABS	ABS	ABS
MIL compliance	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation option 2	SCREW	SCREW	SCREW	SCREW	SCREW	SCREW
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	PANEL	PANEL	PANEL	PANEL	PANEL	PANEL
Number of ports	1	1	1	1	1	1
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
polarization key	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION	POLAR PIN POSITION
Rated current (signal)	4 A	4 A	4 A	4 A	4 A	4 A
Guideline	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL	NICKEL
Shell material	BRONZE	BRONZE	BRONZE	BRONZE	BRONZE	BRONZE
Terminal length	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch	0.209 inch
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	4	7	8	3	5	5
DIN standard	-	45329	45326	41524	41524	45322
ECCN code	-	-	EAR99	EAR99	EAR99	EAR99
