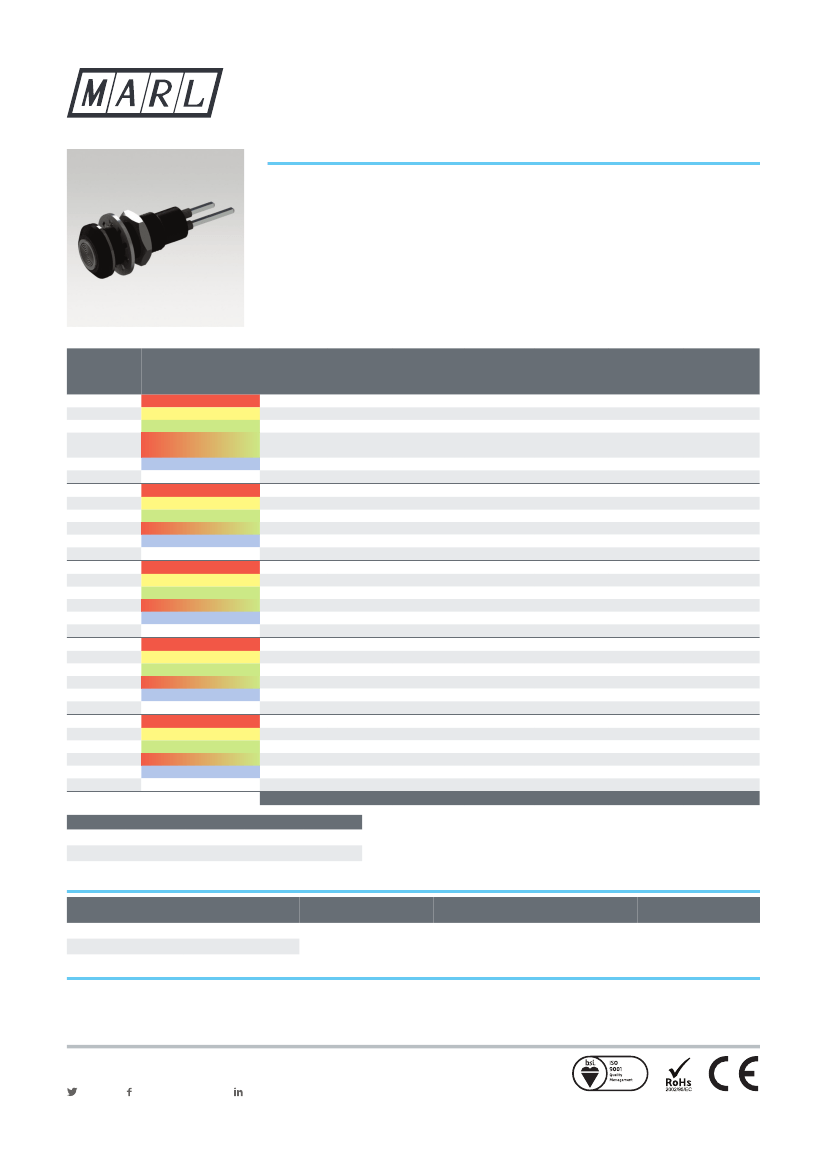

612 SERIES
PANEL INDICATOR LED
FEATURES
•
•
•
•
•
•
•
Ø6.35mm mounting
Black anodised aluminium housing
Sealed to IP67 - weatherproof
Wide viewing angle - smoked lens
Internal potting
Range of LED colour options
Range of voltage options
BENEFITS
•
•
•
•
•
•
•
•
•
Standard industrial mounting size
Suitable for portable equipment
Suitable for external applications
Smoked lens gives good on/off contrast ratio
Suitable for high vibration applications
Suitable for status panel indication
Manufactured with internal resistor
Outstanding reliability
Vandal resistant
Marl Part
Number
LED Colour
Red
Yellow
Green
Red/Green Bi-Colour
Red/Green/Amber Tri-Colour †
Blue
Cool White
Red
Yellow
Green
Red/Green Bi-Colour
Blue
Cool White
Red
Yellow
Green
Red/Green Bi-Colour
Blue
Cool White
Red
Yellow
Green
Red/Green Bi-Colour
Blue
Cool White
Red
Yellow
Green
Red/Green Bi-Colour
Blue
Cool White
612-301-04
612-325-04
612-324-04
612-330-04
612-338-04-15
612-934-04
612-998-04
612-301-20
612-325-20
612-324-20
612-330-20
612-934-20
612-998-20
612-301-21
612-325-21
612-324-21
612-330-21
612-934-21
612-998-21
612-301-23
612-325-23
612-324-23
612-330-23
612-934-23
612-998-23
612-301-24
612-325-24
612-324-24
612-330-24
612-934-24
612-998-24
Typical Voltage Max. Reverse
DC Vopr
Voltage
1.85 **
2.0 **
3.2 **
2.0/2.2 **
2.0/2.2 **
3.2 **
3.2 **
5-6
5-6
5-6
5-6
5-6
5-6
12
12
12
12
12
12
24-28
24-28
24-28
24-28
24-28
24-28
48
48
48
48
48
48
Vdc
3
3
3
3
3
3
3
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
75
Vdc
Typical Current
DC Iopr
20
20
20
20
20
20
20
19
18
16
20
20
16
18
18
19
20
19
18
17 @ 28V
17 @ 28V
16 @ 28V
17 @ 28V
14 @ 28V
14 @ 28V
12
12
12
12
10
12
mA
Typical LED
Luminous
Intensity
33
401
1010
20
30/40
225
1194
33
401
830
20
225
932
33
401
1010
20
225
1194
27
308
830
20 @ 20mA
175
932
18
208
615
20 @ 20mA
125
648
mcd
Typical LED
Wavelength
λp
660
590
525
627/565
627/565
465
See Below
660
590
525
627/565
465
See Below
660
590
525
627/565
465
See Below
660
590
525
627/565
465
See Below
660
590
525
627/565
465
See Below
nm
Typical Emission Colours Cool White LED
X
0.296
0.283
Y
0.276
0.305
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-40 to +85
-30 to +85
-30 to +85
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-30 to +85
-30 to +85
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-30 to +85
-30 to +85
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-30 to +85
-30 to +85
-40 to +85
-40 to +85
-30 to +85
-40 to +85
-30 to +85
-30 to +85
°C
Operating
Temp
Topr *
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
-40 to +85
°C
Storage
Temp
Tstg
0.330
0.360
0.330
0.318
No/Diameter of
Conductors
19/0.16mm
OPTIONAL FLYING LEAD TERMINATORS
Marl Part No
Suffix
612-301-04-15
612-301-04-19
Wire Length
150mm
1000mm
Wire Colour
Red - Anode
Black - Cathode
Diameter of Insulation Wire Specification
1.2mm
Type 44, 22 Gauge
High Performance Wire
NOTES
Intensities (lv) and colour shades of white (X-Y co-ordinates) may vary between LEDs within a batch. Additional LED Colours, Voltage Options and Flying Lead lengths available for semi-
custom projects. Please contact our Sales Team. All LED components are supplied in anti-static packaging.
† Tri-Colour model has 3x 150mm flying leads (Anode Red, Anode Green and Common Cathode). Amber is generated by powering Red and Green simultaneously.
* LED Characteristics stated at Ta = 25°C. For operating temperature derating graphs, please refer to sheet 2.
** These are Current models and the voltage shown is Vf at 20mA, not Vopr. Additionally, there is no reverse protection diode in Current models.
To order please contact us on +44 (0) 1229 582 430
F +44 (0) 1229 585 155
|
E sales@marl.co.uk
| www.leds.co.uk
marlleds
marlinternationallimited
company/marl-international-limited
Q 05480
DSN 612 Version DS018/2016. Page 1 of 2
612 SERIES
PANEL INDICATOR LED
TECHNICAL CHARACTERISTICS
Series
612
Max. Power
Dissipation
500
mW
Panel Cutout
6.35
mm
Nut Mounting
Torque
0.6
Nm
Min. Mounting
Centres
11.0
mm
Min. - Max. Panel
Thickness
1.5 - 7.0
mm
Weight (g): 5
Dimensions in mm (typical). Not to scale. Mounting hole to be clean and burr free. Anode termination denoted by long pin.
Tri-colour model uses 3x 150mm flying leads instead of pins: Red = Red Anode, Green = Green Anode, Black = Common Cathode.
TECHNICAL DRAWING
0.65 Sq
2.5
15
10
6.35
2.54
+
0.1
0
PUSH ON CONNECTOR
11.8
5.1
9
Mounting Hole
909-000-00 is gold plated, 910-000-00 is tin plated - for use
with 612 series lamps.
Dimensions in mm (typical). Not to scale.
DE-RATING GRAPHS
Forward Current If (mA)
Forward Current If (mA)
Forward Current If (mA)
40
30
20
10
0
40
30
20
10
8.5
40
30
20
10
8.5
Forward Current If (mA)
50
Red / Yellow LED
50
Blue / Green LED
50
Cool White LED
50
40
30
20
10
0
Red+Green Bi-Colour LED
R
G
7.5
5
20
40
60
80
100
0
20
40
60
80
100
0
0
20
40
60
80
100
0
0
20
40
60
80
100
0
Ambient Temperature Ta (°C)
Forward Current If (mA)
50
40
30
20
10
0
R
G
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Red+Green Tri-Colour LED
0
20
40
60
80
100
Ambient Temperature Ta (°C)
MATERIALS
Body
Nut
Panel Seal
Black Anodised Aluminium
Nickel Plated Brass
Viton
Lens
Encapsulation
Polycarbonate
Black Polyurethane
Lock Washer
Termination
Spring Steel
Silver Flash Coated Brass
Electro-Static Discharge (ESD)
Build up of electro-static discharge occurs in many situations
involving people moving and handling products.The range
of possible situations is very diverse but voltage levels as
high as several thousand volts can and do arise in many
individual situations. When an operator charged up to these
levels handles a static sensitive device, there is a very
probable likelihood that the device will be irreversibly
damaged. It is essential that precautions are taken at all
stages during manufacture and assembly of these products.
Although LEDs were never considered to be static sensitive
DESIGN CONSIDERATIONS
devices, changes in manufacturing technology and
materials used to produce higher intensity products over a
large range of the wavelength spectrum have changed this.
Marl has an approved system of ESD control from goods
in, through production and into final packing and despatch.
Marl recommend all users of LED based products follow the
guidelines of BS 100015.
Voltage, Current and Temperature
The forward voltage / current value of an LED is dependent
upon the ambient temperature of the environment in which
Marl should be contacted if the device is to be operated
outside the temperature range specified. Marl accept no
liability for any product that is operated outside the stated
voltage or temperature range.
it is operated. Therefore, care must be taken to operate the
LED at the correct voltage / current values, depending upon
the ambient temperature.
To order please contact us on +44 (0) 1229 582 430
F +44 (0) 1229 585 155
|
E sales@marl.co.uk
| www.leds.co.uk
marlleds
marlinternationallimited
company/marl-international-limited
Q 05480
DSN 612 Version DS018/2016. Page 2 of 2
