TC1017
150 mA, Tiny CMOS LDO With Shutdown
Features:
• Space-saving 5-Pin SC-70 and SOT-23 Packages
• Extremely Low Operating Current for Longer
Battery Life: 53 µA (typ.)
• Very Low Dropout Voltage
• Rated 150 mA Output Current
• Requires Only 1 µF Ceramic Output Capacitance
• High Output Voltage Accuracy:
0.5%
(typical)
• 10 µs (typ.) Wake-Up Time from SHDN
• Power-Saving Shutdown Mode: 0.05 µA (typ.)
• Overcurrent and Overtemperature Protection
• Pin-Compatible Upgrade for Bipolar Regulators
General Description:
The TC1017 is a high-accuracy (typically ±0.5%)
CMOS upgrade for bipolar Low Dropout regulators
(LDOs). It is offered in a SC-70 or SOT-23 package.
The SC-70 package represents a 50% footprint reduc-
tion versus the popular SOT-23 package and is offered
in two pinouts to make board layout easier.
Developed specifically for battery-powered systems,
the TC1017’s CMOS construction consumes only
53 µA typical supply current over the entire 150 mA
operating load range. This can be as much as 60 times
less than the quiescent operating current consumed by
bipolar LDOs.
The TC1017 is designed to be stable, over the entire
input voltage and output current range, with low-value
(1 µF) ceramic or tantalum capacitors. This helps to
reduce board space and save cost. Additional inte-
grated features, such as shutdown, overcurrent and
overtemperature protection, further reduce the board
space and cost of the entire voltage-regulating
application.
Key performance parameters for the TC1017 include
low dropout voltage (285 mV typical at 150 mA output
current), low supply current while shutdown (0.05 µA
typical) and fast stable response to sudden input
voltage and load changes.
Applications:
•
•
•
•
•
•
Cellular/GSM/PHS Phones
Battery-Operated Systems
Portable Computers
Medical Instruments
Electronic Games
Pagers
Package Types
SC-70
V
IN
5
TC1017
1
2
3
1
V
OUT
4
V
OUT
5
TC1017R
2
3
1
V
IN
NC
4
SOT-23
V
OUT
5
TC1017
2
3
NC
4
SHDN NC GND
V
IN
GND SHDN
GND SHDN
2005-2013 Microchip Technology Inc.
DS21813F-page 1
TC1017
1.0
ELECTRICAL
CHARACTERISTICS
PIN FUNCTION TABLE
Name
SHDN
NC
GND
V
OUT
V
IN
No connect
Ground terminal
Regulated voltage output
Unregulated supply input
Function
Shutdown control input.
Absolute Maximum Ratings †
Input Voltage ....................................................................6.5V
Power Dissipation ......................... Internally Limited (Note
7)
Maximum Voltage On Any Pin ..................V
IN
+ 0.3V to -0.3V
† Notice:
Stresses above those listed under “Maximum
Ratings” may cause permanent damage to the device. This is
a stress rating only and functional operation of the device at
those or any other conditions above those indicated in the
operation listings of this specification is not implied. Exposure
to maximum rating conditions for extended periods may affect
device reliability.
ELECTRICAL CHARACTERISTICS
Electrical Specifications:
Unless otherwise noted, V
IN
= V
R
+ 1V, I
L
= 100 µA, C
L
= 1.0 µF, SHDN > V
IH
, T
A
= +25°C
Boldface
type specifications apply for junction temperatures of –40°C to +125°C.
Parameter
Input Operating Voltage
Maximum Output Current
Sym.
V
IN
I
OUTMAX
Min.
2.7
100
150
Typ.
—
—
—
Max.
6.0
—
—
Units
V
mA
Test Conditions
Note 1
Note 1
V
IN
>= 3V and
V
IN
>= (V
R
+ 2.5%) +
V
DROPOUTMAX
V
ppm/°C
%/V
%
mV
Note 2
Note 3
(V
R
+ 1V) < V
IN
< 6V
I
L
= 0.1 mA to I
OUTMAX
I
L
= 100 µA
I
L
= 50 mA
I
L
= 100 mA
I
L
= 150 mA
SHDN = V
IH
, I
L
= 0
SHDN = 0V
f =1 kHz, I
L
= 50 mA
Output Voltage
V
OUT
Temperature Coefficient
Line Regulation
Load Regulation
(Note
4)
Dropout Voltage
(Note
5)
V
OUT
TCV
OUT
V
OUT
/V
IN
)| / V
R
V
OUT
| / V
R
V
IN
– V
OUT
V
R
– 2.5%
—
—
—
—
—
—
—
—
—
—
V
R
±0.5%
40
0.04
0.38
2
90
180
285
53
0.05
58
V
R
+ 2.5%
—
0.2
1.5
—
200
350
500
90
2
—
Supply Current
Shutdown Supply Current
Power Supply Rejection Ratio
Note 1:
2:
3:
I
IN
I
INSD
PSRR
µA
µA
dB
The minimum V
IN
has to meet two conditions: V
IN
2.7V and V
IN
(V
R
+ 2.5%) + V
DROPOUT
.
V
R
is the regulator voltage setting. For example: V
R
= 1.8V, 2.7V, 2.8V, 3.0V.
6
V
–
V
10
OUTMAX
OUTMIN
TCV OUT
=
-------------------------------------------------------------------------------------
-
V OUT
T
4:
5:
6:
Regulation is measured at a constant junction temperature using low duty-cycle pulse testing. Load regulation is tested
over a load range from 0.1 mA to the maximum specified output current. Changes in output voltage due to heating
effects are covered by the thermal regulation specification.
Dropout voltage is defined as the input-to-output differential at which the output voltage drops 2% below its nominal
value at a 1V differential.
Thermal regulation is defined as the change in output voltage at a time T after a change in power dissipation is applied,
excluding load or line regulation effects. Specifications are for a current pulse equal to I
LMAX
at V
IN
= 6V for t = 10 msec.
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable junction
temperature and the thermal resistance from junction-to-air (i.e., T
A
, T
J
,
JA
). Exceeding the maximum allowable power
dissipation causes the device to initiate thermal shutdown. Please see
Section 5.1 “Thermal Shutdown”,
for more
details
.
Output current is limited to 120 mA (typ) when V
OUT
is less than 0.5V due to a load fault or short-circuit condition.
7:
8:
DS21813F-page 2
2005-2013 Microchip Technology Inc.
TC1017
ELECTRICAL CHARACTERISTICS (CONTINUED)
Electrical Specifications:
Unless otherwise noted, V
IN
= V
R
+ 1V, I
L
= 100 µA, C
L
= 1.0 µF, SHDN > V
IH
, T
A
= +25°C
Boldface
type specifications apply for junction temperatures of –40°C to +125°C.
Parameter
Wake-Up Time
(from Shutdown mode)
Settling Time
(from Shutdown mode)
Output Short-Circuit Current
Thermal Regulation
Thermal Shutdown Die
Temperature
Thermal Shutdown Hysteresis
Output Noise
SHDN Input High Threshold
SHDN Input Low Threshold
Note 1:
2:
3:
Sym.
t
WK
Min.
—
Typ.
10
Max.
—
Units
µs
Test Conditions
V
IN
= 5V, I
L
= 60 mA,
C
IN
= C
OUT
=1 µF,
f = 100 Hz
V
IN
= 5V, I
L
= 60 mA,
C
IN
= 1 µF,
C
OUT
= 1 µF, f = 100 Hz
V
OUT
= 0V, Average
Current
(Note
8)
Notes
6, 7
t
S
—
32
—
µs
I
OUTSC
V
OUT
/P
D
T
SD
T
SD
eN
V
IH
V
IL
—
—
—
—
—
45
—
120
0.04
160
10
800
—
—
—
—
—
—
—
—
15
mA
V/W
°C
°C
nV/Hz
%V
IN
%V
IN
f = 10 kHz
V
IN
= 2.7V to 6.0V
V
IN
= 2.7V to 6.0V
The minimum V
IN
has to meet two conditions: V
IN
2.7V and V
IN
(V
R
+ 2.5%) + V
DROPOUT
.
V
R
is the regulator voltage setting. For example: V
R
= 1.8V, 2.7V, 2.8V, 3.0V.
6
V
–
V
10
OUTMAX
OUTMIN
TCV OUT
=
-------------------------------------------------------------------------------------
-
V OUT
T
4:
5:
6:
Regulation is measured at a constant junction temperature using low duty-cycle pulse testing. Load regulation is tested
over a load range from 0.1 mA to the maximum specified output current. Changes in output voltage due to heating
effects are covered by the thermal regulation specification.
Dropout voltage is defined as the input-to-output differential at which the output voltage drops 2% below its nominal
value at a 1V differential.
Thermal regulation is defined as the change in output voltage at a time T after a change in power dissipation is applied,
excluding load or line regulation effects. Specifications are for a current pulse equal to I
LMAX
at V
IN
= 6V for t = 10 msec.
The maximum allowable power dissipation is a function of ambient temperature, the maximum allowable junction
temperature and the thermal resistance from junction-to-air (i.e., T
A
, T
J
,
JA
). Exceeding the maximum allowable power
dissipation causes the device to initiate thermal shutdown. Please see
Section 5.1 “Thermal Shutdown”,
for more
details
.
Output current is limited to 120 mA (typ) when V
OUT
is less than 0.5V due to a load fault or short-circuit condition.
7:
8:
TEMPERATURE CHARACTERISTICS
Electrical Specifications:
Unless otherwise indicated, V
DD
= +2.7V to +6.0V and V
SS
= GND.
Parameters
Temperature Ranges
Specified Temperature Range
Operating Temperature Range
Storage Temperature Range
Thermal Package Resistances3
Thermal Resistance, 5L-SOT23
Thermal Resistance, 5L-SC-70
JA
JA
—
—
255
450
—
—
°C/W
°C/W
T
A
T
A
T
A
-40
-40
-65
—
—
—
+125
+125
+150
°C
°C
°C
Extended Temperature parts
Sym.
Min.
Typ.
Max.
Units
Conditions
2005-2013 Microchip Technology Inc.
DS21813F-page 3
TC1017
2.0
Note:

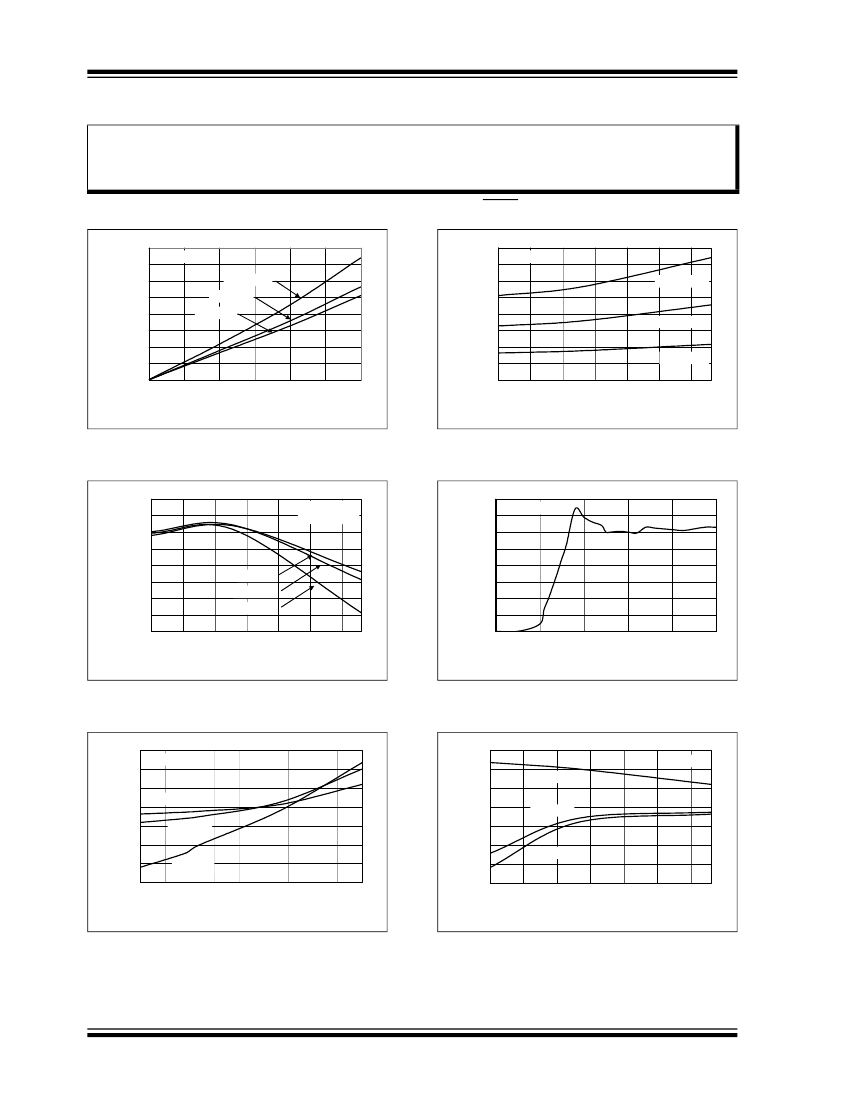

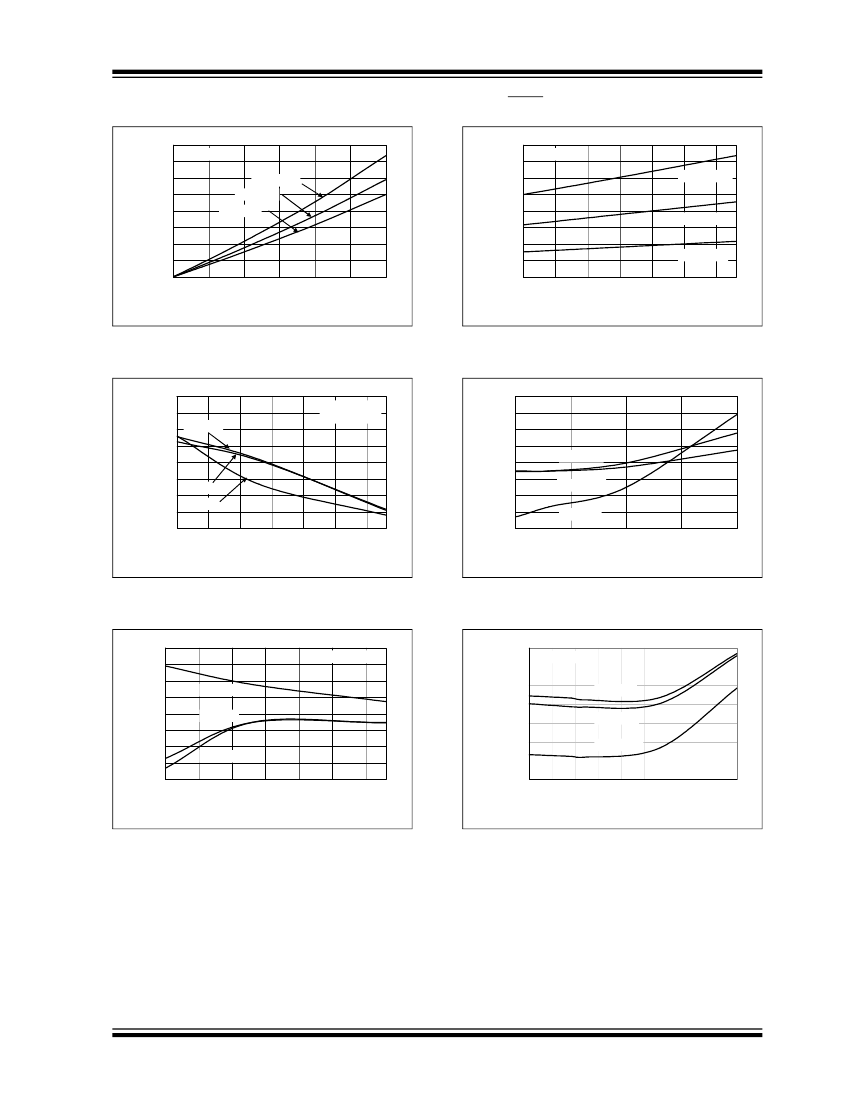

TYPICAL PERFORMANCE CHARACTERISTICS
The graphs and tables provided following this note are a statistical summary based on a limited number of
samples and are provided for informational purposes only. The performance characteristics listed herein
are not tested or guaranteed. In some graphs or tables, the data presented may be outside the specified
operating range (e.g., outside specified power supply range) and therefore outside the warranted range.
Note:
Unless otherwise noted, V
IN
= V
R
+ 1V, I
L
= 100 µA, C
L
= 1.0 µF, SHDN > V
IH
, T
A
= +25°C.
0.40
Dropout Voltage (V)
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0
25
50
75
100
125
150
Load Current (mA)
0.40
0.35
T
A
= +125°C
T
A
= +25°C
T
A
= -40°C
V
OUT
= 2.85V
V
OUT
= 2.85V
I
OUT
= 150 mA
Dropout Voltage (V)
0.30
0.25
0.20
0.15
0.10
0.05
0.00
-40
-15
10
35
60
I
OUT
= 100 mA
I
OUT
= 50 mA
85
110
Temperature (°C)
FIGURE 2-1:
Current.
-0.30
Load Regulation (%)
-0.35
-0.40
-0.45
-0.50
-0.55
-0.60
-0.65
-0.70
-40
-15
Dropout Voltage vs. Output
FIGURE 2-4:
Temperature.
160
Short Circuit Current (mA)
140
120
100
80
60
40
20
0
1
2
Dropout Voltage vs.
V
OUT
= 2.85V
I
OUT
= 0-150 mA
V
OUT
= 2.85V
V
IN
= 6.0V
V
IN
= 3.85V
V
IN
= 3.3V
10
35
60
85
110
3
4
5
6
Temperature (°C)
Input Voltage (V)
FIGURE 2-2:
Temperature.
57
Supply Current (µA)
56
55
54
53
52
51
50
3.3
3.6
3.9
T
A
= -40°C
Load Regulation vs.
FIGURE 2-5:
Input Voltage.
57
Supply Current (µA)
56
55
54
53
52
51
50
-40
-15
Short-Circuit Current vs.
V
OUT
= 2.85V
V
OUT
= 2.85V
V
IN
= 6.0V
T
A
= +125°C
V
IN
= 3.85V
T
A
= +25°C
V
IN
= 3.3V
4.2
4.5
4.8
5.1
5.4
5.7
6.0
10
35
60
85
110
Input Voltage (V)
Temperature (°C)
FIGURE 2-3:
Voltage.
Supply Current vs. Input
FIGURE 2-6:
Temperature.
Supply Current vs.
DS21813F-page 4
2005-2013 Microchip Technology Inc.
TC1017
Note:
Unless otherwise noted, V
IN
= V
R
+ 1V, I
L
= 100 µA, C
L
= 1.0 µF, SHDN > V
IH
, T
A
= +25°C.
0.40
Dropout Voltage (V)
0.35
0.30
0.25
0.20
0.15
0.10
0.05
0.00
0
25
50
75
100
125
150
Load Current (mA)
0.40
0.35
Dropout Voltage (V)
T
A
= +125°C
T
A
= +25°C
T
A
= -40°C
V
OUT
= 3.30V
V
OUT
= 3.30V
I
OUT
= 150 mA
0.30
0.25
0.20
0.15
0.10
0.05
0.00
-40
-15
10
35
60
I
OUT
= 100 mA
I
OUT
= 50 mA
85
110
Temperature (°C)
FIGURE 2-7:
Current.
-0.30
Load Regulation (%)
-0.35
-0.40
-0.45
-0.50
-0.55
-0.60
-0.65
-0.70
-40
-15
V
IN
= 4.3V
V
IN
= 4.0V
V
IN
= 6.0V
Dropout Voltage vs. Output
FIGURE 2-10:
Temperature.
60
Supply Current (µA)
59
58
57
56
55
54
53
52
4.0
Dropout Voltage vs.
V
OUT
= 3.30V
I
OUT
= 0-150 mA
V
OUT
= 3.30V
T
A
= +25°C
T
A
= +125°C
T
A
= -40°C
10
35
60
85
110
4.5
5.0
Input Voltage (V)
5.5
6.0
Temperature (°C)
FIGURE 2-8:
Temperature.
60
Supply Current (µA)
59
58
57
56
55
54
53
52
-40
-15
V
IN
= 4.0V
V
IN
= 6.0V
V
IN
= 4.3V
Load Regulation vs.
FIGURE 2-11:
Voltage.
2.869
Output Voltage (V)
2.868
2.867
2.866
2.865
2.864
2.863
2.862
3.3 3.6 3.9
Supply Current vs. Input
V
OUT
= 3.30V
V
OUT
= 2.85V
T
A
= -40°C
T
A
= +25°C
T
A
= +125°C
10
35
60
85
110
4.2 4.5 4.8
5.1
5.4 5.7 6.0
Temperature (°C)
Input Voltage (V)
FIGURE 2-9:
Temperature.
Supply Current vs.
FIGURE 2-12:
Voltage.
Output Voltage vs. Supply
2005-2013 Microchip Technology Inc.
DS21813F-page 5
京公网安备 11010802033920号
EEWORLD
