10081530-320A5LF datasheet, PDF

Datasheet> All Categories > The connector> The connector> 10081530-320A5LF

10081530-320A5LF: DescriptionCard Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Green Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size2MB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10081530-320A5LF Overview

Card Edge Connector, 240 Contact(s), 2 Row(s), Female, Straight, 0.039 inch Pitch, Solder Terminal, Latch & Eject, Green Insulator, Receptacle, LEAD FREE

10081530-320A5LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Amphenol
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Board mount options	SPLIT BOARD LOCK
body width	0.299 inch
body length	5.551 inch
Body/casing type	RECEPTACLE
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (20) OVER NICKEL (90)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	25 Cycles
Filter function	NO
IEC compliance	NO
Insulation resistance	1000000 Ω
Insulator color	GREEN
insulator material	GLASS FILLED THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.039 inch
Mixed contacts	NO
Installation option 1	LATCH & EJECT
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	20u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	1 mm
Termination type	SOLDER
Total number of contacts	240
UL Flammability Code	94V-0

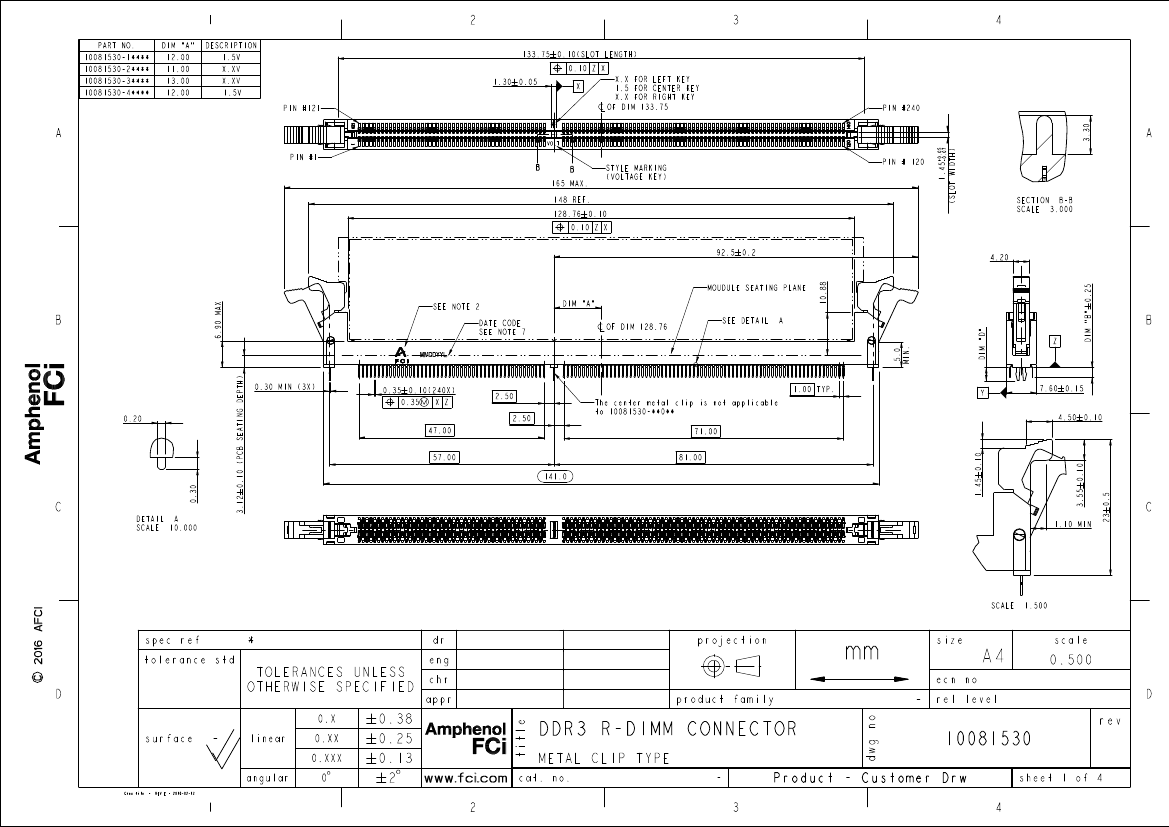

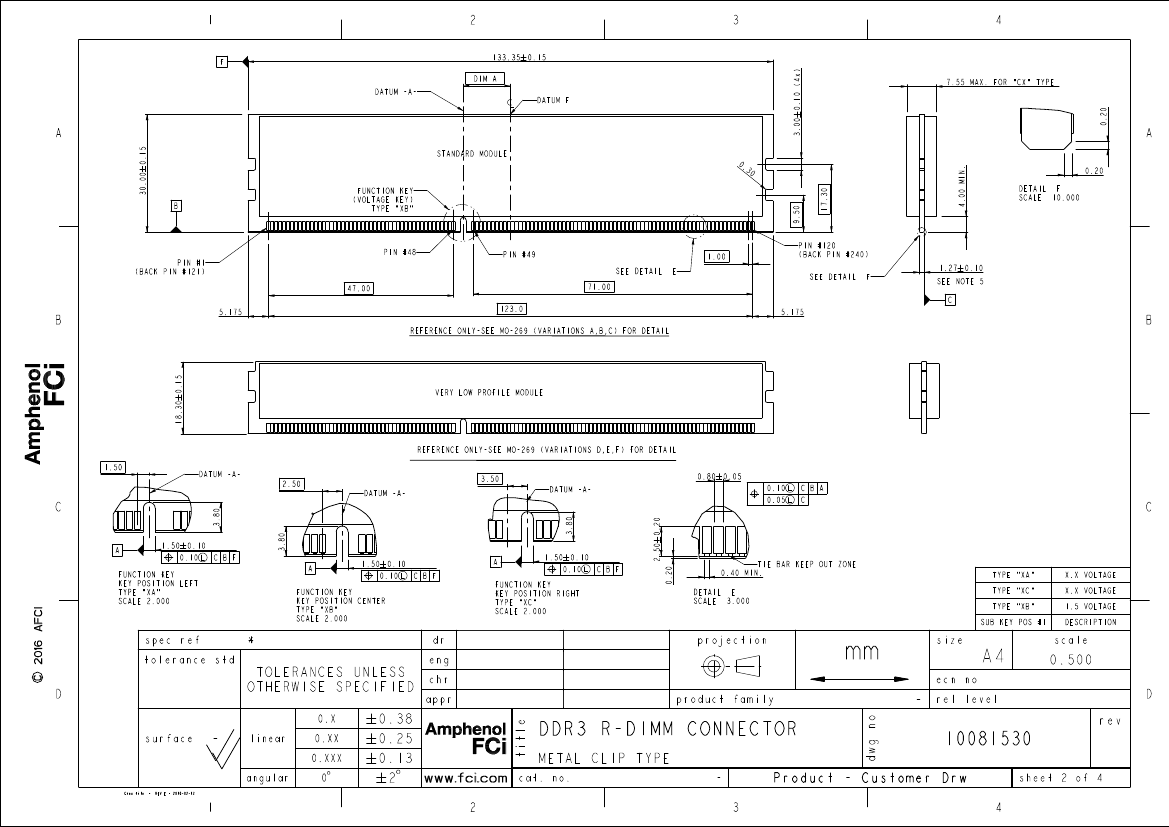

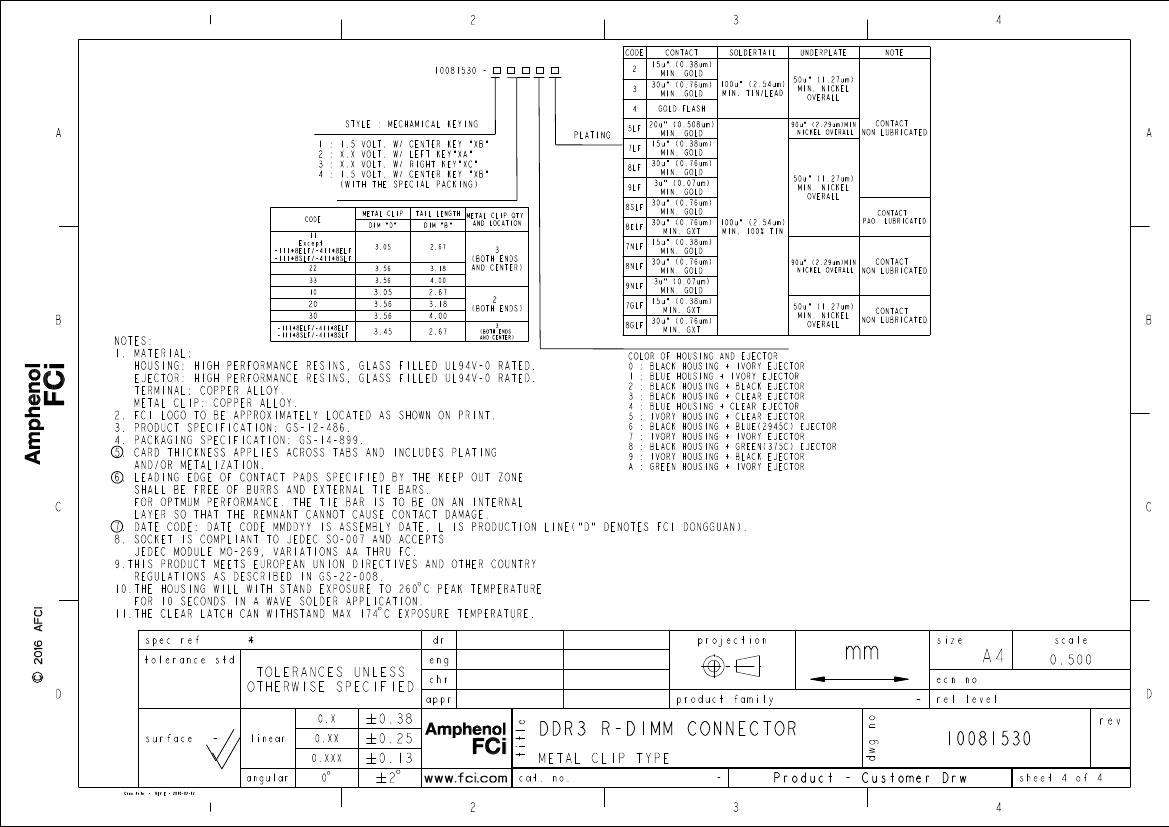

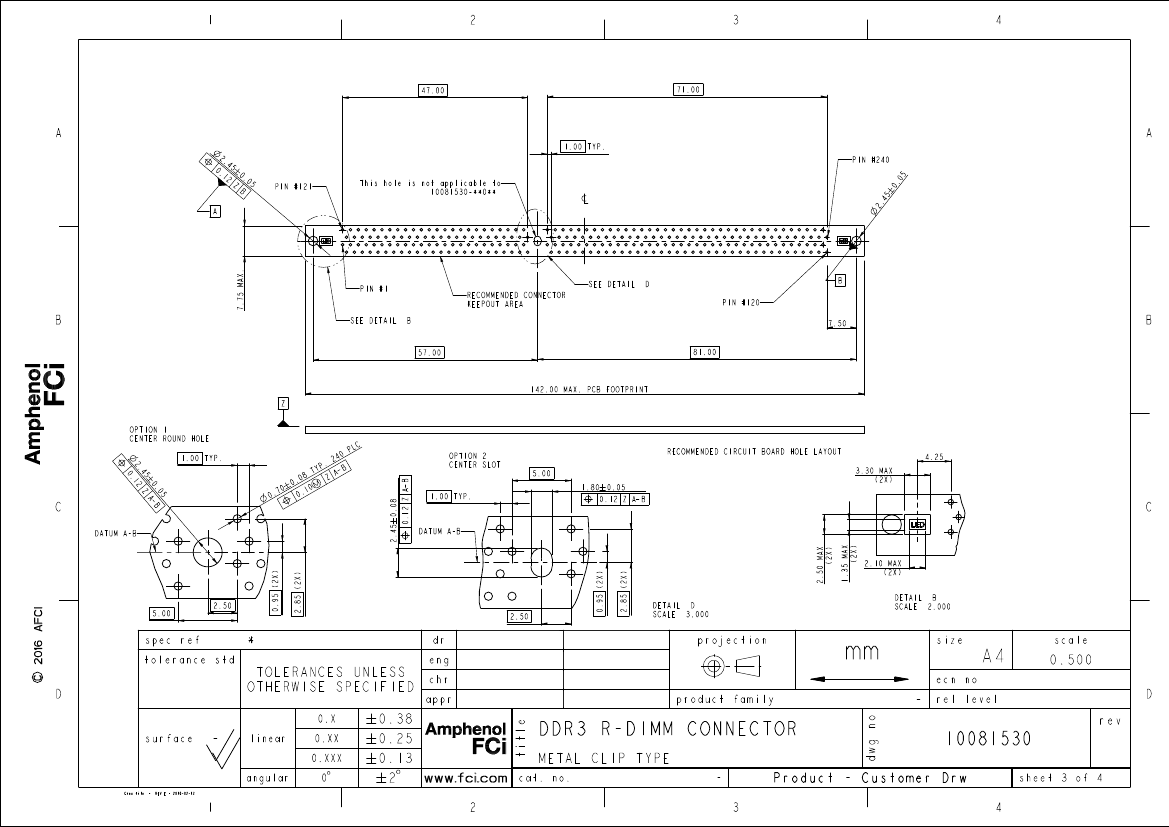

Preview

Download Datasheet

View All

Rick Bian

Jeny Ren

Nickor Zuo

2010/07/03

2017/08/07

2017/08/11

ELX-DG-27598-1

Released

PDS: Rev :L

STATUS:Released

Printed: Aug 11, 2017
