112193 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 112193

112193: DescriptionRF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug; CategoryThe connector The connector; File Size136KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

112193 Overview

RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug

112193 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	unknown
Body/casing type	PLUG
Characteristic impedance	75 Ω
Connector type	RF BNC CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	ACETAL
MIL compliance	NO
Manufacturer's serial number	112193
Installation method	RIGHT ANGLE
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CRIMP

Preview

Download Datasheet

View All

BNC.4

11/27/01

5:29 PM

Page 72

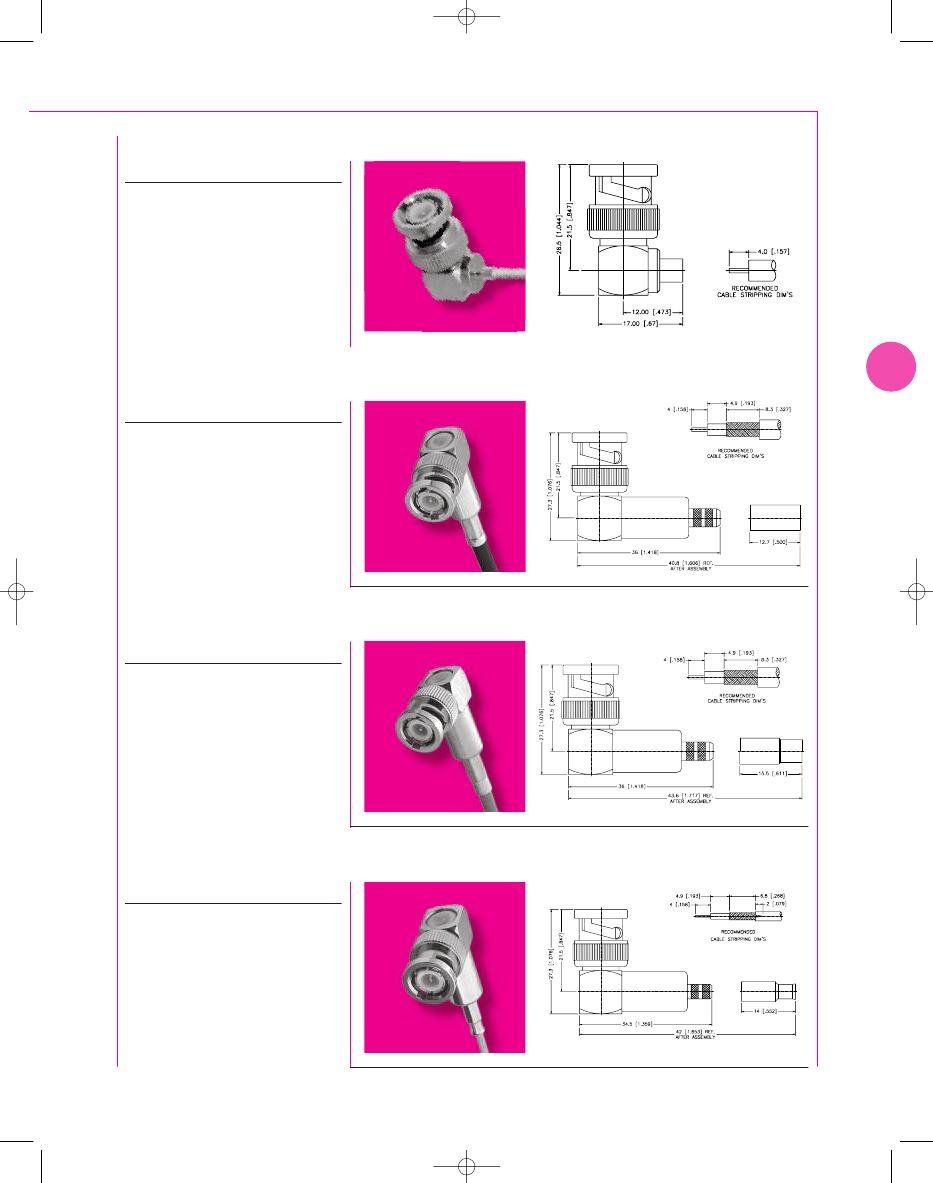

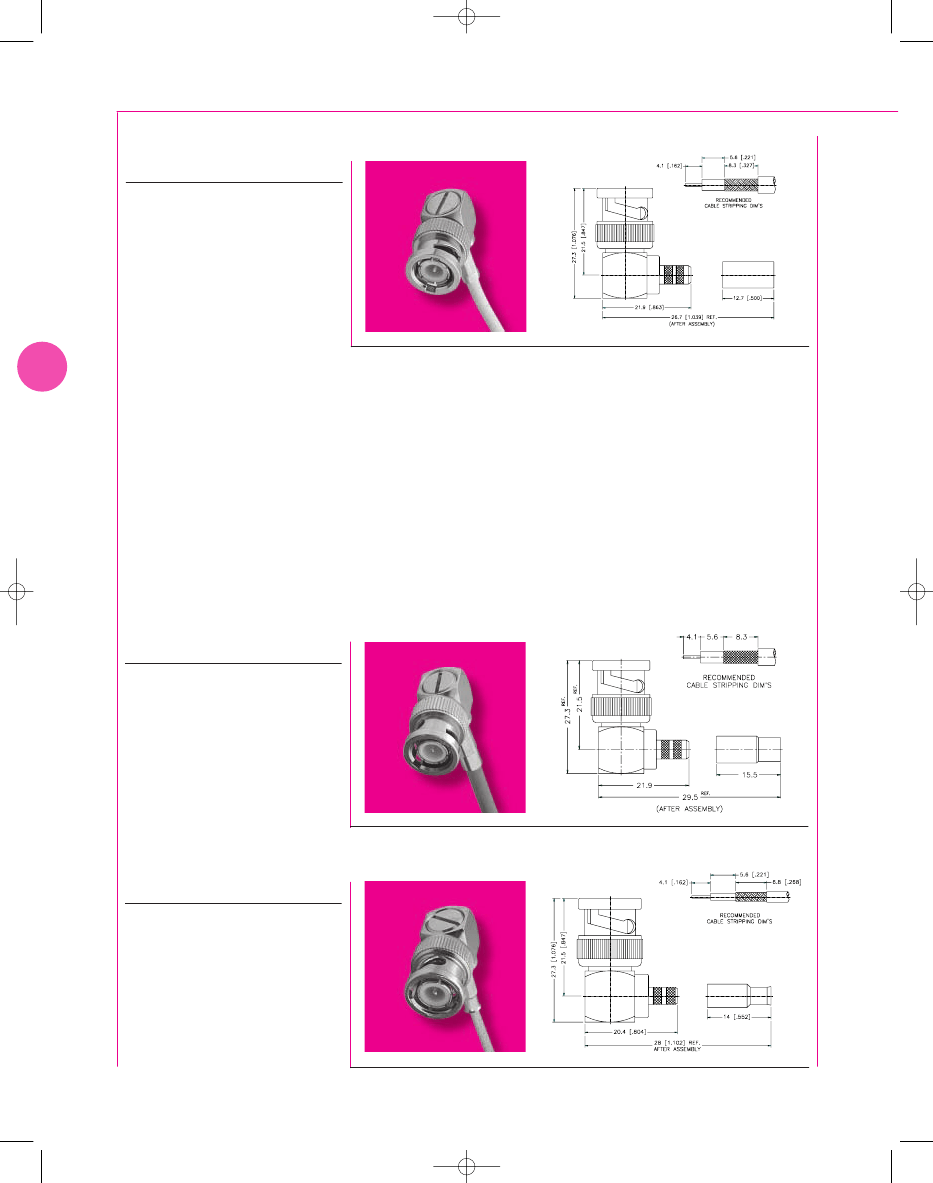

RIGHT ANGLE PLUG CRIMP ATTACHMENTS FOR FLEXIBLE CABLE

BNC COAXIAL CONNECTORS

RIGHT ANGLE CRIMP/SOLDER PLUG — STANDARD CABLE

P.N.

Cable

Group

Finish

Nickel

Insulation Impedance

Delrin

Teflon

Delrin

Teflon

Delrin

Teflon

Delrin

Crimp

Tool

For Cable Group Legend, see page 69

Brass Shell

112162 01

112526 01A

112599 01B

112164 03

112165 03

112960* 03

112467 01

112470 03

112594 07

112595 07A

112601 07B

112596 07C

112961* 18

112962* 19

Diecast Shell

112166 01

112168 03

112169 03

Remark: Cable Center Conductor Solder to pin directly

*Center contact .053" diameter, 30µ" Au.

True 75 ohm. Use .044 hex or 12-indent crimp

RIGHT ANGLE CRIMP/SOLDER PLUG — PLENUM CABLE

P.N.

Cable

Group

Finish

Nickel

Insulation Impedance

Delrin

Crimp

Tool

Brass Shell

112170 02

112173 04

Diecast Shell

112174 02

112177 04

Remark: Cable Center Conductor Solder to pin directly

RIGHT ANGLE CRIMP/SOLDER PLUG — MINIATURE CABLE

P.N.

Cable

Group

Finish

Nickel

Insulation Impedance

Delrin

Crimp

Tool

Brass Shell

112178 05

112528 05A

112179 06

112646 06A

112588 16

Remark: Cable Center Conductor Solder to pin directly

For Reverse Polarized connecters, add RP to standard part number. Contact Connex marketing for availability.

For Crimp Tool information, see page 183.

112193 Related Products

	112193	112199	112173	112170
Description	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp/Solder Terminal, Plug	RF BNC Connector, Male, Cable Mount, Crimp/Solder Terminal, Plug
Reach Compliance Code	unknown	compliant	compliant	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	75 Ω	75 Ω	75 Ω	50 Ω
Connector type	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR	RF BNC CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	ACETAL	ACETAL	ACETAL	ACETAL
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	112193	112199	112173	112170
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP/SOLDER	CRIMP/SOLDER
