132160: DescriptionRF SMA Connector, Female, Panel Mount, Receptacle; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

132160 Overview

RF SMA Connector, Female, Panel Mount, Receptacle

132160 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Amphenol
Reach Compliance Code	compliant
Other features	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (50)
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT
Options	GENERAL PURPOSE
Panel mounting	YES

Preview

Download Datasheet

View All

SMA.4

11/27/01

5:06 PM

Page 45

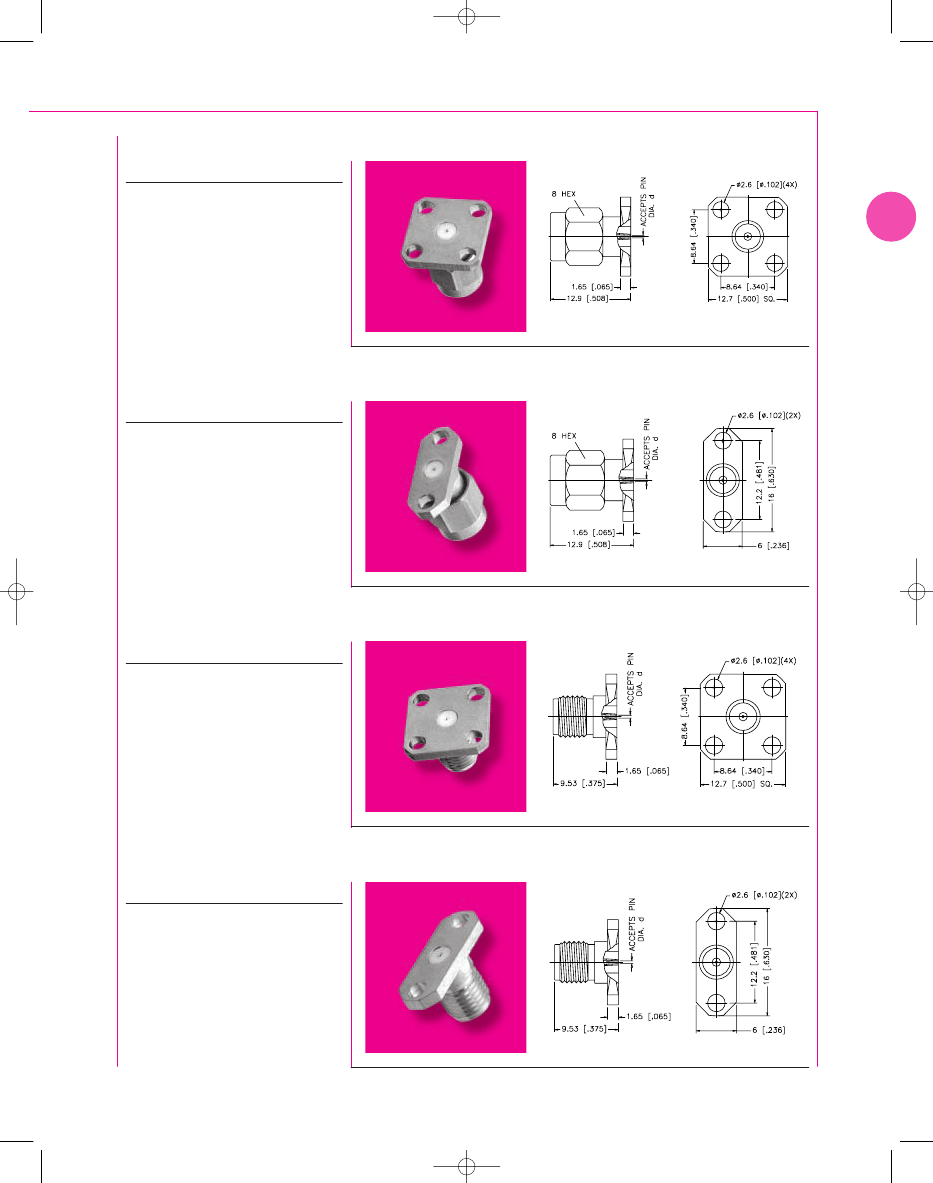

PANEL MOUNT/TERMINALS FLUSH TO BELOW FLANGE

For Cable Group Legend, see page 27

PANEL MOUNT PLUG RECEPTACLE — 4 HOLE SQ. FLANGE — TERMINAL FLUSH TO BELOW FLANGE

P.N.

Cable

Group

N/A

Finish

Gold

Insulation Impedance

Teflon

50

Crimp

Tool

N/A

132160

Remark: Pin size of d = .305 mm [.012"],

.381 mm [.015"],

.457 mm [.018"]

PANEL MOUNT PLUG RECEPTACLE — 2 HOLE FLANGE — TERMINAL FLUSH TO BELOW FLANGE

P.N.

Cable

Group

N/A

Finish

Gold

Insulation Impedance

Teflon

50

Crimp

Tool

N/A

132161

Remark: Pin size of d = .305 mm [.012"],

.381 mm [.015"],

.457 mm [.018"]

PANEL MOUNT JACK RECEPTACLE — 4 HOLE SQ. FLANGE — TERMINAL FLUSH TO BELOW FLANGE

P.N.

Cable

Group

N/A

Finish

Gold

Insulation Impedance

Teflon

50

Crimp

Tool

N/A

132162

Remark: Pin size of d = .305 mm [.012"],

.381 mm [.015"],

.457 mm [.018"]

PANEL MOUNT JACK RECEPTACLE — 2 HOLE FLANGE — TERMINAL FLUSH TO BELOW FLANGE

P.N.

Cable

Group

N/A

Finish

Gold

Insulation Impedance

Teflon

50

Crimp

Tool

N/A

132163

Remark: Pin size of d = .305 mm [.012"],

.381 mm [.015"],

.457 mm [.018"]

For Reverse Polarized connecters, add RP to standard part number. Contact Connex marketing for availability.

For Reverse Threaded connecters, add RT to standard part number. Contact Connex marketing for availability.

For Crimp Tool information, see page 183.

45

SMA COAXIAL CONNECTORS

132160 Related Products

	132160	132161
Description	RF SMA Connector, Female, Panel Mount, Receptacle	RF SMA Connector, Female, Panel Mount, Receptacle,
Is it Rohs certified?	conform to	conform to
Maker	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	RECEPTACLE	RECEPTACLE
Characteristic impedance	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD (50)	GOLD (50)
Contact completed and terminated	Gold (Au)	Gold (Au)
Contact point gender	FEMALE	FEMALE
Coupling type	THREADED	THREADED
DIN compliance	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4
MIL compliance	YES	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Installation method	STRAIGHT	STRAIGHT
Options	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES
