51712-02LF datasheet, PDF - EEWORLD Datasheet

51712-02LF: DescriptionBoard Connector, 16 Contact(s), Straight, Solder Terminal, Locking; CategoryThe connector The connector; File Size191KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

51712-02LF Overview

Board Connector, 16 Contact(s), Straight, Solder Terminal, Locking

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Board mount options	HOLE .086-.098
body width	0.574 inch
subject depth	0.5 inch
body length	1.95 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S12P4
Contact material	COPPER ALLOY
Contact resistance	20 mΩ
Contact style	HYBRID
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
maximum insertion force	.973 N
Insulation resistance	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51712
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.17792 N

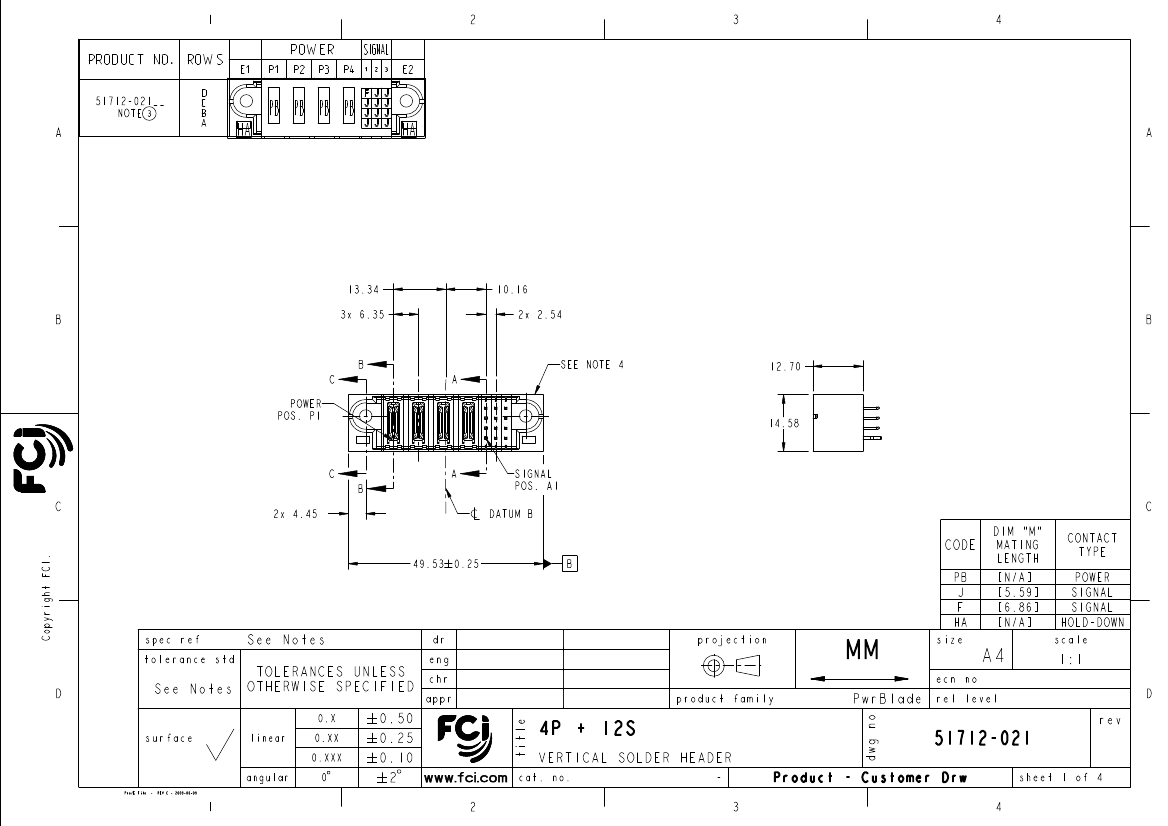

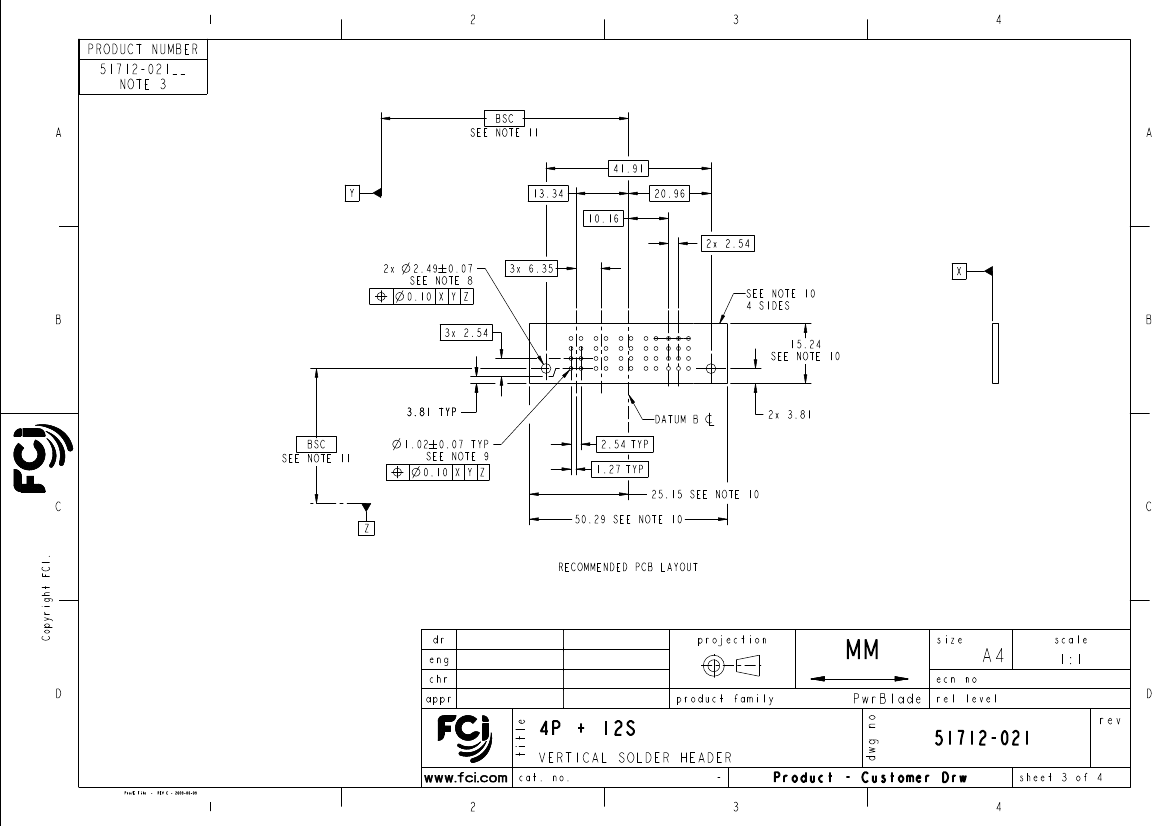

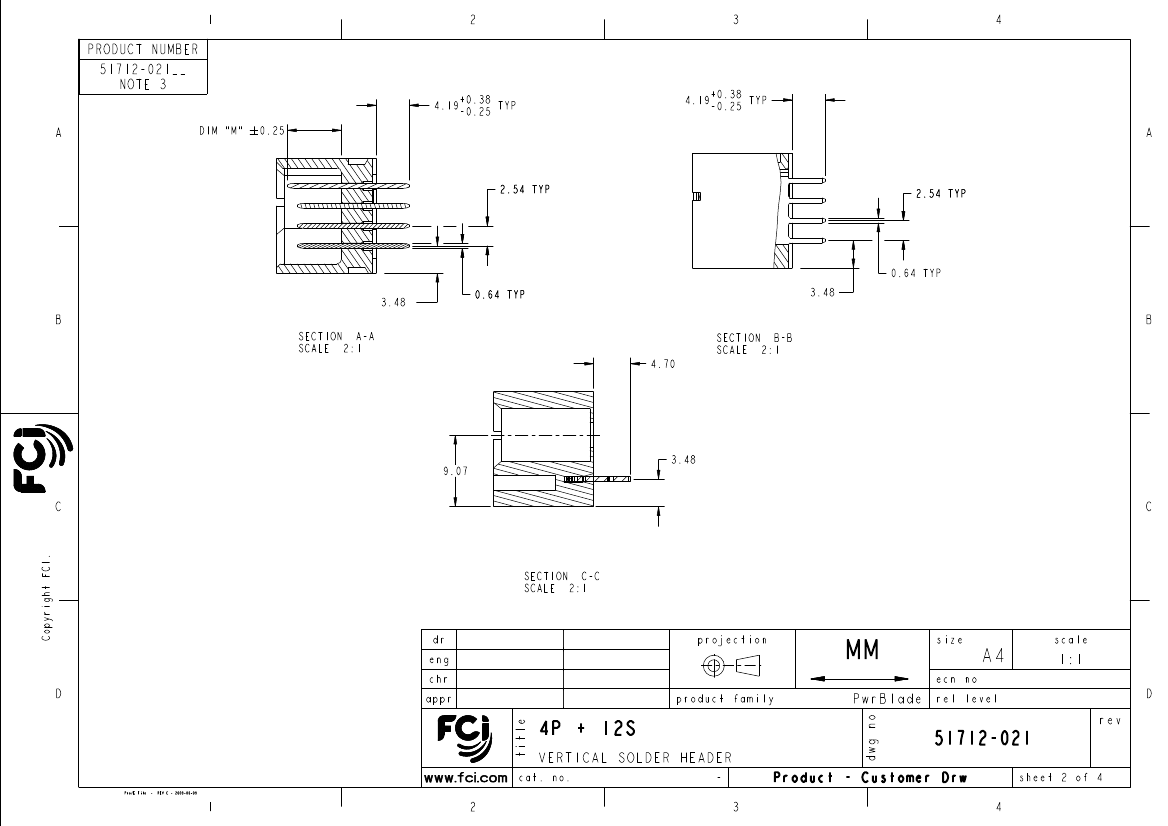

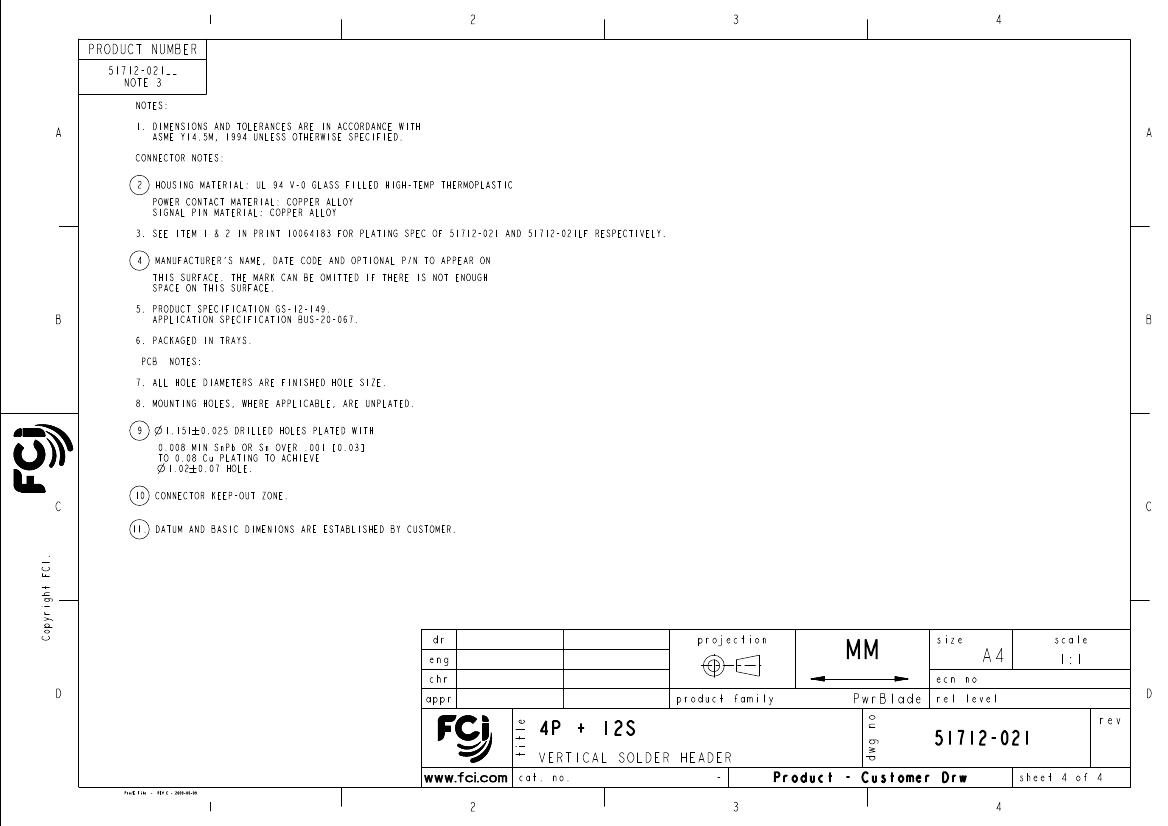

De-Ming Lu

-

Pei-Ming Zheng

2015/01/05

2015/01/22

-

2015/01/22

-

Released

A

PDS: Rev :A

STATUS:Released

Printed: Jan 23, 2015

	51712-02LF	51712-021LF	51712-021
Description	Board Connector, 16 Contact(s), Straight, Solder Terminal, Locking	PwrBlade®, Power Supply Connectors, 4P 12S Vertical Header.	Board Connector, 16 Contact(s), Straight, Solder Terminal, Locking
Reach Compliance Code	compliant	compliant	compliant
body width	0.574 inch	0.574 inch	0.574 inch
subject depth	0.5 inch	0.5 inch	0.5 inch
body length	1.95 inch	1.95 inch	1.95 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact arrangement	S12P4	S12P4	S12P4
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID	HYBRID
Dielectric withstand voltage	2500VDC V	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles	200 Cycles
maximum insertion force	.973 N	.973 N	.973 N
Insulation resistance	500000000 Ω	500000000 Ω	500000000 Ω
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
Manufacturer's serial number	51712	51712	51712
Mixed contacts	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE
Maximum operating temperature	125 °C	85 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Guideline	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.165 inch	0.185 inch	0.165 inch
Termination type	SOLDER	SOLDER	SOLDER
Total number of contacts	16	16	16
Evacuation force-minimum value	.17792 N	.1668 N	.17792 N
Maker	Amphenol	-	Amphenol
Board mount options	HOLE .086-.098	-	HOLE .086-.098
