with Strain Relief
Type E - Self-Locking - Rotatable Coupling - Full Radius
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

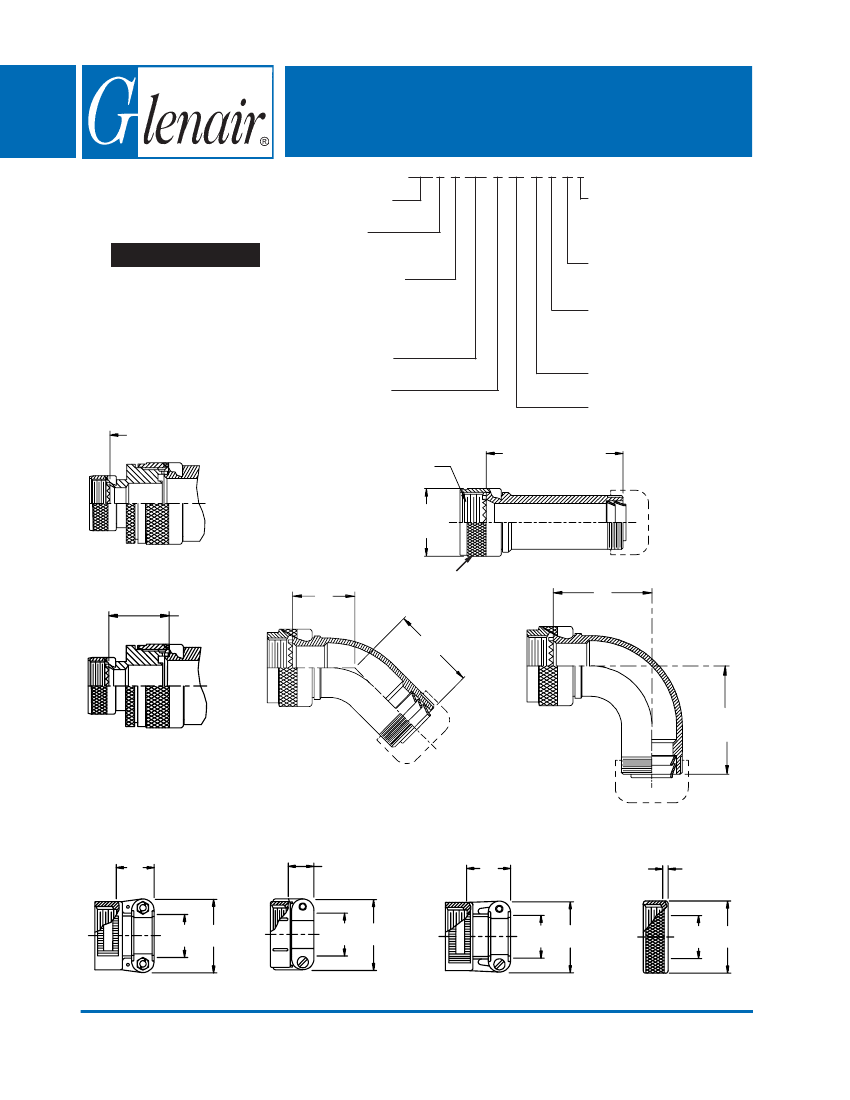

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig.
H
A-F-L-S
09
08
11
10
13
12
15
14
17
16
19
18
21
20
23
22
25
24
F
Max
.963 (24.5)
1.017 (25.8)
1.067 (27.1)
1.121 (28.5)
1.170 (29.7)
1.220 (31.0)
1.274 (32.4)
1.328 (33.7)
1.377 (35.0)
G
Max
.867 (22.0)
.921 (23.4)
.971 (24.7)
1.025 (26.0)
1.074 (27.3)
1.124 (28.5)
1.178 (29.9)
1.262 (32.1)
1.281 (32.5)
H
Max
1.281 (32.5)
1.406 (35.7)
1.531 (38.9)
1.656 (42.1)
1.781 (45.2)
1.906 (48.4)
2.031 (51.6)
2.156 (54.8)
2.281 (57.9)
J
Max
1.185 (30.1)
1.310 (33.3)
1.435 (36.4)
1.560 (39.6)
1.685 (42.8)
1.810 (46.0)
1.935 (49.1)
2.060 (52.3)
2.185 (55.5)
TABLE II: STANDARD FINISHES
GLENAIR
SYMBOL
B
M
NF
FINISH
Cadmium Plate, Olive Drab
Electroless Nickel
Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
for Additional Finish Options
TABLE X: CABLE ENTRY
V
Cable Range
Dash
T
Max
No.
Max
Min
Max
.780 (19.8)
.957 (24.3)
.125 (3.2) .312 (7.9)
04
06
.780 (19.8) 1.145 (29.1)
.250 (6.4) .437 (11.1)
.780 (19.8) 1.332 (33.8)
.312 (7.9) .562 (14.3)
08
.350 (8.9) .625 (15.9)
10
.780 (19.8) 1.332 (33.8)
12
.811 (20.6) 1.551 (39.4)
.500 (12.7) .750 (19.1)
16
.905 (23.0) 1.770 (45.0)
.625 (15.9) .937 (23.8)
20
1.092 (27.7) 2.113 (53.7)
.875 (22.2) 1.250 (31.8)
1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
24
28
1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32
1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
1. When maximum cable entry
(page 21) is exceeded, Style 2
will be supplied. Dimensions
F, G, H and J will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
3. Cable range is defined as the
accommodations range for the
wire bundle or cable. Dimen-
sions shown are not intended
for inspection criteria.
4. Consult factory for shorter
lengths on straight
backshells.
5. Designate Symbol T for 3 ring
termination of individual and
overall braid. Designate D for
standard 2 ring termination of
individual or overall braid.
TABLE XI: CABLE ENTRY
Dash
W
Z
X
Y
Cable Range
No.
Max
Max
Max
Max
Max
Min **
03* .437 (11.1) .760 (19.3) .843 (21.4)
.630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0)
.755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8)
.942 (23.9) .281 (7.1) .438 (11.1)
08
.563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10
.563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12
.563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16
.656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20
.656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24
.656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp.
** Not Applicable Style D
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 99
38
380-109
EMI/RFI Non-Environmental Backshell
