Datasheet> All Categories > Power management> transformer> SIT16160-1022

Preview

SIT16160-1022: DescriptionInverter Transformer, 3W; CategoryPower management transformer; File Size896KB，4 Pages; ManufacturerMicro Electronics; Websitehttp://www.microelectr.com.hk

Download Datasheet Parametric Compare View All

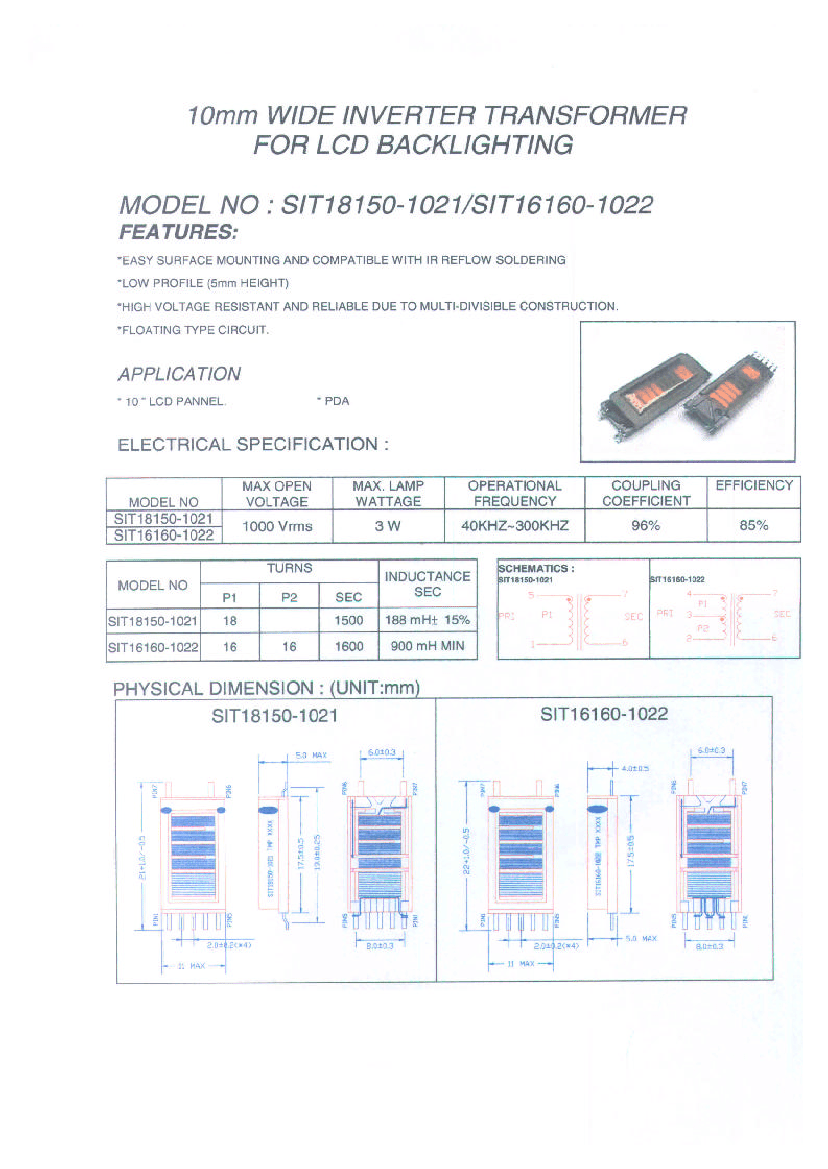

SIT16160-1022 Overview

Inverter Transformer, 3W

SIT16160-1022 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	TURNS RATIO: 16CT:1600
high	5 mm
length	17.5 mm
Manufacturer's serial number	SIT16160-1022
Installation features	SURFACE MOUNT
Maximum operating frequency	300 kHz
Minimum operating frequency	40 kHz
Maximum operating temperature	85 °C
Minimum operating temperature	-10 °C
physical size	L17.5XB11XH5 (mm)
rated power	3 W
surface mount	YES
Transformer type	INVERTER TRANSFORMER
width	11 mm
Base Number Matches	1

Preview

Download Datasheet

View All

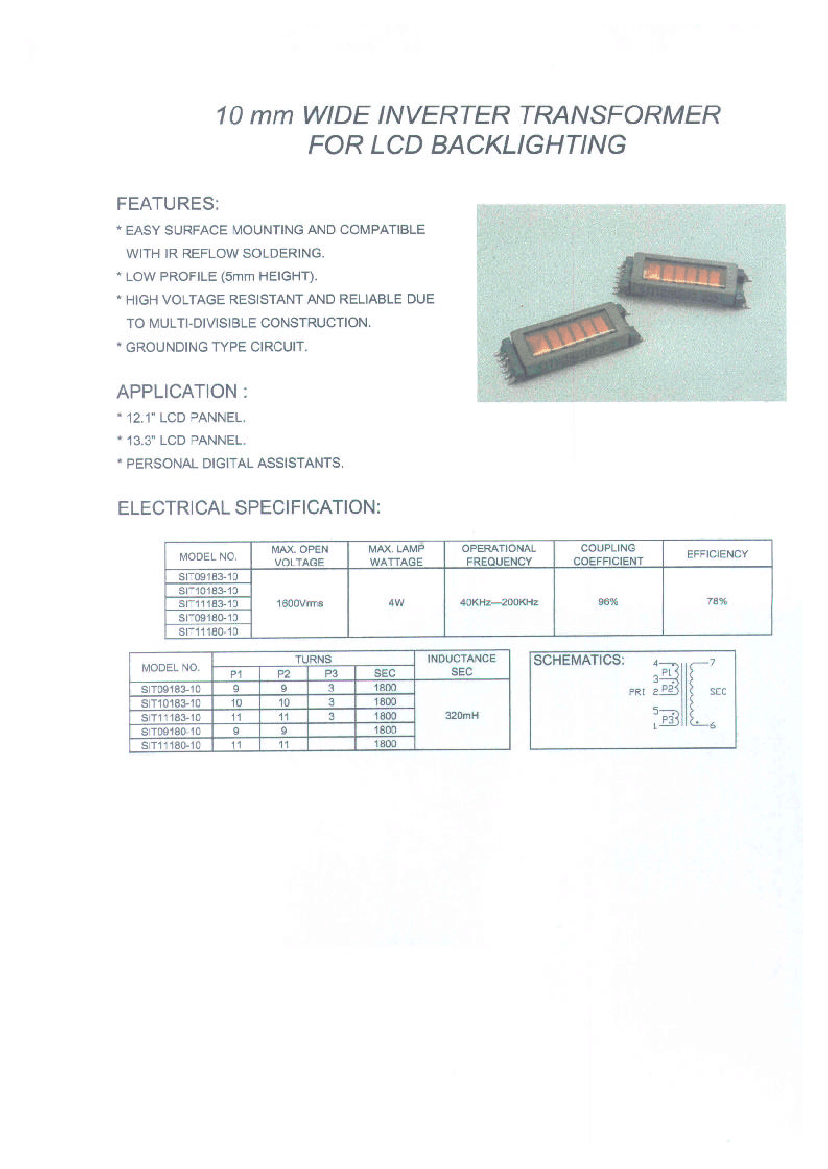

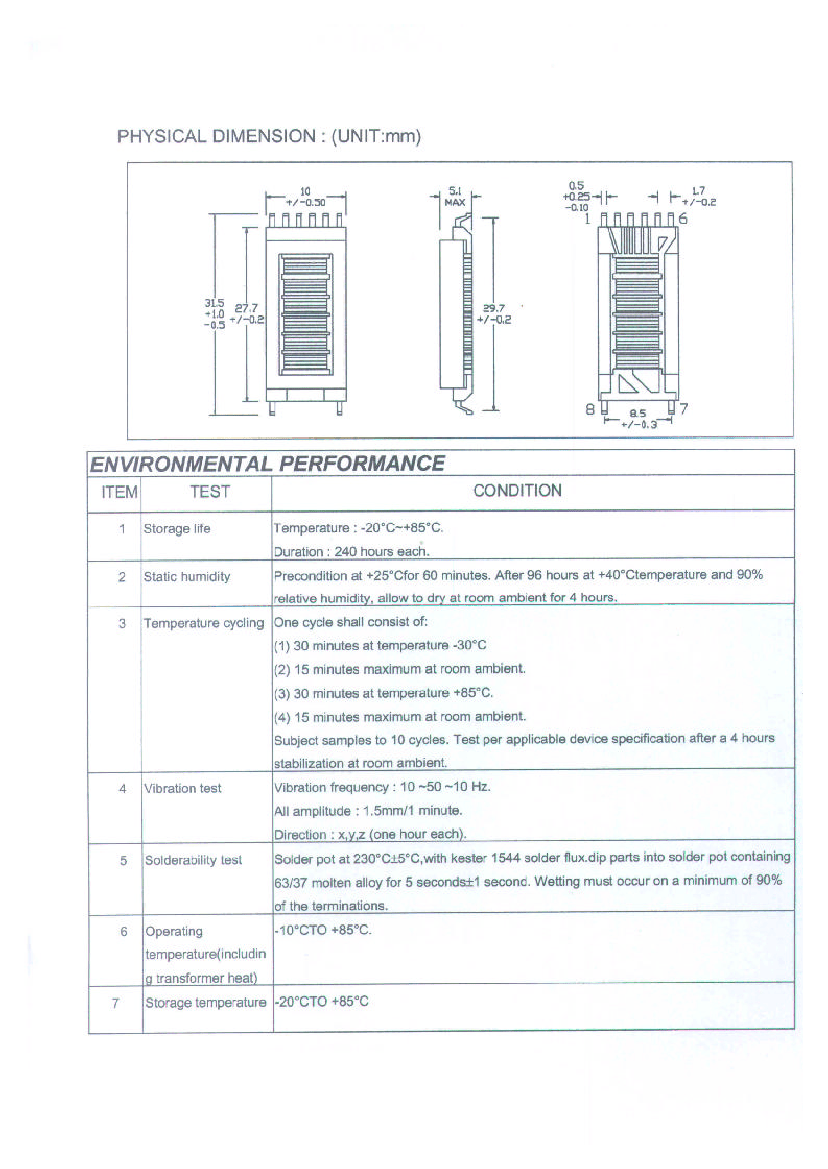

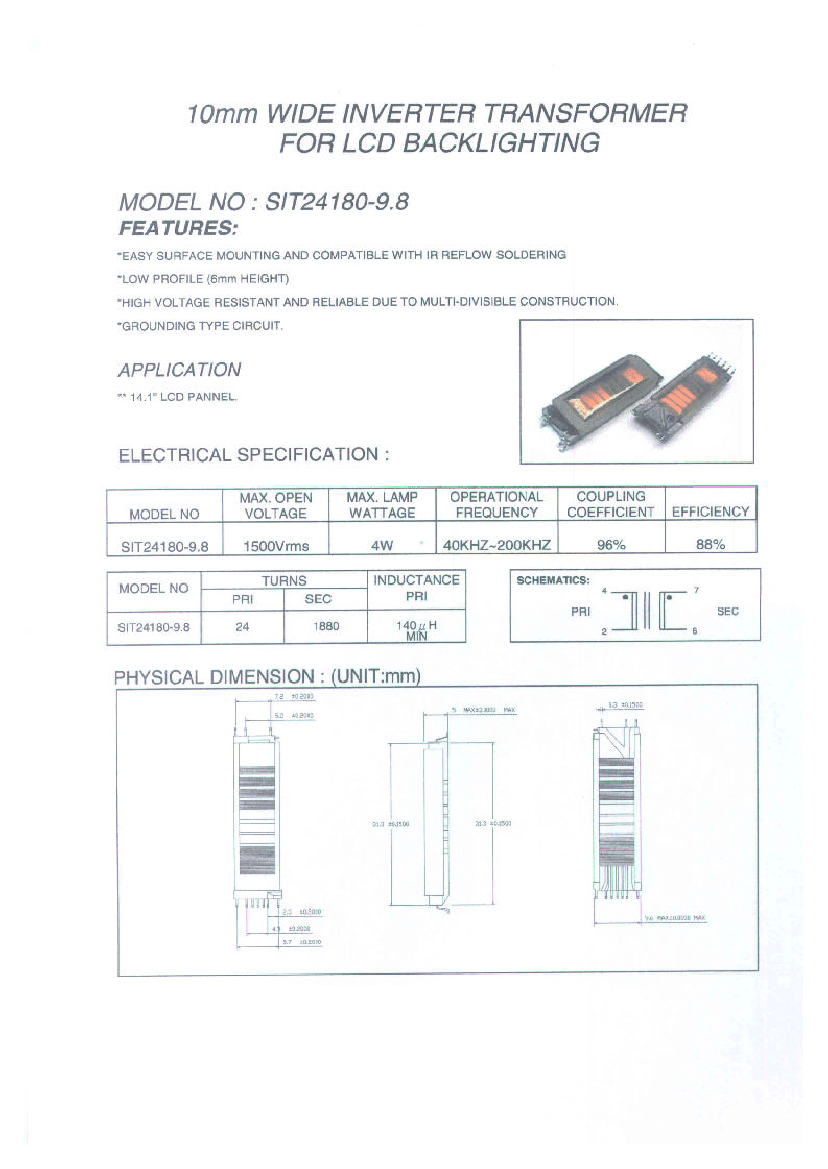

SIT16160-1022 Related Products

	SIT16160-1022	SIT09180-19	SIT10183-10	SIT11180-10	SIT11183-10	SIT09183-10	SIT18150-1021	SIT24180-9.8
Description	Inverter Transformer, 3W	Inverter Transformer, 4W	Inverter Transformer, 4W	Inverter Transformer, 4W	Inverter Transformer, 4W	Inverter Transformer, 4W	Inverter Transformer, 3W	Inverter Transformer, 4W
Reach Compliance Code	unknow	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	TURNS RATIO: 16CT:1600	TURNS RATIO: 9CT:1800	TURNS RATIO: 10CT:3:1800	TURNS RATIO: 11CT:1800	TURNS RATIO: 11CT:3:1800	TURNS RATIO: 9CT:3:1800	TURNS RATIO: 18:1500	TURNS RATIO: 24:1880
Manufacturer's serial number	SIT16160-1022	SIT09180-19	SIT10183-10	SIT11180-10	SIT11183-10	SIT09183-10	SIT18150-1021	SIT24180-9.8
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating frequency	300 kHz	200 kHz	200 kHz	200 kHz	200 kHz	200 kHz	300 kHz	200 kHz
Minimum operating frequency	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz	40 kHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C
physical size	L17.5XB11XH5 (mm)	L27.7XB10XH5.1 (mm)	L27.7XB10XH5.1 (mm)	L27.7XB10XH5.1 (mm)	L27.7XB10XH5.1 (mm)	L27.7XB10XH5.1 (mm)	L17.5XB11XH5 (mm)	L31.3XH5 (mm)
rated power	3 W	4 W	4 W	4 W	4 W	4 W	3 W	4 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
Transformer type	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER	INVERTER TRANSFORMER
high	5 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5.1 mm	5 mm	-
length	17.5 mm	27.7 mm	27.7 mm	27.7 mm	27.7 mm	27.7 mm	17.5 mm	-
width	11 mm	10 mm	10 mm	10 mm	10 mm	10 mm	11 mm	-
Maker	-	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics	Micro Electronics
