370-016

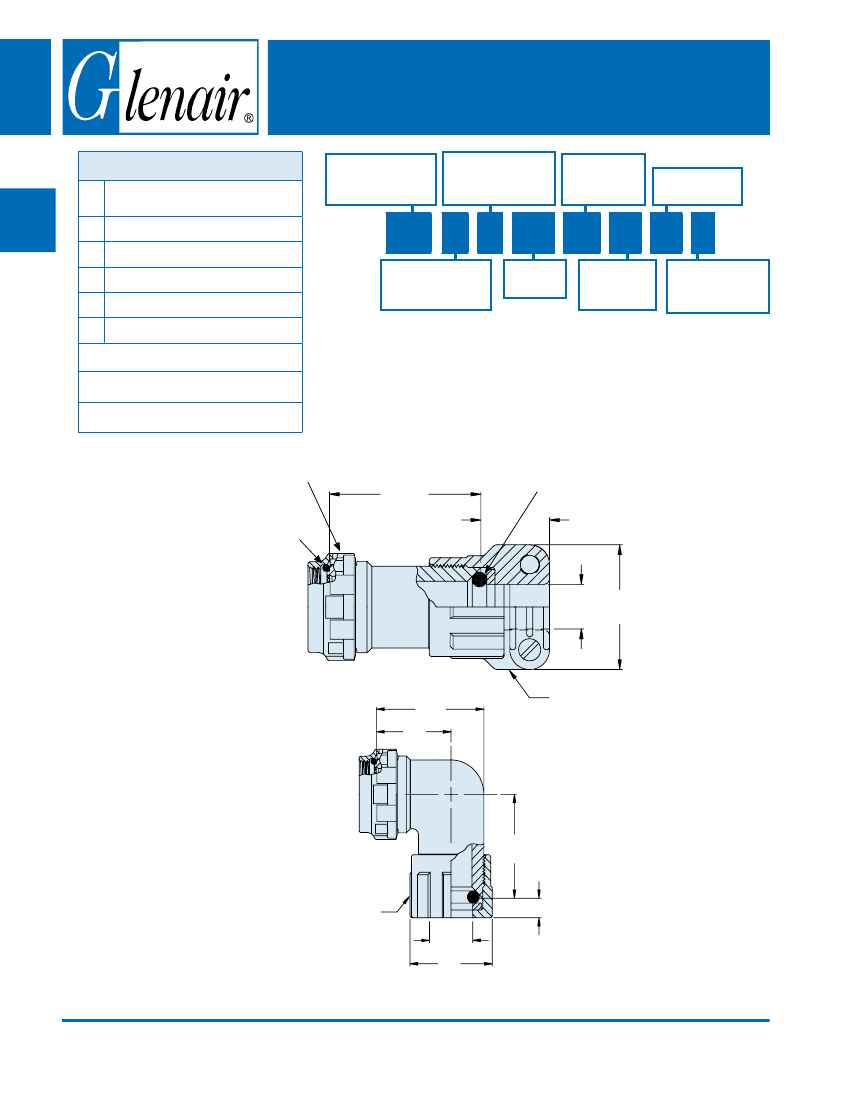

Composite Cable-Sealing Environmental Backshell
with Self-Locking Rotatable Coupling
and Strain-Relief Clamp or Nut
Angle and Profile
S
- Straight
W
- 90° Split Clamp
Coupling Nut
Finish Symbol
(See
Table III)
Composite
Backshells
CONNECTOR DESIGNATOR:
A
A
F
L
H
G
U
MIL-DTL-5015, -26482 Series II, and
-83723 Series I and III
MIL-DTL-38999 Series I, II
MIL-DTL-38999 Series 1.5 (JN1003)
MIL-DTL-38999 Series III and IV
MIL-DTL-28840
DG123 and DG123A
Product Series
370
- Environmental
Strain Relief
Dash Number
(Table
IV)
370
H
S
016
Basic Part
Number
XO
19
20
C
Connector
Designator
A, F, L, H, G and U
Connector
Shell Size
(See
Table II)
Strain Relief Style
C
- Clamp
N
- Nut
B
SELF-LOCKING
ROTATABLE COUPLING
STANDARD PROFILE
C
Anti-Decoupling Device
1.250
(31.8)
Max
O-ring
.750 (19.1)
Max
O-ring
D
F
E
Cable
Range
H
Clamp
E
F
Nut
Cable
Range
J
G
.280 (7.1) Max
G
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-38
with Self-Locking Rotatable Coupling
and Strain-Relief Clamp or Nut
TABLE II: CONNECTOR SHELL SIZE ORDER NUMBER
Shell Size For
Connector Designator*
E
F
G
Max Entry
A F/L H G U ± .06 (1.5) ± .09 (2.3) ± .09 (2.3) Dash No.**
08 08 09 – –
.69 (17.5)
.88 (22.4) 1.06 (26.9)
10
10 10 11 – 08
.75 (19.1) 1.00 (25.4) 1.13 (28.7)
12
14
12 12 13 11 10
.81 (20.6) 1.13 (28.7) 1.19 (30.2)
14 14 15 13 12
.88 (22.4) 1.31 (33.3) 1.25 (31.8)
16
16 16 17 15 14
.94 (23.9) 1.38 (35.1) 1.31 (33.3)
20
18 18 19 17 16
.97 (24.6) 1.44 (36.6) 1.34 (34.0)
20
20 20 21 19 18
1.06 (26.9) 1.63 (41.4) 1.44 (36.6)
22
24
22 22 23 – 20
1.13 (28.7) 1.75 (44.5) 1.50 (38.1)
28
24 24 25 23 22
1.19 (30.2) 1.88 (47.8) 1.56 (39.6)
32
28 – – 25 24
1.34 (34.0) 2.13 (54.1) 1.66 (42.2)
**Consult factory for additional entry sizes available.
Dash
No.
10
12
14
16
18
20
22
24
28
32
Clamp
Saddle Closed
.16 (4.1)
.29 (5.1)
.40 (10.2)
.52 (13.2)
.58 (14.7)
.64 (16.0)
.72 (18.3)
.79 (20.1)
.89 (22.0)
.96 (24.0)
TABLE IV: CABLE ENTRY
Cable Range *
H
J
±.06 (1.5)
±.06 (1.5) Minimum Maximum
.94 (23.9)
.80 (20.3) .13 (3.3) .25 (6.4)
1.17 (29.7)
.93 (23.6) .25 (6.4) .38 (9.7)
1.28 (32.5)
1.06 (26.9) .31 (7.9) .44 (11.2)
1.41 (35.8)
1.22 (31.0) .50 (12.7) .63 (15.9)
1.50 (38.1)
1.24 (31.5) .56 (14.2) .69 (17.5)
1.56 (39.6)
1.37 (34.8) .63 (16.0) .75 (19.1)
1.69 (42.9)
1.49 (37.8) .75 (19.1) .88 (22.2)
1.81 (46.0)
1.62 (41.1) .88 (22.4) 1.00 (25.4)
1.68 (42.7) 1.00 (25.4) 1.13 (28.6)
1.91 (48.5)
1.82 (46.2) 1.13 (28.6) 1.25 (31.8)
2.02 (51.3)
* Cable range equals diameter of cable outer jacket.
TABLE III: FINISH
Symbol
Finish Description
No Plating - Black Color (Non-Conductive Finish)
2000 Hour Corrosion Resistant Electroless Nickel
2000 Hour Corrosion Resistant Ni-PTFE, Nickel-
Fluorocarbon Polymer.
1000 Hour Grey
TM
No Plating - Brown Color (Non-Conductive Finish)
2000 Hour Corrosion Resistant Cadmium/Olive
Drab over Electroless Nickel
XB
XM
XMT
XO
XW
NOTES
1.
2.
Coupling nut supplied unplated.
See Table I in Intro for front-end
dimensional details.
© 2009 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
A-39
Composite
Backshells
370-016
Composite Cable-Sealing Environmental Backshell
A
B
C
D
E
F
G
