8614-00-22-1-YO-6-090-LF

Description
Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle
CategoryThe connector    The connector
File Size194KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric View All

8614-00-22-1-YO-6-090-LF Overview

Board Connector, 22 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

8614-00-22-1-YO-6-090-LF Parametric

Parameter NameAttribute value
MakerAmphenol
Reach Compliance Codecompliant
body width0.1 inch
subject depth0.102 inch
body length2.2 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderMALE
Contact materialCOPPER ALLOY
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage700VAC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number8614
Plug contact pitch0.1 inch
Installation option 1LOCKING
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
Number of rows loaded1
Plating thickness30u inch
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.112 inch
Termination typeSOLDER
Total number of contacts22

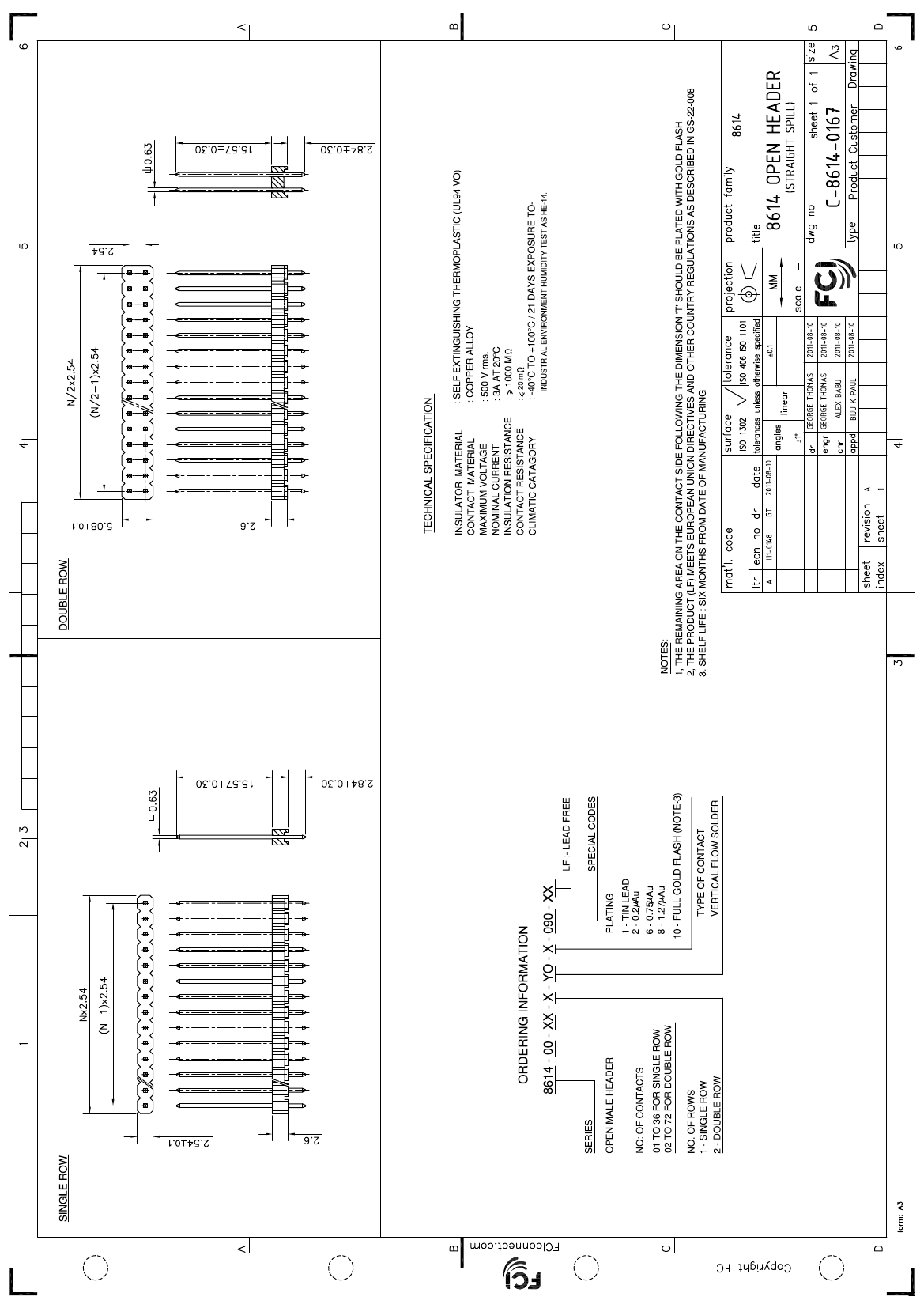

PDM: Rev:A
STATUS:
Released
Printed: Aug 13, 2011
.
