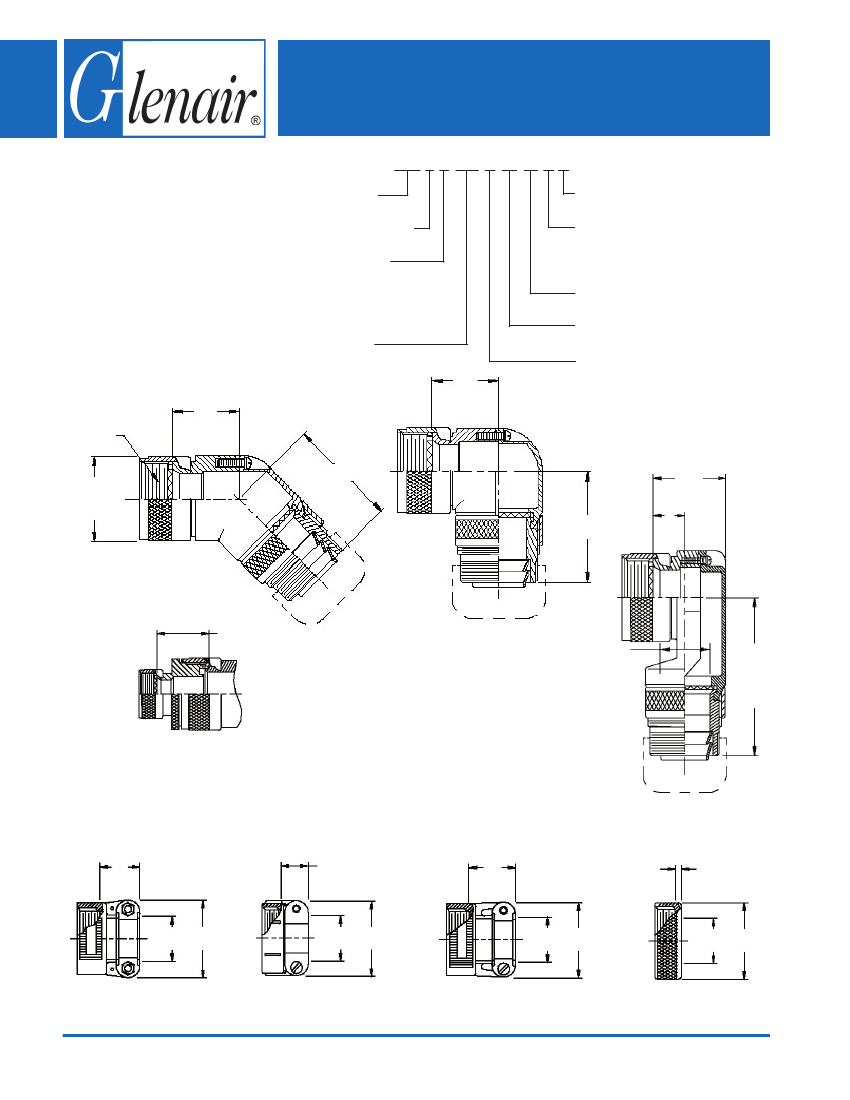

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief
Type E - Rotatable Coupling - Split Shell
38
CONNECTOR
DESIGNATORS
380 F D 018 M 24 12 D A
Product Series
Connector Designator
Angle and Profile
C = Ultra-Low Split 90°
D = Split 90°
F = Split 45° (Note 4)
Basic Part No.
G
(Table III)
Strain Relief Style (H, A, M, D)
Termination (Note 5)
D = 2 Rings
T = 3 Rings
Cable Entry (Table X, XI)
Shell Size (Table I)
Finish (Table II)
A-F-H-L-S
ROTATABLE
COUPLING
TYPE E INDIVIDUAL
AND/OR OVERALL
SHIELD TERMINATION
A Thread
(Table I)
E
(Table III)
F (Table III)
C Typ.
(Table I)
L*
H (Table III)
J*
*(Table III)
Split
45°
Split 45°
.88 (22.4)
Max
Split
90°
Ultra Low-
Profile Split
90°
STYLE 2
(See Note 1)
STYLE H
Heavy Duty
(Table X)
T
STYLE A
Medium Duty
(Table XI)
W
STYLE M
Medium Duty
(Table XI)
X
Max
Wire
Bundle
(Table III,
Note 1)
K
(Table III)
STYLE D
Medium Duty
(Table XI)
.135 (3.4)
Max
Cable
Range
V
Cable
Range
Y
Cable
Range
Y
Cable
Entry
Z
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 38 - Page 90
