Amphenol
Miniature Box Interconnects
G812
Materials
Housing
Contacts
– 94V-0 thermoplastic
– P/B with 50µ” Ni
– 1A
– 250 VAC/rms 60Hz

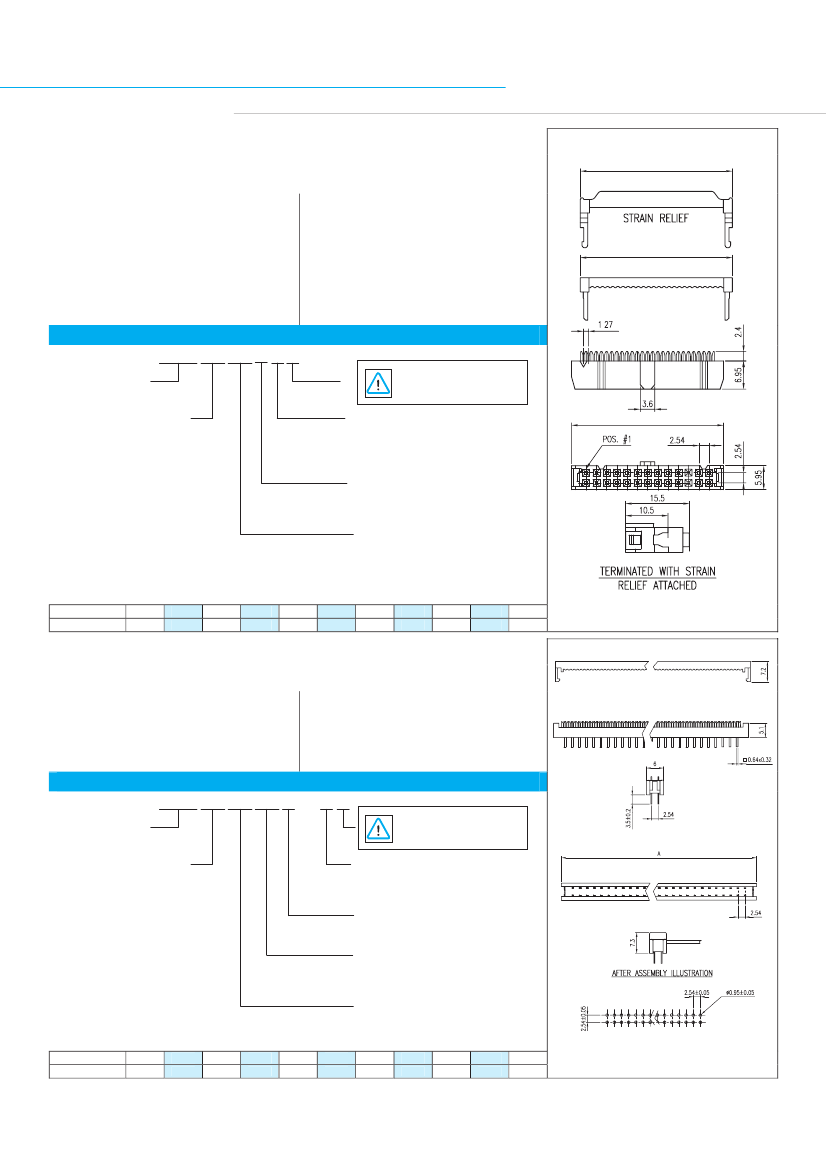

2.54mm IDC Receptacle for Ribbon Cable
A
Ideal for 28AWG 1.27mm pitch ribbon cable. Available with or without strain relief with optional
central polarising key (CPK)
Durability
Gold Flash
15µ” Gold
30µ” Gold
Latch Headers
Box Headers
Pin Headers
Cable
– 75 cycles
– 150 cycles
– 250 cycles
– Page G-24
– Page G-24
– Page G-17/18/19
– Page
T-1
Electrical
Current
Voltage
Mating Half/Accessories
A
Part Number System:
G812 XX XX X X X
IDC Sockets
2.54mm Pitch
NUMBER OF POSITIONS
10: 10 Position
14: 14 Position
16: 16 Position
20: 20 Position
26: 26 Position
30: 30 Position
34: 34 Position
40: 40 Position
50: 50 Position
60: 60 Position
64: 64 Position
Various other positions available on request
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
CONTACT FINISH
AA: Gold flash
18: 15µ” Gold
34: 30µ” Gold
STRAIN RELIEF OPTION
1: Without strain relief
4: With strain relief
INSULATOR COLOUR
33: Gray
34: Gray w/o CPK
45: Black
46: Black w/o CPK
20
29.91
Dimensions in mm
A
Positions
Dim A
10
17.21
14
22.29
16
24.83
26
37.53
30
42.61
34
47.81
40
55.50
50
68.15
60
80.90
64
86.10
PNS-8125 Rev.B/SKT-G812XX334AACA-16 Rev. A
G806
Materials
Housing
Contacts
Finish
2.54mm IDC Transition Plug for Ribbon Cable
Electrical
– 94V-0 thermoplastic
– Brass
– Gold Flash/75 Cycles
Current
Voltage
– 1A
– 250 VAC/rms 60Hz
– Page
T-1
Ideal for 28AWG 1.27mm pitch ribbon cable. Available with or without strain relief.
Accessories
Cable
Part Number System:
G806 XX XX XX X 00 X X
I
DC Plug-in
2.54mm Pitch
NUMBER OF POSITIONS
10: 10 Position
14: 14 Position
16: 16 Position
20: 20 Position
26: 26 Position
30: 30 Position
34: 34 Position
40: 40 Position
50: 50 Position
60: 60 Position
64: 64 Position
Various other positions available on request
Suffix may be added to Part Number.
This Suffix is for Internal use mainly.
Additional Suffix ‘EU’ or ‘LF’ may be
added for RoHS compliant product.
Dimensions in mm
INSULATOR COLOUR
1: Black
2: Gray
PC TAIL LENGTH
2: 3.5mm
CABLE STOP OPTION
00: Without cable stop
11: With cable stop
STRAIN RELIEF OPTION
00: Without strain relief
11: With strain relief
20
30.52
Recommended PCB Layout
Positions
Dim A
AMTA
10
17.82
14
22.90
16
25.44
26
38.14
30
43.14
34
48.30
40
55.92
50
68.62
60
81.32
64
86.40
PNS-8063 Rev.D/SKT-G806XX00-16 Rev. C
G-25
