TX-1910-EEJ-8070-100M000000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> TX-1910-EEJ-8070-100M000000

TX-1910-EEJ-8070-100M000000: DescriptionSine Output Oscillator, 3MHz Min, 100MHz Max, 100MHz Nom,; CategoryPassive components oscillator; File Size646KB，5 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric View All

TX-1910-EEJ-8070-100M000000 Overview

Sine Output Oscillator, 3MHz Min, 100MHz Max, 100MHz Nom,

TX-1910-EEJ-8070-100M000000 Parametric

Parameter Name	Attribute value
Objectid	4009586171
package instruction	LCC5(UNSPEC)
Reach Compliance Code	unknown
Installation features	SURFACE MOUNT
Number of terminals	5
Maximum operating frequency	100 MHz
Minimum operating frequency	3 MHz
Nominal operating frequency	100 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	SINE
Package body material	METAL
Encapsulate equivalent code	LCC5(UNSPEC)
power supply	3.3 V
Certification status	Not Qualified
Maximum slew rate	15 mA
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

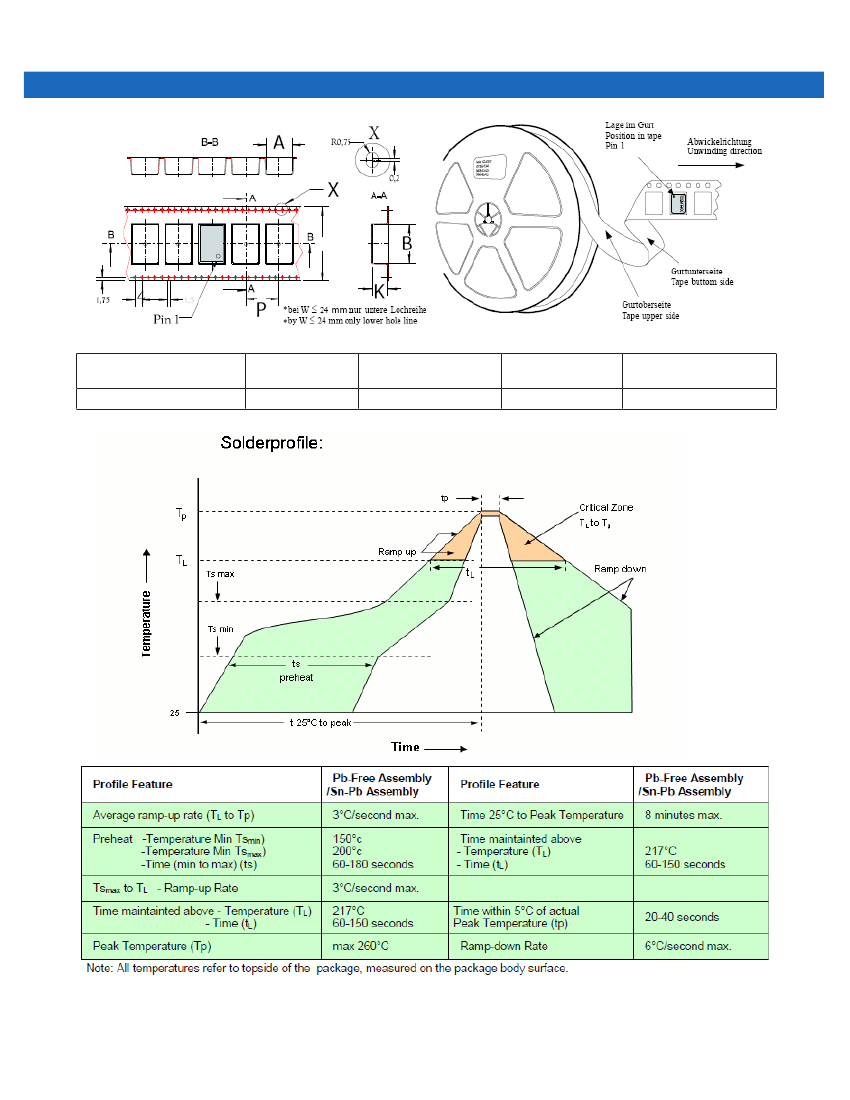

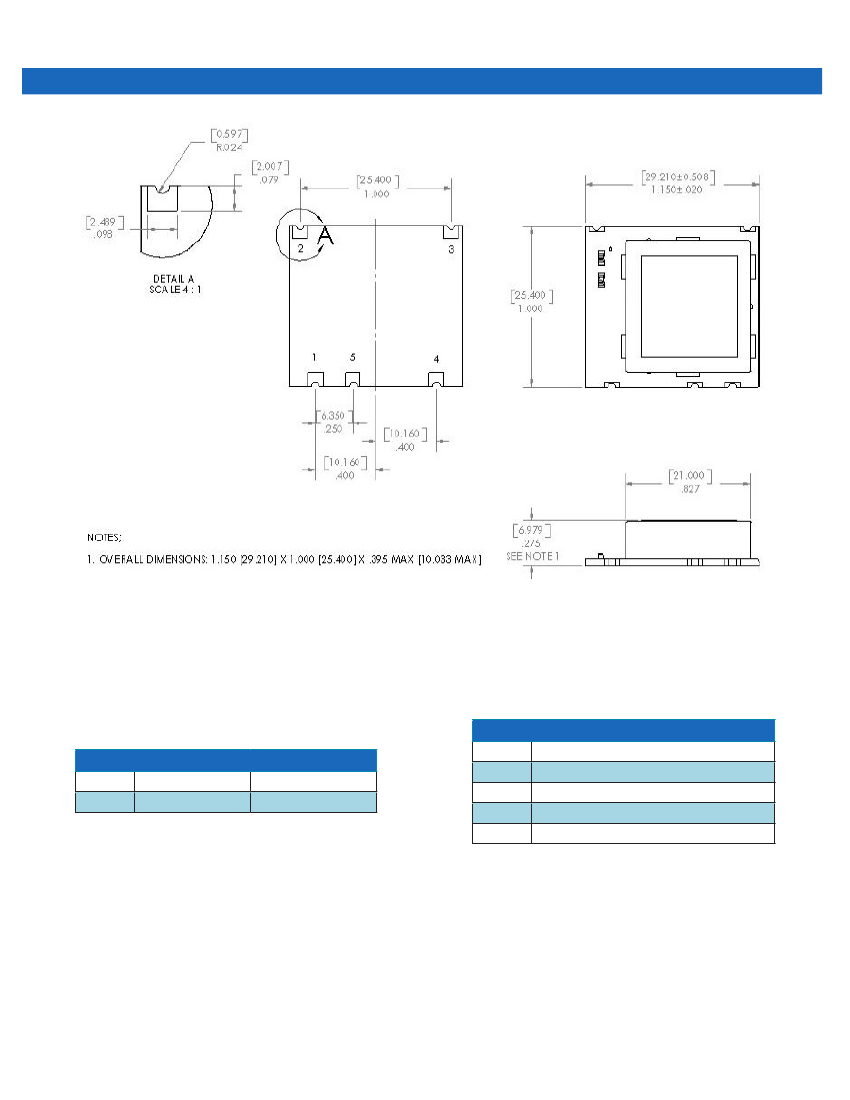

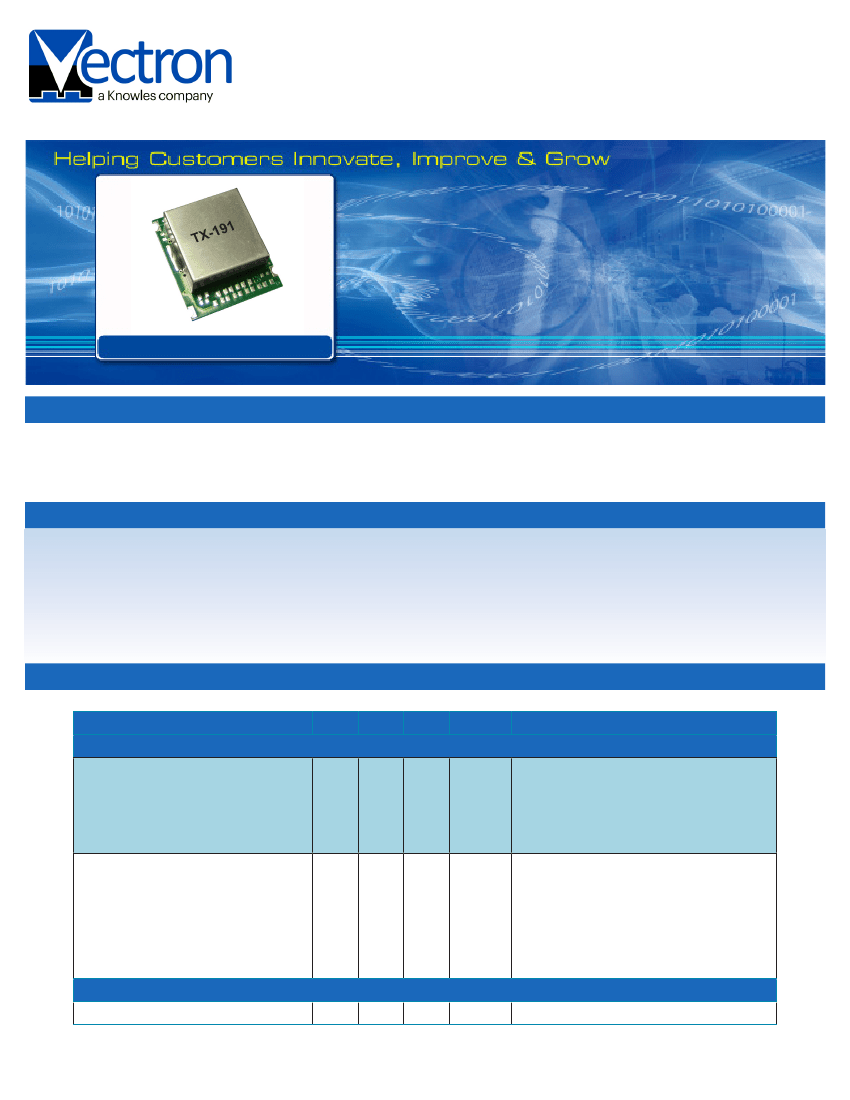

Temperature Compensated Crystal Oscillator

TX-191

Description

Vectron International has introduced a series of surface mount, Temperature Compensated Crystal Oscillators (TCXO) available in

The TX-191 surface mount TCXO’s can be mounted using the standard convection reflow process. The units can meet the

±0.37

holdover requirement of GR-1244-CORE table 3-1 from 0 °C to +70 °C temperature range and operate from 3.3V or 5.0V supply.

Features

•

Stratum 3 Compliant

EAR99

Made in USA

Tight Stability

Low Aging

Frequency Range: 10 MHZ to 622 MHZ

Previous Model: MC1200, TC-210, C2560

•

Applications

SONET/SDH

Synthesizers

Optimized for Semtech SONET / SDH

Synchronization Sets

Performance Specifications

Parameter

vs. operating temperature range

(referenced to +25°C)

Min

-0.8

-1.0

-0.28

-0.8

-0.28

-1.5

-0.1

-2.5

-4.6

Typ

Max

+0.8

+1.0

+0.28

+0.8

+0.28

+1.5

+0.1

+2.5

+4.6

Units

ppm

Condition

-40… +85°C

-40... +85°C

-30… +85°C

-20… +70°C

0… +50°C

at time of shipment, No EFC

Vs ± 5%

Load ± 10%

*Stratum 3 per GR-1244-CORE:

<±4.6 ppm for all causes and 15

years aging, Holdover: <±0.37

ppm over 24 hours

Frequency Stabilities

Initial Tolerance (w\fixed frequency)

vs. supply voltage change

vs. load change

vs. aging / 15 years

Overall Tolerance

Supply Voltage (Vs)

Supply voltage (Standard)

3.135

3.3

3.465

VDC

Vectron International • 267 Lowell Road, Hudson, NH 03051 • Tel: 1-88-VECTRON-1 • http://www.vectron.com
