5070-0-18-80-16-80-10-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5070-0-18-80-16-80-10-0

Preview

5070-0-18-80-16-80-10-0: DescriptionPCB Terminal; CategoryThe connector; File Size616KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

5070-0-18-80-16-80-10-0 Overview

PCB Terminal

5070-0-18-80-16-80-10-0 Parametric

Parameter Name	Attribute value
Maker	Mill-Max
Reach Compliance Code	compliant
Manufacturer's serial number	5070
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

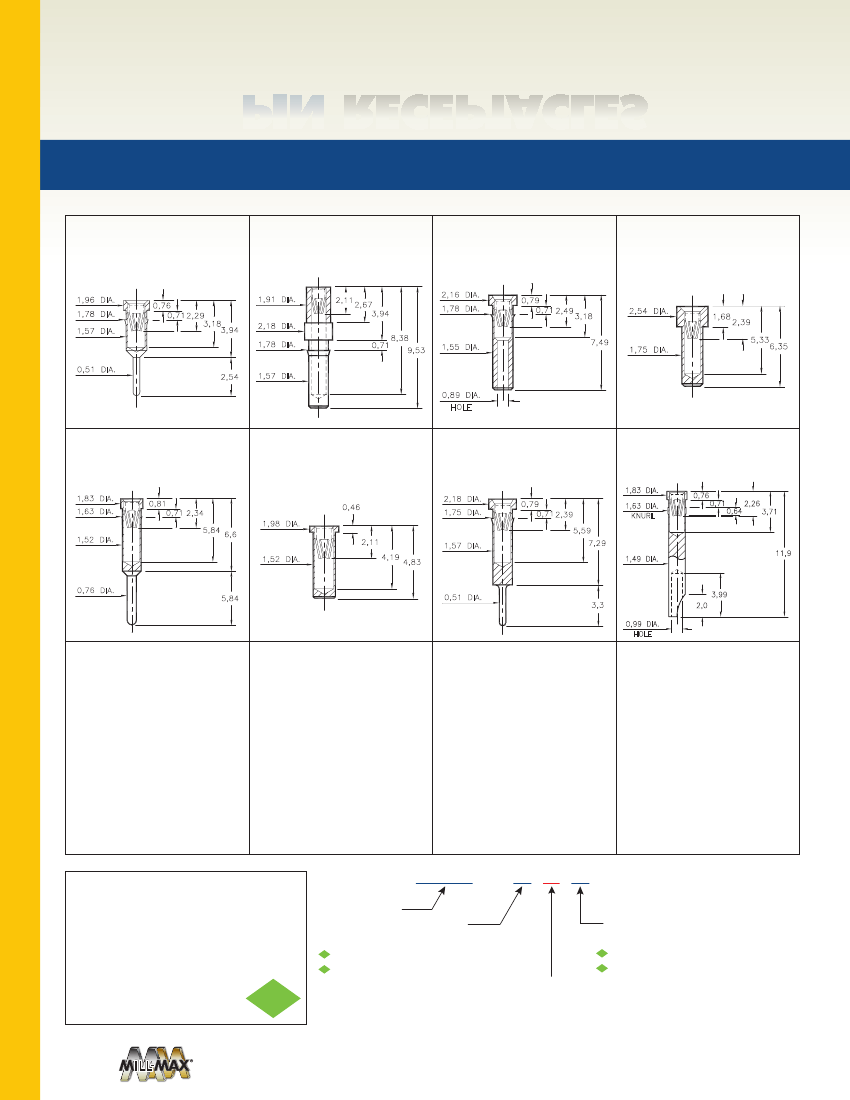

RECEPTACLES

FOR 0,56 - 0,86 DIAMETER PINS AND 0,64 SQUARE PINS

9808

1,96 DIA.

1,78 DIA.

1,57 DIA.

9808-0-15-XX-16-XX-04-0

Press-fit in 1,70 mounting hole

9101

1,91 DIA.

2,18 DIA.

1,78 DIA.

9101-0-15-XX-16-XX-10-0

Press-fit in 1,70 mounting hole

5650

2,16 DIA.

5650-0-19-XX-16-XX-10-0

Press-fit in 1,70 mounting hole

8679

8679-0-15-XX-16-XX-10-0

Solder mount in 1,80 min. mounting hole

0,76

0,71 2,29

3,18

3,94

2,11

2,67

3,94

8,38

9,53

1,78 DIA.

0,79

0,71 2,49

3,18

7,49

2,54 DIA.

1,68

2,39

5,33

6,35

0,71

1,55 DIA.

1,75 DIA.

0,51 DIA.

2,54

1,57 DIA.

0,89 DIA.

HOLE

8827

1,83 DIA.

1,63 DIA.

8827-0-15-XX-16-XX-04-0

Press-fit in 1,55 mounting hole

0,81

0,71 2,34

5,84

1,52 DIA.

6021

6021-0-15-XX-16-XX-10-0

Solder mount in 1,57 min. mounting hole

0,46

1,98 DIA.

6,6

1873

2,18 DIA.

1,75 DIA.

1873-0-15-XX-16-XX-04-0

Press-fit in 1,68 mounting hole

0,79

0,71 2,39

5,59

5070

1,83 DIA.

1,63 DIA.

KNURL

5070-0-18-XX-16-XX-10-0

Press-fit in 1,55 mounting hole

0,76

0,71

2,26

0,64

3,71

2,11

1,52 DIA.

4,19

4,83

1,57 DIA.

7,29

1,49 DIA.

11,9

0,76 DIA.

5,84

0,51 DIA.

3,99

3,3

0,99 DIA.

HOLE

2,0

PAGE 176 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Millimeters

Tolerances On:

Lengths: ± 0,13

Diameters: ± 0,051

Angles:

±2°

ORDER CODE: XXXX - X - 1X - XX -

16

- XX - 10 - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL (RoHS)

15

0,25μm GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

01

5,08μm TIN/LEAD OVER NICKEL

80

5,08μm TIN OVER NICKEL (RoHS)

27

0,76μm GOLD OVER NICKEL (RoHS)

2011/65/EU

RoHS - 2

SELECT CONTACT:

#16

CONTACT (DATA ON PAGE 256)

(For alternate contact choices, see group D on page 248)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
