5970-1-15-01-32-02-4-0 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 5970-1-15-01-32-02-4-0

Preview

5970-1-15-01-32-02-4-0: DescriptionPCB Terminal; CategoryThe connector; File Size100KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric Compare View All

5970-1-15-01-32-02-4-0 Overview

PCB Terminal

5970-1-15-01-32-02-4-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	5970
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL

Preview

Download Datasheet

View All

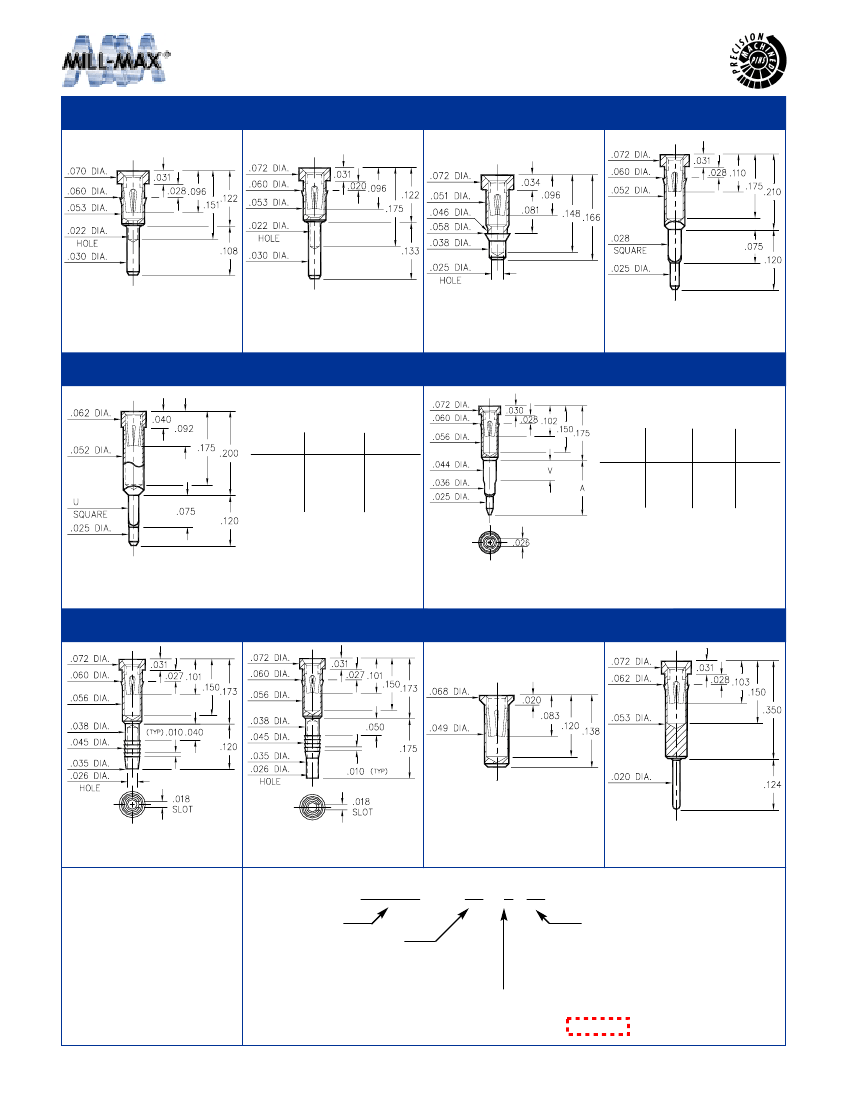

PIN RECEPTACLES

for .015” - .025” diameter pins

0501

8427

1434

9970

0501-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

8427-0-15-XX-30-XX-04-0

Press-fit in .057 mounting hole

1434-0-15-XX-30-XX-10-0

Press-fit in .055 mounting hole

9970-0-15-XX-30-XX-04-0

Square press-fit for .032 ±.002

plated thru hole

5970

Basic Part

Number

U

Square

Mounting

Hole

0477/0478

Basic

Part

Number

Board

Thick-

ness

Length

V

Length

A

5970-1

5970-2

.028

.034

.032

.039

0477-0

0478-0

.062

.125

.075

.140

.175

.250

5970-X-15-XX-32-XX-04-0

Square press-fit for .032 or .039 ±.002

plated thru hole

047X-0-18-XX-30-XX-04-0

Solderless press-fit in .038 +.003 / -.002

plated thru hole (use 1.1mm drill prior to plating)

4612

4613

0680

0149

4612-0-31-XX-30-XX-04-0

Compliant press-fit in .040 ±.003 plated

hole. For .060

→

.100 thick board

4613-0-31-XX-30-XX-04-0

Compliant press-fit in .040 ±.003 plated

hole. For .090

→

.130 thick board

0680-0-15-XX-32-XX-10-0

Solder mount in .051 min.

mounting hole

0149-0-15-XX-30-XX-04-0

Press-fit in .059 mounting hole

SPECIFICATIONS

SHELL MATERIAL:

Brass Alloy 360, 1/2 Hard

CONTACT MATERIAL:

Beryllium Copper Alloy 172, HT

DIMENSION IN INCHES

TOLERANCES ON:

LENGTHS:

±.005

DIAMETERS: ±.002

ANGLES:

± 2°

ORDER CODE: XXXX - X - XX - XX - 3X - XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

01

200µ"

TIN/LEAD OVER

NICKEL

15

10µ"

GOLD OVER

NICKEL

SELECT CONTACT

#30 or #32

CONTACT (DATA ON PAGE 208)

SPECIFY CONTACT FINISH:

02

200µ"

TIN/LEAD OVER

NICKEL

14

10µ"

GOLD OVER

NICKEL

27

30µ"

GOLD OVER

NICKEL

Mill-Max-Mfg.Corp., P.O. Box 300, 190 Pine Hollow Road, Oyster Bay, NY 11771-0300.Tel: 516-922-6000 Fax: 516-922-9253

131

5970-1-15-01-32-02-4-0 Related Products

	5970-1-15-01-32-02-4-0	2221C302K500BT	5970-2-15-01-32-02-4-0	5970-2-15-15-32-02-4-0
Description	PCB Terminal	Ceramic Capacitor, Multilayer, Ceramic, 50V, 10% +Tol, 10% -Tol, X7R, 15% TC, 0.003uF, Surface Mount, 2221, CHIP	PCB Terminal	PCB Terminal
Is it lead-free?	Contains lead	Lead free	Contains lead	Contains lead
Is it Rohs certified?	incompatible	conform to	incompatible	incompatible
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Manufacturer's serial number	5970	X7R	5970	5970
terminal gender	FEMALE	-	FEMALE	FEMALE
Terminal and terminal strip types	PCB TERMINAL	-	PCB TERMINAL	PCB TERMINAL
