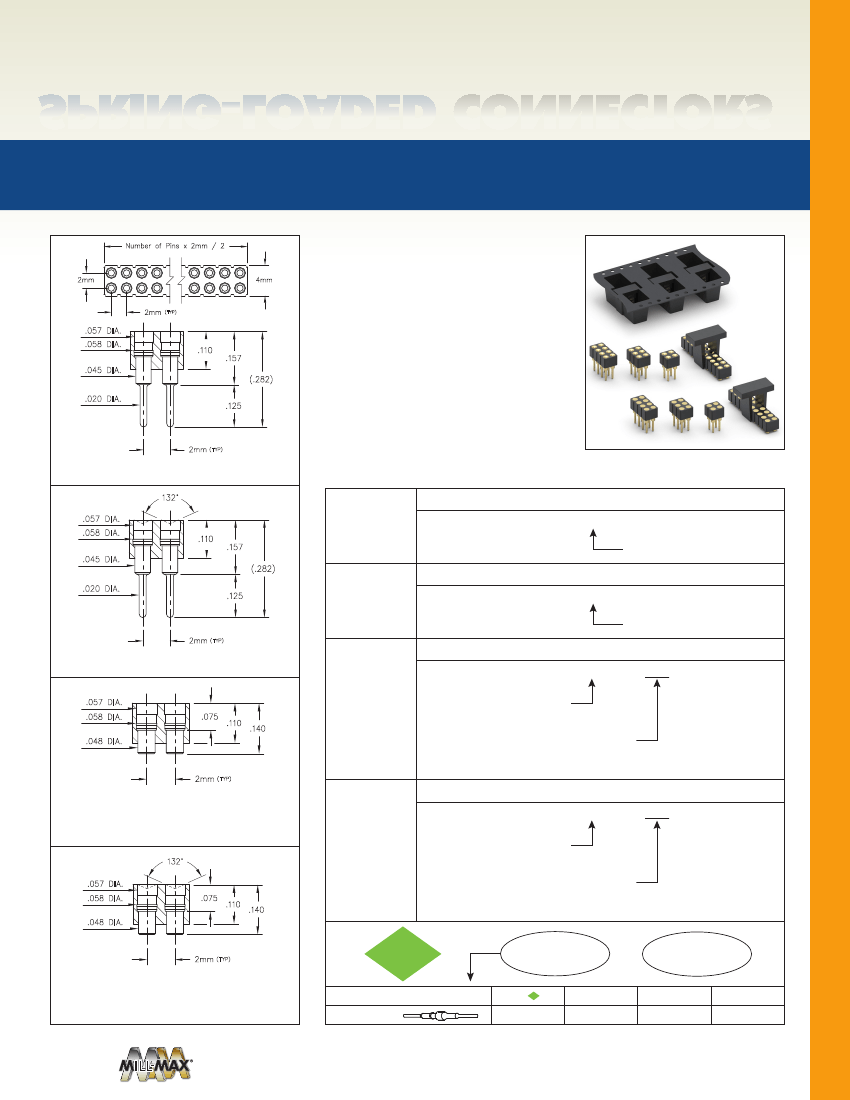

SPRING-LOADED
CONNECTORS
SERIES 832 • 2mm
GRID FLAT & CONCAVE TARGET CONNECTORS
FOR SPRING-
LOADED ASSEMBLIES • DOUBLE ROW STRIPS
•
Series 832 2mm Spring Target Connectors,
supplied in double row strips
•
Target connectors provide an excellent gold-
plated conductive path back to the board-
mounted spring pin connector. Available in
both through-hole and SMT terminations
with the choice of either flat or concave face
contact surfaces. Concave face targets provide
additional surface area for mating with our
standard .032” diameter plungers
•
Target connectors use MM #1949, #1950, #1951,
and #1952 pins. See page 223.1 for details
•
Insulators are high temperature thermoplastic
.057 DIA.
.058 DIA.
.045 DIA.
.020 DIA.
.110
.157
(.282)
.125
FIG. 1
132°
.057 DIA.
.058 DIA.
.045 DIA.
.020 DIA.
.110
.157
(.282)
.125
ORDERING INFORMATION
Series 832...003
Flat face / Solder Tails
832-10-0_ _-10-003000
Specify number of pins
04-20
FIG. 1
Series 832...004
Concave face / Solder Tails
832-10-0_ _-10-004000
04-20
FIG. 2
Specify number of pins
FIG. 2
.057 DIA.
.058 DIA.
.048 DIA.
.075
.110
.140
Series 832...30-003
Specify number or pins
04-20
Flat face / Surface Mount
832-10-0_ _-30-003XXX
FIG. 3
Coplanarity .005”. For Pin counts >20 positions, consult
Technical Support.
Series 832...30-004
Specify number or pins
04-20
Concave face / Surface Mount
FIG. 3
132°
.057 DIA.
.058 DIA.
.048 DIA.
.075
.110
.140
832-10-0_ _-30-004XXX
FIG. 4
Tube packaged =
000
Tape & reel packaged =
191
400 parts per 13” reel
RoHS - 2
2011/65/EU
XX=Plating Code
See Below
10
10
μ”
Au
Coplanarity .005”. For Pin counts >20 positions, consult
Technical Support.
For
Electrical, Mechanical
& Enviromental Data,
See page 264
FIG. 4
SPECIFY PLATING CODE XX=
Pin Plating
Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
PAGE 22.2 | SPRING-LOADED CONNECTORS
