ZHL-1724HLNX-S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZHL-1724HLNX-S

ZHL-1724HLNX-S: DescriptionNarrow Band Medium Power Amplifier, 1700MHz Min, 2400MHz Max, CASE NN92; CategoryWireless rf/communication Radio frequency and microwave; File Size264KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric Compare View All

ZHL-1724HLNX-S Overview

Narrow Band Medium Power Amplifier, 1700MHz Min, 2400MHz Max, CASE NN92

ZHL-1724HLNX-S Parametric

Parameter Name	Attribute value
Maker	Mini-Circuits
Reach Compliance Code	unknown
Other features	SMA
Characteristic impedance	50 Ω
structure	COAXIAL
Gain	30 dB
Maximum input power (CW)	10 dBm
Maximum operating frequency	2400 MHz
Minimum operating frequency	1700 MHz
Maximum operating temperature	65 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.4

Preview

Download Datasheet

View All

Coaxial

Low Noise Amplifier

50Ω 1700 to 2400 MHz

Features

• very low noise figure, 1.5 dB max.

• wideband, 1700 to 2400 MHz

• high dynamic range

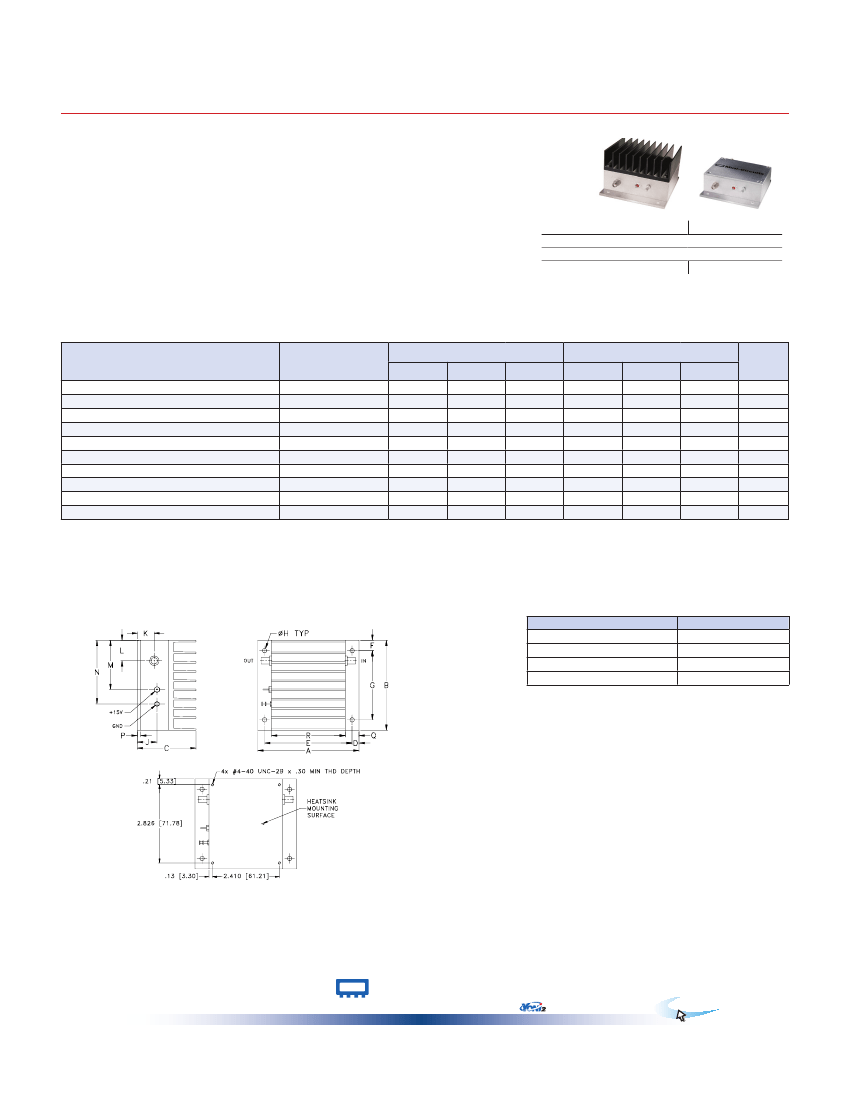

ZHL-1724HLN

Applications

• PCS/DCS

• UMTS

• communication systems

Model No.

Case Style

Connectors

Price (Qty.)

ZHL-1724HLNX-S

▲

NN92

SMA

$399.50 ea. (1-9)

$389.50 ea. (1-9)

ZHL-1724HLN-S

Electrical Specifications

Parameter

Frequency Range

Noise Figure

Gain

Gain Flatness

Output Power at 1dB compression

Output third order intercept point

Input VSWR

Output VSWR

DC Supply Voltage

Supply Current

Noise Figure specified at room temperature, increases to 2.3 dB max. at +65°C

Open load is not recommended, potentially can cause damage.

With no load derate max input power by 20 dB

1700-2400

Frequency

(MHz)

ZHL-1724HLN-S

Min.

1700

—

+26

+36

2.4

—

ZHL-1724HLNX-S

▲

Max.

2400

1.5

—

±1.0

—

725

▲

Typ.

Min

1700

—

Typ.

—

+26

+36

2.4

—

Max.

2400

1.5

—

╓±1.0

—

725

Units

MHz

dBm

Heat sink not included. Alternative heat sinking and heat removal

must be provided by the user to limit maximum base-plate tempera-

ture to 65°C, in order to ensure proper performance. For reference,

this requires thermal resistance of user’s external heat sink to be

1.8°C/W max.

Outline Drawing

Outline Dimensions

Maximum Ratings

Parameter

Operating Temperature

Storage Temperature

DC Voltage

Input RF Power (no damage)

Ratings

-20°C to 65°C

-55°C to 100°C

20V

+10 dBm

Permanent damage may occur if any of these limits are exceeded.

M OUNT I NG I NF O R M A T I ON F O R M O DE L S W I T H OUT H E A T SI NK

Outline Dimensions (

inch

)

3.66

3.25

2.13

92.96 82.55 54.10

.25

3.16

6.35 80.26

.38

2.50

9.65 63.50

.156

.72

.64

.74

1.78

2.30

3.96 18.29 16.26 18.80 45.21 58.42

.125

.50

2.66 grams*

3.18 12.70 67.56

500.0

*362 grams without heatsink

ISO 9001 ISO 14001 AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

The Design Engineers Search Engine

IF/RF MICROWAVE COMPONENTS

Mini-Circuits

For detailed performance specs

& shopping online see web site

Provides ACTUAL Data Instantly at

minicircuits.com

Notes: 1.

Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.

Electrical specifications

and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.

The parts covered by this specification sheet are subject to

Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard

Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.

REV. B

M124323

ZHL-1724HLN

130712

Page 1 of 2

ZHL-1724HLNX-S Related Products

	ZHL-1724HLNX-S	ZHL-1724HLN+	ZHL-1724HLN-S
Description	Narrow Band Medium Power Amplifier, 1700MHz Min, 2400MHz Max, CASE NN92	Narrow Band Medium Power Amplifier, 1700MHz Min, 2400MHz Max, CASE NN92	Narrow Band Medium Power Amplifier, 1700MHz Min, 2400MHz Max, CASE NN92
Reach Compliance Code	unknown	unknown	unknown
Other features	SMA	SMA	SMA
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COAXIAL	COAXIAL	COAXIAL
Gain	30 dB	30 dB	30 dB
Maximum input power (CW)	10 dBm	10 dBm	10 dBm
Maximum operating frequency	2400 MHz	2400 MHz	2400 MHz
Minimum operating frequency	1700 MHz	1700 MHz	1700 MHz
Maximum operating temperature	65 °C	65 °C	65 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C
RF/Microwave Device Types	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER	NARROW BAND MEDIUM POWER
Maximum voltage standing wave ratio	2.4	2.4	2.4
Maker	Mini-Circuits	-	Mini-Circuits
