MH4S72DAMD-8 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > storage> storage> MH4S72DAMD-8

Preview

MH4S72DAMD-8: DescriptionSynchronous DRAM Module, 4MX72, 6ns, CMOS, DIMM-168; Categorystorage storage; File Size901KB，47 Pages; ManufacturerMitsubishi; Websitehttp://www.mitsubishielectric.com/semiconductors/

Download Datasheet Parametric Compare View All

MH4S72DAMD-8 Overview

Synchronous DRAM Module, 4MX72, 6ns, CMOS, DIMM-168

MH4S72DAMD-8 Parametric

Parameter Name	Attribute value
Maker	Mitsubishi
Parts packaging code	DIMM
package instruction	DIMM, DIMM168
Contacts	168
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	DUAL BANK PAGE BURST
Maximum access time	6 ns
Other features	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz
I/O type	COMMON
JESD-30 code	R-XDMA-N168
memory density	301989888 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE
memory width	72
Number of functions	1
Number of ports	1
Number of terminals	168
word count	4194304 words
character code	4000000
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	4MX72
Output characteristics	3-STATE
Package body material	UNSPECIFIED
encapsulated code	DIMM
Encapsulate equivalent code	DIMM168
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
power supply	3.3 V
Certification status	Not Qualified
refresh cycle	4096
self refresh	YES
Maximum standby current	0.036 A
Maximum slew rate	1.44 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL

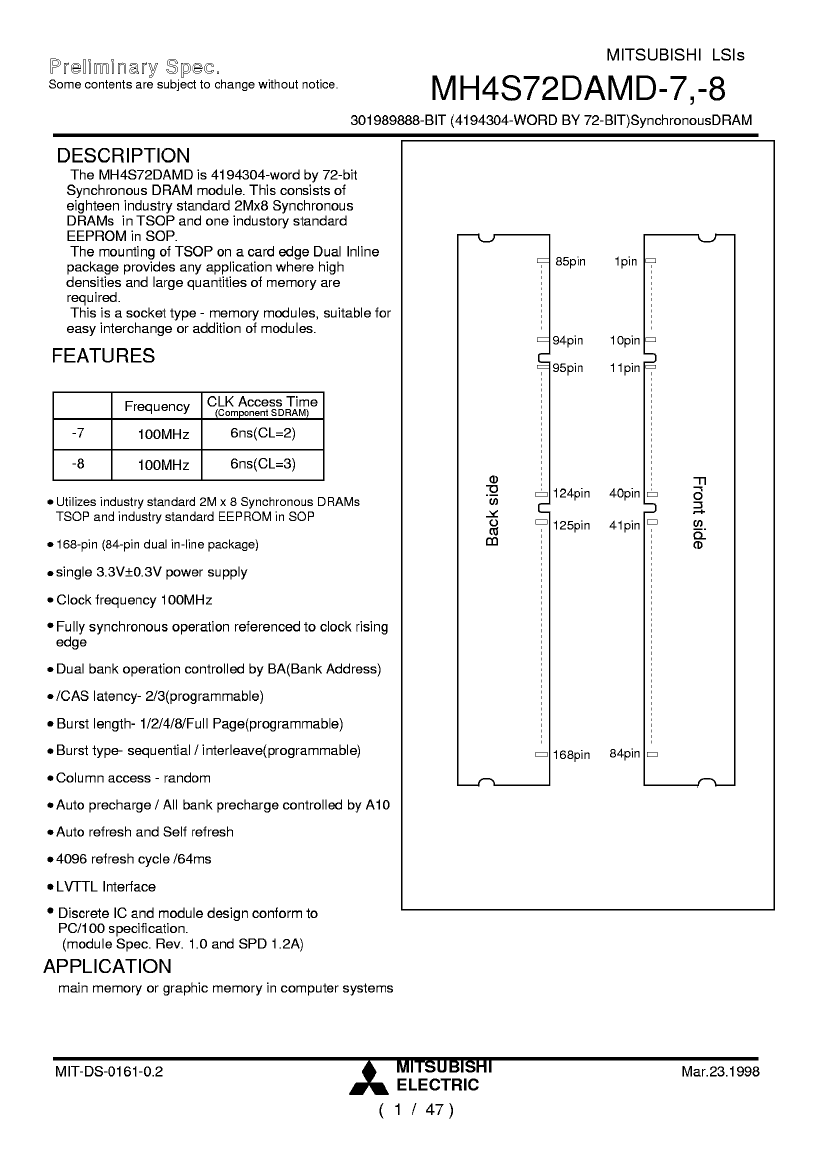

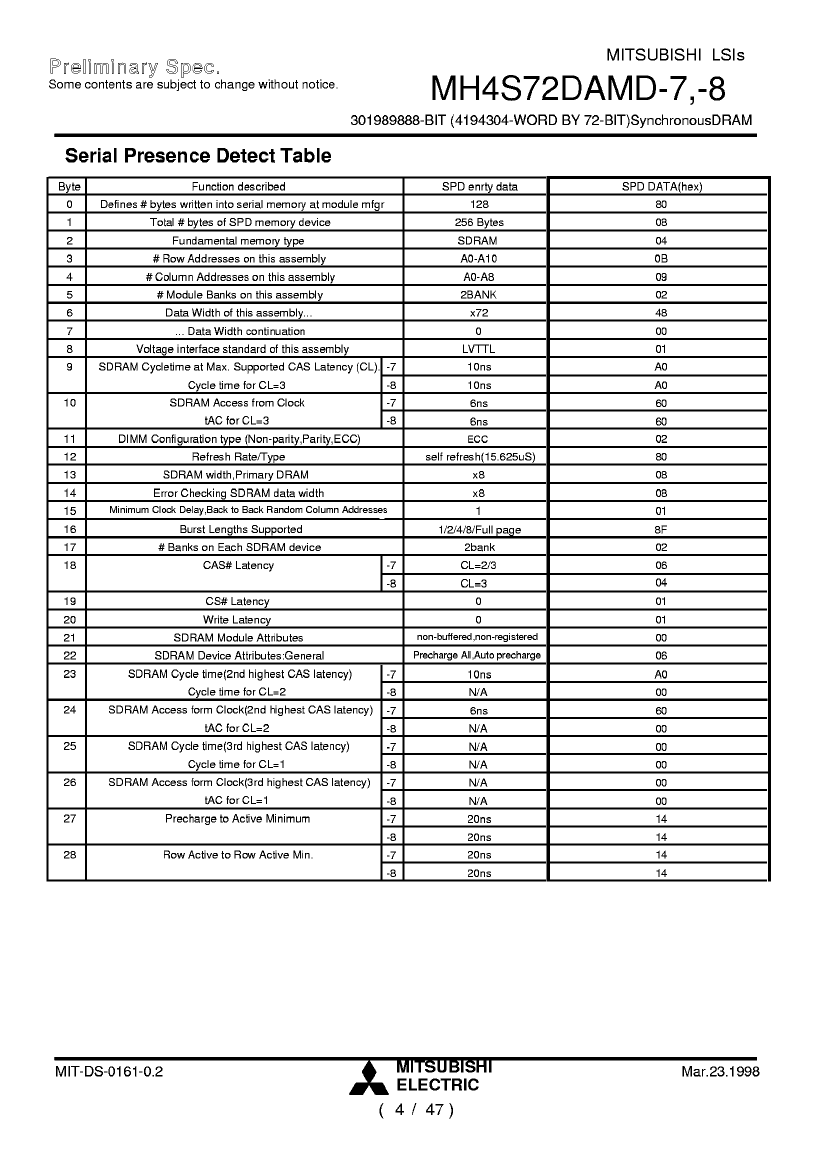

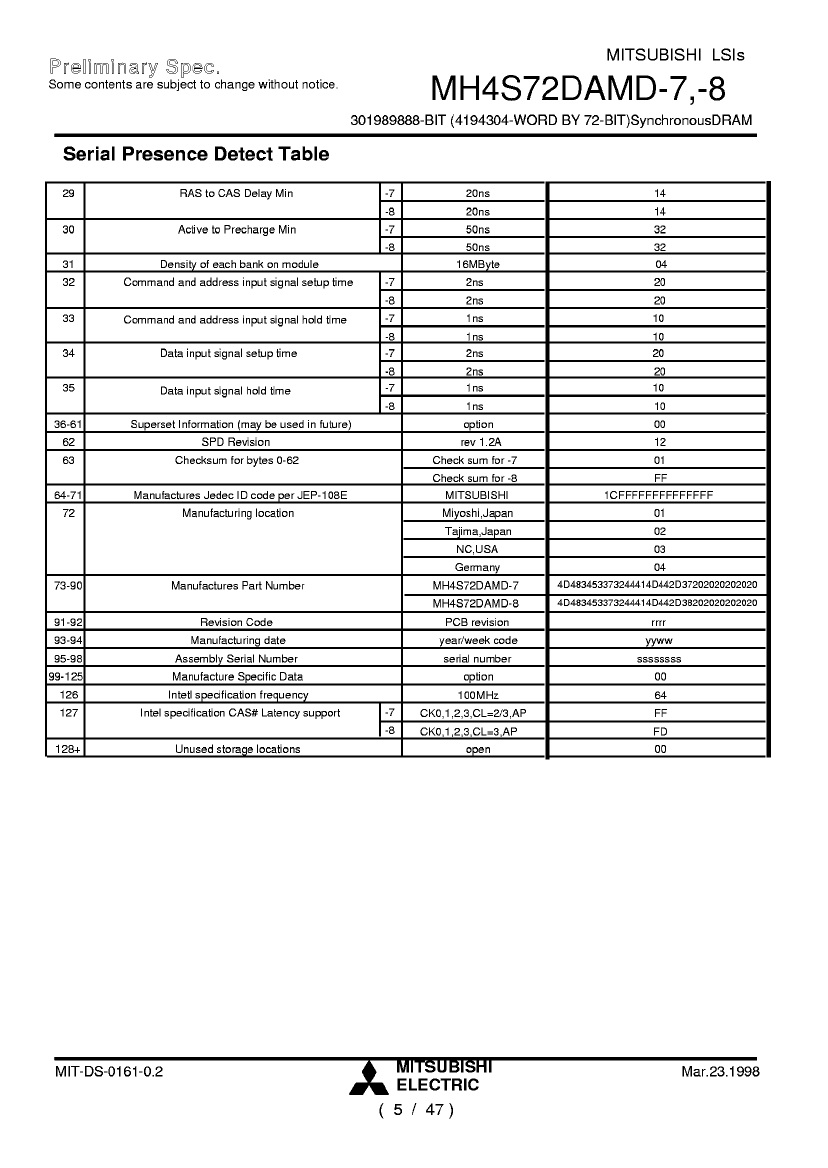

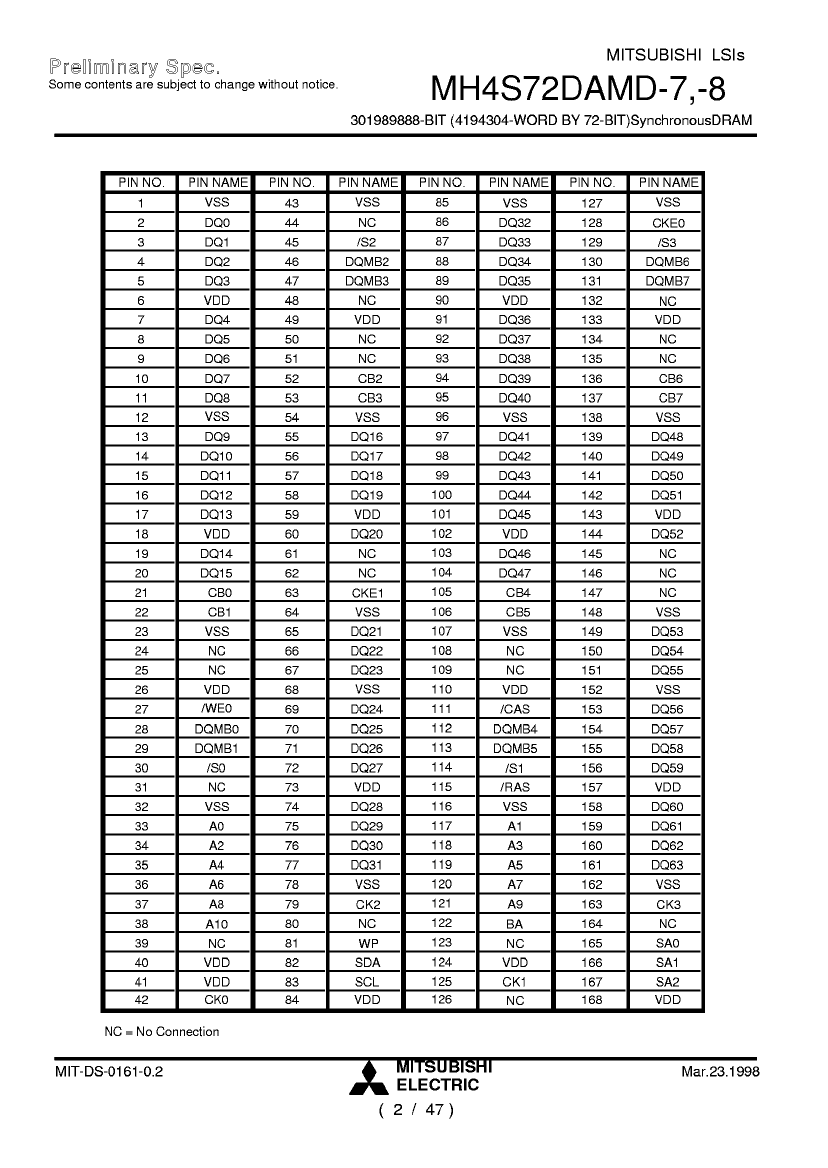

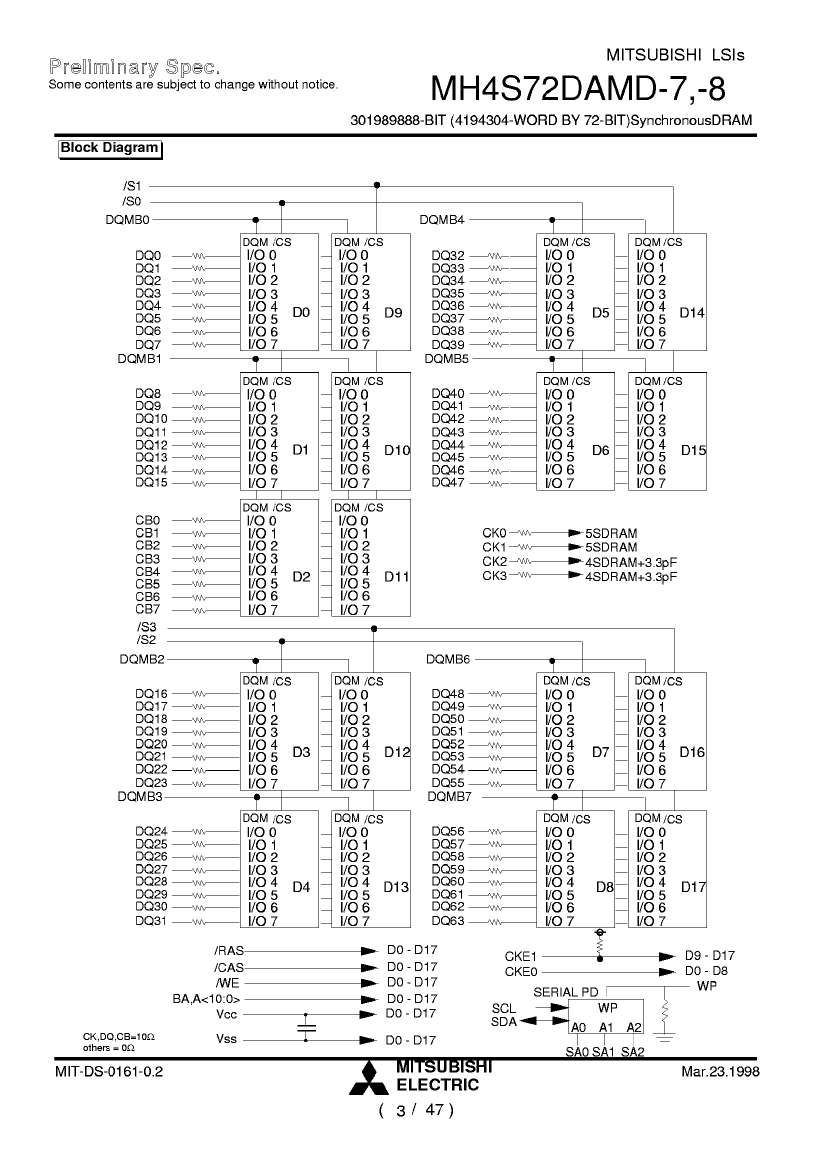

MH4S72DAMD-8 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

MH4S72DAMD-8 Related Products

	MH4S72DAMD-8	MH4S72DAMD-7
Description	Synchronous DRAM Module, 4MX72, 6ns, CMOS, DIMM-168	Synchronous DRAM Module, 4MX72, 6ns, CMOS, DIMM-168
Maker	Mitsubishi	Mitsubishi
Parts packaging code	DIMM	DIMM
package instruction	DIMM, DIMM168	DIMM, DIMM168
Contacts	168	168
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
access mode	DUAL BANK PAGE BURST	DUAL BANK PAGE BURST
Maximum access time	6 ns	6 ns
Other features	AUTO/SELF REFRESH	AUTO/SELF REFRESH
Maximum clock frequency (fCLK)	100 MHz	100 MHz
I/O type	COMMON	COMMON
JESD-30 code	R-XDMA-N168	R-XDMA-N168
memory density	301989888 bit	301989888 bit
Memory IC Type	SYNCHRONOUS DRAM MODULE	SYNCHRONOUS DRAM MODULE
memory width	72	72
Number of functions	1	1
Number of ports	1	1
Number of terminals	168	168
word count	4194304 words	4194304 words
character code	4000000	4000000
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	4MX72	4MX72
Output characteristics	3-STATE	3-STATE
Package body material	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIMM	DIMM
Encapsulate equivalent code	DIMM168	DIMM168
Package shape	RECTANGULAR	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
power supply	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified
refresh cycle	4096	4096
self refresh	YES	YES
Maximum standby current	0.036 A	0.036 A
Maximum slew rate	1.44 mA	1.44 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	NO LEAD	NO LEAD
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
