114030A45M080 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> Connector bracket> 114030A45M080

114030A45M080: DescriptionCable Assembly,; CategoryThe connector Connector bracket; File Size144KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

114030A45M080 Overview

Cable Assembly,

114030A45M080 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector bracket type	CABLE ASSEMBLY

Preview

Download Datasheet

View All

MATERIAL

NUMBER

OLD PART

NUMBER

FINISHED LENGTH

114030A45M020

DESCRIPTION

GENERAL TOLERANCES

(UNLESS SPECIFIED)

DIMENSION STYLE

SCALE

DESIGN UNITS

IN/MM

DRAWN BY

DATE

TITLE

CHECKED BY

DATE

---

INCH

THIRD ANGLE

PROJECTION

4 PLACES

3 PLACES

2 PLACES

1 PLACE

---

0.3

INCH

---

.01

---

APPROVED BY

DATE

molex

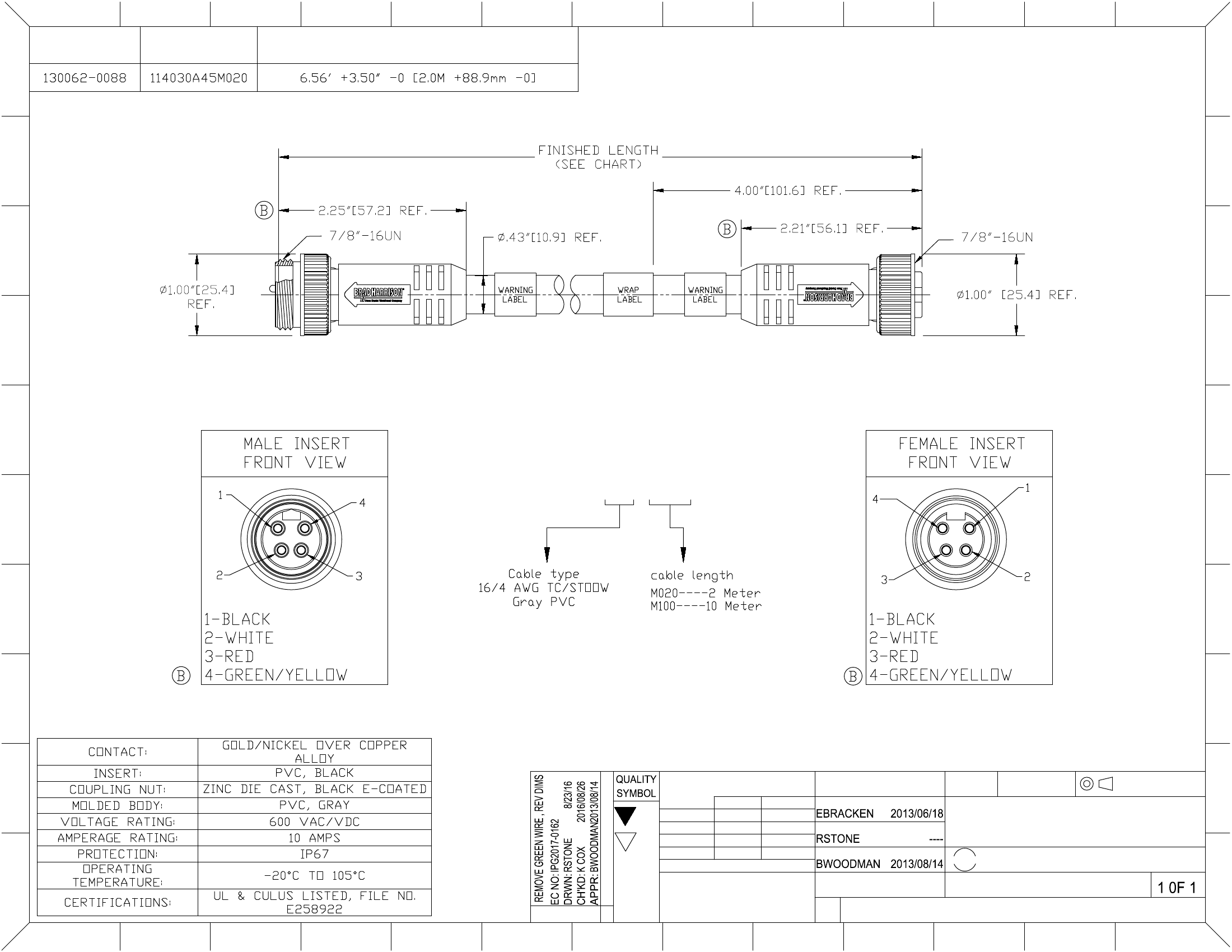

MINI-CHANGE ASSEMBLY

4 POLE M/MFE

#16/4 GRAY PVC

MOLEX INCORPORATED

SHEET NO.

REV

DRAFT WHERE

APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

MATERIAL NO.

DOCUMENT NO.

SEE CHART

SIZE

SD-130062-016

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX

INCORPORATED AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
