Part Number

Search

15-42-7342

Description
Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle
CategoryThe connector    The connector
File Size378KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

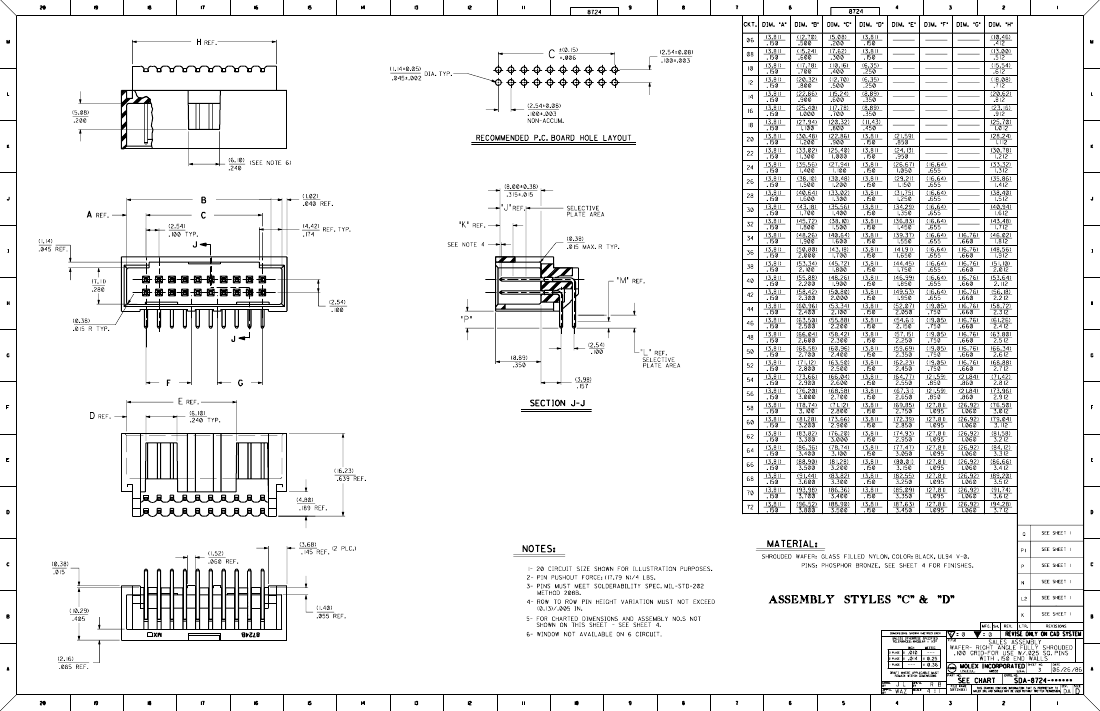

15-42-7342 Overview

Board Connector, 42 Contact(s), 2 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Guide Slot, Black Insulator, Receptacle

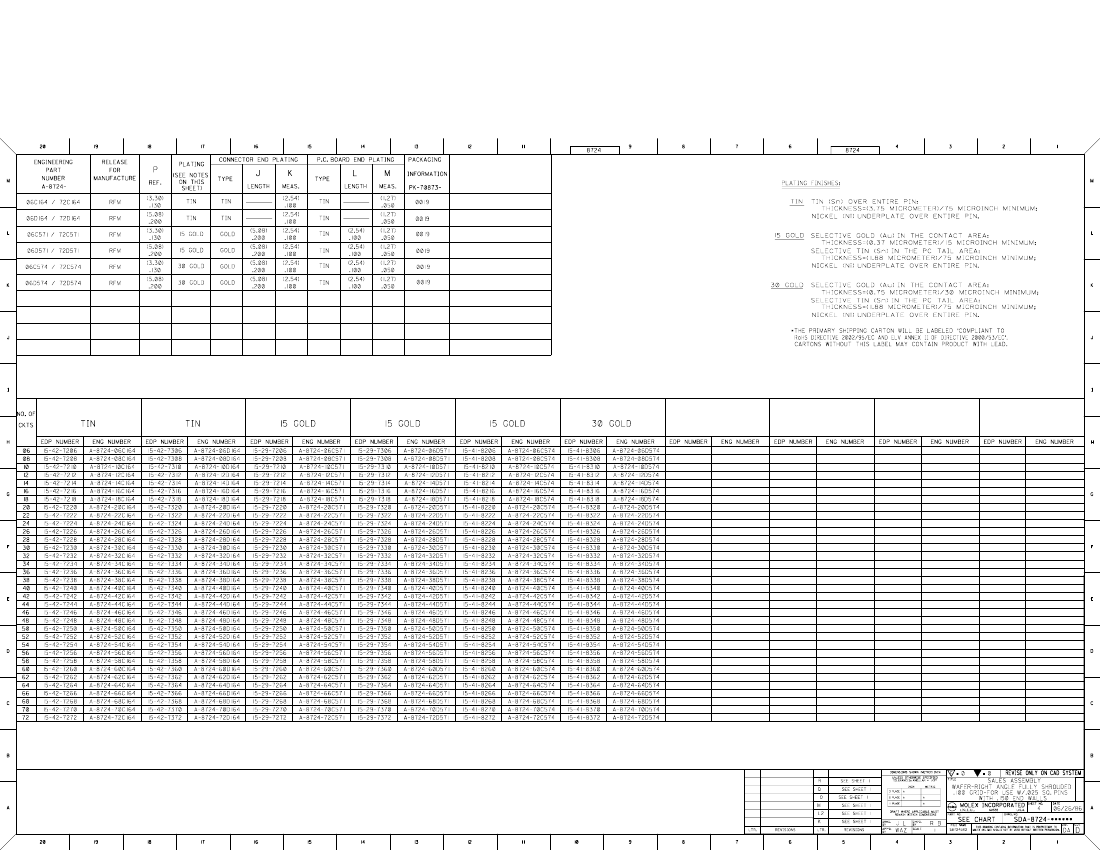

15-42-7342 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Other featuresROHS AND ELV COMPLIANT
body width0.42 inch
subject depth0.639 inch
body length2.38 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationSN ON NI
Contact completed and terminatedTIN OVER NICKEL
Contact point genderMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage600VAC V
Durability25 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialGLASS FILLED NYLON
Manufacturer's serial number8724
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation option 1GUIDE SLOT
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness75u inch
polarization keyPOLARIZED HOUSING
Rated current (signal)2.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.2 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts42
Evacuation force-minimum value17.792 N
