502109-0844 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 502109-0844

502109-0844: DescriptionBoard Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Blue Insulator, Receptacle; CategoryThe connector The connector; File Size290KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

502109-0844 Overview

Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Blue Insulator, Receptacle

502109-0844 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
body width	0.276 inch
subject depth	0.339 inch
body length	0.657 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	500VAC V
Durability	30 Cycles
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	NYLON
Manufacturer's serial number	502125
Plug contact pitch	0.07 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.778 mm
Termination type	SURFACE MOUNT
Total number of contacts	8

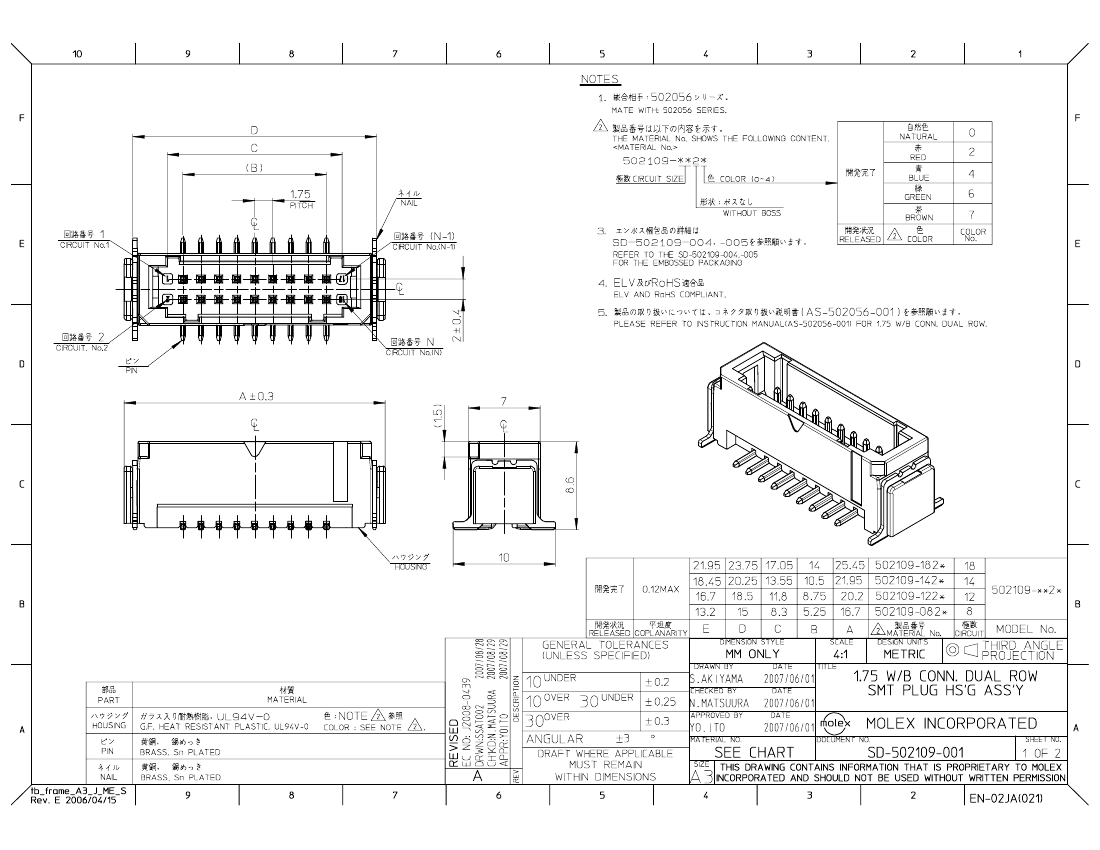

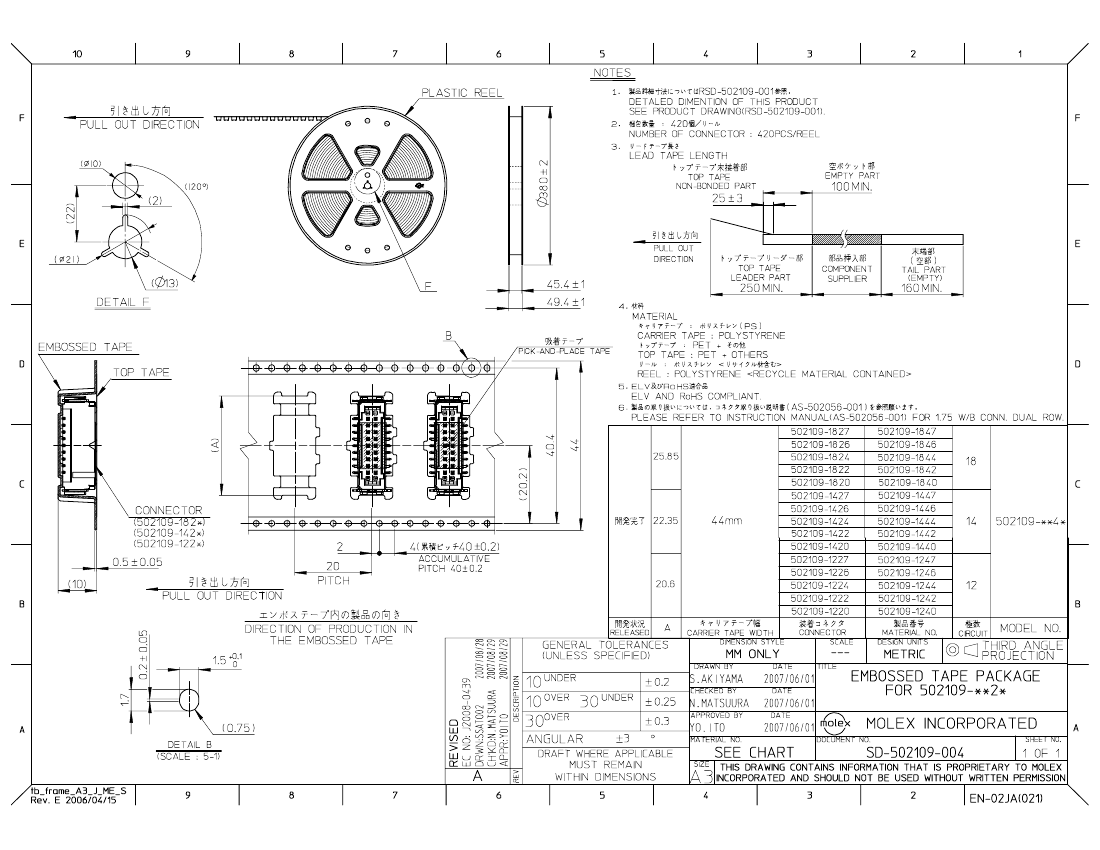

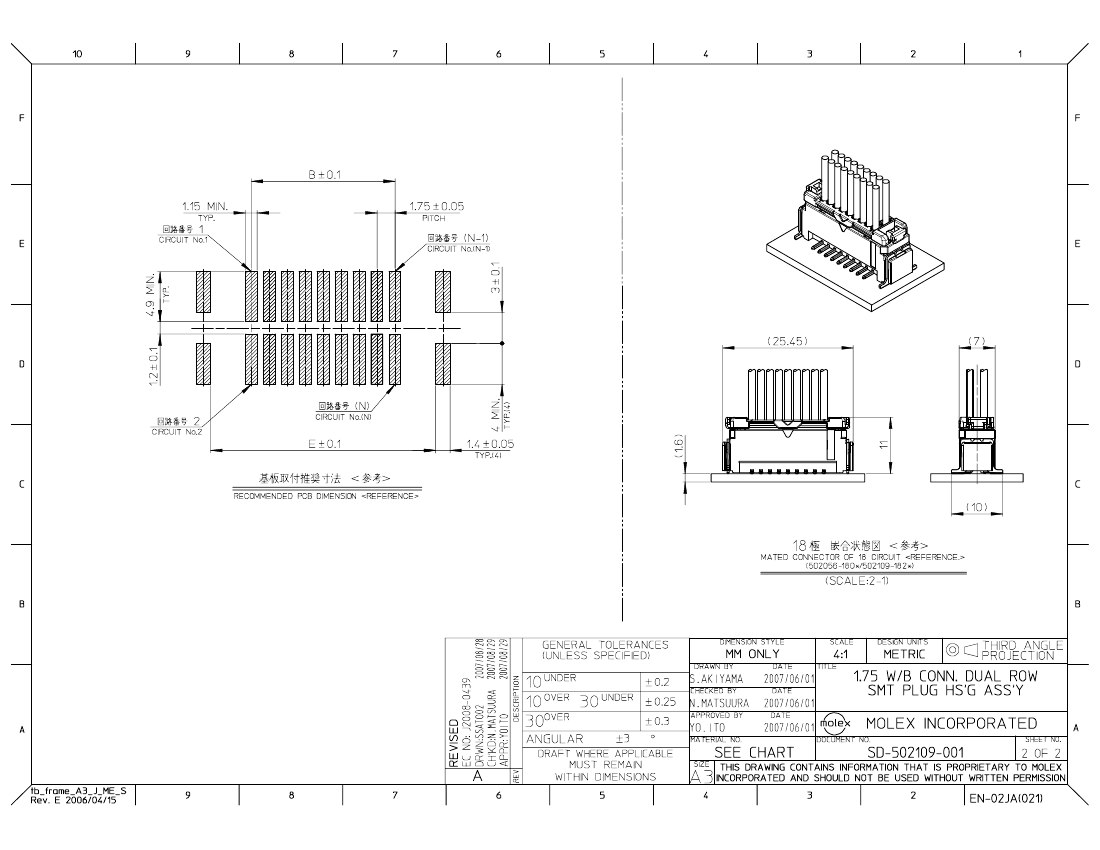

Preview

Download Datasheet

View All

502109-0844 Related Products

	502109-0844	502109-0840	502109-1440	502109-1840	502109-1240	502109-1846	502109-1847	502109-0842	502109-0847
Description	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Blue Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle	Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle	Board Connector, 12 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Natural Insulator, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Green Insulator, Receptacle	Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Brown Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Red Insulator, Receptacle	Board Connector, 8 Contact(s), 2 Row(s), Male, Straight, 0.07 inch Pitch, Surface Mount Terminal, Brown Insulator, Receptacle
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	unknow	compliant	unknown	compliant	compliant	compliant	compliant	compliant
body width	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch	0.276 inch
subject depth	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch	0.339 inch
body length	0.657 inch	0.657 inch	0.864 inch	1.002 inch	0.795 inch	1.002 inch	1.002 inch	0.657 inch	0.657 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN	SN	SN	SN	SN	SN	SN	SN	SN
Contact completed and terminated	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN	TIN
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS	BRASS
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V	500VAC V
Durability	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles	30 Cycles
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Insulator color	BLUE	NATURAL	NATURAL	NATURAL	NATURAL	GREEN	BROWN	RED	BROWN
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	502125	502125	502125	502125	502125	502125	502125	502125	502125
Plug contact pitch	0.07 inch	0.07 inch	0.07 inch	0.07 inch	0.07 inch	0.07 inch	0.07 inch	0.07 inch	0.07 inch
Match contact row spacing	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch	0.079 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2	2	2	2	2	2
Number of rows loaded	2	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm	2.0066 mm
Rated current (signal)	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A	2 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.778 mm	1.778 mm	1.778 mm	1.778 mm	1.778 mm	1.778 mm	1.778 mm	1.778 mm	1.778 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	8	8	14	18	12	18	18	8	8
Maker	Molex	-	-	-	-	Molex	Molex	Molex	Molex
