5051103691 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5051103691

5051103691: DescriptionFFC/FPC Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,; CategoryThe connector The connector; File Size831KB，7 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

5051103691 Overview

FFC/FPC Connector, 36 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal,

5051103691 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	0.5 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0

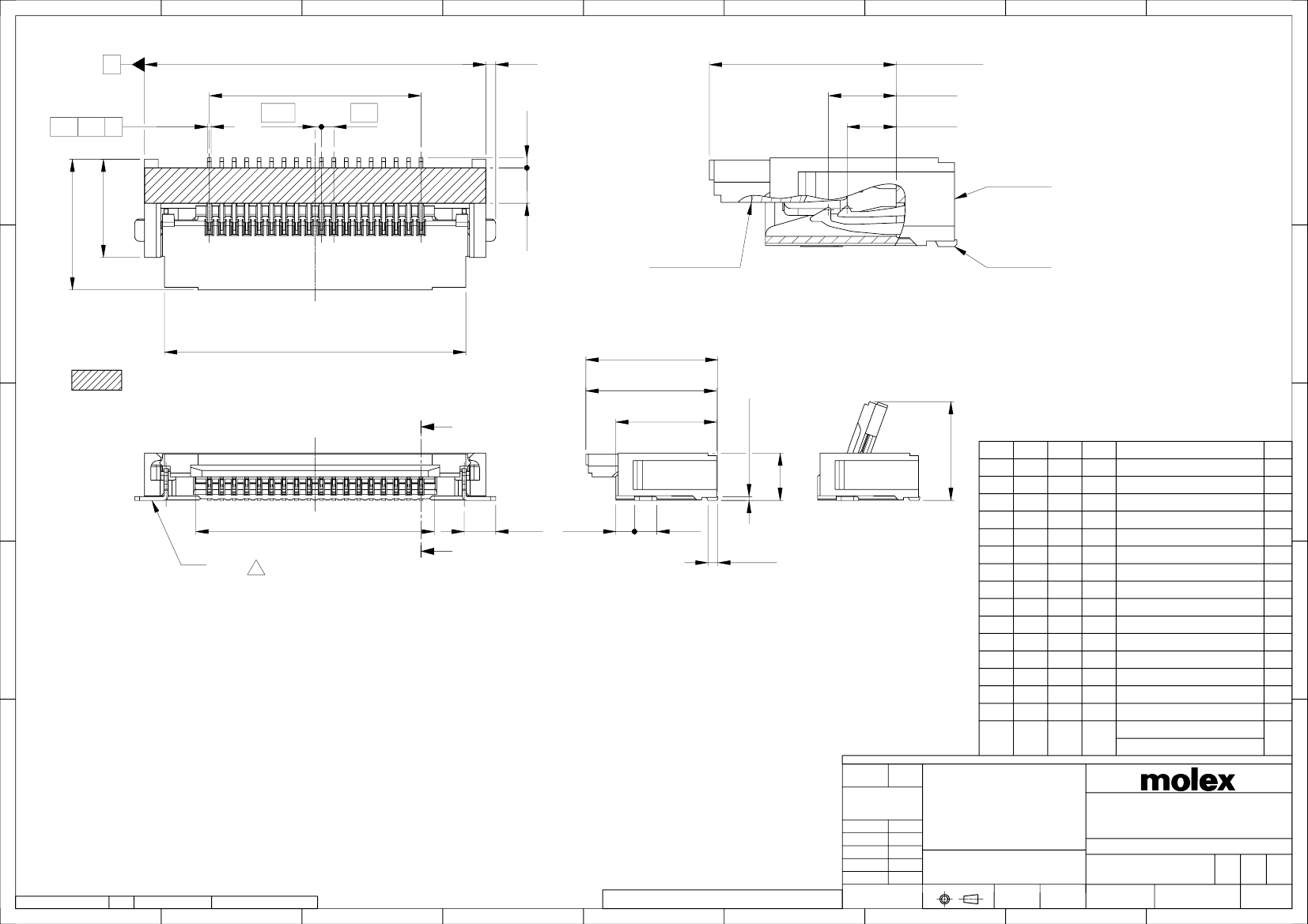

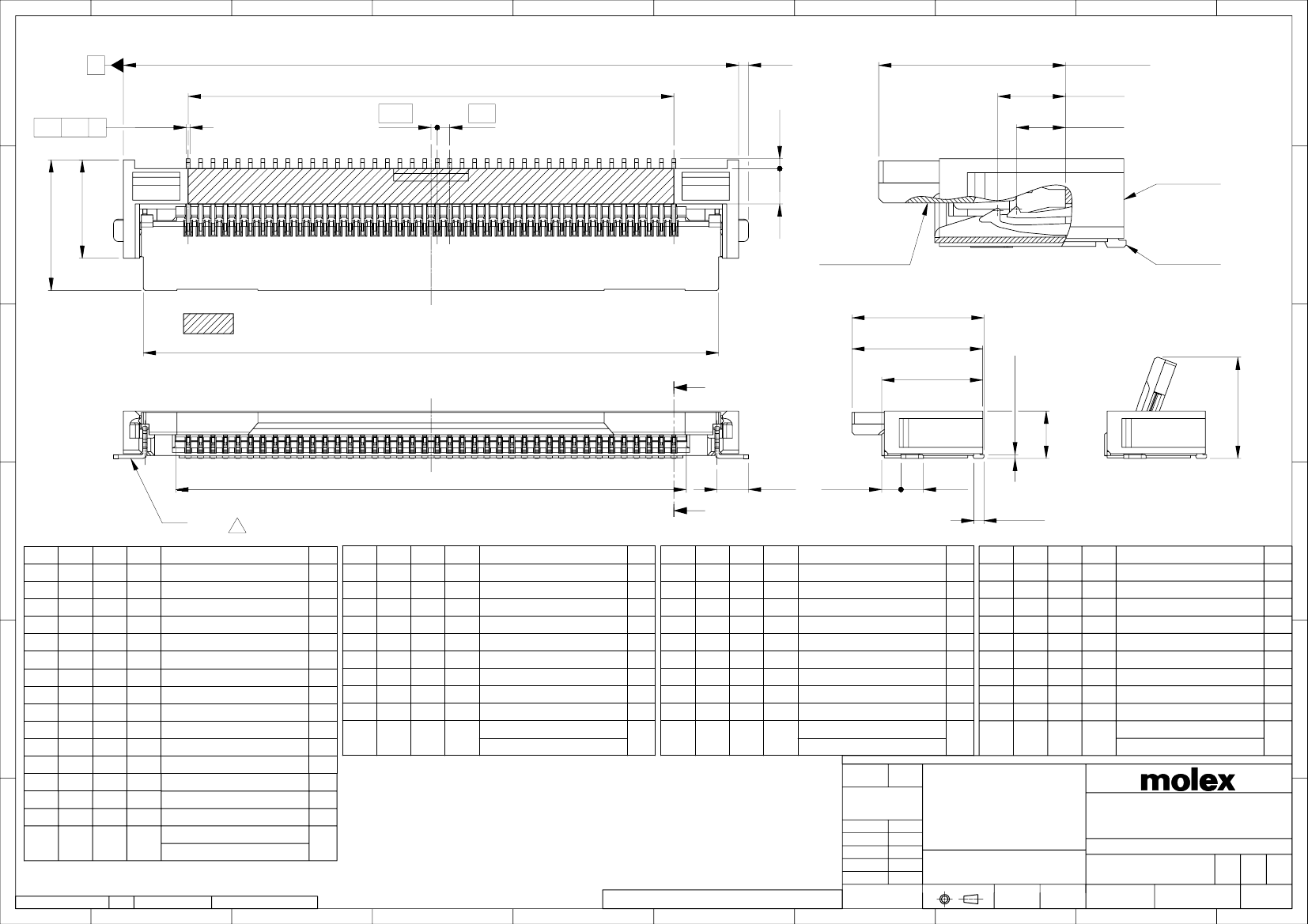

Preview

Download Datasheet

View All

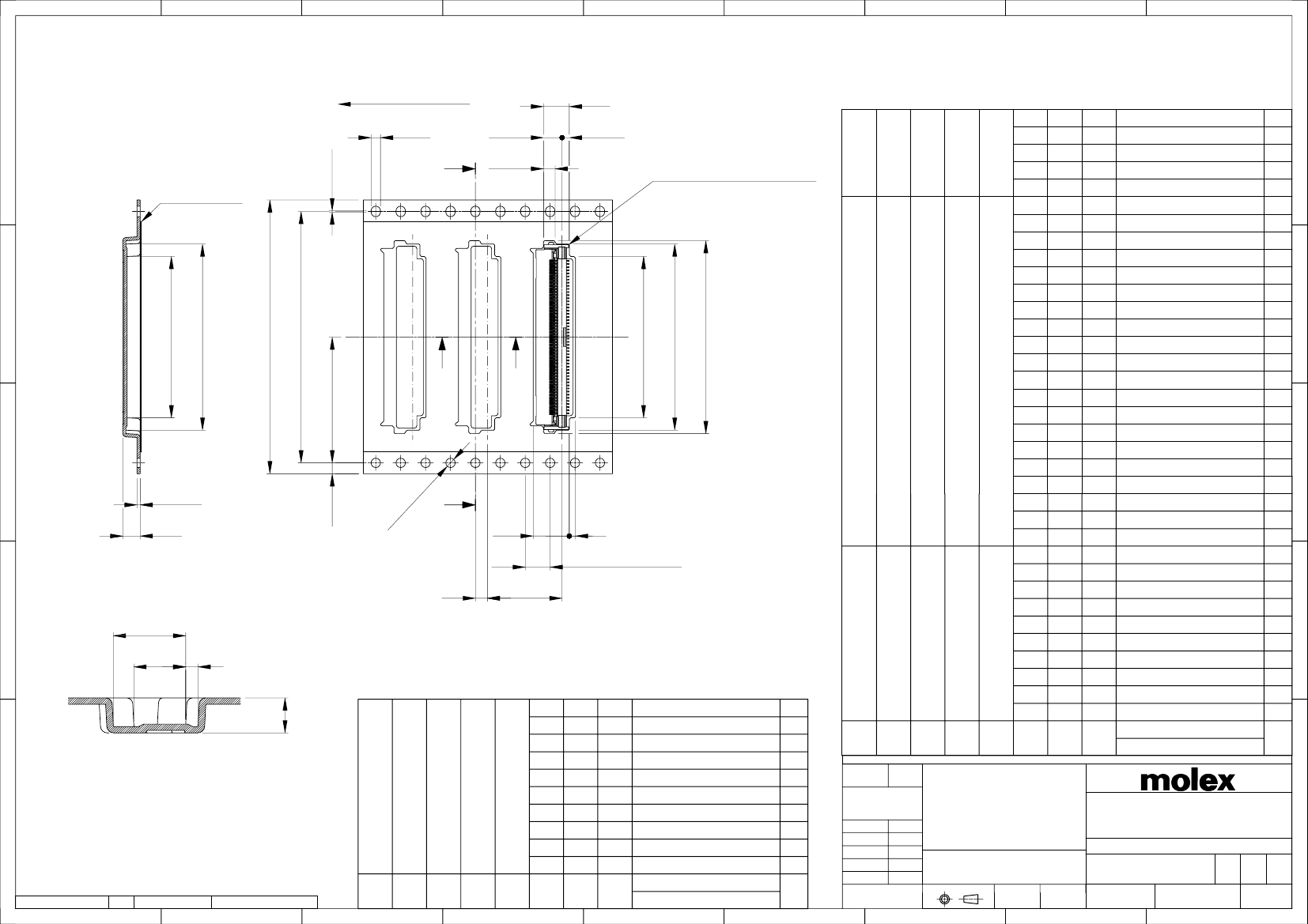

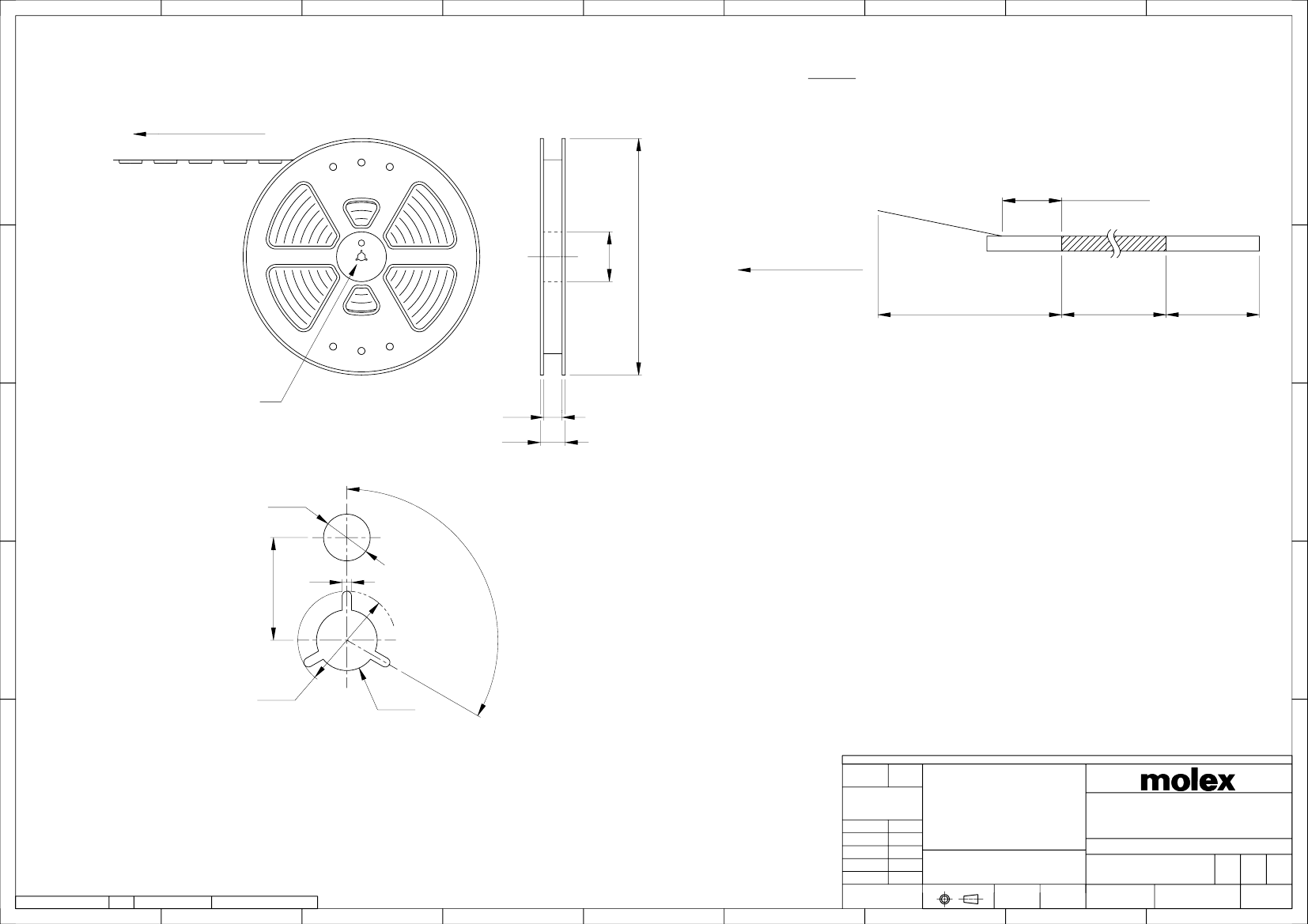

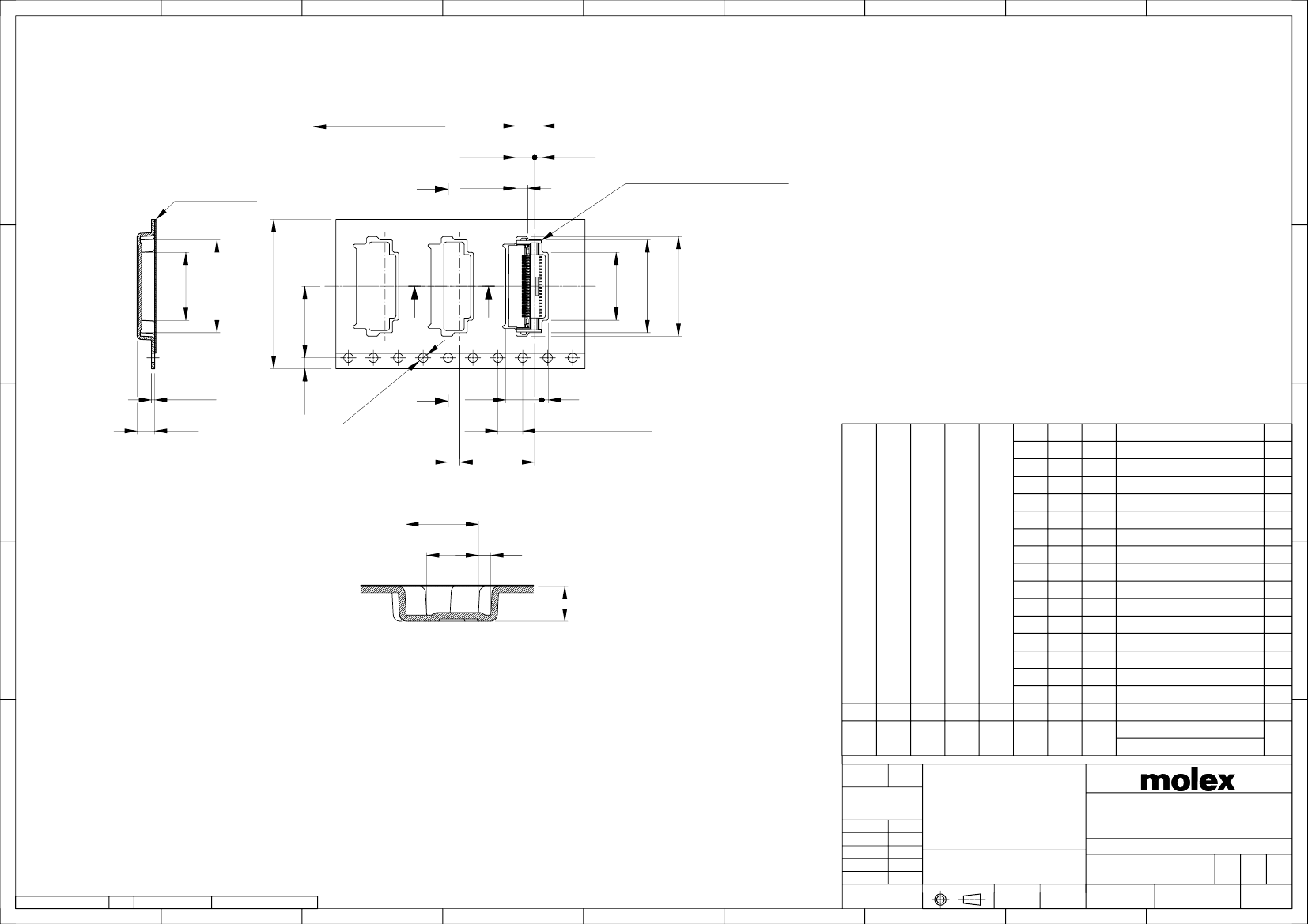

NOTES

PULL DIRECTION

引き出し方向

1. 梱包数量： 3000個／リール

NUMBER OF CONNECTORS : 3000 PCS/REEL.

2. リードテープ長さ

LEAD TAPE LENGTH

100MIN.

空ポケット部

EMPTY PART

⌀

380

引き出し方向

PULL DIRECTION

トップテープリーダー部

TOP TAPE LEADER PART

(

)

部品挿入部

COMPONENT

SUPPLIER

端末部(空部)

TAIL PART

(EMPTY)

400MIN.

160MIN.

(

⌀

)

3. カバーテープの剥離強度については、IEC60286-3に準拠。

COVER TAPE PEEL FORCE IS DEFINED BY IEC 60286-3.

4. ½品詳細寸法については、図面 5051101000-SD を参照下さい。

DIMENTIONS OF PRODUCT, REFER TO 5051101000-SD.

5. 材料　MATERIAL

キャリアテープ : ポリスチレン

トップテープ : ポリエチレンテレフタレート、ポリエチレン

リール

: ポリスチレン＜リサイクル材を含む＞

CARRIER TAPE : POLYSTYRENE

TOP TAPE : POLYETHYLENE TEREHTHALATE, POLYETHYLENE

REEL : POLYSTYRENE＜RECYCLE MATERIAL CONTAINED＞

(

)

(

)

(

⌀

)

DETAIL U

(

⌀

)

THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION

DIMENSION UNITS

SCALE

2:1

3.0 °

CURRENT REV DESC:

GENERAL TOLERANCES

(UNLESS SPECIFIED)

ANGULAR TOL

4 PLACES

3 PLACES

2 PLACES

1 PLACE

0 PLACES

0.2

0.25

0.3

DRWN:

JASANUMA

CHK'D: TRSUZUKI

APPR:

RTAKEUCHI

INITIAL REVISION:

DRWN:

JASANUMA

APPR:

RTAKEUCHI

THIRD ANGLE PROJECTION

DRAWING

EC NO:

605617

2018/09/28

2018/10/10

2018/09/28

2018/10/10

SERIES

0.5 FPC ZIF 2 CONT EMBT PKG

PRODUCT CUSTOMER DRAWING

DOCUMENT NUMBER

DOC TYPE

DOC PART

REVISION

5051100000-SD

MATERIAL NUMBER

CUSTOMER

PSD

000

DOCUMENT STATUS

FORMAT: master-tb-prod-A3

REVISION: H

DATE: 2018/01/18

RELEASE DATE

2018/10/10

01:08:19

DRAFT WHERE APPLICABLE

MUST REMAIN

WITHIN DIMENSIONS

SHEET NUMBER

A3-SIZE

505110

SEE CHART

1 OF 3
