76011-2433

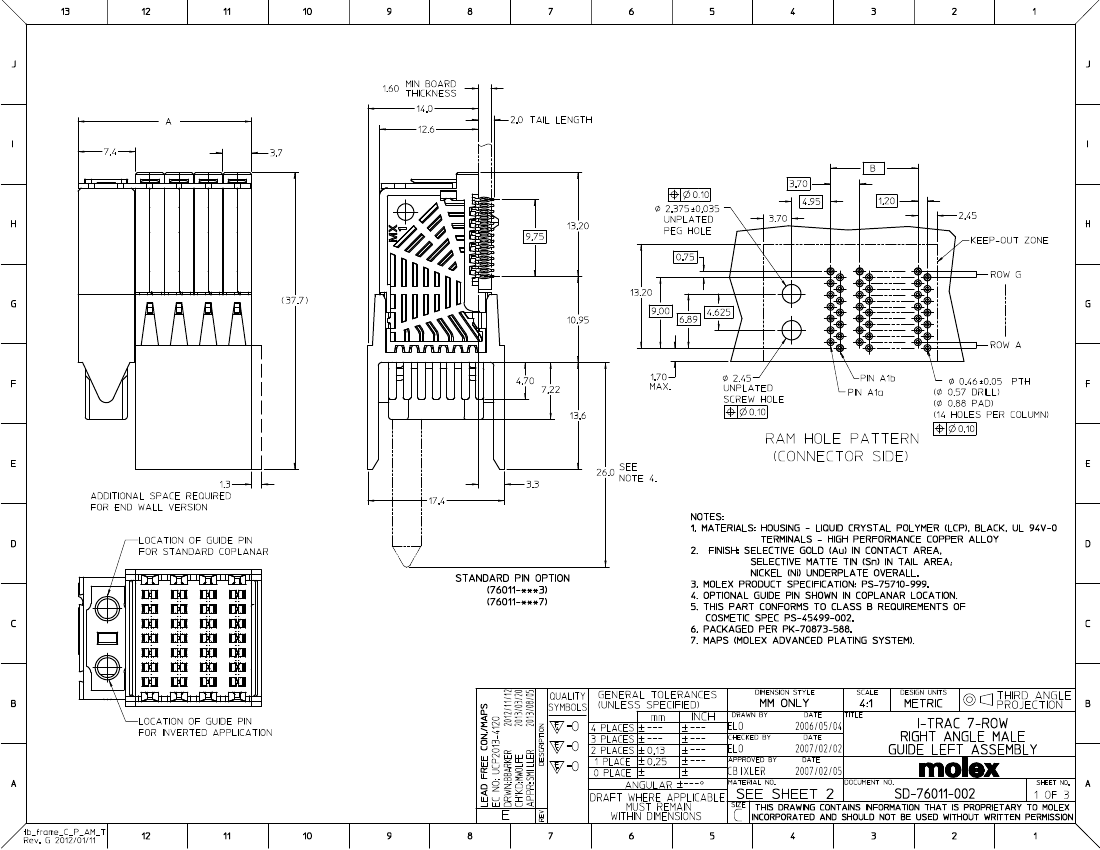

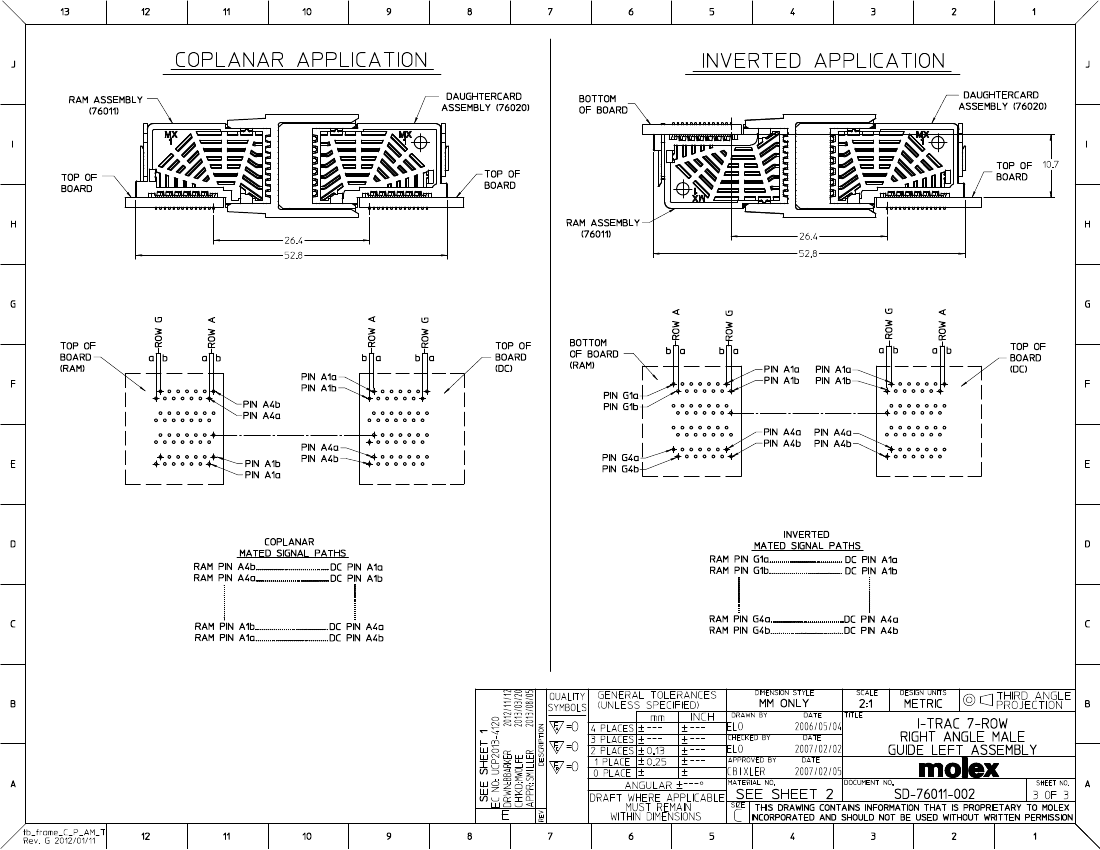

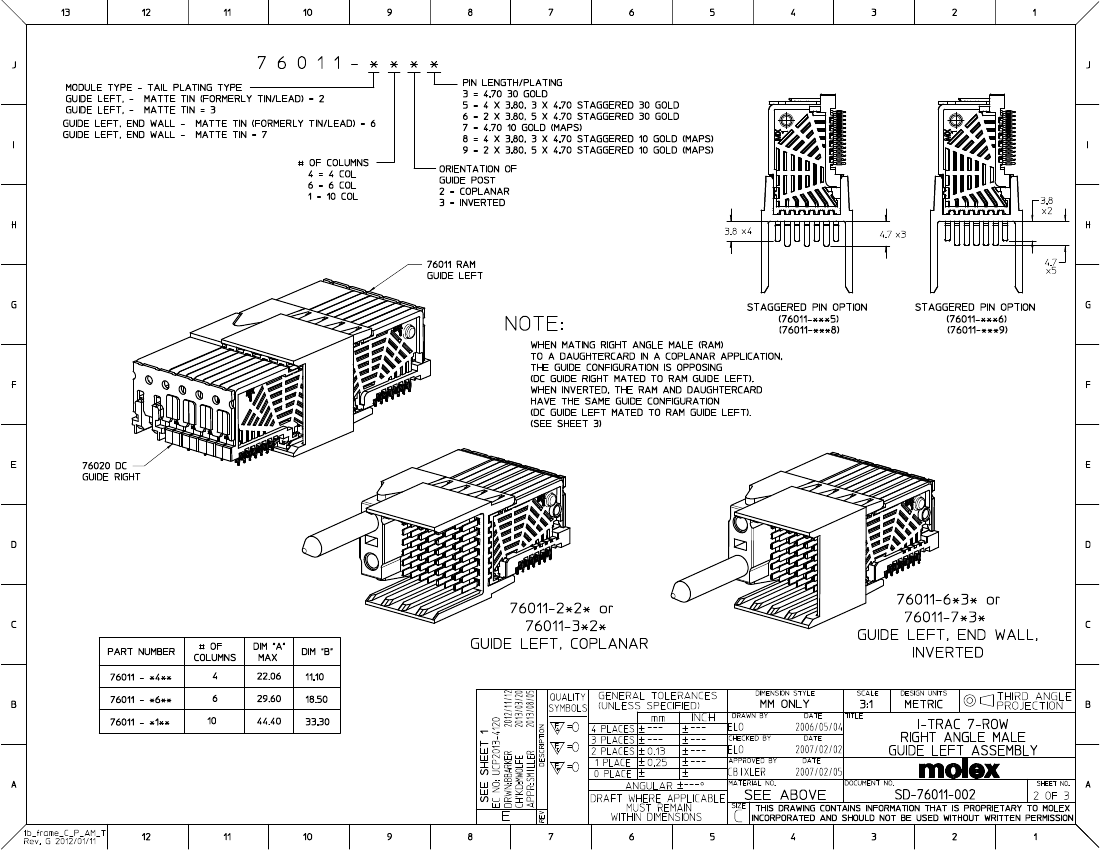

Description
Board Connector, 56 Contact(s), 7 Row(s), Right Angle, Press Fit Terminal, Locking, Black Insulator
CategoryThe connector    The connector
File Size377KB,3 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

76011-2433 Overview

Board Connector, 56 Contact(s), 7 Row(s), Right Angle, Press Fit Terminal, Locking, Black Insulator

76011-2433 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact completed and terminatedTIN OVER NICKEL
contact modeRECTANGULAR
Contact resistance10 mΩ
Dielectric withstand voltage750VAC V
Durability200 Cycles
Insulation resistance1000000000 Ω
Insulator colorBLACK
insulator materialLIQUID CRYSTAL POLYMER (LCP)
Installation option 1LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number14
Number of rows loaded7
PCB contact patternSTAGGERED
PCB contact row spacing.762 mm
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.079 inch
Terminal pitch1.1938 mm
Termination typePRESS FIT
Total number of contacts56
