85126-0608

Description
Board Connector, 306 Contact(s), Female, Right Angle, Press Fit Terminal, Guide Slot, Gray Insulator, Plug
CategoryThe connector    The connector
File Size168KB,2 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Environmental Compliance
Download Datasheet Parametric View All

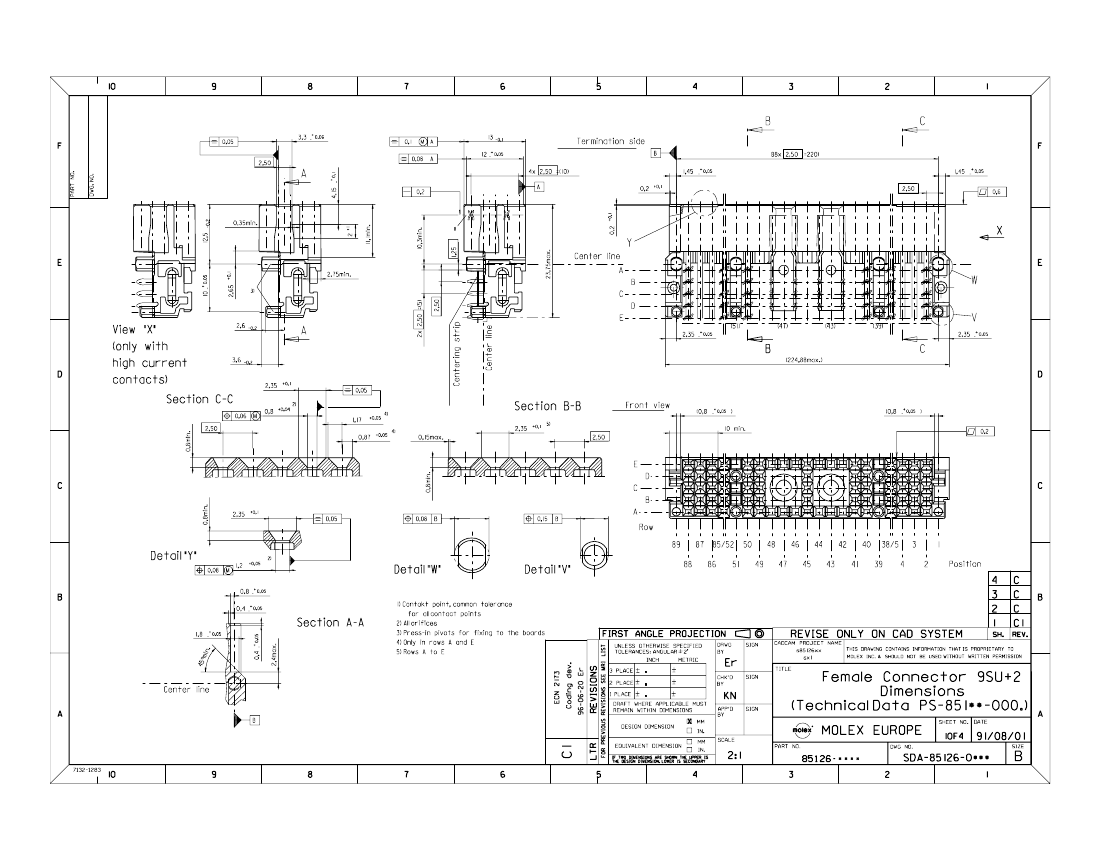

85126-0608 Overview

Board Connector, 306 Contact(s), Female, Right Angle, Press Fit Terminal, Guide Slot, Gray Insulator, Plug

85126-0608 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT & LUBRICATED
Board mount optionsLOCATING POSTS
body width0.512 inch
subject depth0.935 inch
body length8.854 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR

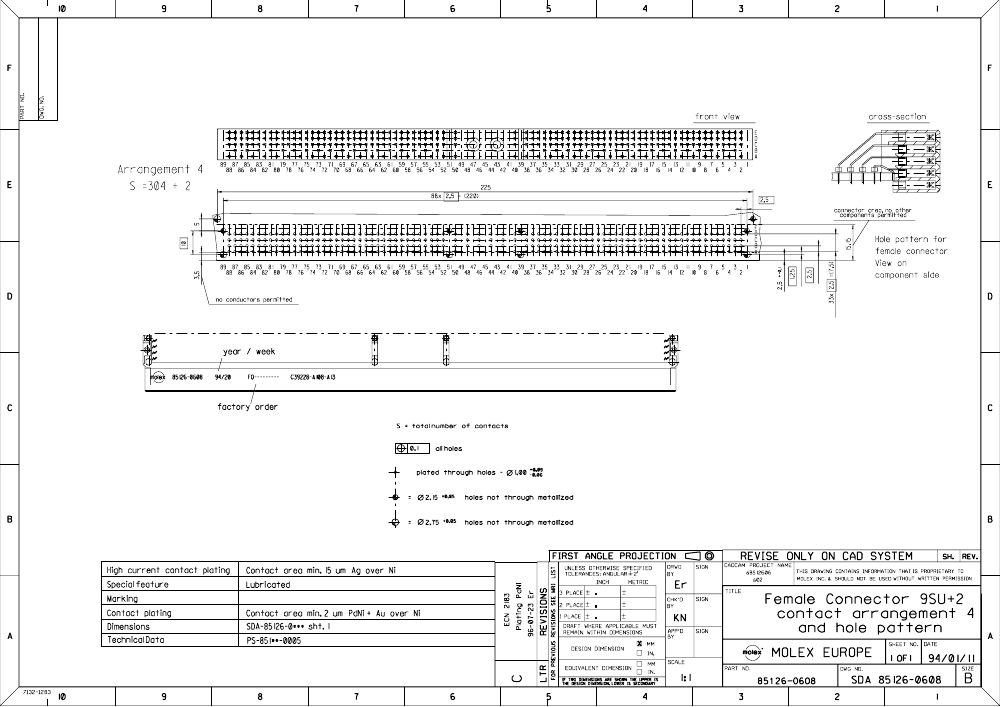

Contact arrangementS304P2
Contact to complete cooperationAU-PD-NI ON NI
Contact point genderFEMALE
Contact materialBRONZE
Contact resistance25 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1400VAC V
Durability500 Cycles
maximum insertion force1.0008 N
Insulation resistance1000000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYCARBONATE
Manufacturer's serial number85126
Mixed contactsYES
Installation option 1GUIDE SLOT
Installation option 2LOCKING
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Plating thickness80u inch
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typePRESS FIT
Total number of contacts306
Evacuation force-minimum value.5838 N
