87331-0642: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size110KB，3 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

87331-0642 Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, Solder Terminal

87331-0642 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MILLI-GRID, LATCHED, POLARIZED
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	87331
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SOLDER
Total number of contacts	6
UL Flammability Code	94V-0

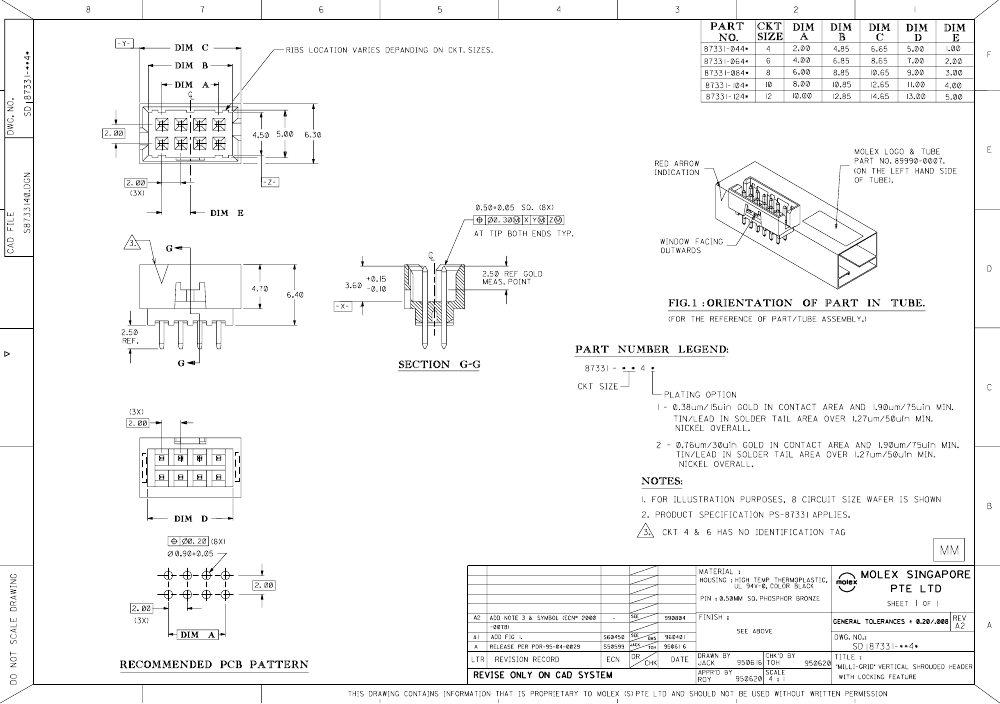

87331-0642 Preview

PCB Headers - 87331

English Spanish French Italian German Chinese (simplified) Japanese Korean

Datasheet

PCB Headers

2.00mm (.079") Pitch Milli-Grid™ Header, Shrouded, Vertical, SMC

87331

[

Home

>

Products

>

PCB Headers

> Datasheet ]

Pitch [mm (inches)]

Circuits

Rows

Designed In

Temperature Range

Plating Contact

Plating PC Tail

Under Plating

Current-max [amps]

Voltage-max [volts]

Withstanding Voltage

Insulation Resistance [ohms]

Header - Orientation

Header - Mounting

Header - PCB Thickness

Header - Surface Mount

Compatible

Shrouded

Pin Header

Pin Size

Header - Product Specification

Header - Packaging

Header - UL File No.

Header - CSA File No.

Header - Housing Material

2.00mm (.079")

4, 6, 8, 10, 12, 14, 16, 18, 20,

22, 24, 26, 28, 30, 32, 34, 36,

38, 40, 42, 44, 46, 48, 50

2

Millimeters

-55°C to +105°C

0.76µm (30µ") Gold (Au),

15µ" Gold (Au)

Tin/Lead (Sn/Pb)

Nickel (Ni)

2.0A

125V

1000V AC

1000 Megohms min.

Vertical

Through Hole

1.60mm (.063")

Yes

0.50mm (.020") Square

PS-87331

Tube

E29179

LR19980

Nylon 4/6, Black

q

Help

Features and Benefits

Sizes 4 to 50 circuits

Fully shrouded to protect pins during

mating/unmating

Center slot for polarization

Front latches for mechanical locking

Center polarization slot (8 to 12

circuits;) center polarization slot and

front latches (14 to 50 circuits)

q

PCB Headers - 87331

Header - Flammability

Header - Contact

Product Name

MX01 Catalog Page

UL 94V-0

Phosphor Bronze

Milli-Grid™

B-22, B-4

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
