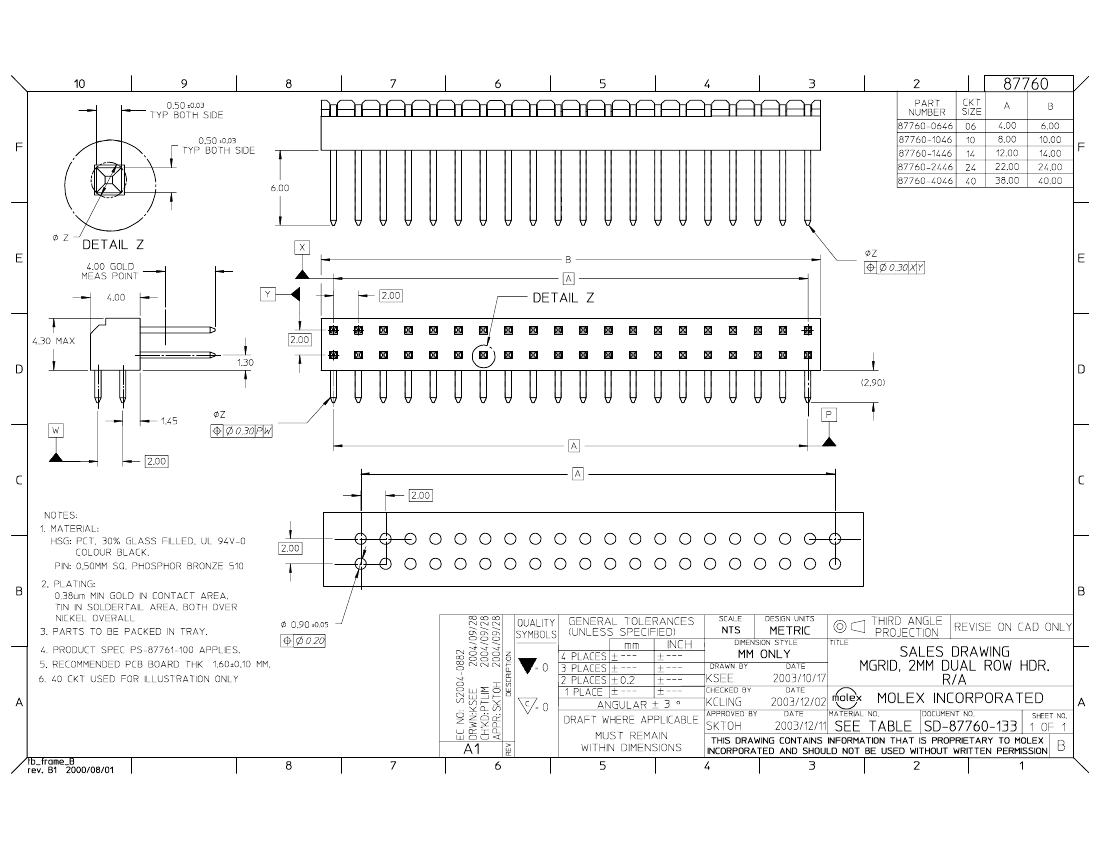

Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | Molex |
| Reach Compliance Code | compliant |
| body width | 0.169 inch |
| subject depth | 0.157 inch |
| body length | 0.236 inch |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | TIN OVER NICKEL |
| Contact point gender | MALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Insulation resistance | 1000000000 Ω |
| Insulator color | BLACK |
| insulator material | POLYCYCLOHEXYLENE TEREPHTHALATE |
| Manufacturer's serial number | 87760 |
| Plug contact pitch | 0.079 inch |
| Match contact row spacing | 0.079 inch |
| Installation option 1 | LOCKING |
| Installation method | RIGHT ANGLE |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 2.0066 mm |
| Plating thickness | 15u inch |
| Rated current (signal) | 2 A |
| Guideline | UL |
| reliability | COMMERCIAL |
| Terminal length | 0.102 inch |
| Terminal pitch | 2.0066 mm |
| Termination type | SOLDER |
| Total number of contacts | 6 |
| 87760-0646 | 87760-1046 | 0877601046 | |
|---|---|---|---|
| Description | Board Connector, 6 Contact(s), 2 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Terminal, Locking, Black Insulator | headers & wire housings 2mm mgrid DR hdr R A tray 0.38aulf 10p | 2mm mgrid DR hdr RA tray 0gold 1 |
| Maker | Molex | Molex | - |
| Reach Compliance Code | compliant | unknow | - |
| body width | 0.169 inch | 0.169 inch | - |
| subject depth | 0.157 inch | 0.157 inch | - |
| body length | 0.236 inch | 0.394 inch | - |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | - |
| Contact to complete cooperation | AU ON NI | AU ON NI | - |
| Contact completed and terminated | TIN OVER NICKEL | TIN OVER NICKEL | - |
| Contact point gender | MALE | MALE | - |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - |
| contact mode | RECTANGULAR | RECTANGULAR | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | - |
| Insulation resistance | 1000000000 Ω | 1000000000 Ω | - |
| Insulator color | BLACK | BLACK | - |
| insulator material | POLYCYCLOHEXYLENE TEREPHTHALATE | POLYCYCLOHEXYLENE TEREPHTHALATE | - |
| Plug contact pitch | 0.079 inch | 0.079 inch | - |
| Match contact row spacing | 0.079 inch | 0.079 inch | - |
| Installation option 1 | LOCKING | LOCKING | - |
| Installation method | RIGHT ANGLE | RIGHT ANGLE | - |
| Installation type | BOARD | BOARD | - |
| Number of connectors | ONE | ONE | - |
| PCB row number | 2 | 2 | - |
| Number of rows loaded | 2 | 2 | - |
| Maximum operating temperature | 125 °C | 125 °C | - |
| Minimum operating temperature | -55 °C | -55 °C | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | - |
| PCB contact row spacing | 2.0066 mm | 2.0066 mm | - |
| Plating thickness | 15u inch | 15u inch | - |
| Rated current (signal) | 2 A | 2 A | - |
| Guideline | UL | UL | - |
| reliability | COMMERCIAL | COMMERCIAL | - |
| Terminal length | 0.102 inch | 0.102 inch | - |
| Terminal pitch | 2.0066 mm | 2.0066 mm | - |
| Termination type | SOLDER | SOLDER | - |
| Total number of contacts | 6 | 10 | - |
