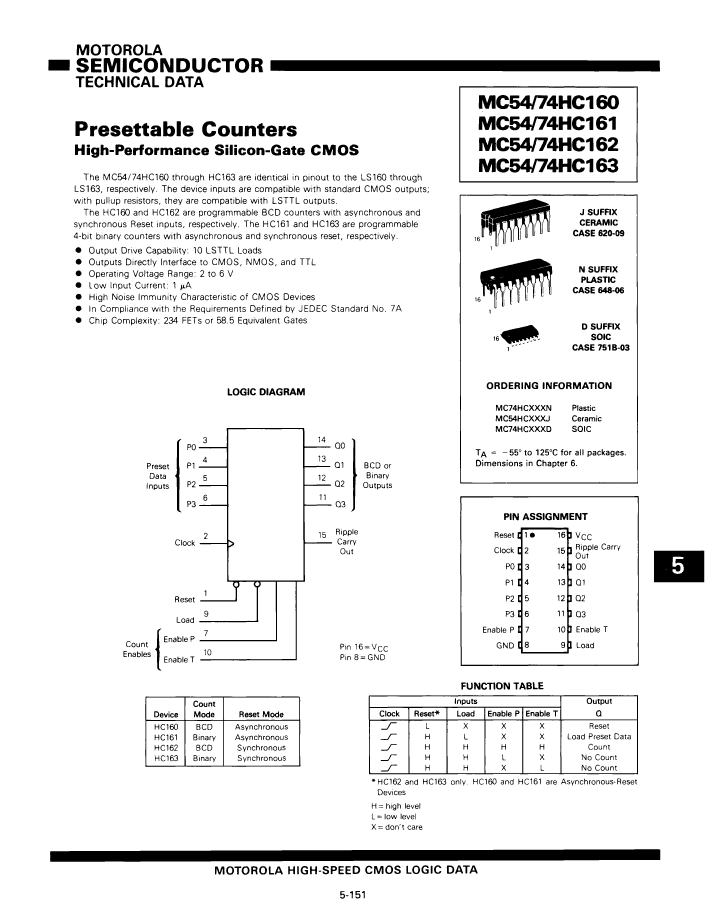

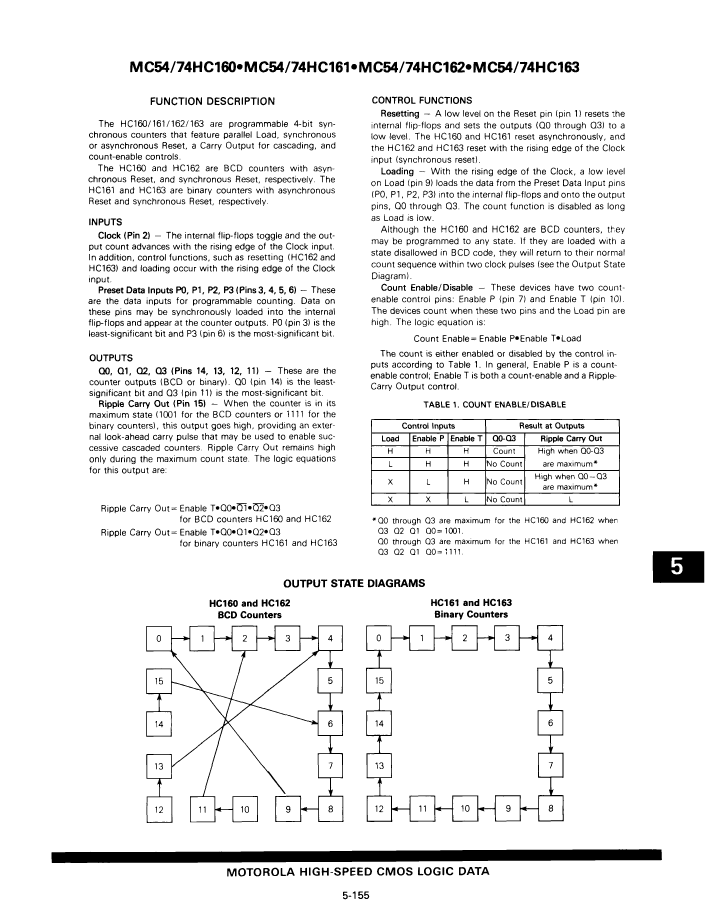

HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16

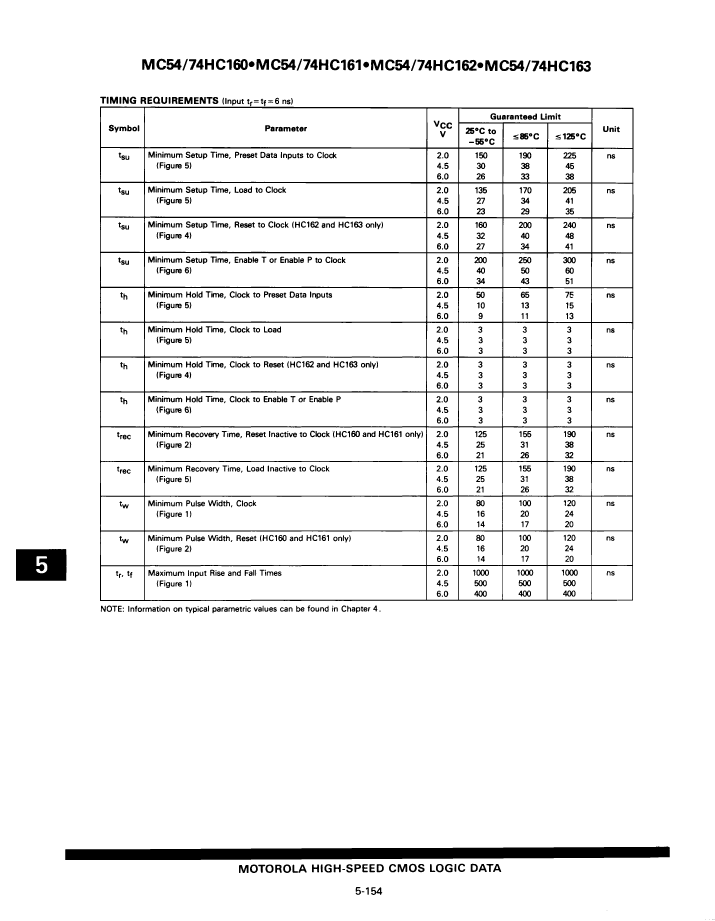

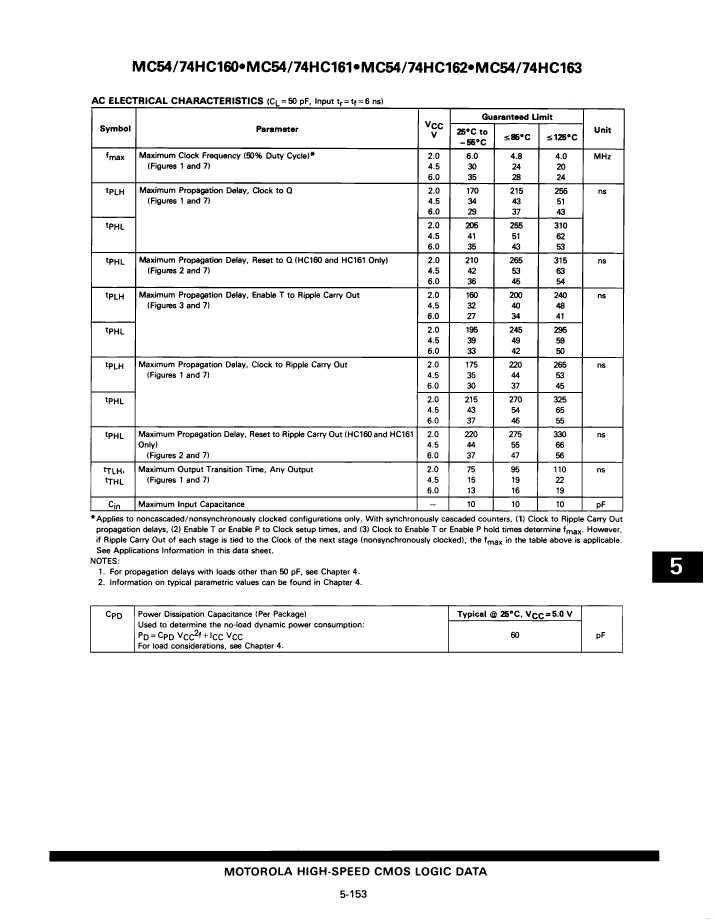

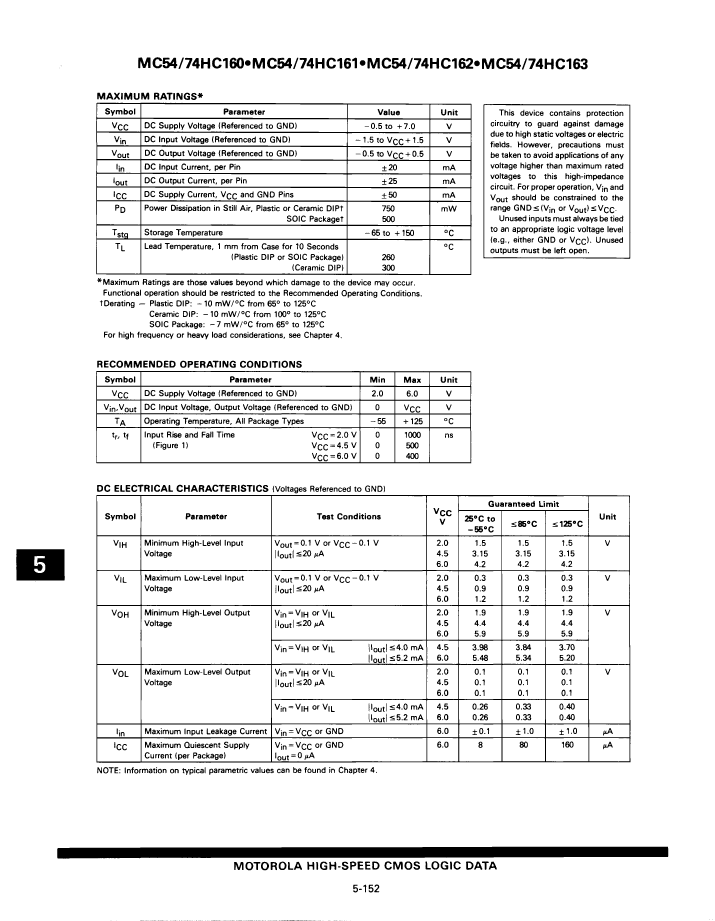

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Motorola ( NXP ) |
| Parts packaging code | SOIC |
| package instruction | SOP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Other features | TCO OUTPUT |
| Counting direction | UP |
| series | HC/UH |
| JESD-30 code | R-PDSO-G16 |
| JESD-609 code | e0 |
| length | 9.9 mm |
| Load capacitance (CL) | 50 pF |
| Load/preset input | YES |
| Logic integrated circuit type | BINARY COUNTER |
| Operating mode | SYNCHRONOUS |
| Number of digits | 4 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | SOP |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| propagation delay (tpd) | 62 ns |
| Certification status | Not Qualified |
| Maximum seat height | 1.75 mm |
| Maximum supply voltage (Vsup) | 6 V |
| Minimum supply voltage (Vsup) | 2 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 3.9 mm |
| minfmax | 20 MHz |
| MC74HC161DR2 | MC74HC163DR2 | MC74HC161N | MC74HC163N | MC74HC163D | |
|---|---|---|---|---|---|
| Description | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16 | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16 | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16 | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDIP16, PLASTIC, DIP-16 | HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT UP BINARY COUNTER, PDSO16, SOIC-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) | Motorola ( NXP ) |
| Parts packaging code | SOIC | SOIC | DIP | DIP | SOIC |
| package instruction | SOP, | SOP, SOP16,.25 | DIP, DIP16,.3 | DIP, DIP16,.3 | SOP, SOP16,.25 |
| Contacts | 16 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | TCO OUTPUT | TCO OUTPUT | TCO OUTPUT | TCO OUTPUT | TCO OUTPUT |
| Counting direction | UP | UP | UP | UP | UP |
| series | HC/UH | HC/UH | HC/UH | HC/UH | HC/UH |
| JESD-30 code | R-PDSO-G16 | R-PDSO-G16 | R-PDIP-T16 | R-PDIP-T16 | R-PDSO-G16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 |
| length | 9.9 mm | 9.9 mm | 19.175 mm | 19.175 mm | 9.9 mm |
| Load capacitance (CL) | 50 pF | 50 pF | 50 pF | 50 pF | 50 pF |
| Load/preset input | YES | YES | YES | YES | YES |
| Logic integrated circuit type | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER | BINARY COUNTER |
| Operating mode | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS | SYNCHRONOUS |
| Number of digits | 4 | 4 | 4 | 4 | 4 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | SOP | SOP | DIP | DIP | SOP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | SMALL OUTLINE | IN-LINE | IN-LINE | SMALL OUTLINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| propagation delay (tpd) | 62 ns | 62 ns | 62 ns | 62 ns | 62 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.75 mm | 1.75 mm | 4.44 mm | 4.44 mm | 1.75 mm |
| Maximum supply voltage (Vsup) | 6 V | 6 V | 6 V | 6 V | 6 V |
| Minimum supply voltage (Vsup) | 2 V | 2 V | 2 V | 2 V | 2 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | NO | NO | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | THROUGH-HOLE | THROUGH-HOLE | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 2.54 mm | 2.54 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 3.9 mm | 3.9 mm | 7.62 mm | 7.62 mm | 3.9 mm |
| minfmax | 20 MHz | 20 MHz | 20 MHz | 20 MHz | 20 MHz |
| Maximum Frequency@Nom-Sup | - | 62000000 Hz | 62000000 Hz | 62000000 Hz | 62000000 Hz |
| MaximumI(ol) | - | 0.004 A | 0.004 A | 0.004 A | 0.004 A |
| Encapsulate equivalent code | - | SOP16,.25 | DIP16,.3 | DIP16,.3 | SOP16,.25 |
| power supply | - | 2/6 V | 2/6 V | 2/6 V | 2/6 V |
| Base Number Matches | - | 1 | 1 | 1 | - |
